Troubleshooting Windows VM Activation Errors: 0xC004FD01 and 0xC004FD02 Explained

Table of Contents

Windows virtual machines (VMs) running on Azure require proper activation to ensure full functionality and compliance with Microsoft’s licensing terms. However, users occasionally encounter specific activation errors, notably 0xC004FD01 and 0xC004FD02, which can prevent a VM from activating correctly. This article provides a comprehensive guide to understanding the root causes of these errors and offers a detailed, step-by-step solution to restore your Windows VM’s activation status.

These activation issues primarily affect Windows VMs deployed within the Azure cloud environment. While activation is often seamless in Azure, misconfigurations or specific migration scenarios can disrupt this process. Addressing these errors promptly is crucial for maintaining the operational integrity and licensed status of your virtualized infrastructure.

Understanding Windows VM Activation in Azure¶

Effective licensing management is paramount for any enterprise, and virtual machines are no exception. Microsoft offers various volume activation technologies tailored for different deployment scenarios. In the context of Azure, the Key Management Service (KMS) stands out as the primary and most robust method for activating Windows Server and Windows client operating systems running as virtual machines.

Key Management Service (KMS) in Azure¶

Key Management Service (KMS) is a volume activation service that allows organizations to activate systems within their network from a KMS host. Azure provides its own KMS hosts that automatically activate Windows VMs deployed within the Azure infrastructure. This method is highly efficient, as VMs can activate without requiring individual product keys for each instance. Azure’s KMS infrastructure ensures that all supported Windows VMs provisioned through the platform can achieve and maintain activated status effortlessly.

KMS client setup keys, also known as Generic Volume License Keys (GVLKs), are pre-installed in Windows images provided by Microsoft through Azure Marketplace. These keys are designed to automatically connect to a KMS host for activation. The KMS activation process is designed to be largely transparent to the end-user, facilitating rapid deployment and scalability.

Automatic Virtual Machine Activation (AVMA)¶

Automatic Virtual Machine Activation (AVMA) is another volume activation method, but it is specifically designed for Windows Server running as guests on a Hyper-V host. With AVMA, activation occurs directly between the guest VM and the Hyper-V host, eliminating the need for an internet connection or a separate KMS server. This method relies on the Hyper-V host being properly licensed and configured to activate its guest virtual machines.

While AVMA is an excellent solution for on-premises Hyper-V environments, it is not supported within the Azure cloud platform. Azure’s virtualization infrastructure differs from a standard Hyper-V deployment that supports AVMA. VMs in Azure are expected to activate against Azure’s internal KMS hosts. When a VM configured for AVMA is migrated to Azure, or if an AVMA key is mistakenly applied, it attempts to activate against a non-existent AVMA host, leading to activation failures.

Identifying the Symptoms¶

When your Azure Windows VM encounters activation problems related to AVMA, you will typically observe specific error messages. These messages are critical diagnostic indicators that point towards the underlying issue. Recognizing these symptoms early can significantly streamline the troubleshooting process.

Error Messages¶

The primary symptoms are distinct error messages displayed during or after an activation attempt. These messages provide crucial clues about the activation failure:

• Error Code: 0xC004FD01

  • Description: “Windows isn’t running on a supported Microsoft Hyper-V virtualization platform.”
  • This error explicitly indicates that the VM is attempting to use an activation method (AVMA) designed for Hyper-V. However, the current environment (Azure) does not support this method. It’s a direct signal that the VM is looking for an AVMA host that isn’t present in Azure.

• Error Code: 0xC004FD02

  • Description: “Windows isn’t activated on the host machine. Please contact your system administrator.”
  • Similar to 0xC004FD01, this error points to an AVMA misconfiguration. It suggests that the VM believes its host (which would be an AVMA-configured Hyper-V host) is not activated, and therefore cannot provide activation to the guest. In Azure’s context, this means the AVMA activation pathway has failed.

These error codes are direct indicators that the VM’s licensing configuration is incompatible with Azure’s activation mechanisms. They signify that the VM is attempting to activate using Automatic Virtual Machine Activation rather than the Key Management Service provided by Azure.

Confirming AVMA Configuration¶

To definitively confirm that AVMA is the cause of the activation error, you can use the slmgr command-line tool. This tool, the Software Licensing Management Tool, is indispensable for managing and configuring Windows licensing.

1. Open Command Prompt as Administrator: Access your Azure Windows VM, open the Start menu, search for “Command Prompt,” right-click it, and select “Run as administrator.” This ensures you have the necessary permissions to query and modify licensing settings.

2. Execute the slmgr /dlv command: In the elevated Command Prompt window, type slmgr /dlv and press Enter. This command displays detailed license information for the currently installed operating system.

   slmgr /dlv

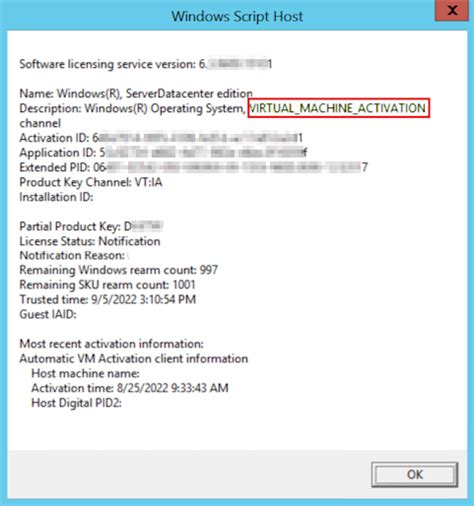

   Upon execution, a Windows Script Host dialog box will appear, presenting various licensing details. Scrutinize the “Description” line within this dialog. If you find the text “VIRTUAL_MACHINE_ACTIVATION”, it conclusively confirms that your VM is configured for AVMA. This is the smoking gun, indicating that the VM expects to be activated by a Hyper-V host, which is not how activation works in Azure. Other lines in the output, such as “Product Key Channel” or “License Status,” might also provide supporting information, but the “VIRTUAL_MACHINE_ACTIVATION” string is the most direct evidence.

Root Causes of AVMA Misconfiguration in Azure¶

Understanding how a VM ends up with an AVMA configuration in Azure is crucial for both troubleshooting and preventing future occurrences. While the immediate cause is the AVMA setting, there are common scenarios that lead to this state.

Scenario 1: Migration from On-Premises or Another Cloud Environment¶

One of the most frequent scenarios involves the migration of virtual machines from an on-premises Hyper-V environment or another cloud provider to Azure. Organizations often perform “lift and shift” operations to move existing workloads. If the source VM was running on a Hyper-V host that utilized AVMA for guest activation, the VM image might retain this configuration even after being moved to Azure.

When such a VM starts in Azure, it continues to look for an AVMA host that is no longer present. The Azure platform, relying on its internal KMS, does not provide the AVMA service, leading to activation failure. This persistence of the AVMA setting underscores the importance of pre-migration checks and post-migration adjustments.

Scenario 2: AVMA Activation Key Configured After Azure Deployment¶

Another less common but equally impactful scenario involves manually configuring an AVMA activation key on a VM after it has already been deployed to Azure. This can happen due to a misunderstanding of Azure’s activation mechanisms or if administrators mistakenly apply an AVMA key or a generic volume license key from an on-premises setup. While Azure marketplace images are typically configured for KMS activation by default, custom images or manual interventions can introduce an AVMA configuration.

For instance, an administrator might try to “fix” an activation issue by applying a known product key from an on-premises environment without realizing it’s an AVMA-specific key. This action overrides the default KMS configuration, forcing the VM to attempt activation via AVMA, which subsequently fails in the Azure environment.

The Comprehensive Solution: Transitioning to KMS¶

To resolve the 0xC004FD01 and 0xC004FD02 errors, the activation method must be switched from AVMA to Key Management Services (KMS). KMS is the officially supported and recommended activation method for Windows VMs in Azure. This transition involves updating the product key on the VM to a Generic Volume License Key (GVLK) and then instructing the VM to activate against Azure’s KMS host.

Step-by-Step Resolution¶

Follow these detailed steps to successfully change the activation method and activate your Windows VM in Azure.

Step 1: Identify the Correct KMS Client Product Key (GVLK)¶

Before proceeding, you need to identify the appropriate KMS client product key (GVLK) for your specific Windows operating system version. These keys are publicly available from Microsoft and are essential for configuring a VM to activate against a KMS host.

Here’s a table of common GVLKs for various Windows Server and client versions. Always refer to Microsoft’s official documentation for the most current and comprehensive list.

Operating System Edition	KMS Client Product Key (GVLK)
Windows Server (Datacenter)	WX4NM-CYFNG-2PHG9-CYTCJ-76PDT
Windows Server (Standard)	VC2VM-RP9MX-XTWCJ-TW2PF-QDQJG
Windows Server (Essentials)	PNHF4-W6BHG-VGYGY-K64M-JMRJK
Windows 11/10 Pro	W269N-WFGWX-YVC9B-4J6C9-T83GX
Windows 11/10 Enterprise	NPPR9-FWDCX-D2C8J-H2FDY-K2Y3D
Windows 11/10 Education	NW6C2-QMPVW-D7KKK-3GKT6-VCFB2

Note: Ensure you select the correct key for your specific Windows edition (e.g., Server Standard, Server Datacenter, Windows 10 Pro).

Step 2: Install the KMS Client Product Key¶

Open an elevated Command Prompt window on your Azure Windows VM, as demonstrated in the symptom confirmation section. Use the slmgr /ipk command to install the correct KMS client product key. Replace <product key> with the GVLK you identified in Step 1.

slmgr /ipk <product key>

For example, if you are activating Windows Server Standard, the command would be:

slmgr /ipk VC2VM-RP9MX-XTWCJ-TW2PF-QDQJG

After executing this command, a Windows Script Host message box should appear, confirming: “Installation was successful.” This indicates that the new KMS client key has been accepted by the system, replacing the previous AVMA configuration.

Step 3: Configure the Azure KMS Host¶

Even though installing the GVLK typically configures the VM to find a KMS host automatically, it’s good practice to explicitly set Azure’s KMS host and clear any old configurations. Run the following two commands consecutively:

1. Clear any previously configured KMS host:


   slmgr /ckms



   This command clears any existing KMS host names that might have been hardcoded or previously used, ensuring a clean slate.

2. Set the Azure KMS host address:


   slmgr /skms azkms.core.windows.net:1688



   This command specifies azkms.core.windows.net as the KMS host for activation, using the standard KMS port 1688. This is the official KMS endpoint for Azure VMs.

These steps ensure your VM is correctly pointed to Azure’s activation infrastructure.

Step 4: Trigger Activation¶

Once the KMS client key is installed and the KMS host is configured, you can manually trigger the activation process. In the same elevated Command Prompt, execute:

slmgr /ato

This command forces an immediate attempt to activate Windows online using the configured KMS host. If the VM has network connectivity to azkms.core.windows.net on port 1688 and the GVLK is correct, activation should succeed almost instantly. A success message indicating that Windows is activated will appear.

Step 5: Verify Activation Status¶

After completing the steps, it’s crucial to verify that your Windows VM is now successfully activated. Run the detailed license information command again:

slmgr /dlv

Examine the Windows Script Host dialog box once more. You should now see “License Status: Licensed” and the “Description” line should indicate “Key Management Service client” instead of “VIRTUAL_MACHINE_ACTIVATION.” This confirms that your VM is now properly activated against Azure’s KMS.

Alternatively, for a quick check, you can use:

slmgr /dli

This command provides a condensed view of the license information, including the current activation status.

Troubleshooting Post-Configuration Activation Issues¶

Even after correctly setting the GVLK and KMS host, activation might sometimes fail. Here are common areas to investigate:

• Network Connectivity: Ensure your VM has outbound connectivity to azkms.core.windows.net on TCP port 1688.
  • Network Security Groups (NSGs): Check any NSGs applied to the VM’s network interface or subnet to ensure port 1688 is not blocked for outbound traffic.
  • Firewall: Verify that the Windows Firewall on the VM itself isn’t blocking outbound connections to port 1688.
  • DNS Resolution: Confirm that the VM can resolve azkms.core.windows.net to an IP address. Use nslookup azkms.core.windows.net from the VM’s command prompt.
• Time Synchronization: Incorrect system time can lead to activation failures. Ensure your VM’s time is synchronized accurately.
• Event Logs: Check the System and Application event logs (specifically under “Microsoft-Windows-Security-Licensing-SLC” or “Key Management Service” for Windows Server 2012 R2 and newer) for any activation-related errors that provide more specific details.

Best Practices and Prevention¶

Proactive measures can prevent activation issues when working with Windows VMs in Azure. Implementing best practices, especially for custom images and migration workflows, is key.

Custom Images and Sysprep¶

If you are creating custom Windows images to deploy in Azure, ensure they are properly prepared for KMS activation. Before capturing an image, run Sysprep with the /generalize option. This process removes unique system information, including activation data, preparing the VM for new hardware and KMS activation upon deployment in Azure.

After running Sysprep, the VM will typically pick up the appropriate GVLK and attempt to activate against Azure’s KMS host automatically. Avoid baking specific product keys or AVMA configurations into your custom images.

Migration Planning¶

For VMs migrating from on-premises Hyper-V or other cloud environments, include activation status checks in your migration plan. Before the migration, identify if the VM is using AVMA. If it is, factor in the steps to transition to KMS activation post-migration. This pre-emptive approach minimizes downtime and activation-related headaches.

Consider using Azure Migrate or Azure Site Recovery, as these tools often handle some of the underlying adjustments for migrated VMs, but manual verification of activation status is always recommended.

Regular Monitoring¶

Periodically monitor the activation status of your Azure Windows VMs, especially mission-critical ones. You can use scripts to run slmgr /dli on multiple VMs and report their activation status. This allows you to catch and address potential deactivation issues before they impact operations.

Azure Monitor and Azure Activity Log can also be configured to alert on VM state changes or specific licensing-related events, though direct activation status reporting might require custom solutions.

Conclusion¶

Encountering activation errors 0xC004FD01 and 0xC004FD02 in Azure Windows VMs is a clear signal that your VM is configured for Automatic Virtual Machine Activation (AVMA), a method unsupported by Azure’s infrastructure. By understanding the distinction between AVMA and Key Management Services (KMS), and by following the detailed steps to reconfigure your VM with the correct KMS client product key and point it to Azure’s KMS host, you can swiftly resolve these issues.

Maintaining proper VM activation is not just about compliance; it ensures your operating system receives critical updates and full functionality. Proactive management of custom images and thorough planning for VM migrations are vital best practices to avoid these common pitfalls.

Do you have any further questions about Windows VM activation in Azure, or have you encountered unique scenarios not covered here? Feel free to share your experiences or ask for more specific guidance in the comments below.
