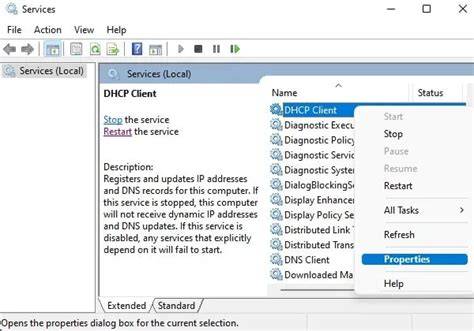

Windows DHCP Client Issues: Troubleshooting Network Connectivity Problems

Table of Contents

In modern network infrastructures, the Dynamic Host Configuration Protocol (DHCP) plays a pivotal role in automating IP address assignment, ensuring seamless connectivity for all devices. To enhance network resilience and ensure continuous service availability, organizations often deploy advanced configurations such as DHCP failover and redundant network components. Simultaneously, network security measures like DHCP snooping and Dynamic ARP Inspection (DAI) are crucial for safeguarding against common network attacks like ARP poisoning and rogue DHCP servers. However, the interplay of these sophisticated technologies, while individually beneficial, can sometimes lead to unexpected conflicts, particularly in complex Windows Server 2012 R2 environments.

This article delves into a specific scenario where DHCP clients encounter connectivity issues, including being blocked from the network, when a DAI-enabled network device is used in conjunction with a DHCP failover setup on a Windows Server 2012 R2 server. We will explore the underlying cause of this problem and provide practical workarounds to mitigate the issue, offering a deeper understanding of the involved protocols and their interactions.

Symptoms of Network Connectivity Problems¶

Consider a robust network deployment designed for high availability and security. The symptoms typically manifest within a specific configuration involving the following elements:

• DHCP Failover Deployment: You have implemented a Dynamic Host Configuration Protocol (DHCP) failover setup utilizing a server running Windows Server 2012 R2. This configuration is typically chosen to provide redundancy and load balancing for IP address assignment, ensuring that clients can always obtain an IP address even if one DHCP server fails.
• Dual Active-Active DHCP Relay Agents: In this environment, you have deployed a pair of active-active (duplicate) DHCP relay agents. These relay agents are responsible for forwarding DHCP requests between clients on different subnets and the central DHCP servers. An active-active configuration means both relay agents are simultaneously forwarding requests, aiming for maximum availability.
• Enabled Network Security Features: DHCP snooping and Dynamic ARP Inspection (DAI) are enabled on your network devices, such as switches. DHCP snooping builds a trusted database of IP-MAC address bindings, while DAI leverages this database to validate ARP packets, preventing malicious ARP traffic.

In this precise scenario, the primary symptom observed is that DHCP clients are intermittently or continuously blocked from the network. This blockage prevents clients from obtaining IP addresses or maintaining established connections, leading to significant network connectivity problems and user disruption. Clients may experience difficulty obtaining an initial IP address, or lose their IP configuration after some time, resulting in a complete loss of network access.

Understanding the Root Cause¶

The core of this problem lies in the interaction between the duplicated DHCP relay agents, the DHCP failover mechanism, and the stringent validation performed by Dynamic ARP Inspection (DAI). When two active-active DHCP relay agents are in use, they both simultaneously forward DHCP messages from clients to the DHCP server. This results in the DHCP server always receiving duplicate DHCP messages for each client connecting to the network. Although these messages originate from the same client and represent the same request, they arrive as separate packets through different paths.

For each of these duplicate DHCP requests, the DHCP failover-enabled server responds by sending different ACK (acknowledgment) messages to the clients. Crucially, these ACK messages often contain different lease duration values. This discrepancy sets up a critical race condition: the client, upon receiving the first ACK message, accepts its contained lease duration value and proceeds with network configuration. However, DAI, which is monitoring and validating network traffic, might honor or process the second received value. This creates a lease mismatch where the lease duration accepted by the client does not align with the lease duration recorded and enforced by DAI. Consequently, DAI identifies this discrepancy as a potential security anomaly and proceeds to block the client from accessing the network, considering its ARP entries invalid.

Technical Deep Dive into the Race Condition¶

Let’s further elaborate on why the DHCP server issues different lease durations. A DHCP failover setup on a Windows Server 2012 R2 server cannot guarantee a consistent lease duration for duplicated DHCP requests. This behavior is, in fact, by design, rooted in how the failover synchronization mechanism operates:

• Initial Request and MCLT: Upon receiving the first DHCP request, the DHCP server immediately sends an ACK message that includes a Maximum Client Lead Time (MCLT) lease duration value. This “Lazy Update” approach allows the server to quickly respond to the client while it asynchronously attempts to synchronize this lease information with its failover partner. MCLT is a protective measure, ensuring that the partner server has a sufficient “lead time” to take over IP address assignment if the primary server fails, without clients immediately losing their leases.
• Synchronization and Scope Lease Duration: If the synchronization response from the failover partner arrives before the duplicated request for the same client is processed, the DHCP server considers its partner to be up-to-date. In this ideal scenario, the server then sends a subsequent ACK message (if another request comes in) that includes the standard Scope lease duration value, which is the desired long-term lease.
• The Race Condition and Second MCLT: The problematic scenario occurs if the duplicate DHCP request arrives at the DHCP server before the synchronization response from the failover partner for the first request has completed. In this instance, the DHCP server perceives its partner as being out-of-sync for that specific lease. To maintain redundancy and prevent potential IP address conflicts in a failover situation, the server responds to the second duplicate request by also using the MCLT lease duration value.

The critical issue is that a DHCP failover on a Windows Server 2012 R2 server is designed to respond by sending one DHCP ACK for each DHCP request it receives, even if those DHCP requests have the same transaction ID. This means you cannot prevent the duplicate DHCP ACK messages from being sent. This inherent design, while robust for failover, directly conflicts with DAI’s strict reliance on a single, consistent lease duration for ARP validation, leading to the blocking of legitimate clients.

Workarounds for the Issue¶

Addressing this complex interaction requires either modifying the network architecture or adjusting the behavior of the involved security features. Here are several effective methods to work around this problem:

1. Prevent Duplicate DHCP Requests¶

The most direct way to resolve the issue is to eliminate the source of duplicate requests reaching the DHCP server. This can be achieved through two primary options:

• Remove the Second DHCP Relay Agent: If your network design allows, simply remove one of the active-active DHCP relay agents. While this reduces redundancy at the relay level, it ensures that only a single path exists for DHCP requests to reach the server, thereby preventing the generation of duplicate messages. This is the simplest fix if high availability at the relay agent level is not strictly critical, or if other forms of redundancy are in place.
• Operate DHCP Relay Agents in Active-Passive Mode: A more sophisticated approach that maintains redundancy is to configure your DHCP relay agents to operate in an active-passive mode. This can be achieved effectively by utilizing virtual router groups, commonly implemented with router redundancy protocols such as Hot Standby Router Protocol (HSRP) or Virtual Router Redundancy Protocol (VRRP). In such a setup, only one relay agent (the active one) forwards traffic at any given time, while the other remains in a standby state, ready to take over if the active agent fails. This ensures that only one copy of a DHCP request reaches the server, thus preventing the race condition.

2. Configure DAI to Honor the First DHCP Lease Duration Value¶

If your network equipment’s Dynamic ARP Inspection (DAI) implementation allows for such configuration, you may be able to instruct DAI to specifically honor the first DHCP lease duration value it records for a client. This would align DAI’s understanding with what the client actually accepted. The feasibility of this option heavily depends on the specific capabilities and configuration syntax of your network switches and devices. Consult your device documentation to determine if this level of granular control over DAI behavior is available. This approach directly addresses the mismatch by making DAI more flexible.

3. Disable or Remove the Conflicting DAI Feature¶

If configuring DAI to be more lenient is not an option, or if the situation demands immediate resolution, you might consider temporarily or permanently turning off or removing the specific DAI feature that is causing the conflict. While this resolves the immediate connectivity problem, it is important to acknowledge the security implications. Disabling DAI makes your network more vulnerable to ARP poisoning attacks, which can lead to man-in-the-middle attacks and unauthorized access. This workaround should only be considered after a thorough risk assessment and, ideally, in conjunction with other compensating security controls.

4. Re-evaluate Network Architecture¶

As a comprehensive solution, it might be necessary to reconsider the entire network architecture. If the combination of DHCP failover, two active relay agents, and DAI on the switches consistently leads to issues, it might be best to avoid this specific combination of technologies. For instance, simplify the relay agent setup, or review if DHCP failover is truly necessary in an active-active setup with DAI. A design review can identify alternative configurations that provide similar levels of redundancy and security without triggering this conflict.

DHCP Failover and Redundancy Protocols¶

To provide a robust network, many organizations prefer to configure dual relays (typically two routers, each pointing to two DHCP servers). This configuration is particularly common when using Virtual Router Redundancy Protocol (VRRP) or Hot Standby Router Protocol (HSRP).

In a typical VRRP or HSRP configuration, a single virtual IP address is shared between two or more routers. One router is designated as the “active” device, responsible for forwarding traffic, while the others are set to “standby” mode. A heartbeat mechanism ensures that if the active router fails to respond, the standby router seamlessly takes over the shared virtual IP address and assumes the role of the active device. When used correctly, this setup ensures that even with two physical relay agents, only one logical path for DHCP requests is active at any given time, thus preventing the issue of duplicate DHCP requests reaching the server.

DHCP Snooping and Dynamic ARP Inspection Mechanics¶

DHCP Snooping enables a switch to inspect DHCP traffic and build a binding database that maps client IP addresses to their corresponding MAC addresses, VLAN interfaces, and lease times. This information is considered “trusted.” DHCP snooping can also be used to prevent rogue DHCP servers from operating on the network. As soon as the DHCP lease duration expires, the traffic information is removed from the device database, maintaining its accuracy.

Dynamic ARP Inspection (DAI) leverages the trusted binding information created by DHCP snooping. A DAI-enabled switch intercepts all ARP requests and replies. Before forwarding an ARP packet, DAI validates it against the DHCP snooping binding database. If the IP-to-MAC address mapping in the ARP packet does not match an entry in the trusted binding table, DAI drops the packet. This mechanism effectively prevents ARP spoofing and man-in-the-middle attacks. The problem arises when the lease duration known to DAI does not match the lease duration the client is operating on, causing DAI to incorrectly invalidate legitimate ARP traffic and block the client’s port.

The inherent “by design” behavior of Windows Server 2012 DHCP failover to issue one ACK per request, even for duplicate requests with the same transaction ID, is a critical point. This ensures that in a failover scenario, the server always attempts to acknowledge every client request for robustness. However, this robust design choice, when combined with the strict validation logic of DAI that relies on a single, definitive lease duration, creates an architectural conflict that requires careful mitigation.

To visualize the problematic interaction:

```mermaid
sequenceDiagram
participant Client
participant RelayA as DHCP Relay Agent A
participant RelayB as DHCP Relay Agent B
participant DHCPServer as DHCP Server (Primary)
participant DAISwitch as DAI-Enabled Switch

Client->>RelayA: DHCP Discover/Request (ID X)
Client->>RelayB: DHCP Discover/Request (ID X)
RelayA->>DHCPServer: DHCP Discover/Request (ID X)
RelayB->>DHCPServer: DHCP Discover/Request (ID X)
Note over DHCPServer: Receives 1st Req (ID X)
DHCPServer->>RelayA: DHCP ACK (Lease Time MCLT_1)
RelayA->>Client: DHCP ACK (Lease Time MCLT_1)
Note over Client: Client accepts MCLT_1
Note over DHCPServer: Receives 2nd Req (ID X) before sync with partner
DHCPServer->>RelayB: DHCP ACK (Lease Time MCLT_2)
RelayB->>Client: DHCP ACK (Lease Time MCLT_2)
Note over DAISwitch: DAI records MCLT_2 or another value for validation
Client->>DAISwitch: ARP Request (based on MCLT_1)
DAISwitch-->>Client: ARP Invalidated / Client Blocked (MCLT_1 != MCLT_2 or DAI's internal value)

```

This sequence diagram illustrates how two seemingly identical requests lead to different ACK messages from the DHCP server, causing a mismatch in lease durations that DAI cannot reconcile.

Additional Resources for Understanding¶

For a broader understanding of DHCP failover and its practical implementation, which can help in designing more resilient and compatible networks, consider this resource:

[Video Placeholder: Search for “Windows Server DHCP Failover explained” on YouTube and embed a generic, high-quality explanation video if relevant. Example: https://www.youtube.com/embed/YOUR_VIDEO_ID_HERE ]

Understanding the nuances of DHCP snooping and DAI in a Cisco environment (which is generally representative of how these features work across vendors) can also be beneficial:

[Video Placeholder: Search for “DHCP Snooping and DAI explained” on YouTube and embed a generic, high-quality explanation video if relevant. Example: https://www.youtube.com/embed/ANOTHER_VIDEO_ID_HERE ]

---

The challenges highlighted in this article underscore the importance of meticulously planning and understanding the interactions between various network services and security features. While each technology — DHCP failover, relay agents, DHCP snooping, and DAI — serves a critical purpose in isolation, their combined deployment requires a comprehensive understanding of potential conflicts. By applying the recommended workarounds, network administrators can ensure both high availability for IP address assignment and robust security without compromising client connectivity.
