Windows Server 2016: Addressing a Known UI Limitation in CPU Information Display

Table of Contents

Windows Server 2016 remains a robust operating system, foundational for many enterprise environments. However, even well-established systems can exhibit peculiar behaviors, especially concerning how system resources are presented to administrators. One such known limitation in Windows Server 2016 involves the graphical user interface (UI) display of CPU information. This discrepancy, while often minor in appearance, can lead to significant confusion regarding actual hardware capabilities, impacting crucial aspects like capacity planning, performance troubleshooting, and even software licensing compliance.

Administrators frequently rely on readily available UI elements, such as Task Manager or System Information, for quick glances at system statistics. When these tools present data that differs from the underlying hardware reality or from more precise command-line tools, it necessitates a deeper understanding. Addressing this specific UI limitation requires a nuanced approach, acknowledging the reasons behind the discrepancies and standardizing on reliable methods for true hardware enumeration. This article delves into the specifics of this limitation, its potential ramifications, and the definitive methods for obtaining accurate CPU data.

Understanding the Discrepancy: The Core of the Problem¶

The core of the UI limitation in Windows Server 2016 often manifests as an inaccurate or misleading representation of the number of logical processors, physical cores, or even processor sockets. For instance, Task Manager might report a certain number of logical processors that doesn’t align with the hardware’s physical configuration, especially in environments utilizing technologies like Intel’s Hyper-Threading or AMD’s SMT (Simultaneous Multi-threading). While Hyper-Threading effectively doubles the number of logical processors available to the operating system by allowing a single physical core to handle two threads concurrently, the UI sometimes struggles to clearly differentiate between physical and logical units.

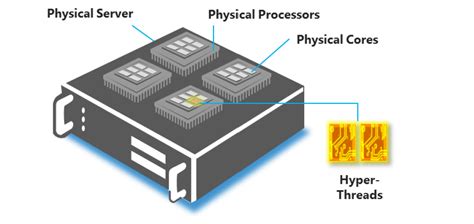

This challenge stems from the various ways an operating system perceives and reports CPU topology. Modern processors are complex, featuring multiple physical sockets, each containing multiple physical cores, and each core potentially supporting multiple logical processors via multi-threading. The UI’s simplification of this complex architecture can inadvertently omit critical distinctions. This can lead to situations where administrators might misinterpret the server’s true processing power or misunderstand how applications are utilizing the available CPU resources.

Verifying CPU Information: Beyond the Graphical Interface¶

Given the potential for misleading information within the graphical user interface, it becomes paramount for administrators to adopt more reliable methods for verifying CPU information. Accurate data is not merely a matter of curiosity; it is essential for informed decision-making regarding system performance, resource allocation, and maintaining compliance with software licenses. Relying solely on UI elements can lead to miscalculations, causing either over-provisioning of resources, which wastes capital, or under-provisioning, which results in performance bottlenecks.

To circumvent the UI’s limitations, system administrators should turn to command-line tools that query the operating system’s kernel directly or communicate with the hardware abstraction layer (HAL). These methods typically provide a more granular and precise breakdown of the CPU architecture, ensuring that the reported data reflects the actual physical and logical configuration of the processors. The following sections detail several such highly effective and recommended approaches.

Utilizing PowerShell for Precision¶

PowerShell is an indispensable tool for Windows Server administrators, offering unparalleled access to system information and configuration. For querying CPU details, PowerShell cmdlets provide a comprehensive and accurate view, surpassing the capabilities of many UI components. This method is highly recommended for scripting, automation, and precise audits of server hardware.

For instance, the Get-ComputerInfo cmdlet can provide a wealth of system data, including processor details. Executing Get-ComputerInfo -Property CsProcessors will display an array of processor objects, each detailing aspects like NumberOfCores and NumberOfLogicalProcessors. This clearly distinguishes between the physical cores and the logical processors derived from technologies like Hyper-Threading, offering a crystal-clear picture of the CPU topology. Moreover, Get-WmiObject Win32_Processor offers even more granular details, allowing administrators to inspect properties such as SocketDesignation, NumberOfCores, NumberOfLogicalProcessors, and NumberOfEnabledCore. This WMI-based approach directly queries the system’s hardware abstraction layer, providing the most authoritative information about the installed CPUs. These commands are invaluable for confirming the true CPU count and configuration, bypassing any potential UI discrepancies.

Leveraging WMIC and Systeminfo¶

Beyond PowerShell, other command-line utilities can also deliver accurate CPU information. The Windows Management Instrumentation Command-line (WMIC) tool, while somewhat deprecated in favor of PowerShell for newer management tasks, remains effective for querying specific hardware details. For CPU information, a command like wmic cpu get NumberOfCores, NumberOfLogicalProcessors, NumberOfEnabledCore can quickly return a concise summary of the critical processor counts. This output is straightforward and directly addresses the common points of confusion found in the UI.

Similarly, the systeminfo command provides a broad overview of system configuration, including processor details. Piping its output through findstr can filter for relevant lines, such as systeminfo | findstr /I "processor". While less detailed than PowerShell or WMIC for individual processor objects, systeminfo can confirm the overall number of processors and their basic characteristics, acting as a quick verification tool. These utilities complement PowerShell by offering alternative command-line avenues for verifying CPU data, reinforcing the accuracy of gathered information.

Navigating Performance Monitor (Perfmon)¶

Performance Monitor (Perfmon) is another crucial tool for understanding system resource utilization, including CPU activity. While Perfmon primarily focuses on performance counters, it also indirectly confirms CPU configuration by presenting data for each logical processor. Administrators can add counters under the “Processor” object, such as % Processor Time, for “All Instances.” The number of instances displayed under “All Instances” directly corresponds to the total number of logical processors detected by the operating system.

Though Perfmon does not explicitly list physical cores or sockets, observing the number of “Processor” instances can serve as a sanity check against the values obtained from PowerShell or WMIC. If the number of logical processors reported by Perfmon aligns with the command-line tools, it adds another layer of confidence to the accurate CPU enumeration. This comprehensive approach, combining the granular detail of PowerShell with the real-time insights of Perfmon, ensures a complete and accurate understanding of the server’s CPU capabilities.

Here’s a quick comparison of methods for obtaining CPU information:

Method	Level of Detail	Primary Use Case	Accuracy	Notes
Task Manager (UI)	Basic (Logical Processors)	Quick glance, real-time activity	Variable	Can be misleading for physical core counts
System Information (UI)	Basic (Processor Model, Count)	General system overview	Variable	Less granular, susceptible to UI limitations
PowerShell (Get-ComputerInfo, Get-WmiObject Win32_Processor)	High (Logical, Cores, Sockets)	Detailed audit, scripting, automation	High	Recommended for definitive CPU information
WMIC (wmic cpu get ...)	Medium (Logical, Cores)	Quick command-line query	High	Useful for rapid checks
Systeminfo (systeminfo | findstr ...)	Basic (Overall Processor Count)	General system summary	Medium	Confirms basic processor presence, less detail
Performance Monitor (Perfmon)	Performance-centric (Logical Processors)	Real-time utilization, logical processor count	High	Indirectly confirms logical processor count

Ramifications of Inaccurate Display¶

The seemingly minor discrepancy in a UI display can have cascading effects across various critical aspects of server management. Misinformation, especially concerning foundational resources like the CPU, can lead to poor decisions that impact performance, operational costs, and legal compliance. Understanding these ramifications underscores the importance of employing accurate verification methods.

Impact on Resource Management and Capacity Planning¶

One of the most immediate consequences of inaccurate CPU information is its impact on resource management and capacity planning. If an administrator believes a server has fewer or more physical cores than it actually possesses, this can lead to erroneous decisions about workload placement and server consolidation. Underestimating CPU capacity might cause unnecessary hardware purchases or force a premature migration of workloads, leading to inefficient resource utilization. Conversely, overestimating capacity based on a misleading UI could result in system overloads, degraded application performance, and a frustrating user experience, as the server struggles to cope with the assigned workload. This is particularly critical in virtualized environments, where precise CPU allocation per virtual machine is essential for optimal performance and host resource utilization.

Licensing and Compliance Concerns¶

Perhaps the most significant and financially impactful ramification of misreported CPU data relates to software licensing and compliance. Many enterprise software licenses, including those for Windows Server itself, SQL Server, and other Microsoft products, are based on physical processor sockets or, increasingly, on the number of physical cores. If an organization mistakenly licenses based on an inflated logical processor count presented by the UI, it could lead to severe under-licensing and non-compliance.

During a software audit, discrepancies between purchased licenses and actual physical core counts, as determined by the vendor’s precise methods, can result in hefty true-up costs and penalties. Conversely, over-licensing based on an understated physical core count would represent wasted capital. Therefore, having an absolutely accurate count of physical cores and sockets, verifiable through command-line tools, is not just good practice but a critical component of risk management and financial prudence.

Troubleshooting and Performance Diagnostics¶

Inaccurate CPU display also complicates troubleshooting and performance diagnostics. When a server experiences performance bottlenecks, the initial step for an administrator is often to check CPU utilization. If the underlying reported CPU configuration is incorrect, interpreting performance counter data becomes challenging. For example, if Task Manager indicates 100% utilization on what appears to be 16 logical processors, but the server actually only has 4 physical cores (with Hyper-Threading), the bottleneck might be related to thread contention on physical cores rather than overall logical processor capacity. This kind of misinterpretation can send administrators down the wrong path during problem resolution, extending downtime and impacting service availability. Accurate CPU information provides a foundational understanding necessary for effective performance analysis and root cause identification.

Mitigating the UI Limitation: Best Practices and Workarounds¶

While the UI limitation in Windows Server 2016 regarding CPU display is a known characteristic, administrators are not without means to mitigate its impact. By adopting specific best practices and relying on authoritative data sources, the risks associated with misinterpretation can be effectively managed. These strategies focus on proactive measures and establishing reliable procedures for system audits.

Regular System Updates and Patches¶

Microsoft continuously releases updates, hotfixes, and service packs for its operating systems, often addressing reported issues including display anomalies or improvements in hardware reporting. While a complete overhaul of the Task Manager’s CPU display logic might not have been a primary focus for Windows Server 2016 post-release, specific cumulative updates could contain fixes that refine how certain system information is presented or gathered. Therefore, maintaining servers with the latest stable updates is always a recommended practice. Staying current with patches ensures that the operating system benefits from bug fixes, security enhancements, and any minor improvements to hardware detection and reporting mechanisms.

Standardizing on Command-Line Tools for Audit¶

The most effective workaround for the UI limitation is to establish a standard operating procedure that mandates the use of command-line tools for all critical CPU information audits and capacity planning exercises. PowerShell, WMIC, and to some extent, systeminfo, provide definitive, programmatically accessible data that is far more reliable than the graphical interface. Organizations should integrate these commands into their regular server inventory scripts and documentation processes. By doing so, they create an authoritative record of their server hardware configurations that is immune to UI quirks, ensuring consistency and accuracy across their infrastructure. This standardization also aids in automated reporting and compliance checks, streamlining administrative tasks.

Documenting Hardware Configuration¶

Beyond using command-line tools, a robust practice involves thoroughly documenting the physical hardware configuration of each server at the time of deployment and after any hardware changes. This documentation should include the exact CPU model, number of physical sockets, number of physical cores per socket, and confirmation of whether Hyper-Threading (or SMT) is enabled. This serves as a primary reference point against which any reported software data can be cross-referenced. In cases where discrepancies arise, this physical documentation, combined with precise command-line output, forms an undeniable record of the server’s true capabilities, facilitating accurate capacity planning, troubleshooting, and license compliance verification.

Beyond 2016: Evolution of CPU Reporting in Windows Server¶

While the focus here is on Windows Server 2016, it is worth noting that Microsoft has continuously evolved its operating systems, including improvements in how CPU information is presented. Newer versions like Windows Server 2019 and Windows Server 2022 have seen refinements in Task Manager and other diagnostic tools, aiming for greater clarity and accuracy in distinguishing between physical and logical processor components. For instance, Task Manager in more recent Windows versions provides a more detailed breakdown, explicitly showing sockets, cores, and logical processors in a clearer graphical format.

However, even with these advancements, the fundamental challenge of interpreting complex CPU topologies remains. The distinction between physical cores and logical processors (especially with hyper-threading) will always necessitate careful consideration. Therefore, regardless of the Windows Server version, the best practice of verifying critical hardware information using definitive command-line tools like PowerShell remains highly relevant. While the UI might improve, the command line offers an unchanging, precise view of the underlying hardware that is essential for mission-critical operations and compliance.

Conclusion: Ensuring Accurate System Understanding¶

The UI limitation in Windows Server 2016 concerning CPU information display highlights a crucial lesson for all system administrators: never solely rely on graphical interfaces for critical hardware data. While convenient for quick checks, these tools can sometimes simplify or even misrepresent complex architectural details, leading to significant ramifications for capacity planning, performance troubleshooting, and, most importantly, software licensing. The precise number of physical cores and logical processors directly impacts a server’s true processing power and licensing requirements for core-based software.

By standardizing on robust command-line tools like PowerShell and WMIC, administrators can consistently obtain accurate, authoritative information about their server’s CPU configuration. This proactive approach ensures that decisions are based on facts, mitigating the risks of over/under-provisioning resources or falling out of software compliance. Regularly verifying and documenting hardware specifications provides a reliable foundation for effective server management. Understanding your server’s true capabilities, beyond what a quick glance at the UI might suggest, is fundamental to maintaining an efficient, compliant, and high-performing IT infrastructure.

What are your experiences with CPU information discrepancies in Windows Server? Have you encountered similar UI limitations, and what methods do you rely on for accurate hardware verification? Share your insights and best practices in the comments below!
