Active Directory Over NAT: Windows Server Support and Configuration Guide

Table of Contents

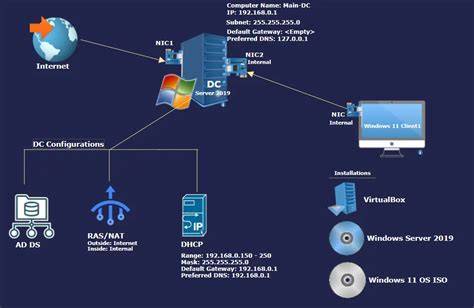

Network Address Translation (NAT) is a suite of network techniques designed to modify the address information of network traffic while it is in transit. This process typically occurs on network devices and is primarily utilized to facilitate the use of private network address schemes, sometimes also perceived, though often inadequately, as a security enhancement. The core function of NAT is to hide the internal network topology, allowing multiple devices with private IP addresses to share a single public IP address for external communication.

The deployment of Domain Controllers (DCs) and client-to-DC communication across a NAT boundary frequently arises in complex network integration scenarios, such as those encountered during corporate mergers and acquisitions. In these situations, establishing reliable authentication, authorization, and directory services, traditionally provided by Active Directory, becomes a critical requirement for connecting the disparate networks of the two entities. However, integrating a system as sensitive and interconnected as Active Directory with NAT introduces significant complexities and potential risks that warrant careful consideration.

Understanding Network Address Translation (NAT)¶

NAT operates by remapping an IP address space into another, most commonly translating private IP addresses into public IP addresses. This mechanism allows multiple devices on a private network, which uses non-routable IP addresses, to share a single public IP address when communicating with external networks like the internet. This technique addresses the scarcity of public IPv4 addresses and can also serve as a basic firewall-like layer, preventing direct access to internal hosts from external networks.

There are several types of NAT, each with its own operational characteristics. Static NAT creates a one-to-one mapping between a private and a public IP address, offering a consistent public presence for a specific internal device. Dynamic NAT, on the other hand, maps private IP addresses to a pool of public IP addresses as needed, providing more flexibility but less predictability. Port Address Translation (PAT), also known as NAT Overload or NAPT, is the most common form, where multiple private IP addresses share a single public IP address, differentiating connections by assigning unique port numbers. Understanding these distinctions is crucial when considering Active Directory deployment, as the type of NAT employed can significantly impact the reliability and functionality of various Active Directory services.

The Role of Active Directory in Enterprise Networks¶

Active Directory is Microsoft’s directory service for Windows domain networks, providing a centralized and standardized system for network administration. It acts as the backbone for identity and access management within an organization, storing information about users, computers, and other network resources. The primary services offered by Active Directory include authentication, where it verifies user identities, and authorization, where it determines what resources users can access.

Beyond these fundamental services, Active Directory also provides a hierarchical structure for organizing network objects, simplifying management and enabling policies to be applied consistently across the network. It relies heavily on several core protocols to function effectively, including Kerberos for secure authentication, Lightweight Directory Access Protocol (LDAP) for querying and updating directory information, and Domain Name System (DNS) for name resolution. The intricate dependencies among these protocols and their reliance on consistent, predictable network communication paths make Active Directory particularly sensitive to network modifications like NAT.

Microsoft’s Official Stance on Active Directory Over NAT¶

Microsoft’s position on deploying Active Directory across NAT boundaries is clear and consistent. While there is no definitive evidence suggesting that a NAT cross-forest configuration inherently breaks DC-to-DC or client-to-DC communications, it is a scenario that has not undergone rigorous testing by Microsoft. This lack of testing extends to Active Directory and other technologies intrinsically linked to it, such as the Kerberos protocol or Distributed File System (DFS).

Consequently, Microsoft explicitly states that Active Directory over NAT is not a tested configuration and, more importantly, is not recommended. This recommendation stems from the potential for unpredictable behavior and the complex troubleshooting challenges that can arise from such a setup. If issues do emerge in an Active Directory deployment spanning a NAT, the support provided will be limited and will quickly reach the bounds of commercially reasonable efforts. This means that while Microsoft support teams will attempt to assist, their ability to provide definitive solutions may be hampered by the untested nature of the configuration.

Customers who find themselves in a situation where configuring a network with NAT is necessary, and they plan to run any Microsoft Server solution (including Active Directory) across it, are strongly advised to contact Microsoft customer technical support or Microsoft Consulting Services. This proactive step can help in understanding the full scope of potential issues and exploring supported alternatives. It is imperative to acknowledge that any guidance provided for such an untested scenario offers no explicit or implied guarantee of success, and support efforts will remain within commercially reasonable limits.

The Complexities: Why NAT and Active Directory Conflict¶

The challenges of running Active Directory over NAT stem from the fundamental ways Active Directory services and its underlying protocols operate. Active Directory is designed for an environment where IP addresses are stable and directly routable, and where DNS correctly resolves names to these stable IP addresses. NAT, by its very nature, introduces a layer of address translation that can disrupt these assumptions.

DNS Resolution Issues¶

DNS is the bedrock of Active Directory, crucial for locating domain controllers, services, and other network resources. When NAT is introduced, a client on one side of the NAT might attempt to resolve a Domain Controller (DC) on the other side. The DNS query might successfully return an IP address, but if that IP address is a private address that’s being translated by NAT, the client might receive an address that is not directly reachable or that represents a different endpoint than intended. This can lead to clients failing to locate DCs, obtain Kerberos tickets, or establish LDAP connections. Proper DNS configuration, including stub zones, conditional forwarders, and ensuring accurate SRV records, becomes exponentially more complicated and prone to errors.

Kerberos Authentication Challenges¶

Kerberos, the primary authentication protocol for Active Directory, relies heavily on time synchronization and the accurate resolution of Service Principal Names (SPNs) to network identities. Kerberos tickets contain client and server IP addresses, and if NAT alters these addresses in transit, the tickets can become invalid or cause authentication failures. The server might see the client’s public IP (from NAT) instead of its private IP, and vice versa. This discrepancy can lead to integrity checks failing, or cause the Kerberos client to incorrectly believe it’s talking to an unauthorized server or that the ticket is stale.

RPC and Dynamic Port Allocation¶

Many Active Directory operations, including replication between domain controllers and various administrative tasks, utilize Remote Procedure Call (RPC). RPC often employs dynamic port allocation, meaning that after an initial connection on a well-known port (like 135 for Endpoint Mapper), subsequent communication uses randomly assigned high-numbered ports. NAT devices typically need to maintain state for these connections to correctly translate the dynamic ports. If the NAT device’s state table times out, or if it doesn’t adequately handle the complexity of RPC’s dynamic port negotiation, connections can be dropped or fail to establish, leading to service outages and replication issues.

DFS and Network Path Visibility¶

Distributed File System (DFS) relies on Active Directory for configuration and name resolution. DFS namespaces and folders are referenced by UNC paths, which ultimately resolve to server names and IP addresses. If NAT obscures the true network paths or interferes with the resolution of these paths, users might experience issues accessing shared resources. The complexity of referrals and target identification in DFS can be severely impacted by address translation, leading to inconsistent or failed access.

Replication Instability and Latency¶

DC-to-DC replication is vital for maintaining a consistent Active Directory database across all domain controllers. This process uses RPC, LDAP, and Kerberos. All the aforementioned challenges related to these protocols contribute to potential replication instability when NAT is involved. Increased latency due to NAT processing, coupled with potential dropped connections or retransmissions, can lead to replication failures, slow convergence, and ultimately, an inconsistent directory. This inconsistency can manifest as user login problems, group policy application issues, and general instability of the Active Directory environment.

A Visual Representation of AD Communication Flow¶

To better illustrate the complexity, consider a simplified communication flow between an Active Directory client and a Domain Controller.

```mermaid
graph TD
subgraph Private Network A
C[Client]
end

subgraph Private Network B
    DC[Domain Controller]
end

subgraph NAT Boundary
    N_PubA[NAT Public IP A]
    N_PrivA[NAT Private IP A]
    N_PubB[NAT Public IP B]
    N_PrivB[NAT Private IP B]
end

C -- Request DNS for DC --> N_PrivA
N_PrivA -- Translate to N_PubA --> N_PubA
N_PubA -- Route to DC's Network --> N_PubB
N_PubB -- Translate to N_PrivB --> N_PrivB
N_PrivB -- Deliver to DC --> DC

DC -- Respond with DC IP --> N_PrivB
N_PrivB -- Translate to N_PubB --> N_PubB
N_PubB -- Route to Client's Network --> N_PubA
N_PubA -- Translate to N_PrivA --> N_PrivA
N_PrivA -- Deliver to Client --> C

```
Diagram: Simplified Active Directory Communication Flow with NAT

This diagram shows a client (C) trying to reach a Domain Controller (DC) across two NAT boundaries. Each translation step (from private to public IP and back) introduces potential points of failure, especially if the NAT device is not perfectly configured or stateful for all the complex protocols AD uses.

The Only Tested Configuration¶

While Active Directory over NAT is generally not recommended, Microsoft has tested and supports one specific configuration. This scenario involves running clients on the private side of a NAT device, with all servers (including Active Directory Domain Controllers) located on the public side of the NAT. In this setup, the NAT device also functions as a DNS server for the private network.

In this configuration, the communication flow is considerably simpler. Clients on the private network initiate connections to servers on the public network. The NAT device translates the client’s private source IP address to its own public IP address. From the perspective of the public-facing servers, all client requests originate from the NAT device’s public IP. Responses from the servers are directed back to the NAT device’s public IP, which then translates the destination address back to the private IP of the originating client. Crucially, the servers themselves are not behind a NAT, and their IP addresses are directly accessible from the public network (and thus from the NAT device). Furthermore, if the NAT device also acts as a DNS server, it can accurately resolve public server names to their public IP addresses, minimizing the name resolution complexities that plague other NAT configurations. This simplifies routing and address translation, making it a more predictable and therefore supported setup.

Recommended Alternatives to Active Directory Over NAT¶

Given the complexities and support limitations associated with Active Directory over NAT, organizations are strongly encouraged to explore more robust and supported alternatives for connecting disparate networks. These alternatives generally prioritize direct routability and secure tunnel creation over address translation, leading to more stable and manageable Active Directory environments.

Site-to-Site VPN Connections¶

A Site-to-Site Virtual Private Network (VPN) is perhaps the most common and recommended method for securely connecting two distinct network segments, such as those in a merger or acquisition scenario. A VPN establishes an encrypted tunnel between two network gateways (e.g., routers or firewalls) across an untrusted network like the internet. Crucially, VPNs typically forward traffic directly between the private IP address ranges of the connected sites without performing NAT on the internal traffic. This means that Domain Controllers and clients on both sides of the VPN can communicate using their native private IP addresses, making Active Directory operations, including Kerberos, LDAP, and replication, function as if they were on a single extended network. This approach maintains the direct IP address visibility essential for Active Directory and offers robust security through encryption.

Dedicated Network Links (Leased Lines)¶

For organizations requiring high bandwidth, low latency, and maximum reliability between locations, dedicated network links, such as leased lines or MPLS (Multi-Protocol Label Switching) connections, are an excellent solution. These links provide a direct, private connection between sites, effectively extending the corporate network without traversing the public internet. This eliminates any need for NAT and ensures that Active Directory traffic flows seamlessly and without interference. While typically more expensive than VPNs over the internet, dedicated links offer superior performance and stability, making them ideal for mission-critical Active Directory replication and cross-site user authentication.

Forest Trusts Without NAT¶

When connecting two distinct Active Directory forests, establishing a forest trust is the standard and supported method for enabling cross-forest authentication and resource access. A forest trust allows users in one forest to access resources in another, provided there is a direct, routable network path between the domain controllers of both forests. The key here is “direct, routable network path,” meaning no NAT should interfere with the communication between the domain controllers or between clients and domain controllers across the trust boundary. Combined with a Site-to-Site VPN or a dedicated link, forest trusts provide a secure, scalable, and fully supported solution for inter-company Active Directory integration.

Carefully Planned Network Architecture¶

Ultimately, the most effective strategy involves careful network planning and architecture that avoids the necessity of NAT for Active Directory traffic altogether. This includes:

• Non-overlapping IP Subnets: Ensure that the private IP address ranges of the two merging companies do not overlap. If they do, re-IPing one of the networks is a necessary, albeit often challenging, prerequisite for seamless integration.
• Robust DNS Design: Implement a comprehensive DNS strategy that ensures all Active Directory-related queries can be resolved accurately across the connected networks. This might involve creating conditional forwarders or stub zones in each forest’s DNS servers to point to the other forest’s DNS servers.
• Proper Firewall Rules: Configure firewalls to allow the necessary Active Directory ports (e.g., LDAP, Kerberos, DNS, SMB, RPC dynamic ports) to communicate freely between the relevant hosts across the secure network link.
• Thorough Testing: Regardless of the chosen solution, extensive testing of Active Directory functionality (authentication, replication, group policy, DFS access) across the newly connected networks is paramount before moving to production.

Troubleshooting Considerations¶

Should a scenario arise where Active Directory operations are problematic in a NAT environment, even if not recommended, a systematic troubleshooting approach is essential. While Microsoft’s support for such configurations is limited, understanding common diagnostic tools and their application can help pinpoint issues.

Key Diagnostic Tools:¶

• DCDiag: This command-line tool analyzes the state of domain controllers, checking for issues with DNS, replication, Kerberos, and other critical services. Failures reported by DCDiag can often point to underlying network communication problems exacerbated by NAT.
• Repadmin: Used for diagnosing and troubleshooting Active Directory replication issues. If replication is failing across a NAT, Repadmin can provide error codes and status information that might indicate network connectivity problems.
• Wireshark (or Network Monitor): A powerful packet analyzer that can capture and examine network traffic. By inspecting packets, you can see if IP addresses are being translated as expected, if Kerberos tickets are being formed correctly, and if RPC connections are establishing and maintaining state. This can reveal if the NAT device is interfering with specific protocol flows.
• Nslookup / Dig: Essential for verifying DNS resolution. Checking if domain controllers are resolving to their correct (pre-NAT or post-NAT) IP addresses and if SRV records are discoverable is a critical first step.
• PortQry: This tool can be used to test port connectivity to a remote host. It can help confirm if the necessary Active Directory ports are open and reachable across the NAT boundary.

When troubleshooting, always consider the impact of address translation. Are the clients seeing the correct IP addresses for the DCs? Are the DCs seeing the correct client IP addresses for authentication requests? Is the NAT device maintaining state for dynamically allocated RPC ports? Each of these questions can lead to a deeper understanding of where the NAT is breaking the expected Active Directory communication flow.

Conclusion¶

Deploying Active Directory over Network Address Translation (NAT) is a complex endeavor fraught with potential challenges and significant limitations in official support from Microsoft. While the theoretical possibility of communication exists, the intricate dependencies of Active Directory on stable IP addresses, reliable DNS resolution, and predictable protocol behavior make it highly susceptible to disruption by NAT. Microsoft explicitly advises against this configuration due to a lack of testing and the potential for commercially unreasonable support efforts if issues arise.

Organizations facing the need to connect networks where Active Directory services must span a NAT boundary are strongly encouraged to prioritize supported alternatives. Site-to-Site VPNs, dedicated network links, and carefully planned forest trusts without intervening NAT are the recommended approaches to ensure the stability, security, and manageability of Active Directory. Proactive engagement with Microsoft technical support or consulting services is also a prudent step to mitigate risks and explore best practices for complex integration scenarios. Prioritizing a robust and supported network architecture will ultimately lead to a more resilient and functional Active Directory environment.

Have you encountered challenges with Active Directory and NAT in your deployments? What strategies or solutions have you found most effective for integrating Active Directory across complex network boundaries? Share your experiences and insights in the comments below!
