Capacity Reservation Issues? Troubleshoot VM & VM Scale Set Deployment Failures
Deploying virtual machines (VMs) and VM Scale Sets in Azure is a fundamental operation for many organizations, yet it can sometimes be fraught with unexpected challenges. One of the most critical, and often misunderstood, areas leading to deployment failures is related to capacity management, specifically when dealing with Azure Capacity Reservations. These issues can manifest as “AllocationFailed” errors, preventing your critical workloads from deploying or scaling as intended. Understanding the underlying causes and implementing effective troubleshooting strategies is paramount to maintaining operational efficiency and ensuring the availability of your cloud resources.
This comprehensive guide delves into the intricacies of capacity reservation issues within Azure. We will explore what Azure Capacity Reservations are, identify common reasons why deployments might fail, and provide detailed, actionable steps to troubleshoot both individual VM and VM Scale Set deployment failures. By the end of this article, you will be equipped with the knowledge and tools to diagnose and resolve these capacity-related hurdles, ensuring smoother and more reliable Azure operations.
Understanding Azure Capacity Reservations¶

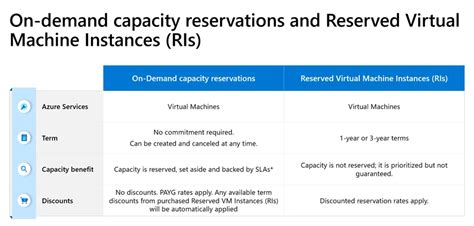

Azure Capacity Reservations are a powerful feature designed to provide customers with the assurance of dedicated compute capacity in a specific Azure region or availability zone. Unlike standard pay-as-you-go deployments, which compete for available resources, Capacity Reservations guarantee that the chosen VM size and quantity will always be available for your subscription when you need them. This certainty is crucial for mission-critical applications, large-scale deployments, or scenarios where resource availability is a strict prerequisite.
The primary benefit of utilizing Capacity Reservations is guaranteed capacity. This ensures that your deployments will not be hindered by transient resource shortages, which can be particularly common during peak demand periods or for highly specialized VM SKUs. Furthermore, Capacity Reservations offer cost predictability by allowing you to commit to a specific amount of capacity, often at a reduced rate compared to on-demand pricing, especially when combined with Azure Reserved Instances. This combination provides both operational assurance and financial savings, making them an attractive option for strategic cloud planning.
Capacity Reservations operate on a regional or zonal basis, meaning you specify the location where you require the guaranteed capacity. They are tied to a particular VM SKU (e.g., Standard_D4s_v3) and a specific instance count. When you deploy a VM or VM Scale Set that matches the characteristics of an active Capacity Reservation, Azure prioritizes using that reserved capacity. If the reserved capacity is not being fully utilized, you only pay for the reservation, not for the idle VMs, until you deploy resources against it. This model helps prevent deployment failures due to resource scarcity, offering a stable foundation for your cloud infrastructure.
Common Causes of Capacity-Related Deployment Failures¶
Despite the benefits of Capacity Reservations, deployments can still encounter issues. Identifying the root cause is the first step toward resolution. Many failures stem from a mismatch between the deployment request and the available or reserved capacity. Understanding these common pitfalls can significantly streamline your troubleshooting process and help prevent future occurrences.
One frequent cause is insufficient reserved capacity. This occurs when the number of VM instances you are attempting to deploy exceeds the total count specified in your Capacity Reservation. For instance, if you have reserved capacity for 10 Standard_D4s_v3 VMs, but try to deploy 12, the additional two instances will fail unless there’s sufficient on-demand capacity available in that region/zone, or they might error out immediately if explicitly configured to use the reservation. Similarly, a mismatch between the VM size/SKU and reserved capacity will lead to failures. If your reservation is for Standard_D4s_v3 but you attempt to deploy a Standard_E4s_v3, it will not utilize the existing reservation and will instead attempt an on-demand deployment, which might fail due to general capacity constraints.
Other factors include regional or zonal capacity constraints, even with reservations. While a reservation guarantees capacity, issues can arise if the specific host cluster backing your reservation experiences a temporary outage or if other, unrelated internal Azure services are under strain. Incorrect reservation scope can also cause problems; a reservation might be intended for a single VM, but you attempt to apply it to a VM Scale Set, which might require a different configuration or policy. Finally, standard Azure subscription limits can sometimes be misidentified as capacity reservation issues. Even if you have a reservation, exceeding your core, VM, or regional resource quotas within your subscription will prevent successful deployments. Transient network issues or service disruptions, though less common, can also contribute to temporary allocation failures, necessitating a retry after a short period.

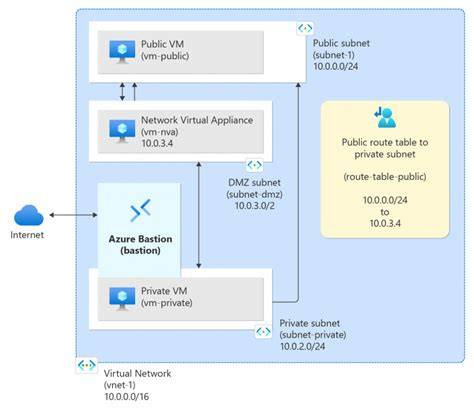

Troubleshooting Virtual Machine (VM) Deployment Failures¶
When an individual VM deployment fails, particularly with an “AllocationFailed” error, the initial reaction might be frustration. However, a systematic approach to troubleshooting can quickly pinpoint the problem. Start by examining the most common culprits before delving into more complex diagnostics.
Initial Checks¶
Before diving deep into Capacity Reservations, perform these preliminary checks:
1. Check Azure Status page: Visit status.azure.com to see if there are any ongoing service issues in the region where you are trying to deploy. Regional outages or degraded performance can often lead to allocation failures.
2. Verify subscription limits: Ensure your subscription has sufficient quota for the VM size and count you are attempting to deploy. This includes global core limits, regional core limits, and specific VM family core limits. You can check these limits in the Azure portal under “Subscriptions” -> “Usage + quotas”.

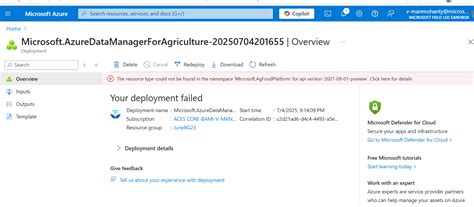

3. Review deployment error messages: The error message in the Azure portal or Activity Log is your first clue. Look for specific error codes like AllocationFailed, CapacityReservationConflict, or QuotaExceeded. These codes often provide direct hints about the nature of the problem.
Diagnosing Capacity Reservation Issues for VMs¶
If initial checks don’t reveal the problem, focus on your Capacity Reservation:
* Verify VM SKU compatibility with reservation: Double-check that the exact VM SKU (e.g., Standard_D4s_v3) you are deploying precisely matches the SKU defined in your Capacity Reservation. Even a minor difference in tier or size will prevent it from using the reservation.
* Ensure reservation is in the correct region/zone: Confirm that the Capacity Reservation is created in the exact same Azure region and availability zone (if applicable) where you are attempting to deploy your VM. Deploying a VM to a different zone than its reservation will bypass the guaranteed capacity.
* Check available capacity within the reservation: Go to your Capacity Reservation resource in the Azure portal. Verify that the “Allocated Instances” count is less than the “Total Instances” count. If they are equal, the reservation is fully utilized, and you cannot deploy more VMs against it.
* Review reservation properties: Ensure the reservation is “Active” and not in a “Deleting” or “Failed” state. Also, check its “Applicable to” setting to ensure it applies to your current subscription or shared scope.
* Consider deploying without a reservation: As a troubleshooting step, try deploying the VM without explicitly linking it to a Capacity Reservation (if your deployment method allows). If this succeeds, it strongly indicates the reservation itself or its configuration is the problem. If it still fails, the issue is likely general on-demand capacity or a quota limit.
Step-by-Step Resolution for VMs¶
Once you’ve diagnosed the specific issue, apply the corresponding resolution:
* Adjust reservation size/count: If the problem is insufficient reserved capacity, increase the “Total Instances” of your Capacity Reservation to accommodate your deployment. Note that increasing a reservation might take a few minutes to provision the additional capacity.
* Change VM SKU: If there’s a SKU mismatch, either modify your VM deployment request to use the SKU specified in the reservation or create a new Capacity Reservation for the desired VM SKU.
* Try a different region/zone: If the issue is persistent in a specific region or zone, and your application architecture permits, consider deploying to an alternate region or availability zone where capacity might be more readily available, especially for non-reserved deployments.
* Contact Azure Support: If you have exhausted all troubleshooting steps and believe there’s an underlying platform issue with your Capacity Reservation or if you require a quota increase beyond self-service options, open a support ticket with Azure. Provide all relevant error codes, timestamps, and deployment IDs.

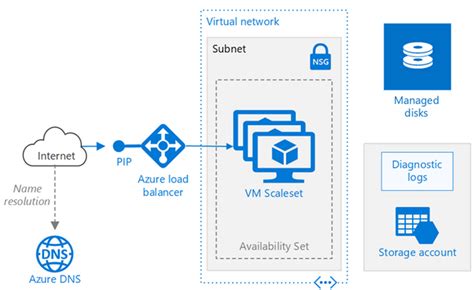

Troubleshooting VM Scale Set Deployment Failures¶
VM Scale Sets introduce additional layers of complexity when dealing with capacity reservations due to their dynamic nature and ability to scale instances automatically. Troubleshooting these can be more intricate than individual VMs, as issues might arise during initial deployment, scaling-out operations, or even instance creation within the scale set.
Unique Challenges for VM Scale Sets¶
VM Scale Sets present several unique considerations when it comes to capacity:
* Scaling operations: When a VM Scale Set scales out, each new instance attempts to acquire capacity. If the linked Capacity Reservation is exhausted or if on-demand capacity is limited, scaling operations will fail, leading to an inconsistent number of desired vs. actual instances.
* Instance distribution across zones: For zonal VM Scale Sets, capacity must be available across all specified zones. A shortage in even one zone can prevent the scale set from reaching its target capacity or lead to uneven distribution.
* Combined capacity requirements: A VM Scale Set often requires a larger block of capacity at once compared to a single VM. This aggregated demand can quickly exhaust reservations or on-demand pools if not adequately planned.
Diagnosing Capacity Reservation Issues for VM Scale Sets¶
Diagnosing scale set issues requires looking at the overall health and specific instance states:
* Verify VMSS SKU compatibility with reservation: Just like individual VMs, ensure the VM SKU chosen for your Scale Set perfectly matches the SKU in your Capacity Reservation. This is critical for the scale set to utilize the reserved capacity.
* Ensure reservation is correctly linked to the VMSS: When creating or updating a VM Scale Set, you must explicitly link it to a Capacity Reservation Group or directly to a Capacity Reservation. Verify this link is correctly established in the Azure portal or through your ARM templates.
* Monitor scale set health and instance status: In the Azure portal, navigate to your VM Scale Set and check the “Instances” blade. Look for instances stuck in “Creating” or “Failed” states. The error messages associated with these individual instances can provide valuable clues. Also, monitor the “Health” blade for any alerts.
* Check for partial deployments: If your scale set successfully deploys some instances but not all, it often points to a capacity issue. The initial instances might have consumed all available reserved or on-demand capacity, leaving subsequent instances unable to allocate resources. Review the Activity Log for multiple AllocationFailed errors for different instances.
Step-by-Step Resolution for VM Scale Sets¶
Resolving VM Scale Set capacity issues often involves adjusting both the reservation and the scale set configuration:
* Review and adjust reservation policy for VMSS: If your scale set is linked to a Capacity Reservation Group, ensure the group has enough cumulative capacity from its member reservations to support the scale set’s needs. You might need to add more reservations to the group or increase existing ones.
* Modify scale set capacity or instance count: If the reservation is exhausted, you have two options: increase the capacity of your Capacity Reservation or temporarily reduce the desired instance count of your VM Scale Set until more capacity becomes available or is reserved.
* Consider over-provisioning (if not using reservations primarily for cost): For VM Scale Sets, over-provisioning (where Azure creates more VMs than requested and then deletes the excess) can sometimes help mitigate transient allocation failures by increasing the likelihood of successful allocations. However, this incurs additional compute costs temporarily.
* Implement custom scaling logic if necessary: In highly sensitive environments, you might need to implement custom scaling logic using Azure Functions and Azure Monitor alerts. This allows for more granular control, such as retrying failed scale-out operations with a delay, or attempting to deploy to alternative zones if primary ones are experiencing issues.

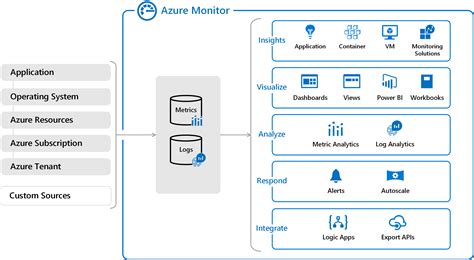

Leveraging Azure Monitoring and Diagnostics¶
Effective troubleshooting relies heavily on robust monitoring and diagnostic tools. Azure provides a suite of services that can help you identify, understand, and resolve capacity reservation issues efficiently. Integrating these tools into your operational workflow is a critical best practice.
Azure Activity Log¶
The Azure Activity Log is an invaluable resource for tracking management operations and events within your subscription. Any VM or VM Scale Set deployment attempt, whether successful or failed, generates an entry here. When a deployment fails due to capacity issues, the Activity Log will record events with details such as the operation name (e.g., “Create or Update Virtual Machine”), status (“Failed”), and most importantly, the error code and message in the JSON payload. Filtering by resource type (e.g., Microsoft.Compute/virtualMachines, Microsoft.Compute/virtualMachineScaleSets) and status can quickly narrow down relevant events.
Azure Monitor Metrics¶
Azure Monitor offers a rich set of metrics that can provide insights into resource utilization and service health. For Capacity Reservations, you can monitor metrics such as:
* Allocated Instances: Shows how many instances are currently consuming the reserved capacity.
* Total Instances: Displays the total number of instances reserved.
* Usage Percentage: Calculates the percentage of reserved capacity currently in use.
Monitoring these metrics over time helps you understand capacity trends, identify potential shortages before they occur, and determine if your reservations are appropriately sized. You can also monitor VM and VM Scale Set deployment metrics to track success rates and identify any anomalies.
Resource Health¶
The Azure Resource Health service provides information about the health of your individual Azure resources, including VMs and VM Scale Sets. While it might not directly indicate a capacity reservation issue, it can tell you if an instance is unhealthy due to underlying platform issues, which might indirectly contribute to allocation failures. Checking Resource Health can confirm if the issue is with your deployment request or broader Azure service health.
Azure Advisor¶
Azure Advisor is a personalized cloud consultant that helps you follow best practices to optimize your Azure deployments. It can provide recommendations related to cost, security, reliability, operational excellence, and performance. In the context of capacity, Advisor might suggest rightsizing your VMs, using Reserved Instances (which complement Capacity Reservations for cost savings), or highlight potential capacity-related bottlenecks based on your usage patterns. Regularly reviewing Advisor recommendations can lead to proactive adjustments and prevent future deployment failures.

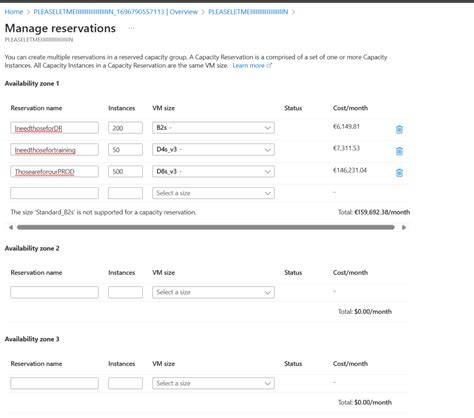

Best Practices for Managing Capacity Reservations¶
Effective management of Azure Capacity Reservations is key to minimizing deployment failures and optimizing cloud resource utilization. Implementing a set of best practices ensures that your reserved capacity aligns with your evolving business needs, providing both reliability and cost efficiency.
Proactive Planning: The cornerstone of successful capacity management is foresight. Continuously forecast your compute needs based on historical usage, anticipated growth, and seasonal demands. This involves understanding your application’s peak requirements, identifying critical workloads that necessitate guaranteed capacity, and estimating the required VM SKUs and instance counts well in advance. Regularly review these forecasts to ensure they remain accurate and relevant.
Regular Review and Adjustment: Capacity requirements are rarely static. Establish a routine schedule, perhaps quarterly or semi-annually, to review your existing Capacity Reservations. Monitor their utilization using Azure Monitor metrics. If reservations are consistently underutilized, consider reducing them to save costs. Conversely, if you frequently encounter “AllocationFailed” errors even with reservations, it’s a strong indicator that your reserved capacity is insufficient and needs to be increased. Adjustments can also involve changing VM SKUs within reservations if your workload requirements evolve.
SKU Consistency and Alignment: Maintain strict consistency between the VM SKUs specified in your Capacity Reservations and the SKUs you intend to deploy. Any mismatch will prevent your deployments from utilizing the reserved capacity, leading to potential on-demand allocation failures. Implement clear naming conventions and tagging strategies for your reservations and VMs to ensure easy identification and alignment. This also applies to VM families and generations; ensure your reservation matches the exact instance type you’re deploying.
Zonal Deployment Strategy: For applications requiring high availability and resilience, leverage Azure Availability Zones. When using Capacity Reservations in a zonal context, plan your reservations to be distributed across multiple zones, mirroring your application’s architecture. This ensures that even if one zone experiences issues, your capacity remains guaranteed in other zones, allowing your applications to continue operating. Configure your VM Scale Sets to spread instances across zones, linking them to a Capacity Reservation Group that includes reservations in each target zone.
Proactive Alerting and Monitoring: Don’t wait for a deployment to fail to discover capacity issues. Set up proactive alerts in Azure Monitor for key metrics. For example, configure alerts to notify you when the “Allocated Instances” metric for a Capacity Reservation approaches its “Total Instances” limit, or when the “Usage Percentage” exceeds a predefined threshold (e.g., 90%). Additionally, create alerts for AllocationFailed events in the Azure Activity Log, allowing your operations team to respond swiftly to potential capacity shortages. Early detection is crucial for mitigating impact and ensuring business continuity.
Example Scenario: A Common Allocation Failure¶
Imagine an organization, “TechCorp,” that manages a critical e-commerce platform hosted on Azure. Their platform relies on a VM Scale Set to handle fluctuating customer traffic, and they’ve invested in Azure Capacity Reservations for their Standard_D8s_v3 VMs to guarantee capacity during peak sales events.
One morning, the operations team receives an alert that their e-commerce VM Scale Set is struggling to scale out. During a flash sale, the scale set, configured for auto-scaling, attempts to add 5 new Standard_D8s_v3 instances, but only 2 succeed. The Azure Activity Log quickly shows multiple AllocationFailed errors for the remaining 3 instances. The error message indicates “The requested VM size ‘Standard_D8s_v3’ cannot be allocated in region ‘East US 2’ at this time.”
TechCorp’s team investigates. They first check their Capacity Reservation for Standard_D8s_v3 in “East US 2”. They discover their reservation was configured for 20 instances, and 18 instances were already running from the scale set before the current scaling attempt. When the scale set tried to add 5 more, only 2 slots remained in the reservation, leading to the AllocationFailed errors for the additional 3 VMs.
The resolution is clear: the Capacity Reservation needs to be increased. TechCorp’s team immediately adjusts the “Total Instances” of their Standard_D8s_v3 reservation in “East US 2” from 20 to 25. Within minutes, the additional capacity is provisioned, and the VM Scale Set automatically retries its scaling operation, successfully deploying the remaining 3 instances. This scenario highlights how easily capacity limits can be hit and the importance of monitoring and adjusting reservations proactively based on demand.
Visual Aids and Supporting Media¶
To further illustrate the concepts discussed, here are some supporting visual aids.
Diagram: Azure Capacity Reservation Workflow¶
Understanding the decision-making process Azure undertakes during a deployment request is key to troubleshooting. This Mermaid diagram illustrates how Capacity Reservations fit into the resource allocation workflow.
mermaid
graph TD
A[Start Deployment Request (VM/VMSS)] --> B{Is a Capacity Reservation specified/linked?};
B -- Yes --> C[Check Reservation 'X' for Match (SKU, Region, Zone)];
C -- Match Found & Capacity Available --> D[Allocate Resources from Reservation 'X'];
C -- No Match or Capacity Unavailable --> E[Attempt On-Demand Allocation (Regional/Zonal)];
B -- No --> E;
E -- On-Demand Capacity Available --> F[Allocate Resources On-Demand];
E -- On-Demand Capacity Unavailable --> G[Deployment Failure: AllocationFailed];
D --> H[VM/VMSS Deployed Successfully];
F --> H;
Table: Common Error Codes and Resolutions¶
This table summarizes frequent error codes encountered during deployment and their typical resolutions, focusing on capacity-related issues.
| Error Code | Description | Potential Resolution |
|---|---|---|
AllocationFailed |
Azure cannot allocate resources for the requested VM size, often due to temporary regional/zonal capacity constraints. | Try a different VM size/SKU, region, or availability zone. If using a Capacity Reservation, ensure it has available slots. Wait a few minutes and retry. Check Azure Status page for regional issues. |
CapacityReservationConflict |
The requested VM size or count for a VM/VMSS conflicts with the specified Capacity Reservation, or the reservation is already fully utilized. | Verify the VM SKU and instance count match the Capacity Reservation. Increase the ‘Total Instances’ of the Capacity Reservation. If using a VM Scale Set, ensure its policy aligns with the reservation. |
SubscriptionQuotaExceeded |
The deployment exceeds your subscription’s overall limits for cores, VMs, or specific resource types. | Request a quota increase through the Azure portal support ticket. Reduce the deployment size if feasible. |
QuotaExceeded |
Similar to SubscriptionQuotaExceeded, but often more specific to a resource type or region. |
Identify the specific quota (e.g., regional core quota for a particular VM family) that has been exceeded. Request a targeted quota increase for that resource type/region. |
ResourceNotFound |
The Capacity Reservation specified in your deployment does not exist, has been deleted, or the ID is incorrect. | Verify the Capacity Reservation ID and name. Ensure the reservation exists in the correct subscription and resource group. |
InvalidResourceReference |
A reference to the Capacity Reservation or Capacity Reservation Group in the VM/VMSS configuration is malformed or invalid. | Correct the reference to the Capacity Reservation or Capacity Reservation Group in your ARM template or Azure CLI/PowerShell command. Ensure the resource ID is fully qualified and accurate. |
Understanding Azure Capacity Reservations and Troubleshooting Tips¶
For a visual walkthrough and deeper dive into managing Azure Capacity Reservations and common troubleshooting techniques, consider watching this insightful video tutorial. It provides practical demonstrations and expert advice to help you optimize your Azure deployments and prevent capacity-related failures.
Conclusion¶
Navigating capacity reservation issues in Azure is a critical skill for any cloud professional responsible for deploying and managing virtual machines and VM Scale Sets. While Capacity Reservations offer significant benefits in terms of guaranteed capacity and cost predictability, misunderstandings or misconfigurations can lead to frustrating deployment failures. By systematically approaching troubleshooting, leveraging Azure’s powerful diagnostic tools, and adhering to best practices, organizations can minimize downtime, ensure resource availability, and maintain the smooth operation of their cloud infrastructure.
Remember that proactive planning, continuous monitoring, and regular adjustments to your Capacity Reservations are far more effective than reactive troubleshooting. Stay vigilant about your resource utilization, align your reservations with your actual needs, and use the insights provided by Azure Monitor and Advisor to preempt potential issues. With these strategies in place, you can confidently deploy and scale your workloads on Azure, knowing that your capacity needs are met.
