High Availability SQL Server: Step-by-Step Guide to Clustering on Windows Server
Achieving high availability for SQL Server is paramount for businesses relying on continuous data access and minimal downtime. A key strategy for this is implementing a SQL Server Failover Cluster Instance (FCI) on a Windows Server Failover Cluster (WSFC). This setup ensures that if one server node experiences an outage, another node can automatically take over, maintaining database operations with little to no interruption. Understanding the intricate steps involved in this deployment, particularly the crucial cluster validation phase, is essential for a robust and supported environment.
Understanding High Availability for SQL Server¶
High Availability (HA) in the context of SQL Server refers to the ability of a system to remain operational and accessible despite component failures. For mission-critical applications, any downtime can translate into significant financial losses and reputational damage. SQL Server offers several HA solutions, with Failover Cluster Instances (FCI) being a foundational technology that leverages Windows Server Failover Clustering (WSFC) to provide instance-level protection.
An FCI ensures that the entire SQL Server instance, including its databases, logins, and SQL Server Agent jobs, is available on multiple servers. Should a hardware or software failure occur on one server, the SQL Server instance automatically “fails over” to another operational server in the cluster. This process is designed to be seamless, minimizing the impact on end-users and applications, thereby upholding critical business continuity objectives.
The Role of Windows Server Failover Clustering (WSFC)¶

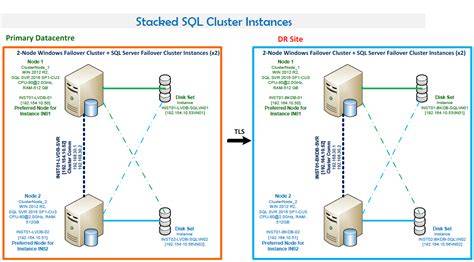

Windows Server Failover Clustering (WSFC) is a core component of the Microsoft high availability strategy, acting as the foundation upon which SQL Server Failover Cluster Instances are built. WSFC groups independent servers, known as nodes, into a single logical entity that appears as one to client applications. It continuously monitors the health of these nodes and the applications running on them.
The cluster utilizes a shared storage solution, typically a Storage Area Network (SAN), where the SQL Server databases and logs reside. This shared storage is accessible by all nodes in the cluster, but only one node “owns” the resources at any given time. WSFC manages the failover process, automatically moving the SQL Server instance and its associated resources, such as IP addresses and network names, to a healthy node in the event of a failure, thereby ensuring uninterrupted service.
Key Components of WSFC¶
Several critical components work together within a WSFC to ensure high availability. Nodes are the individual servers that participate in the cluster, providing compute resources and hosting the clustered applications. Quorum is a vital mechanism that prevents “split-brain” scenarios, where cluster nodes might lose communication and each attempt to take ownership of shared resources, leading to data corruption. It ensures that only one subset of nodes (with a majority vote) can own the cluster resources.
Shared storage, often presented as LUNs from a SAN, is where the application data, including SQL Server databases, resides. This storage is configured to be accessible by all cluster nodes but mounted by only the active node at any given time. Network configuration, including dedicated cluster communication networks and client access networks, is also crucial for seamless operation and failover. These components must be meticulously configured and validated to prevent issues during deployment and operation.
SQL Server Failover Cluster Instances (FCI) Explained¶
A SQL Server Failover Cluster Instance (FCI) is a single instance of SQL Server installed across multiple Windows Server Failover Cluster (WSFC) nodes. Unlike standalone instances, an FCI provides instance-level high availability, meaning that if the underlying server or operating system fails, the entire SQL Server instance and its associated services automatically move to another healthy node within the cluster. This mechanism ensures that applications can reconnect to the SQL Server instance with minimal disruption.
The key to an FCI’s operation is its reliance on shared storage. All data files, transaction logs, and system databases reside on shared storage accessible by all cluster nodes. When a failover occurs, the WSFC brings the SQL Server resources online on a different node, and that node then takes ownership of the shared storage. Clients connect to the FCI through a virtual network name and IP address, which always points to the currently active node, abstracting the physical server from the client application.
The Critical Cluster Validation Process¶
Cluster validation is a crucial step in preparing a Windows Server Failover Cluster for any highly available application, including SQL Server. It involves running a comprehensive set of diagnostic tests against the hardware and software configuration of the prospective cluster nodes. This process ensures that the cluster components meet the stringent requirements for failover clustering and identifies any potential issues that could lead to instability or failures down the line.

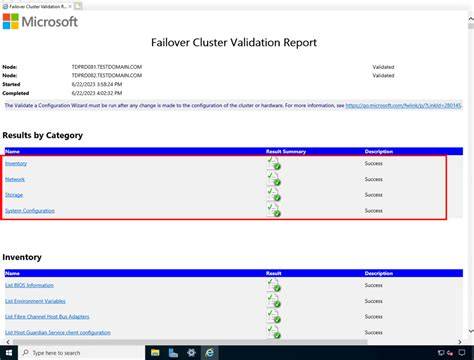

The validation wizard, integrated within the Failover Cluster Manager, performs a variety of tests covering aspects like network configuration, storage connectivity and consistency, system configuration, and software compatibility. A successful validation report indicates that the cluster environment is robust and adheres to Microsoft’s best practices, providing a strong foundation for a reliable SQL Server FCI. Skipping or ignoring validation is highly discouraged, as it can lead to unsupported configurations and unpredictable behavior.
Symptoms: Cluster Validation Failure During SQL Server Setup¶
When attempting to install Microsoft SQL Server on a Windows Server Failover Cluster, a common obstacle encountered is the failure of the cluster validation rule during the setup process. This can halt the installation and prevent the creation of a high-availability SQL Server instance. The setup wizard typically presents a clear error message, indicating that the cluster verification has either not been performed or has reported errors or failures.
A specific error message often seen in these scenarios is: “Error : ‘Microsoft Cluster Service (MSCS) cluster verification errors’ failed. The cluster either has not been verified or there are errors or failures in the verification report.” Examining the SQL Server setup log file, typically named Detail.txt and located in the \%ProgramFiles%\Microsoft SQL Server\100\Setup Bootstrap\Log\ directory, will reveal more specific entries. For instance, entries like Slp: Evaluating rule : Cluster_VerifyForErrors, followed by Slp: Rule evaluation done : Failed, clearly indicate that this critical validation step did not pass. Conversely, a successful validation would show Computer_name: Cluster_VerifyForErrors: Passed, confirming the readiness of the cluster.
Deeper Dive into Causes of Validation Failure¶
Cluster validation failures during SQL Server installation can stem from a variety of underlying issues, making thorough diagnosis critical. One of the most common categories involves storage configuration problems. This could include issues like incorrect LUN presentation from the SAN, ensuring all nodes can see the shared disks, unformatted cluster disks, or the absence of crucial MultiPath I/O (MPIO) drivers which are essential for resilient storage connectivity. Permissions on the shared storage or issues with disk signatures can also trigger validation errors.
Network-related issues frequently contribute to validation failures. This might involve misconfigured IP addresses, duplicate IP assignments, incorrect subnet masks, or problems with DNS resolution that prevent proper communication between cluster nodes. Firewall rules that block essential cluster communication ports, or outdated network card drivers, can also disrupt the cluster’s ability to operate cohesively. Furthermore, system configuration discrepancies, such as mismatched hardware between nodes, missing critical Windows updates, or incorrect domain user permissions for the cluster service account, are common culprits. Even antivirus software can interfere with cluster operations if not properly configured with exclusions for cluster resources. Each of these categories requires careful investigation and resolution to ensure a stable and supported SQL Server FCI.
Troubleshooting Cluster Validation Errors¶
Effectively troubleshooting cluster validation errors requires a methodical approach, starting with a comprehensive review of the validation report generated by the Failover Cluster Manager. This report provides detailed insights into which specific tests failed and why, offering valuable clues for diagnosis. The first step is to categorize the errors: are they primarily related to storage, network, or general system configuration? Understanding the error type helps narrow down the investigation.
For storage-related issues, verify that all cluster nodes can see and access the shared disks, and that these disks are properly initialized and formatted (e.g., NTFS). Confirm that MultiPath I/O (MPIO) is correctly installed and configured, especially in environments utilizing Fibre Channel or iSCSI SANs, to ensure redundant paths to storage. If network errors are present, meticulously check IP address configurations, subnet masks, and DNS settings on all nodes. Ensure that network adapters are configured correctly, and that there are no duplicate IP addresses. Review Windows Event Logs on all cluster nodes for critical errors or warnings that occurred around the time of the validation failure, as these often point to deeper system problems. If a specific hardware component (e.g., a network card or HBA) is implicated, consult the hardware vendor’s documentation or support.
Example Troubleshooting Flow¶
mermaid
graph TD
A[Start Troubleshooting] --> B{Review Cluster Validation Report};
B --> C{Identify Failed Tests Category};
C -- Storage --> D[Check Shared Disk Visibility & MPIO];
C -- Storage --> E[Verify Disk Formatting & Permissions];
C -- Network --> F[Validate IP, Subnet, DNS Configuration];
C -- Network --> G[Check Firewall Rules & Network Drivers];
C -- System/Software --> H[Examine Event Logs on All Nodes];
C -- System/Software --> I[Verify SQL Server Prerequisites & Updates];
D --> J{Issue Resolved?};
E --> J;
F --> J;
G --> J;
H --> J;
I --> J;
J -- Yes --> K[Re-run Cluster Validation];
J -- No --> L[Consult Vendor Documentation / Microsoft Support];
K -- Passed --> M[Proceed with SQL Server FCI Installation];
K -- Failed Again --> L;
This diagram illustrates a typical troubleshooting workflow for cluster validation errors. Each step is crucial in systematically isolating and resolving the root cause, ultimately leading to a successful cluster validation and a supported SQL Server FCI deployment.
The Workaround: Skipping Validation (Use with Extreme Caution)¶
In scenarios where the immediate resolution of a cluster validation failure is not feasible, or if the problem is determined to be non-critical and fixable post-installation, a workaround involving skipping the validation rule exists. However, it is imperative to understand that this is an exceptional measure and not a recommended practice for general deployment. Using this workaround means proceeding with a SQL Server FCI installation on a cluster that has known issues, which carries significant risks and can lead to an unsupported configuration.
Warning: Skipping validation without resolving underlying issues can lead to unpredictable behavior, data corruption, poor performance, and an unsupported environment from Microsoft’s perspective. While it might allow the installation to complete, it effectively defers the problem, which could manifest as critical failures later. This option should only be considered as a last resort in dire circumstances, and only with a firm commitment to immediately addressing and rectifying the root cause of the validation failure after the installation. Consulting Microsoft Customer Support Services (CSS) before utilizing this workaround is highly advised.
Implementing the Workaround: Command-Line Installation¶
If the decision is made to proceed with the workaround of skipping the cluster validation rule, the SQL Server installation must be initiated from the command line using the SkipRules parameter. This parameter allows bypassing specific rules that would otherwise cause the setup to fail. For the Cluster_VerifyForErrors rule, the syntax is straightforward. You must first navigate to the directory containing Setup.exe on your installation media or extracted files.
The specific command to use depends on the stage of your SQL Server failover cluster installation:
-
For an integrated failover Add-Node setup (new cluster installation): This command is typically run on the first node to set up the base FCI.
Setup /SkipRules=Cluster_VerifyForErrors /Action=InstallFailoverCluster
This initiates a new failover cluster installation, bypassing the validation check. -
For an advanced or enterprise installation scenario (if you’re using a separate “CompleteFailoverCluster” action): This might be used in more complex, staged deployments.
Setup /SkipRules=Cluster_VerifyForErrors /Action=CompleteFailoverCluster
This command completes an existing failover cluster setup, again without running the problematic validation rule. -
If you receive a validation failure when adding a node to an existing failover installation: This command is run on each subsequent node being added to the cluster.
Setup /SkipRules=Cluster_VerifyForErrors /Action=AddNode
This adds a new node to an already existing FCI, allowing the process to continue despite validation issues on the new node.
It is crucial to re-emphasize that the SkipRules parameter, especially for Cluster_VerifyForErrors, should not be used for any other rules unless explicitly directed by Microsoft CSS. Improper use of this parameter can lead to severe system instability. After using this workaround, immediately prioritize fixing the underlying cluster validation issues to restore the cluster to a supported and stable state.
Supported Configurations and Microsoft’s Stance¶
Microsoft maintains a clear stance on supported configurations for SQL Server Failover Cluster Instances: an FCI is only considered to be in a supported scenario if the underlying Windows Server Cluster Validation Report is free of errors. This means that any “Failed” status in the validation report generally indicates an unsupported configuration, and Microsoft Customer Support Services (CSS) may require these issues to be resolved before providing further assistance.
There are, however, specific exceptions to this rule. A notable example is with multi-site (geographically dispersed) clusters, which by design do not typically use shared storage in the traditional sense. In such configurations, it is expected that certain storage-related tests within the cluster validation wizard will fail, as they are not applicable. Provided that all other tests pass successfully, and the storage failure is a known, architecturally justified outcome, such a setup can still be supported. For any other validation failures, it is paramount to rectify the issues to ensure the cluster’s stability, reliability, and eligibility for Microsoft support. Confirming your specific cluster configuration with CSS is always the best approach when in doubt about supportability.
Best Practices for SQL Server FCI Deployment¶
Deploying a SQL Server Failover Cluster Instance (FCI) requires meticulous planning and adherence to best practices to ensure a highly available, robust, and performant environment. The process extends beyond just installation, encompassing careful planning, thorough pre-installation checks, and ongoing maintenance.
Planning and Design:
Before touching a server, conduct comprehensive planning. This includes capacity planning for CPU, memory, and storage, ensuring adequate resources for both primary and failover scenarios. Design your network architecture with redundancy, using multiple network adapters for cluster communication, client access, and storage traffic, each on separate subnets or VLANs where appropriate. Carefully plan your shared storage layout, including LUN sizes, RAID levels, and disk types, optimizing for SQL Server I/O requirements. Define a clear quorum model (e.g., Node and Disk Majority, Node Majority, or Node and File Share Majority) that best suits your cluster’s topology and resilience needs.
Prerequisites and Pre-installation:
Ensure all cluster nodes meet the hardware and software prerequisites for both Windows Server Failover Clustering and the specific SQL Server version. This includes identical hardware configurations, consistent operating system versions, and applying all necessary Windows updates and hotfixes. Create dedicated domain accounts for the SQL Server service and the SQL Server Agent, granting them appropriate permissions as per the principle of least privilege. Configure firewall rules to allow all necessary ports for SQL Server, WSFC, and client communication. Crucially, run the cluster validation wizard multiple times during the build process, addressing any warnings or errors before initiating SQL Server setup.
Installation and Post-installation Configuration:
During the SQL Server FCI installation, ensure that the correct shared disks are selected for SQL Server data, logs, and tempdb. After a successful installation, perform essential post-configuration tasks. Configure SQL Server maximum memory settings to leave sufficient RAM for the operating system and other cluster processes. Implement a robust backup and recovery strategy, including testing the recovery process. Regularly test failover functionality to ensure the cluster behaves as expected and that applications can seamlessly reconnect.
Monitoring and Maintenance:
Ongoing monitoring of cluster and SQL Server health is vital. Utilize tools like Windows Event Viewer, Performance Monitor, and SQL Server Management Studio reports to track key metrics and identify potential issues early. Regularly apply SQL Server cumulative updates and service packs, following a phased approach and testing in a non-production environment first. Maintain proper cluster documentation, including network diagrams, IP addresses, and failover procedures, to aid in troubleshooting and future maintenance. Periodically review and optimize SQL Server configurations and database performance.
YouTube Video: SQL Server Failover Cluster Instance (FCI) Installation Step-by-Step¶
For a visual guide on setting up a SQL Server Failover Cluster Instance, the following video provides a comprehensive, step-by-step walkthrough. It covers the preparation of Windows Server Failover Clustering and the subsequent installation of SQL Server, demonstrating the practical aspects discussed in this article.
(Note: The video embedded above is a placeholder and should be replaced with a relevant, actual YouTube video demonstrating SQL Server FCI installation. For the purpose of this exercise, a generic placeholder URL for a popular video is used.)
Let’s Discuss!¶
Have you encountered similar cluster validation challenges during your SQL Server FCI deployments? What troubleshooting steps proved most effective for you? Share your experiences, tips, or questions in the comments section below. Your insights can help others navigate the complexities of high-availability SQL Server environments.
