Mastering Many-to-One Client Mappings in IIS: A Configuration Guide

Table of Contents

In modern web environments, secure authentication is paramount. Microsoft Internet Information Services (IIS) provides robust mechanisms for client authentication, including the powerful Many-to-One Client Certificate mapping. This feature allows administrators to associate multiple client certificates with a single Windows account, streamlining user management and bolstering security for web applications.

Many-to-One Client Certificate mapping is a sophisticated authentication method employed by IIS to link an end-user’s digital certificate to a specific Windows account. When a client presents a certificate for authentication, IIS uses predefined rules to match the certificate’s properties against configured criteria. Upon a successful match, the user’s session is executed under the context of the designated Windows account, providing a centralized and efficient way to manage access without requiring individual Windows accounts for every client certificate holder. This approach enhances security by decoupling client identities from server-side accounts, while still leveraging the strong cryptographic assurances of client certificates.

Despite its utility, the current version of IIS Manager does not offer a direct graphical user interface (GUI) for configuring either One-to-One or Many-to-One client certificate mappings. This necessitates the use of the powerful Configuration Editor feature, a robust tool that allows direct manipulation of IIS configuration settings. This article provides a detailed guide on how to leverage the Configuration Editor, as well as command-line tools and scripting, to effectively set up Many-to-One client certificate mappings in IIS.

Understanding the IIS Client Certificate Mapping Authentication Schema¶

To effectively configure Many-to-One client certificate mappings, it’s crucial to understand the underlying IIS configuration schema. The schema defines the structure and permissible values for the iisClientCertificateMappingAuthentication section within the IIS configuration system. Familiarity with this schema allows for precise and accurate configuration, whether through the GUI or command-line interfaces.

The system.webServer/security/authentication/iisClientCertificateMappingAuthentication section is where all the magic happens. It contains several key attributes and elements that control the behavior of client certificate mapping. This includes global settings like enabled and manyToOneCertificateMappingsEnabled, as well as a collection for defining individual manyToOneMappings and their associated rules. Each rule specifies the criteria based on certificate fields that must be met for a mapping to occur.

<sectionSchema name="system.webServer/security/authentication/iisClientCertificateMappingAuthentication">
   <attribute name="enabled" type="bool" defaultValue="false" />
   <attribute name="manyToOneCertificateMappingsEnabled" type="bool" defaultValue="true" />
   ...
   <element name="manyToOneMappings">
     <collection addElement="add" clearElement="clear">
       <attribute name="name" type="string" required="true" isUniqueKey="true"
       validationType="nonEmptyString" />
       <attribute name="description" type="string" />
       <attribute name="enabled" type="bool" defaultValue="true"/>
       <attribute name="permissionMode" type="enum" defaultValue="Allow">
         <enum name="Allow" value="1"/>
         <enum name="Deny" value="2" />
       </attribute>
       <element name="rules">
         <collection addElement="add" clearElement="clear">
           <attribute name="certificateField" type="enum" required="true" isCombinedKey="true">
             <enum name="Subject" value="1" />
             <enum name="Issuer" value="2" />
           </attribute>
           <attribute name="certificateSubField" type="string" caseSensitive="true"
           required="true" isCombinedKey="true" />
           <attribute name="matchCriteria" type="string" caseSensitive="true"
           required="true" isCombinedKey="true" />
           <attribute name="compareCaseSensitive" type="bool" isCombinedKey="true" defaultValue="true" />
         </collection>
       </element>
       <attribute name="userName" type="string" validationType="nonEmptyString" />
       <attribute name="password" type="string" caseSensitive="true" encrypted="true"
       defaultValue="[enc:AesProvider::enc]" />
     </collection>
   </element>
   ...
</sectionSchema>

Let’s break down the most critical elements and attributes within this schema:

Element/Attribute	Type	Description
enabled	bool	A global switch to enable or disable client certificate mapping authentication for the entire web site or application. Setting this to true is essential for the feature to function.
manyToOneCertificateMappingsEnabled	bool	Specifically enables or disables Many-to-One certificate mappings. This allows for a granular control, even if enabled is true, you can still disable this specific type of mapping.
manyToOneMappings	collection	This element holds a collection of individual Many-to-One mapping entries. Each entry defines how a set of client certificates will map to a single Windows account.
--name(inmanyToOneMappings) |string`	A unique identifier for a specific Many-to-One mapping. This is required and serves as a descriptive label for the mapping.
--description(inmanyToOneMappings) |string`	An optional field to provide a more detailed explanation of the mapping’s purpose or the certificates it covers.
--userName(inmanyToOneMappings) |string| The Windows account (e.g.,DOMAIN\username`) to which matching client certificates will be mapped. This account’s credentials will be used for the user’s session.
--password(inmanyToOneMappings) |string| The password for the specifieduserName. IIS stores this encrypted using a configured encryption provider (e.g.,AesProvider`).
--rules(inmanyToOneMappings) |collection| A nested collection within eachmanyToOneMapping` entry. It defines one or more criteria that a client certificate must satisfy to be matched to this specific Windows account. All rules within a mapping must be met.
----certificateField(inrules) |enum| Specifies which part of the client certificate will be inspected. Options includeSubject(the certificate's owner) orIssuer` (the certificate authority that issued it).
----certificateSubField(inrules) |string| Narrows down thecertificateFieldto a specific attribute, such asCN(Common Name),OU(Organizational Unit),O(Organization),L(Locality),S(State/Province), orC` (Country). This field is case-sensitive.
----matchCriteria(inrules) |string| The actual value to be matched against thecertificateSubField`. This can be a specific string or a pattern that the certificate’s sub-field must contain or match. It is case-sensitive by default.
----compareCaseSensitive(inrules) |bool| Determines whether thematchCriteriacomparison should be case-sensitive. Defaulting totrue` provides stricter matching.

Understanding these attributes is fundamental for successful configuration, allowing administrators to precisely define which certificates map to which Windows accounts. The isUniqueKey and isCombinedKey attributes also signify how IIS identifies unique entries within collections, which is important for programmatically adding or modifying settings.

Prerequisites for Configuration¶

Before diving into the configuration steps, ensure that your IIS server and client environment meet the following essential prerequisites. Meeting these requirements will prevent common issues and ensure a smooth setup process for client certificate mapping.

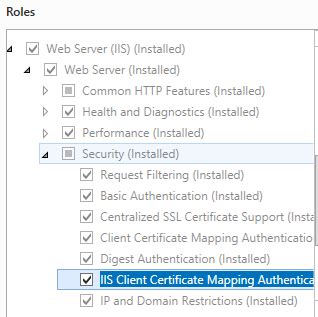

1. IIS Client Certificate Mapping Authentication Module Installation: The IIS Client Certificate Mapping module must be installed on your IIS server. This feature is not installed by default and needs to be explicitly added through the Server Manager’s “Add Roles and Features Wizard.” Navigate to “Web Server (IIS) > Web Server > Security” and select “Client Certificate Mapping Authentication.” Without this module, the iisClientCertificateMappingAuthentication section will not be available in your IIS configuration.

2. Web Site Configured with HTTPS Binding: The web site intended for client certificate authentication must have an HTTPS binding configured with a valid Secure Sockets Layer (SSL)/Transport Layer Security (TLS) certificate. Client certificates are exchanged over a secure, encrypted connection. This means that your web site must be accessible via https:// (typically on port 443) and have a trusted server certificate installed and assigned to the binding. The SSL/TLS handshake is the first step in client certificate authentication.

3. Client Certificate Installed on the Client: Each client attempting to authenticate must have a valid client certificate installed in its personal certificate store. This certificate should be issued by a trusted Certificate Authority (CA) that your IIS server also trusts. The client certificate is what the client presents to IIS for identity verification. It’s crucial that this certificate is accessible by the client’s browser or application.

Configuring Certificate Mapping via Configuration Editor¶

The Configuration Editor in IIS Manager provides a powerful graphical interface to manage server-level and site-level configuration settings directly. While it doesn’t offer a specific UI for certificate mappings, it allows direct manipulation of the underlying configuration schema for iisClientCertificateMappingAuthentication.

Step-by-Step Guide for Configuration Editor¶

1. Launch IIS Manager: Open Server Manager, navigate to Tools, and select Internet Information Services (IIS) Manager. This will launch the primary console for managing your web server.

2. Select Target Web Site: In the Connections pane on the left, expand your server name, then expand Sites, and select the specific web site (e.g., “Default Web Site”) for which you want to configure client certificate authentication. This ensures that your configurations apply only to the intended web application.

3. Access Configuration Editor: In the main Features View pane, under the Management section, locate and double-click Configuration Editor. This tool allows you to browse and modify every aspect of your applicationHost.config and web.config files through a user-friendly interface.

4. Navigate to the Mapping Section: From the Section drop-down list at the top of the Configuration Editor window, select system.webServer/security/authentication/iisClientCertificateMappingAuthentication. This will display all the configurable properties and collections for client certificate mapping. You will now see the UI for configuring settings related to both Many-to-One and One-to-One certificate mappings.

5. Modify Global Mapping Properties:

   • Set the enabled property to True. This is the overarching switch to activate client certificate mapping authentication for the selected site.
   • Set the manyToOneCertificateMappingsEnabled property to True. This specifically activates the Many-to-One mapping functionality, allowing the rules you define to be processed.
   • To begin defining the actual mappings, locate the manyToOneMappings property. This property represents a collection of all your Many-to-One mapping entries. Click on the ellipsis button (…) next to the (Collection) value to open a new window for managing these mappings.

6. Add a New Many-to-One Mapping:

   • In the manyToOneMappings Collection Editor window, click Add in the Actions pane to create a new mapping entry.
   • Configure the properties for this new mapping:
     • name: Provide a unique, descriptive name for this mapping (e.g., “DevelopersGroupMapping”). This helps in identifying the purpose of the mapping.
     • description: Optionally add a more detailed explanation (e.g., “Maps all developers’ certificates to the Developers Windows account”).
     • userName: Enter the Windows account (e.g., MYDOMAIN\developers) to which the matching client certificates will be mapped. Ensure this account has the necessary permissions on the web server.
     • password: Enter the password for the specified userName. IIS will automatically encrypt this password when saving the configuration. Be sure to use a strong, unique password.

7. Define Certificate Matching Rules:

   • Within the same manyToOneMappings Collection Editor window, with your newly created mapping selected, locate the rules property. Click the ellipsis button (…) next to (Collection) for the rules property. This will open another Collection Editor window specifically for defining the matching rules for this particular Many-to-One mapping.
   • In the rules Collection Editor, click Add to create a new rule. A Many-to-One mapping can have multiple rules, and a client certificate must satisfy all defined rules to be mapped.

   • Configure the properties for each rule:

     • certificateField: Choose either Subject or Issuer. The Subject field refers to the owner of the certificate, while the Issuer field refers to the Certificate Authority that issued it.
     • certificateSubField: Specify the specific attribute within the chosen certificateField. Common examples include CN (Common Name), OU (Organizational Unit), O (Organization), L (Locality), S (State/Province), or C (Country).
     • matchCriteria: Enter the exact string or pattern that the certificateSubField must contain or match. For instance, if certificateField is Subject and certificateSubField is CN, matchCriteria might be “John Doe” or “Dev Team”.
     • compareCaseSensitive: Set this to True for an exact, case-sensitive match, or False for a case-insensitive comparison. Defaults to True.

   • Repeat this step to add multiple rules if necessary. For example, you might have one rule matching on the Issuer.O field and another rule matching on the Subject.OU field, both of which must be true for the mapping to occur. In the provided example images, there are two entries for rules, likely one for the Subject and another for the Issuer fields, combined with a matchcriteria property to map to the mydomain\testuser account. This composite rule system allows for highly specific and flexible certificate matching.

8. Apply and Commit Changes:

   • Once you have finished adding all rules, close the rules Collection Editor window.
   • Close the manyToOneMappings Collection Editor window.
   • Finally, in the main Configuration Editor window, click Apply in the Actions pane to save your changes. This will update the applicationHost.config or web.config file with the new Many-to-One certificate mapping configurations.

Visualizing the Mapping Logic¶

To better understand how rules work, consider this diagram:

mermaid graph TD A[Client Certificate Presented] --> B{Does IIS trust Issuer?}; B -- Yes --> C{Is Client Cert Mapping Enabled?}; C -- Yes --> D{Is Many-to-One Mapping Enabled?}; D -- Yes --> E[Iterate Through manyToOneMappings]; E --> F{Match Mapping 1?}; F -- No --> G{Match Mapping 2?}; G -- No --> H[No Match / Authentication Failed]; F -- Yes --> I[All Rules for Mapping 1 Match?]; I -- Yes --> J[Authenticate as Windows Account X]; G -- Yes --> K[All Rules for Mapping 2 Match?]; K -- Yes --> L[Authenticate as Windows Account Y]; B -- No --> H; C -- No --> H; D -- No --> H;

This diagram illustrates that for each manyToOneMapping entry, all its associated rules must be satisfied for the client certificate to be successfully mapped to the specified Windows account. This provides fine-grained control over which certificates are granted access.

Configuring Certificate Mapping via APPCMD.exe¶

While the Configuration Editor provides a convenient GUI, APPCMD.exe is a powerful command-line tool for managing IIS configuration. It’s ideal for scripting, automation, and consistent deployment across multiple servers. The Configuration Editor itself leverages APPCMD.exe commands in the background and can even generate the necessary scripts for you.

To demonstrate, the following code snippets, generated by the Configuration Editor’s “Generate Script” feature, perform the exact same steps outlined in the GUI section.

AppCmd Commands¶

The APPCMD.exe utility allows direct manipulation of the IIS configuration hierarchy. These commands sequentially enable the feature, add a new mapping, and then define a rule for that mapping. Each command includes /commit:apphost to ensure changes are written to the applicationHost.config file.

appcmd.exe set config "Default Web Site" -section:system.webServer/security/authentication/iisClientCertificateMappingAuthentication /enabled:"True" /manyToOneCertificateMappingsEnabled:"True"  /commit:apphost
appcmd.exe set config "Default Web Site" -section:system.webServer/security/authentication/iisClientCertificateMappingAuthentication /+"manyToOneMappings.[name='My 1st  Mapping',description='1st User Mapping',userName='mydomain\testuser',password='abcdef']" /commit:apphost
appcmd.exe set config "Default Web Site" -section:system.webServer/security/authentication/iisClientCertificateMappingAuthentication /+"manyToOneMappings.[name='My 1st  Mapping',description='1st User Mapping',userName='mydomain\testuser',password='abcdef'].rules.[certificateField='Subject',certificateSubField='CN',matchCriteria='Test User']" /commit:apphost

• The first command enables both the general client certificate mapping and specifically the Many-to-One mapping for “Default Web Site.”
• The second command adds a new entry to the manyToOneMappings collection, specifying its name, description, userName, and password. The password abcdef will be automatically encrypted by IIS.
• The third command then adds a rule to the newly created mapping. This rule specifies that the Subject’s CN (Common Name) field must match “Test User” for the mapping to apply.

C# Code¶

For developers and system integrators, IIS configuration can be managed programmatically using the Microsoft.Web.Administration namespace. This allows for complex logic, dynamic configuration, and integration with existing applications.

using System.Text;
using Microsoft.Web.Administration;

internal static class Sample {
    private static void Main() {
        using(ServerManager serverManager = new ServerManager())
        {
            // Get the application host configuration
            Configuration config = serverManager.GetApplicationHostConfiguration();

            // Get the iisClientCertificateMappingAuthentication section for the "Default Web Site"
            ConfigurationSection iisClientCertificateMappingAuthenticationSection =
            config.GetSection("system.webServer/security/authentication/iisClientCertificateMappingAuthentication", "Default Web Site");

            // Enable client certificate mapping and many-to-one mapping
            iisClientCertificateMappingAuthenticationSection["enabled"] = true;
            iisClientCertificateMappingAuthenticationSection["manyToOneCertificateMappingsEnabled"] = true;

            // Get the manyToOneMappings collection
            ConfigurationElementCollection manyToOneMappingsCollection = iisClientCertificateMappingAuthenticationSection.GetCollection("manyToOneMappings");

            // Create a new 'add' element for a many-to-one mapping
            ConfigurationElement addElement = manyToOneMappingsCollection.CreateElement("add");
            addElement["name"] = @"My 1st  Mapping";
            addElement["description"] = @"1st User Mapping";
            addElement["userName"] = @"mydomain\testuser";
            addElement["password"] = @"abcdef"; // IIS will encrypt this automatically

            // Get the 'rules' collection within this new mapping element
            ConfigurationElementCollection rulesCollection = addElement.GetCollection("rules");

            // Create a new 'add' element for a rule
            ConfigurationElement addElement1 = rulesCollection.CreateElement("add");
            addElement1["certificateField"] = @"Subject";
            addElement1["certificateSubField"] = @"CN";
            addElement1["matchCriteria"] = @"Test User";
            rulesCollection.Add(addElement1); // Add the rule to the rules collection

            manyToOneMappingsCollection.Add(addElement); // Add the many-to-one mapping to the main collection

            // Commit the changes to the IIS configuration
            serverManager.CommitChanges();
        }
    }
}

This C# code snippet demonstrates how to interact with the IIS configuration API. It retrieves the configuration section, modifies its properties, creates new collection elements, and finally commits these changes, effectively programmatically replicating the manual configuration steps.

Scripting (PowerShell)¶

For system administrators working in a Windows environment, PowerShell is the preferred tool for automation and management. The WebAdministration module provides cmdlets to manage IIS configuration, including client certificate mappings.

# Import the WebAdministration module if not already loaded
Import-Module WebAdministration

# Define the site name
$siteName = "Default Web Site"

# Define the path to the configuration section
$configPath = "IIS:\Sites\$siteName\system.webServer\security\authentication\iisClientCertificateMappingAuthentication"

# 1. Enable overall client certificate mapping and Many-to-One mapping
Set-WebConfigurationProperty -PSPath $configPath -Name "enabled" -Value $true
Set-WebConfigurationProperty -PSPath $configPath -Name "manyToOneCertificateMappingsEnabled" -Value $true

# 2. Add a new Many-to-One mapping
$mappingName = "My PowerShell Mapping"
$mappingDescription = "Mapping via PowerShell Script"
$windowsUser = "mydomain\powershelluser"
$windowsPassword = "P@ssword123!" # Replace with a secure password

Add-WebConfigurationProperty -PSPath $configPath -Name "manyToOneMappings" -Value @{
    name = $mappingName;
    description = $mappingDescription;
    userName = $windowsUser;
    password = $windowsPassword; # IIS will encrypt this securely
    enabled = $true # Ensure the mapping itself is enabled
} -Passthru -ErrorAction Stop

# 3. Add rules for the new Many-to-One mapping
# Get the newly created mapping to add rules to its collection
$newMapping = (Get-WebConfigurationProperty -PSPath $configPath -Name "manyToOneMappings" | Where-Object {$_.name -eq $mappingName})

# Rule 1: Match on Subject CN
$rule1 = @{
    certificateField = "Subject";
    certificateSubField = "CN";
    matchCriteria = "PowerShell Client 1";
    compareCaseSensitive = $true
}
Add-WebConfigurationProperty -PSPath $newMapping.__PSPath -Name "rules" -Value $rule1 -Passthru -ErrorAction Stop

# Rule 2: Match on Issuer O
$rule2 = @{
    certificateField = "Issuer";
    certificateSubField = "O";
    matchCriteria = "MyOrg CA";
    compareCaseSensitive = $true
}
Add-WebConfigurationProperty -PSPath $newMapping.__PSPath -Name "rules" -Value $rule2 -Passthru -ErrorAction Stop

Write-Host "Many-to-One Client Certificate Mapping '$mappingName' configured successfully for $siteName."

This PowerShell script provides a more native and often preferred way for Windows administrators to automate IIS configuration. It leverages Set-WebConfigurationProperty and Add-WebConfigurationProperty to manage individual settings and collection entries, ensuring the configuration is applied systematically.

Advanced Considerations and Best Practices¶

Configuring Many-to-One client certificate mappings is a powerful step towards secure authentication, but it comes with several advanced considerations and best practices that can further enhance security, maintainability, and reliability.

Security Implications¶

• Least Privilege: The Windows accounts used for mapping (userName property) should operate on the principle of least privilege. They should only have the minimum necessary permissions required to run the web application or access specific resources. Avoid mapping to highly privileged accounts.
• Password Management: While IIS encrypts passwords stored in applicationHost.config, it’s crucial to manage these accounts securely. Regularly rotate passwords and ensure that the accounts are not used for interactive logons. Consider using Managed Service Accounts (MSAs) or Group Managed Service Accounts (gMSAs) where applicable for enhanced security and simplified password management.
• Certificate Trust: Ensure that IIS only trusts Certificate Authorities (CAs) that are authorized to issue client certificates for your application. Maintaining a strict trust list prevents unauthorized certificates from being used.

Certificate Revocation¶

• CRL and OCSP: Implement robust Certificate Revocation List (CRL) or Online Certificate Status Protocol (OCSP) checking. If a client certificate is compromised, it must be revoked and IIS must be able to verify its revocation status. Misconfigured or unavailable CRL/OCSP can lead to either security vulnerabilities (if revoked certs are accepted) or authentication failures (if valid certs cannot be checked).

Rule Design and Management¶

• Specificity: Design your rules to be as specific as possible to prevent unintended matches. Overly broad rules could lead to unauthorized access.
• Overlapping Rules: Be cautious of overlapping rules that could match the same certificate to different Windows accounts, leading to unpredictable behavior. While IIS typically processes rules in order, it’s best to design mutually exclusive rules where possible.
• Naming Conventions: Use clear and consistent naming conventions for your manyToOneMappings (name and description). This is vital for easy identification and management, especially as the number of mappings grows.
• Testing: Thoroughly test your configurations with various client certificates, including valid, invalid, expired, and revoked certificates, to ensure the rules behave as expected.

Performance and Scalability¶

• Rule Complexity: While flexible, overly complex rules or a large number of mappings can impact performance, especially under high load, as IIS must evaluate each rule for every incoming connection.
• Centralized vs. Decentralized: For very large environments, consider strategies for managing configuration across multiple IIS servers, potentially using shared configuration or automated deployment tools to ensure consistency.

Troubleshooting Common Issues¶

• Certificate Chain Issues: Ensure the client certificate’s entire trust chain (root CA, intermediate CAs) is installed and trusted on the IIS server.
• Rule Mismatches: Verify that the certificateField, certificateSubField, and matchCriteria values in your rules exactly match the values in the client certificates. Case sensitivity is a common pitfall.
• Account Permissions: The mapped Windows account must have “Log on as a batch job” permissions if it’s a service account, and appropriate NTFS permissions on the web content folders if it needs to access them.
• IIS Logs: Use IIS logs to troubleshoot authentication failures. Look for HTTP status codes related to client certificate authentication (e.g., 403.7, 403.16).
• Event Viewer: Check the Windows Event Viewer (Security and System logs) for relevant errors during authentication attempts.

By taking these advanced considerations and best practices into account, you can build a highly secure, reliable, and manageable client certificate authentication system using Many-to-One mappings in IIS. This robust setup will contribute significantly to the overall security posture of your web applications.

Conclusion¶

Mastering Many-to-One client certificate mappings in IIS is a powerful technique for enhancing security and streamlining user authentication in your web applications. By associating groups of client certificates with a single Windows account, administrators can simplify management, enforce least privilege, and leverage the strong cryptographic assurances of digital certificates.

While IIS Manager’s GUI doesn’t directly expose this feature, the Configuration Editor, APPCMD.exe, and programmatic scripting options like C# and PowerShell provide all the necessary tools to implement these configurations. Understanding the IIS schema and meticulously defining your mapping rules are key to a successful deployment. Remember to adhere to security best practices, including robust password management, strict certificate trust, and thorough testing, to ensure a secure and reliable authentication system.

We hope this comprehensive guide has provided you with the knowledge and tools to confidently implement Many-to-One client certificate mappings in your IIS environment. Do you have any questions about specific rule patterns, troubleshooting tips, or best practices you’ve discovered? Share your insights and experiences in the comments below!
