Maximize Memory: Windows Server 2003 and 2000 Offer Large Memory Support

Table of Contents

Understanding memory management in 32-bit operating systems like Windows Server 2003 and Windows 2000 is crucial for maximizing server performance. These systems, by their very nature, face an inherent limitation in addressing physical memory beyond 4 gigabytes (GB). This article delves into Physical Address Extension (PAE) and Address Windowing Extensions (AWE), explaining how these technologies collaborate to transcend the 4GB barrier and empower legacy server environments.

Understanding the 32-bit Memory Barrier¶

The core limitation of 32-bit processors and operating systems is their ability to address only 2^32 unique memory locations. This translates directly to a maximum of 4GB of addressable physical memory. For servers handling large databases, complex applications, or numerous concurrent users, this 4GB ceiling quickly becomes a significant bottleneck, leading to excessive paging and performance degradation. To address this, Microsoft introduced PAE and AWE as innovative solutions for 32-bit Windows Server platforms.

These technologies were critical during a transitional period when 64-bit hardware was emerging but 32-bit systems were still prevalent in many enterprise environments. They allowed organizations to extend the lifespan and capability of their existing 32-bit server infrastructure without immediate, costly upgrades to 64-bit systems. The judicious application of PAE and AWE enabled substantial performance improvements for memory-intensive workloads on these platforms.

Physical Address Extension (PAE): Unlocking More Physical Memory¶

Physical Address Extension (PAE) is a feature of the IA32 processor architecture that allows 32-bit operating systems to use more than 4 GB of physical memory. By switching to 36-bit or even 64-bit physical addressing, PAE effectively increases the amount of physical RAM that the system can recognize and utilize. This extended addressing capability is transparent to most applications, as the operating system’s memory manager handles the allocation.

Several key Windows Server operating systems can leverage PAE to utilize physical memory beyond the standard 4GB limit. These include Microsoft Windows 2000 Advanced Server, Microsoft Windows 2000 Datacenter Server, Microsoft Windows Server 2003, Enterprise Edition, and Microsoft Windows Server 2003, Datacenter Edition. Enabling PAE is a straightforward process, typically involving a minor modification to the system’s Boot.ini file.

To activate PAE, administrators must include the /PAE switch in the Boot.ini configuration. This tells the operating system kernel to enable PAE mode during startup, allowing it to manage and access larger amounts of physical RAM. Once enabled, the Windows memory manager dynamically allocates this extended physical memory to applications, significantly reducing the reliance on slower disk-based paging operations and thereby boosting overall system performance.

How PAE Benefits Applications¶

Normally, a process running on Windows 2000 or Windows Server 2003 has access to a 2GB virtual address space by default. When many programs or processes are active, this 2GB space can quickly become exhausted, leading to increased paging activity where data is constantly swapped between RAM and the page file on disk. This heavy reliance on the page file severely impacts performance. PAE addresses this by providing more physical memory to the system’s memory manager.

With PAE enabled, the memory manager can keep more data in physical RAM, reducing the need to page data out to disk. This optimization is entirely handled by the memory manager, meaning individual applications do not need to be modified or even be aware that they are using memory beyond the 4GB boundary. The transparent nature of PAE makes it a highly effective system-wide solution for improving memory utilization and application responsiveness on supported 32-bit servers.

The /3GB Switch and its Interaction with PAE¶

The /3GB switch in the Boot.ini file is another important configuration option for 32-bit Windows Server systems. Its primary purpose is to reallocate the 4GB virtual address space available to a process. By default, this space is split evenly, with 2GB for user-mode applications and 2GB reserved for the operating system kernel. The /3GB switch expands the user-mode address space to 3GB, reducing the kernel space to 1GB.

This reallocation is particularly beneficial for single, memory-intensive applications that can take advantage of a larger private virtual address space, such as database servers or specific enterprise applications. Such programs are more likely to keep their entire working set in physical memory, minimizing expensive page file operations and enhancing their individual performance. However, deploying the /3GB switch comes with an important caveat, especially when combined with PAE.

When the /3GB switch is used in conjunction with the /PAE switch, the operating system’s ability to utilize physical memory beyond 16 GB is limited. This is due to constraints within the kernel’s virtual memory space, which becomes more restricted when /3GB is active. Consequently, if a system has more than 16 GB of physical RAM and is configured with both /3GB and /PAE, any memory exceeding 16 GB will not be utilized by the operating system. To ensure full utilization of all physical RAM in such scenarios, the system must be restarted without the /3GB switch.

Address Windowing Extensions (AWE): Empowering Memory-Intensive Applications¶

Address Windowing Extensions (AWE) is a set of application programming interfaces (APIs) that allow 32-bit programs to directly manage and access physical memory beyond the traditional 4 GB limit. Unlike PAE, which works transparently at the operating system level, AWE requires applications to be specifically coded to use its APIs. This makes AWE particularly valuable for highly memory-intensive applications that need precise control over large memory allocations.

AWE enables programs to reserve significant amounts of physical memory as non-paged memory. This reserved memory is never written to the page file on disk, ensuring that critical data remains in fast physical RAM. Once reserved, applications can then dynamically map and unmap portions of this non-paged memory into their own working set, allowing them to efficiently access and manipulate vast datasets without the overhead of standard virtual memory management. This mechanism is especially beneficial for large database systems.

For instance, a database server can use AWE to allocate a large buffer pool in extended memory, far exceeding the 4GB boundary. Data can then be quickly swapped in and out of this buffer pool, reducing I/O operations and dramatically improving query performance. It is crucial to understand that AWE relies on PAE to function correctly when addressing memory beyond 4 GB. Without PAE enabled, AWE cannot reserve or access physical memory in the extended range; PAE provides the underlying physical addressing capability that AWE leverages.

Enabling PAE: A Practical Guide¶

Enabling PAE on a Windows Server 2000 or 2003 system involves a straightforward modification to the Boot.ini file, which is a hidden system file located at the root of the system drive. Before making any changes, it is always recommended to create a backup of the Boot.ini file. This precaution ensures that you can revert to a known working configuration if any issues arise after modification.

To edit Boot.ini, you can use the System Properties dialog box (accessed via right-clicking My Computer, selecting Properties, then Advanced, and finally Startup and Recovery Settings). Within this dialog, select Edit to open Boot.ini in Notepad. Alternatively, you can directly navigate to the root of your system drive (e.g., C:), ensure hidden files are shown, and open Boot.ini with a text editor.

Locate the operating system entry you wish to modify. For example, if you are running “Windows Server 2003, Enterprise”, find the line corresponding to this entry. Append /PAE to the end of the line, after any existing switches like /fastdetect. Save the Boot.ini file and then restart the server for the changes to take effect. The system will then boot with PAE enabled, allowing it to recognize and utilize more than 4GB of physical RAM.

Here is an example of a Boot.ini file snippet demonstrating the addition of the PAE switch:

[boot loader]
timeout=30
default=multi(0)disk(0)rdisk(0)partition(2)\WINDOWS
[operating systems]
multi(0)disk(0)rdisk(0)partition(2)\WINDOWS="Windows Server 2003, Enterprise" /fastdetect /PAE

The Synergy of PAE and AWE¶

While both PAE and AWE aim to address the 4GB memory barrier, they operate at different layers and serve distinct purposes, forming a powerful synergy. PAE is a foundational, system-level feature managed by the operating system’s kernel. Its role is to enable the 32-bit CPU to physically address memory beyond 4GB, making that memory available to the system as a whole. It works transparently, meaning applications typically don’t need to be aware of its presence.

Conversely, AWE is an application-level API set. It provides a programmatic interface for specifically designed applications to request and manage large blocks of non-paged physical memory. AWE applications are aware of their memory usage and actively utilize the AWE APIs to reserve, map, and unmap memory regions from the extended physical address space. This direct control allows memory-intensive programs, like database engines, to optimize their data caching and processing.

Therefore, PAE acts as the enabler, opening up the physical memory address space beyond 4GB for the operating system. AWE then leverages this extended capability, allowing applications to explicitly access and utilize that newly available memory. Without PAE, AWE would be confined to the conventional 4GB address space for its operations. Together, they provide a robust solution for enhancing memory performance on 32-bit Windows Server platforms.

Common Memory Recognition Issues¶

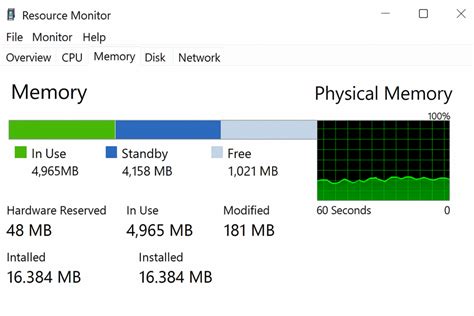

Even with PAE correctly enabled, administrators might encounter situations where Windows does not recognize the full amount of installed physical RAM. For example, if a server has 8GB of RAM installed, Windows might only report 4GB or 6GB as available. This discrepancy often stems from hardware-level features configured in the server’s BIOS, rather than a Windows operating system issue or incorrect PAE configuration.

Many enterprise-grade servers include advanced memory features such as redundant memory or memory mirroring. Redundant memory provides a failover mechanism, reserving a portion of the installed RAM to be activated if another memory bank fails, thus ensuring system uptime. Memory mirroring involves splitting the installed memory into two identical sets, where data is written to both, providing data integrity and fault tolerance at the cost of halving the usable memory.

These features are typically enabled or disabled within the server’s BIOS settings and are not directly configurable through Windows. If these features are active, they can reduce the amount of physical RAM that the operating system perceives as available, even if the BIOS itself recognizes the total installed amount. To diagnose and resolve such issues, it’s essential to consult the server’s user manual or the OEM’s website for instructions on how to access and modify these BIOS memory settings. Contacting the hardware vendor may also be necessary for specific guidance.

The Evolution to 64-bit Architecture¶

The introduction of PAE and AWE provided vital stop-gap solutions for 32-bit systems wrestling with increasing memory demands. However, these technologies ultimately paved the way for the industry’s widespread adoption of 64-bit computing. The limitations and complexities associated with managing large memory on 32-bit platforms underscored the need for a more fundamental architectural shift. The 64-bit instruction set inherently supports a vastly larger address space.

A 64-bit processor can directly address 2^64 memory locations, theoretically allowing for up to 18 exabytes of RAM. While current operating systems and hardware do not yet support such colossal amounts, 64-bit Windows Server editions can easily handle hundreds of gigabytes, or even terabytes, of physical memory without requiring special kernel switches like PAE. This eliminates the need for application-specific APIs like AWE for general large memory access, simplifying memory management for both developers and administrators.

The transition to 64-bit architecture also brought other benefits, including improved performance for certain data types and better utilization of modern CPU features. While PAE and AWE were ingenious solutions for their time, they served as a testament to the fact that 32-bit systems were reaching their architectural limits for server-grade workloads. Today, virtually all modern server deployments are 64-bit, making memory limitations largely a concern of the past.

Here’s a simplified visualization of the memory addressing evolution:

mermaid graph TD A[32-bit System] -- Limited to 4GB --> B(Standard Addressing) A -- PAE Enabled --> C(Extended Physical Addressing > 4GB) C -- AWE Applications --> D(Direct Access to Extended Memory) E[64-bit System] -- Inherently Supports --> F(Vastly Larger Memory) B --> G{Performance Bottleneck} D --> H{Improved Performance for Legacy Systems} F --> I{Eliminates 4GB Barrier}

Best Practices for Memory Management in Legacy Systems¶

When working with legacy 32-bit Windows Server 2000 or 2003 systems, effective memory management remains critical for performance and stability. Beyond enabling PAE and configuring AWE for compatible applications, several best practices can further optimize resource utilization. Regularly monitoring system performance counters, particularly those related to memory usage, paging, and application-specific memory consumption, is essential for identifying bottlenecks.

Administrators should carefully evaluate the memory requirements of their core applications and adjust the /3GB switch accordingly. If a single, critical application (like a database server) truly benefits from a larger user-mode address space, the /3GB switch might be appropriate, provided the total RAM doesn’t exceed 16GB. For systems with more RAM or those running multiple diverse applications, prioritizing total physical memory utilization via PAE without /3GB is often the better choice. Maintaining updated device drivers and ensuring that the server’s BIOS is current can also resolve unexpected memory recognition issues or improve overall hardware compatibility.

Understanding these nuances and actively managing memory settings can significantly extend the operational life and efficiency of 32-bit server infrastructures. While these systems are no longer at the forefront of technology, they still perform vital roles in many organizations, making their optimal configuration paramount.

We hope this comprehensive overview of PAE and AWE has provided valuable insights into maximizing memory on Windows Server 2003 and 2000. How have these technologies impacted your experience with legacy server environments? Share your thoughts and questions in the comments below!
