Password Writeback Problems? Fix Access Rights & Permissions Now!

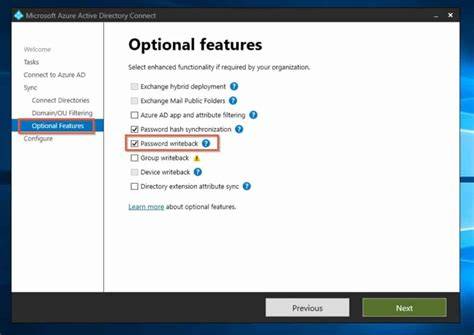

Password writeback is a critical feature for hybrid identity environments, enabling users to reset or change their cloud passwords and have those changes reflected in their on-premises Active Directory. When this functionality encounters issues, it often points to misconfigured access rights or permissions within your Active Directory domain. This article serves as a comprehensive guide to identifying, checking, and correcting the necessary permissions in the domain root, user objects, and the Builtin container.
Understanding the specific requirements for Active Directory permissions is fundamental to maintaining a healthy hybrid identity infrastructure. We will also delve into essential domain group policies, the process for identifying the Microsoft Entra Connect AD DS Connector account, and strategies to prevent common replication problems. By systematically addressing these areas, you can effectively troubleshoot and resolve most password writeback failures.
Identifying the AD DS Connector Account¶
Before initiating any permission checks or modifications for password writeback, it is imperative to accurately identify the specific Active Directory Domain Services (AD DS) Connector account used by Microsoft Entra Connect. This account, often referred to as the MSOL_ account, is responsible for synchronizing identity data between your on-premises Active Directory and Microsoft Entra ID. Confirming the correct account name prevents misconfigurations and ensures that any subsequent troubleshooting steps are applied to the appropriate identity.
To identify the AD DS Connector account, follow these detailed steps within your Microsoft Entra Connect installation. This process will guide you through the Synchronization Service Manager, where vital configuration details are stored.
- To begin, open the Synchronization Service Manager. You can typically find this by selecting Start, typing “Microsoft Entra Connect” into the search bar, selecting “Microsoft Entra Connect” from the results, and then choosing “Synchronization Service”. This utility is the central hub for managing your synchronization operations.
- Once the Synchronization Service Manager is open, navigate to the Connectors tab. Here, you will see a list of all configured connectors. Select the specific Active Directory connector that corresponds to your on-premises environment.
- With the correct Active Directory connector selected, locate and select Properties in the Actions pane on the right side of the window. This action will open the Properties dialog box, displaying various configuration settings for the chosen connector.
- In the left pane of the Properties window, select Connect to Active Directory Forest. Within this section, you will find the User name field. Carefully copy the account name displayed here; this is your AD DS Connector account (MSOL_ account). This account is crucial for all subsequent permission checks and adjustments.
Checking Existing Permissions of the AD DS Connector Account¶
Ensuring the AD DS Connector account possesses the correct Active Directory permissions is paramount for successful password writeback. Microsoft provides the ADSyncConfig PowerShell module, which includes a convenient method to configure these permissions automatically. The Set-ADSyncPasswordWritebackPermissions cmdlet within this module is specifically designed for this purpose, simplifying the process of applying necessary access rights. However, for troubleshooting, you might need to manually verify these permissions.
To verify if the AD DS Connector account (MSOL_ account) has the appropriate permissions for a particular user, you can leverage several standard Active Directory management tools. These include the Active Directory Users and Computers snap-in, the command prompt utility dsacls, and PowerShell’s Get-Acl cmdlet. Each method offers a different approach to inspecting access control lists (ACLs) and can be chosen based on your preference and specific diagnostic needs.
Active Directory Users and Computers Snap-in¶
The Active Directory Users and Computers Microsoft Management Console (MMC) snap-in provides a graphical interface for examining permissions. This method is particularly useful for visual inspection and granular adjustments. It allows you to navigate the directory structure and view effective permissions for specific objects.
Follow these steps to check permissions using the MMC snap-in:
- Open the Active Directory Users and Computers snap-in. You can do this by selecting Start, typing “dsa.msc,” and then choosing the snap-in from the search results.
- Once the console is open, enable Advanced Features by selecting View > Advanced Features. This option reveals additional tabs and properties for directory objects, including the crucial Security tab.
- In the console tree, locate and select the specific user account for which you want to check permissions. After selecting the account, click the Properties icon to open the user’s properties dialog box.
- Within the Properties dialog box for the user account, navigate to the Security tab, and then click the Advanced button. This action will open the Advanced Security Settings dialog box, providing a comprehensive view of permissions.
- In the Advanced Security Settings dialog box, select the Effective Permissions tab. This tab calculates and displays the combined permissions granted to a principal. In the Group or user name section, click the Select button.
- In the Select User, Computer, or Group dialog box, click Advanced > Find Now to populate the selection list. From the Search results box, select the previously identified MSOL_ account name.
- Click OK twice to return to the Effective Permissions tab in the Advanced Security Settings dialog box. You can now review the list of effective permissions assigned to the user account for the MSOL_ account. Compare these displayed permissions against the required permissions detailed in the “Required permissions on the user object” section of this article to identify any discrepancies.
Command Prompt¶
For quick command-line verification, the dsacls command is an effective tool to display the access control lists (ACLs) of an AD DS Connector account. While its output can be less structured than graphical tools, it’s excellent for scripting or fast checks. The dsacls command can output to the console or redirect to a file for later analysis.
The following command demonstrates how to use dsacls to store the command output in a text file for a user named User01 in the Sync OU under Contoso.com:
dsacls "CN=User01,OU=Sync,DC=Contoso,DC=com" > dsaclsDomainContoso.txt
This method is highly versatile for analyzing permissions on any Active Directory object. However, it’s important to note that the text output is not sorted, which can make direct comparisons between multiple objects challenging. Despite this, it remains a powerful tool for detailed permission audits.
PowerShell¶
PowerShell offers a robust and flexible way to inspect AD DS Connector account permissions. Using the Get-Acl cmdlet, you can retrieve the access control list for an object, and then Export-Clixml allows you to save this information to an XML file. This approach is beneficial for offline analysis and preserving the structure of the ACL.
The following PowerShell commands illustrate how to retrieve and export the ACL for the Contoso.com domain root:
Set-Location AD:\
Get-Acl "DC=Contoso,DC=com" | Export-Clixml aclDomainContoso.xml
The PowerShell method is exceptionally useful for offline analysis and historical logging of permissions. You can later import the file using the Import-Clixml cmdlet, which preserves the original structure of the ACL and its properties. This provides a detailed, programmatic way to analyze permissions for any Active Directory object.
Avoiding Replication Issues When Fixing Permissions¶
When you make changes to Active Directory permissions, these modifications are not instantaneously applied across your entire environment. Active Directory permissions, much like other directory objects, are subject to replication delays across the forest. These delays can lead to inconsistent behavior and further complicate troubleshooting efforts if you are not careful about where and when you make changes. To mitigate these replication issues and ensure consistency, it is crucial to adopt a strategic approach.
A highly effective strategy is to designate a preferred domain controller within your Microsoft Entra Connect configuration and then perform all permission adjustments on that specific domain controller. This ensures that all changes are applied to a single, authoritative source first, simplifying the verification process. When using the Active Directory Users and Computers snap-in, you can right-click the domain root in the console tree, select Change Domain Controller, and then choose your designated preferred domain controller.
For a rapid verification of Active Directory health and replication status, several built-in command-line tools are indispensable. Running domain controller diagnostics with the dcdiag command will help identify any general health issues or errors within your domain controllers. Following this, the repadmin /replsummary command provides a concise summary of replication problems, allowing you to quickly spot inconsistencies or failures.
The following commands can be executed from an elevated command prompt on a domain controller to generate text files containing diagnostic information:
dcdiag > dcdiag.txt
repadmin /replsum > replsum.txt
By consistently applying changes to a preferred domain controller and regularly checking replication status, you can significantly reduce the potential for delays and inconsistencies, ensuring that your permission fixes take effect reliably and promptly. This proactive approach is key to effective Active Directory management in a hybrid environment.
Required Permissions on the Active Directory Domain Root¶
This section outlines the essential Active Directory permissions required for password writeback at the Active Directory domain root. It is crucial to distinguish between the domain root and the Active Directory forest root, as a forest can encompass multiple domains. Each individual domain within the forest must have its own domain root permissions correctly configured for password writeback to function for users within that specific domain. Misconfigurations at this level can prevent password changes from synchronizing.
To inspect the existing Active Directory permissions on your domain root, you need to access its security properties through the Active Directory Users and Computers snap-in. This process allows you to review the Access Control List (ACL) and identify any missing or incorrect entries.
- First, open the Active Directory Users and Computers snap-in.
- In the console tree, locate and select the Active Directory domain root for the domain you are working on. Then, click the Properties icon to open its properties dialog.
- Within the Properties dialog box for the domain root, select the Security tab. This tab displays the security principals and their associated permissions for the object.
The following subsections detail the default permission entries required for specific groups or user names on the domain root. For each subsection, you will compare the current permissions against the required list and make necessary adjustments.
- On the Security tab, click the Advanced button to open the Advanced Security Settings dialog box. The Permissions tab within this dialog will show a comprehensive list of current domain root permissions for each Active Directory identity (Principal).
- Carefully compare the displayed current permissions list against the table of default permissions provided for each Active Directory identity in the respective subsections below. Pay close attention to the permission types, “Apply to” scope, and whether they are explicitly allowed or denied.
- If any required permission entries are missing from the current list, click Add to create new entries. If an existing entry needs modification to meet the requirement, select that entry and click Edit. Repeat this step until all current permission entries align precisely with the subsection table.
- Once all necessary changes have been made and verified, click OK to accept the modifications in the Advanced Security Settings dialog box and return to the Properties dialog box.
Note: The permissions applied to the Active Directory domain root are not inherited from any parent container. This means they must be explicitly set and maintained at this level.
Root Default Permissions for the AD DS Connector Account (Allow)¶
The AD DS Connector account requires specific “Allow” permissions at the domain root to successfully write back password changes. These permissions are crucial for its operation on various descendant objects.
| Permission | Apply to |
|---|---|
| Reset password | Descendant User objects |
| (blank) | Descendant msDS-Device objects |
| Replicating Directory Changes | This object only |
| Replicating Directory Changes All | This object only |
| Read all properties | Descendant publicFolder objects |
| Read/write all properties | Descendant InetOrgPerson objects |
| Read/write all properties | Descendant Group objects |
| Read/write all properties | Descendant User objects |
| Read/write all properties | Descendant Contact objects |
Root Default Permissions for Authenticated Users (Allow)¶
Authenticated Users also need certain permissions at the domain root, primarily related to password-related attributes. These permissions facilitate various password functionalities within the domain.
| Permission | Apply to |
|---|---|
| Enable per user reversibly encrypted password | This object only |
| Unexpire password | This object only |
| Update password not required bit | This object only |
| Special | This object only |
| (blank) | This object and all descendant objects |
Root Default Permissions for Everyone (Deny + Allow)¶
The “Everyone” security principal has a critical set of permissions at the domain root, involving both Deny and Allow entries. The Deny entry is particularly important for security.
| Type | Permission | Apply to |
|---|---|---|
| Deny | Delete all child objects | This object only |
| Allow | Read all properties | This object only |
Root Default Permissions for Pre-Windows 2000 Compatible Access (Allow)¶
The “Pre-Windows 2000 Compatible Access” group requires specific “Allow” permissions to ensure compatibility with older systems and applications. These permissions often involve broader access to directory objects.
| Permission | Apply to |
|---|---|
| Special | Descendant InetOrgPerson objects |
| Special | Descendant Group objects |
| Special | Descendant User objects |
| Special | This object only |
| List contents | This object and all descendant objects |
Root Default Permissions for SELF (Allow)¶
The “SELF” principal refers to the object itself or the user associated with specific operations. These “Allow” permissions enable self-service actions or specific attribute modifications.
| Permission | Apply to |
|---|---|
| (blank) | This object and all descendant objects |
| Special | All descendant objects |
| Validated write to computer attributes | Descendant Computer objects |
| (blank) | Descendant Computer objects |
Required Permissions on the User Object¶
Beyond the domain root, specific permissions are also required directly on the target user object for password writeback to function correctly. These permissions allow the AD DS Connector account to modify the user’s password attributes. Any missing or incorrectly configured permissions at this level will directly impede the password writeback process for individual users.
To view the existing security permissions on a user object, you need to access its security properties through the Active Directory Users and Computers snap-in. This process is similar to checking domain root permissions but targets an individual user.
- Return to the Active Directory Users and Computers snap-in.
- Use the console tree or the Action > Find menu item to locate and select the target user object for whom you want to verify permissions. Then, click the Properties icon.
- In the Properties dialog box for the user account, navigate to the Security tab.
The following subsections detail the default permission entries required for specific groups or user names on the user object. For each subsection, you will follow a similar process to compare and adjust permissions.
- On the Security tab, click the Advanced button to open the Advanced Security Settings dialog box.
- Crucially, ensure that the Disable Inheritance button is displayed near the bottom of the dialog box. If Enable Inheritance is shown instead, click that button. Enabling inheritance ensures that all permissions from parent containers and organizational units are inherited by this user object, which is often a key step in resolving permission issues.
- On the Permissions tab, carefully compare the current list of user permissions for each Active Directory identity (Principal) against the table of default permissions provided in the respective subsections.
- If any required permission entries are missing from the current list, click Add to create new entries. If an existing entry needs modification, select that entry and click Edit. Repeat this step until all current permission entries match the subsection table precisely.
- Once all necessary changes have been made and verified, click OK to accept the modifications in the Advanced Security Settings dialog box and return to the Properties dialog box.
User Default Permissions for the AD DS Connector Account (Allow)¶
The AD DS Connector account needs specific “Allow” permissions on user objects, often inherited from the domain root, to perform password writeback operations. These permissions enable it to modify password-related attributes for users.
| Permission | Inherited from | Apply to |
|---|---|---|
| Reset password | Descendant User objects | |
| (blank) | Descendant msDS-Device objects | |
| Read all properties | Descendant publicFolder objects | |
| Read/write all properties | Descendant InetOrgPerson objects | |
| Read/write all properties | Descendant Group objects | |
| Read/write all properties | Descendant User objects | |
| Read/write all properties | Descendant Contact objects |
User Default Permissions for Authenticated Users (Allow)¶
Authenticated Users also have “Allow” permissions on user objects, granting them basic read access to various information. Some of these permissions might be directly on the object, while others are inherited.
| Permission | Inherited from | Apply to |
|---|---|---|
| Read general information | None | This object only |
| Read public information | None | This object only |
| Read personal information | None | This object only |
| Read web information | None | This object only |
| Read permissions | None | This object only |
| Read Exchange information | This object and all descendant objects |
User Default Permissions for Everyone (Allow)¶
The “Everyone” security principal typically has a single, crucial “Allow” permission on user objects, which is essential for general password changes.
| Permission | Inherited from | Apply to |
|---|---|---|
| Change password | None | This object only |
User Default Permissions for Pre-Windows 2000 Compatible Access (Allow)¶
For compatibility purposes, the “Pre-Windows 2000 Compatible Access” group requires “Allow” permissions on user objects. The “Special” permissions here encompass several specific rights.
The Special permissions in this table include List contents, Read all properties, and Read permissions rights.
| Permission | Inherited from | Apply to |
|---|---|---|
| Special | Descendant InetOrgPerson objects | |
| Special | Descendant Group objects | |
| Special | Descendant User objects | |
| List contents | This object and all descendant objects |
User Default Permissions for SELF (Allow)¶
The “SELF” principal also possesses “Allow” permissions on user objects, facilitating self-service actions and modifications of personal information. The “Special” permissions are narrowly defined here.
The Special permissions in this table include Read/Write private information rights only.
| Permission | Inherited from | Apply to |
|---|---|---|
| Change password | None | This object only |
| Send as | None | This object only |
| Receive as | None | This object only |
| Read/write personal information | None | This object only |
| Read/write phone and mail options | None | This object only |
| Read/write web information | None | This object only |
| Special | None | This object only |
| Validated write to computer attributes | Descendant Computer objects | |
| (blank) | Descendant Computer objects | |
| (blank) | This object and all descendant objects | |
| Special | This object and all descendant objects |
Required Permissions on the SAM Server Object¶
The Security Account Manager (SAM) server object plays a vital role in managing user accounts and their authentication data within Active Directory. For password writeback to function correctly, specific permissions must be configured on the SAM server object, typically located at CN=Server,CN=System,DC=Contoso,DC=com. Without these permissions, the necessary security operations for password changes might fail.
To locate and inspect the security properties of the SAM server object (samServer), follow these steps using the Active Directory Users and Computers snap-in.
- Return to the Active Directory Users and Computers snap-in.
- In the console tree, navigate to and select the System container. This container typically holds system-level objects crucial for Active Directory operations.
- Within the System container, locate and select the Server object (which represents the
samServerobject). Then, click the Properties icon to open its properties dialog. - In the Properties dialog box for the object, select the Security tab.
- Click the Advanced Security Settings dialog box. The Permissions tab within this dialog will display the current list of
samServerobject permissions for each Active Directory identity (Principal). - Verify that at least one of the following principals is listed in the access control entry for the
samServerobject. If only Pre-Windows 2000 Compatible Access is listed, it is imperative to confirm that Authenticated Users is a member of this built-in group. This membership ensures that modern authenticated users inherit the necessary permissions.
Permissions for Pre-Windows 2000 Compatible Access (Allow)¶
For “Pre-Windows 2000 Compatible Access,” certain “Special” permissions are required on the SAM server object. These ensure that older systems or applications can interact appropriately with the SAM database.
Special permissions must include the *List contents, **Read all properties, and Read permissions rights.*
Permissions for Authenticated Users (Allow)¶
“Authenticated Users” also require “Special” permissions on the SAM server object to enable various account management functions. This is generally the preferred method for granting permissions to modern client systems.
Special permissions must include the *List contents, **Read all properties, and Read permissions rights.*
Required Permissions on the Builtin Container¶
The Builtin container in Active Directory houses several default user accounts and groups, including administrators and other fundamental security principals. Correct permissions on this container are essential for the integrity and functionality of Active Directory, particularly for password writeback. Misconfigured permissions here can lead to security vulnerabilities or operational failures.
To view the existing security permissions on the Builtin container, use the Active Directory Users and Computers snap-in. This process allows you to examine the access control list (ACL) and ensure that the AD DS Connector account has the necessary rights.
- Open the Active Directory Users and Computers snap-in.
- In the console tree, locate and select the Builtin container. Then, click the Properties icon to open its properties dialog.
- In the Properties dialog box for the account, select the Security tab.
- Click the Advanced button to open the Advanced Security Settings dialog box. The Permissions tab will display the current list of Builtin container permissions for each Active Directory identity (Principal).
- Compare this current permissions list against the following table, which outlines the required “Allow” permissions for the MSOL_ account on the Builtin container.
| Permission | Inherited from | Apply to |
|---|---|---|
| Read/write all properties | Descendant InetOrgPerson objects | |
| Read/write all properties | Descendant Group objects | |
| Read/write all properties | Descendant User objects | |
| Read/write all properties | Descendant Contact objects |
- If any required permission entries are missing from the current list, click Add to create new entries. If an existing entry needs modification, select that entry and click Edit. Repeat this step until all current permission entries align with the table.
- Click OK to exit the Advanced Security Settings dialog box and return to the Properties dialog box.
Other Required Active Directory Permissions¶
Beyond the specific objects and containers discussed, it is crucial to verify the membership of the Pre-Windows 2000 Compatible Access group. This group’s composition can significantly impact password writeback functionality, especially in environments with older domain controllers or legacy applications. Ensuring correct group membership prevents compatibility issues that could manifest as writeback failures.
To verify this, navigate to the properties of the Pre-Windows 2000 Compatible Access group. On the Members tab, confirm that Authenticated Users is listed as a member of this group. If Authenticated Users is not a member, you might encounter issues affecting password writeback between Microsoft Entra Connect and Active Directory. This is particularly relevant in older Active Directory versions, where broad read access was historically granted through this group.
Required Domain Group Policies¶
Properly configured domain group policies are as important as explicit Active Directory permissions for the smooth operation of password writeback. One critical policy dictates which security principals can impersonate a client after authentication. Incorrect settings here can prevent the Microsoft Entra Connect service account from performing its necessary operations, leading to password writeback failures.
To ensure you have the correct domain group policies configured, specifically regarding impersonation rights, follow these steps:
- Open the Local Security Policy editor. You can do this by selecting Start, typing “secpol.msc,” and then selecting “Local Security Policy” from the search results.
- In the console tree, expand Security Settings > Local Policies, and then select User Rights Assignment. This section lists policies that grant specific privileges to users or groups.
- In the list of policies on the right pane, locate and select Impersonate a client after authentication. Then, click the Properties icon to open its properties dialog.
- In the Properties dialog box, navigate to the Local Security Setting tab. Verify that the following groups are listed:
- Administrators
- LOCAL SERVICE
- NETWORK SERVICE
- SERVICE
These groups represent accounts that require the ability to impersonate a client, which is a fundamental operation for many system services, including those involved in password writeback. For more comprehensive information, consult the official documentation on the default values for the Impersonate a client after authentication policy.
Troubleshooting Workflow for Password Writeback Issues¶
To summarize the troubleshooting steps for password writeback issues, consider the following workflow. This systematic approach helps ensure that all critical areas are checked and addressed in a logical sequence.
mermaid
graph TD
A[Start Troubleshooting] --> B{Identify AD DS Connector Account};
B --> C{Check Domain Root Permissions};
C -- Permissions OK? --> D{Check User Object Permissions};
C -- Permissions NOT OK? --> E[Fix Domain Root Permissions];
E --> C;
D -- Permissions OK? --> F{Check SAM Server Object Permissions};
D -- Permissions NOT OK? --> G[Fix User Object Permissions];
G --> D;
F -- Permissions OK? --> H{Check Builtin Container Permissions};
F -- Permissions NOT OK? --> I[Fix SAM Server Object Permissions];
I --> F;
H -- Permissions OK? --> J{Check Other AD Permissions};
H -- Permissions NOT OK? --> K[Fix Builtin Container Permissions];
K --> H;
J -- Permissions OK? --> L{Check Domain Group Policies};
J -- Permissions NOT OK? --> M[Fix Other AD Permissions];
M --> J;
L -- Policies OK? --> N{Verify AD Replication Health};
L -- Policies NOT OK? --> O[Fix Domain Group Policies];
O --> L;
N -- Replication OK? --> P[Test Password Writeback];
N -- Replication NOT OK? --> Q[Address Replication Issues];
Q --> N;
P -- Success! --> R[End Troubleshooting];
P -- Failure! --> A;
This workflow provides a structured path to diagnose and resolve password writeback problems. Always remember to verify changes and retest after each fix to isolate the root cause effectively.
Resolving password writeback issues in your hybrid environment can be complex, but by meticulously following these guidelines for checking and correcting Active Directory permissions and group policies, you can restore full functionality. We hope this detailed article provides the necessary insights to troubleshoot and maintain a robust identity infrastructure.
Do you have further questions or encounter specific challenges not covered here? Share your experiences and insights in the comments below. Your feedback helps the community learn and grow!
Post a Comment
