Understanding and accurately evaluating effective permissions in Windows Server is critical for maintaining robust security and efficient administration. While seemingly straightforward, determining a user’s actual access rights to remote resources can often present complex challenges. Inaccurate effective permission results can lead to security vulnerabilities, compliance issues, and significant administrative overhead. This guide delves into the common pitfalls, underlying causes, and advanced solutions for mastering effective permissions, especially in remote scenarios.

Symptoms and Causes of Permission Discrepancies¶

Administrators frequently encounter situations where checking a user’s effective permissions on a remote resource yields incorrect results or unexpected errors. These discrepancies can arise from various factors, including the method used for evaluation and the specific configuration of the Windows environment. The intricacies of permission evaluation, particularly concerning remote assets, have evolved significantly, notably with changes introduced in Windows Server 2012 R2.

When attempting to ascertain effective permissions, two primary methodologies are typically employed. The first involves utilizing the Effective Access tab found within the Advanced Security dialog box for a given resource. This is a common graphical user interface (GUI) approach for system administrators. The second method relies on programmatic access via the Authorization Manager Runtime engine (Authz.dll) application programming interface (API), which includes functions such as AuthzInitializeContextFromSid, AuthzInitializeRemoteResourceManager, AuthzAccessCheck, and AuthzCachedAccessCheck. Each method can exhibit unique behaviors and potential inaccuracies, requiring specific diagnostic and resolution steps.

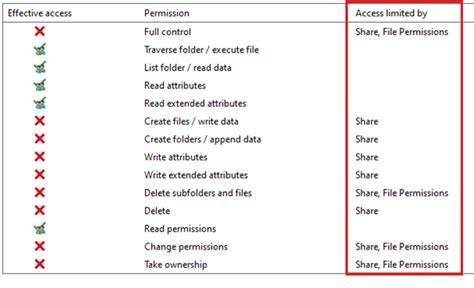

Navigating the Effective Access Tab¶

The Effective Access tab provides a convenient way to visualize a user’s permissions on a resource directly from the GUI. However, administrators may frequently encounter errors or warnings displayed within this tab, indicating that a comprehensive evaluation could not be performed. These messages often suggest underlying issues that prevent the system from accurately calculating all potential access rights. For instance, problems can arise when the resource is located on a remote server or when network communication issues impede the full retrieval of group memberships and security descriptors.

Resolving these GUI-related issues often requires addressing the fundamental challenges associated with remote resource access and permission evaluation. The system needs to reliably determine all groups a user belongs to, including local, global, and universal groups, and then accurately apply these memberships to the resource’s Access Control List (ACL). When these prerequisites are not met, the Effective Access tab may present incomplete or misleading information. Understanding these limitations is the first step toward achieving accurate permission assessments, which often points towards the more advanced resolution techniques discussed later, particularly concerning remote resources like SMB shares.

Challenges with Authz API Calls¶

Programmatic permission checks using Authz API calls, while powerful, can also lead to observed inaccuracies under specific conditions. Issues are particularly common when the application performing the API calls operates remotely from the resource server. Another frequent problematic scenario involves a user account running the application that resides in a different domain than the resource itself. In these complex cross-domain and remote contexts, Authz API calls might incorrectly report missing “Allow” permissions or even display “Deny” permissions where none truly exist, leading to significant security and operational confusion.

Consider a practical example: a global group in Domain A is a member of a domain-local group in Domain B, where the resource resides. The domain-local group in Domain B has full access, including Delete permissions, to the resource. If an administrator in Domain A attempts to remotely retrieve the resource permissions for a user (who is a member of the global group) using an Authz API application, the results might erroneously indicate the user lacks Delete permissions. This happens because Authz.dll primarily uses a Kerberos Service for a User (Kerberos S4U) transaction to obtain a token for the user. However, this token is relative to the administrative workstation or the server running the application, not the actual resource server. Consequently, the token often fails to include the crucial domain-local groups from the resource’s domain, especially if the resource is in a different domain or relies on permissions assigned to built-in groups which can sometimes be mishandled.

Strategies for Accurate Authz API Permission Checks¶

To overcome the challenges associated with Authz API calls and ensure accurate effective permission evaluation, several robust strategies can be implemented. These methods aim to correctly align the security context of the evaluation process with the actual resource server, thus resolving the discrepancies caused by remote or cross-domain scenarios. Each approach offers specific advantages and considerations depending on the infrastructure and security requirements.

Leveraging AuthzInitializeRemoteResourceManager¶

One effective solution involves explicitly directing the Authz engine to consider the remote resource during context initialization. This is achieved by using the AuthzInitializeRemoteResourceManager function in conjunction with AuthzInitializeContextFromSid. By including a handle to the remote resource, the AuthzInitializeContextFromSid function can build a security context that is aware of the remote resource’s environment and local group memberships. This ensures that the generated user token accurately reflects all relevant group memberships, including those local to the resource’s domain, thereby providing a more precise permission evaluation. This method is particularly useful for programmatic solutions where the application can be modified to incorporate the remote resource manager.

Optimizing Local Authz Context¶

For scenarios where modifying application code might be challenging, or for specific administrative tasks, optimizing the local Authz context can provide significant improvements. If your configuration utilizes Kerberos S4U for authentication, it is crucial to ensure that the administrative user account is in the same domain as the resource. This co-location helps ensure that the Kerberos S4U token accurately includes all necessary group memberships, preventing the omission of domain-local groups.

For evaluating effective permissions on Active Directory objects, running administrative tools directly on a domain controller holding a full copy of the object (e.g., configuration naming context, domain naming context, or application naming context) is highly recommended. This ensures that the evaluation is performed in the most authoritative context. Similarly, when checking effective permissions for a clustered resource, administrators should run the tools from any cluster node or directly from the resource server itself. This proximity to the resource’s security context minimizes the chances of misinterpretation due to remote evaluation.

Disabling Kerberos S4U for Authz (Registry Method)¶

A more fundamental approach to address Authz API inaccuracies involves modifying the Authz engine’s default behavior by turning off Kerberos S4U. This switches the Authz engine from relying on the Kerberos S4U mechanism to using Active Directory (AD) Lightweight Directory Access Protocol (LDAP) and standalone server Security Account Manager (SAM) queries to collect the user’s complete group list. This method can be particularly beneficial in environments where Kerberos S4U consistently yields incorrect results due to complex trust relationships or network configurations.

Important Note: Modifying the system registry incorrectly can lead to severe operational problems, potentially requiring a complete reinstallation of the operating system. Always back up your registry before making any changes. Consult with experienced IT professionals if you are unsure about performing these steps.

To implement this change, follow these steps to configure the UseGroupRecursion registry entry:

1. Open Registry Editor by typing regedit in the Run dialog box.
2. Navigate to the following subkey: HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Authz.
3. From the Edit menu, select New, then choose DWORD (32-bit) Value.
4. Name the new value UseGroupRecursion.
5. Right-click on UseGroupRecursion, and then select Modify.
6. In the Value data field, enter 1, then select OK.
   • A value of 0 (which is the default) instructs Authz to use the Kerberos method.
   • A value of 1 forces Authz to use AD LDAP and standalone server SAM queries.
7. Close Registry Editor.

Several crucial points must be considered when disabling Kerberos S4U for Authz. Firstly, the UseGroupRecursion setting will not take effect if the AUTHZ_REQUIRE_S4U_LOGON flag is used when creating the Authz context, as this flag explicitly mandates the use of Kerberos S4U. Secondly, the application user must possess Read permissions for the TokenGroups attribute and for all relevant domain-local groups of the resource’s domain to enable successful LDAP queries. Lastly, the application must be capable of utilizing the SAM RPC protocol when calling the APIs, as server-local groups are retrieved through SAM APIs. Be aware that an Access Control List (ACL) on the SAM RPC interface can be set using the RestrictRemoteSAM security policy, which might need adjustment to allow the application to function correctly.

Here’s a comparison of the two approaches for Authz group retrieval:

Feature	Kerberos S4U Approach (Default, UseGroupRecursion = 0)	LDAP/SAM Queries (UseGroupRecursion = 1)
Primary Mechanism	Kerberos Service for a User (S4U) ticket	Active Directory (AD) LDAP and standalone server SAM queries
Context for Token	Administrative station/Application server	Resource server (more accurate for remote resources)
Group Inclusion	May miss domain-local groups if remote/cross-domain	More comprehensive, includes domain-local groups
Prerequisites	Kerberos delegation, SPNs, network connectivity	LDAP connectivity, SAM RPC access, Read TokenGroups
Security Policies	Relies on Kerberos policies	Influenced by RestrictRemoteSAM
Application Flag Impact	Affected by AUTHZ_REQUIRE_S4U_LOGON	Not affected by AUTHZ_REQUIRE_S4U_LOGON
Use Case	Local resource checks, simple domain setups	Remote resource checks, complex multi-domain environments

Mastering Effective Permissions on Remote Resources Including SMB Shares¶

Windows Server 2012 R2 introduced a pivotal enhancement for evaluating effective permissions on remote resources, particularly SMB shares. This update integrated an Authz RPC interface into the Local Security Authority Subsystem Service (LSASS) process, managed by the Netlogon service. This crucial interface empowers administrators to evaluate effective permissions relative to the actual resource server itself, providing a significantly more accurate and comprehensive assessment. Furthermore, this capability extends to evaluating permissions set at both the file system and the share level, offering granular insights into which aspect of the access check is limiting user access.

When performing effective access evaluations for remote resources, especially SMB shares, several factors require careful consideration to ensure precision and prevent misinterpretations. These factors address both the authorization context on the remote server and the specific nuances of accessing SMB share information. Overlooking any of these elements can lead to incomplete or erroneous permission reports, undermining security and administrative efforts.

Authorization on the Remote Server¶

To successfully evaluate effective permissions for a resource hosted on a remote server, the initiating user must possess appropriate authorization on that server. Traditionally, this required the user to have administrative access to both the remote server and the specific share or other resource. However, Windows Server 2012 R2 introduced the Access Control Assistance Operators group, a built-in group designed to streamline delegation. Users who are members of this group can evaluate effective permissions without needing full administrative access to the resource servers, thereby facilitating a more secure and delegated administrative model. Leveraging this group helps adhere to the principle of least privilege, allowing specialized personnel to perform necessary security audits without granting excessive permissions.

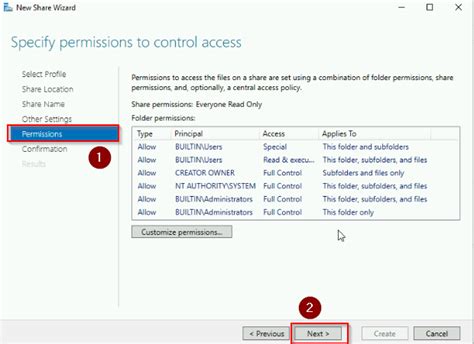

Access to SMB Share Information¶

Accessing comprehensive SMB share information involves two critical aspects. Firstly, the user needs sufficient permissions to retrieve the security descriptor for the share itself. By default, many older operating system versions do not grant this access without administrative privileges. Microsoft has provided updates to enable this capability, which might not be publicly available and could require direct contact with Microsoft Support for in-market operating system versions. This ensures that the evaluation engine can properly assess share-level permissions, which act as the first line of defense before file system permissions are considered.

Secondly, if the resource utilizes share-level access control to restrict user access, the method of accessing the server becomes paramount. It is imperative to use a Universal Naming Convention (UNC) share path to access the resource for effective permission evaluation. Attempts to use a mapped drive letter, such as f:\year2022\quarter2\, will not yield accurate results for share-level permissions. Instead, the evaluation must be performed using the full UNC path, such as \\fileserver01.contoso.com\finance-data\year2022\quarter2\. This distinction is crucial because mapped drive letters abstract the underlying network path, potentially bypassing the server’s direct share-level security context. If you are not actively using share permissions to restrict users, any warnings related to share permissions can generally be safely ignored, as your primary access control relies solely on file system permissions.

Diagram: Remote Effective Permissions Flow¶

```mermaid
graph TD
A[Administrator/Application] → B{Request Effective Permissions};
B → C[Remote Windows Server];
C → D[LSASS Process];
D – Authz RPC Interface → E[Netlogon Service];
E → F[Evaluate Authz Context with Resource Server];
F → G{Query Security Descriptors};
G → H[File System Permissions];
G → I[SMB Share Permissions];
H & I → J[Combine and Determine Effective Access];
J → K[Return Results to Administrator/Application];

subgraph "Remote Server Component"
    C -- Kerberos S4U (if enabled) --> E;
    C -- LDAP/SAM Queries (if UseGroupRecursion=1) --> E;
    E -- Checks Access Control Assistance Operators Group --> G;
    G -- Requires UNC Path for Share-level Evaluation --> I;
end

```
Figure: Simplified flow of remote effective permission evaluation in Windows Server.

Best Practices and Further Considerations¶

Mastering effective permissions is an ongoing process that requires diligent administration and a deep understanding of the underlying mechanisms. To maintain a secure and functional environment, always adhere to the principle of least privilege, ensuring users and applications only have the minimum necessary access rights. Regularly audit effective permissions, especially after changes to group memberships, resource ACLs, or system configurations. This proactive approach helps identify and remediate potential security gaps before they can be exploited.

Consider the impact of nested groups on permission evaluation; while convenient for administration, overly complex nesting can obscure actual access rights. Document your permission structures and administrative processes thoroughly. By combining a solid understanding of both GUI and API-based evaluation methods with these best practices, administrators can confidently manage remote access rights and maintain a robust security posture within their Windows Server environments.

What challenges have you faced when evaluating effective permissions in your environment? Share your experiences and insights in the comments below!
