Repairing Corrupted Model Databases in SQL LocalDB: A Practical Guide

Table of Contents

SQL LocalDB plays a crucial role in the operation of many services, including Microsoft Entra Connect. This article delves into a specific, known issue within the SQLLocalDB utility that can critically disrupt the ADSync service, preventing it from starting. The core problem stems from a corrupted Model database, primarily observed in Microsoft Entra Connect 2.x servers leveraging Microsoft SQL Server 2019 LocalDB installations. Understanding the intricacies of this issue is vital for maintaining the health and continuity of your identity synchronization infrastructure.

The root cause of this service disruption is traced back to a bug within the SQL Server backup logic itself. This flaw inadvertently creates an inconsistent state within the Model database’s start page. Following a backup operation, the Model database is incorrectly set to FULL recovery mode, indicated by dbi_status == 0x40010000. Simultaneously, the dbi_dbbackupLSN (log sequence number for the database backup) is assigned a value that points to a specific log file, creating a discrepancy.

The fundamental conflict arises because, despite the Model database internally signaling FULL recovery mode, its actual recovery mode, governed by the Master database, remains SIMPLE. In SIMPLE recovery mode, database transaction logs are automatically truncated as they become unused, without requiring explicit log backups. Conversely, FULL recovery mode mandates that logs are only truncated after a successful log backup, ensuring a complete recovery chain. This mismatch between the declared and actual recovery modes is central to the problem.

When SQLLocalDB attempts to restart after a log truncation event—which occurs automatically in SIMPLE recovery mode—it encounters a backup LSN that predates the earliest available log file. This inconsistency signals a broken log chain, leading SQLLocalDB to conclude that the database cannot be recovered consistently. Consequently, the service fails to start, leading to operational disruptions for Microsoft Entra Connect. The following sections will guide you through identifying this specific Model database corruption, implementing a mitigation strategy to restore service functionality, and applying a permanent solution to prevent future occurrences.

Understanding SQL Server Recovery Models and the Bug’s Impact¶

To fully grasp the nature of this corruption, it’s essential to understand SQL Server recovery models. These models dictate how transactions are logged, whether transaction log backups are possible, and what kinds of restore operations are available. The two relevant models here are SIMPLE and FULL.

Feature	SIMPLE Recovery Model	FULL Recovery Model
Transaction Log	Automatically truncated when no longer needed	Only truncated after a log backup
Backup Options	Full and differential database backups	Full, differential, and transaction log backups
Point-in-Time Recovery	Not possible; only recovers to the end of a backup	Possible (to any point in time covered by backups)
Minimal Log Space	Aims to keep log small	May grow significantly if log backups aren’t taken

The bug exploits the difference in log truncation behavior. The Model database’s start page internally gets updated as if it’s in FULL recovery mode (dbi_status == 0x40010000), expecting log backups to manage truncation. However, the governing Master database dictates SIMPLE recovery, meaning logs are truncated automatically. This creates a state where the dbi_dbbackupLSN (which points to a log file relevant for FULL recovery) becomes invalid when the logs are automatically truncated by the SIMPLE recovery model.

When SQLLocalDB restarts, it performs a consistency check. It finds a dbi_dbbackupLSN that refers to a point in the transaction log that no longer exists because it was truncated. This log sequence number is crucial for bringing the database online consistently. Without a valid LSN chain, SQLLocalDB correctly, but unfortunately, refuses to start the database, leading to the reported service failures. This fundamental inconsistency between the Model database’s internal state and the server’s actual recovery policy is the core of the problem.

mermaid graph TD A[SQL Server Backup Logic Runs] --> B{Model Database Start Page Update}; B --> C{dbi_status set to FULL recovery}; B --> D{dbi_dbbackupLSN set to a log file}; E[Master Database dictates SIMPLE recovery] --> F[Automatic Log Truncation occurs]; F --> G[Log file referenced by dbi_dbbackupLSN is removed]; H[SQLLocalDB Restart Attempt] --> I{Check dbi_dbbackupLSN}; I --> J{LSN points to truncated log file?}; J -- Yes --> K[Error: Log Scan Number Invalid]; K --> L[ADSync Service Fails to Start]; J -- No --> M[Service Starts Successfully];

Symptoms: Identifying Model Database Corruption¶

Accurately identifying the symptoms is the first step toward resolving the issue. When the Microsoft Entra Connect service (ADSync) fails to start due to Model database corruption, several distinct events and log entries will appear on the server. Recognizing these specific indicators is crucial for confirming that you are indeed dealing with this particular problem.

One primary symptom is observed in the Event Viewer, under the Application logs. You will likely see EventID 528 originating from SQLLocalDB 15.0. This event often presents with a message indicating an application error that prevents it from starting correctly. The accompanying text, such as “{Application Error} The application was unable to start correctly (0x%lx). Click OK to close the application.”, signifies a fundamental failure in the LocalDB instance’s ability to initialize its components.

WaitForMultipleObjects
575
{Application Error}
The application was unable to start correctly (0x%lx). Click OK to close the application.
3714

In conjunction with the SQLLocalDB event, the ADSync service itself will report errors. Look for EventIDs 2005 and 6226 with ADSync as the source in the Application Event Viewer. These events typically indicate a failure to connect to the underlying database. The error code 0x8023044a often appears, alongside an original error 0x80004005 and a description like “Login timeout expired” from the OLEDB Provider. This suggests that the ADSync service cannot establish a connection to its LocalDB instance, which is offline due to the corrupted Model database.

0x8023044a
OriginalError=0x80004005 OLEDB Provider error(s):
Description  = 'Login timeout expired'
Failure Code = 0x80004005

The most definitive evidence of Model database corruption is found within the SQLLocalDB error log file. This file is typically located in the ADSync service profile path, specifically within \<ADSync service profile path>\AppData\Local\Microsoft\Microsoft SQL Server Local DB\Instances\ADSync2019. Searching this log for specific entries is paramount. You will encounter an error entry resembling the following, prominently featuring Error: 9003, Severity: 20, State: 1.

<yyyy-MM-dd HH:mm:ss.##> spid14s     The resource database build version is 15.00.4138. This is an informational message only. No user action is required.
<yyyy-MM-dd HH:mm:ss.##> spid8s      Starting up database 'msdb'.
<yyyy-MM-dd HH:mm:ss.##> spid14s     Starting up database 'model'.
<yyyy-MM-dd HH:mm:ss.##> spid14s     Error: 9003, Severity: 20, State: 1.
<yyyy-MM-dd HH:mm:ss.##> spid14s     The log scan number (41:488:1) passed to log scan in database 'model' is not valid. This error may indicate data corruption or that the log file (.ldf) does not match the data file (.mdf). If this error occurred during replication, re-create the publication. Otherwise, restore from backup if the problem results in a failure during startup.
<yyyy-MM-dd HH:mm:ss.##> spid14s     SQL Trace was stopped due to server shutdown. Trace ID = '1'. This is an informational message only; no user action is required.

The error message “The log scan number (41:488:1) passed to log scan in database ‘model’ is not valid” directly points to the LSN mismatch discussed earlier. It explicitly states that the log file (.ldf) might not match the data file (.mdf), which is precisely the consequence of the recovery mode inconsistency and subsequent log truncation. Confirming this Error: 9003 in the SQLLocalDB error log solidifies the diagnosis of a corrupted Model database.

Mitigation: Restoring the Model Database¶

Once you’ve confirmed that the ADSync service is failing due to Model database corruption, the next step is to mitigate the issue and restore service functionality. This process involves replacing the corrupted Model database files with fresh, uncorrupted templates. This temporary fix allows the SQLLocalDB instance to start, enabling the ADSync service to resume operations.

Step-by-Step Recovery Process:¶

1. Locate the ADSync Service Profile Path: The database files for SQLLocalDB are stored within the profile path of the ADSync service account. This path varies depending on the type of service account used. Common locations include:

   • C:\Users\<service account>\ (for domain accounts or local user accounts)
   • C:\Users\ADSyncMSAxxxx$\ (for Managed Service Accounts, where xxxx represents unique characters)
   • C:\Windows\ServiceProfiles\ADSync\ (for Virtual Service Accounts)
     It is critical to correctly identify the active service account and its corresponding profile directory to proceed.

2. Access the ADSync2019 Instance Folder: Within the service profile path identified in the previous step, navigate to the following directory:
   \<service profile path>\AppData\Local\Microsoft\Microsoft SQL Server Local DB\Instances\ADSync2019\
   This folder contains the actual database files for your SQLLocalDB instance, including the corrupted model.mdf and modellog.ldf files.

3. Verify the Model Database Corruption: Open the error.log file found within the ADSync2019 instance folder. Scroll through the log to locate the specific error entry:


   <yyyy-MM-dd HH:mm:ss.##> spid14s     Error: 9003, Severity: 20, State: 1.
   <yyyy-MM-dd HH:mm:ss.##> spid14s     The log scan number (41:488:1) passed to log scan in database 'model' is not valid. This error may indicate data corruption or that the log file (.ldf) does not match the data file (.mdf). If this error occurred during replication, re-create the publication. Otherwise, restore from backup if the problem results in a failure during startup.



   Confirming this Error: 9003 entry is essential. It directly validates that the Model database is corrupted as described, ensuring you are applying the correct fix.

4. Rename Corrupted Database Files: If Error: 9003 is present, you need to replace the corrupted model.mdf and modellog.ldf files. Before replacing, rename them rather than deleting them immediately. This preserves the original files for potential future analysis or as a rollback option if needed. Rename model.mdf to old_model.mdf and modellog.ldf to old_modellog.ldf. Ensure that no SQL processes are locking these files; you may need to stop any lingering SQLLocalDB processes via Task Manager if renaming fails.

5. Locate SQL Server Template Files: SQL Server installations include template database files that can be used to create new databases. For SQL Server 2019 LocalDB, these templates are typically found at:
   C:\Program Files\Microsoft SQL Server\150\LocalDB\Binn\Templates\
   This directory contains pristine model.mdf and modellog.ldf files, which are uncorrupted and suitable for restoring the Model database.

6. Copy Template Files to Instance Folder: Copy the model.mdf and modellog.ldf files from the Templates folder (from step 5) to the ADSync2019 instance folder (from step 2). These files will serve as the new, functional Model database for your SQLLocalDB instance.

7. Start the ADSync Service: After replacing the files, attempt to start the Microsoft Entra Connect Synchronization Service (ADSync) from the Services console (services.msc). If all steps were followed correctly, the service should now start successfully. The SQLLocalDB instance will initialize using the newly copied Model database files.

Best Practices During Mitigation:¶

• Backup: Although you are renaming files, consider making a full backup of the ADSync2019 instance folder before starting. This provides an extra layer of safety.
• Permissions: Ensure that the service account running ADSync has appropriate read/write permissions to the ADSync2019 instance folder and the Templates directory.
• Downtime: Understand that the ADSync service will be down during this mitigation process. Plan for a suitable maintenance window.

Solution: Preventing Recurrence of Model Database Corruption¶

While the mitigation steps outlined above can successfully restore the ADSync service, they only address the immediate symptom. To prevent the Model database corruption from recurring, a permanent solution is necessary. Microsoft has recognized this issue and has released a fix within Microsoft Entra Connect version 2.1.1.0 and later builds.

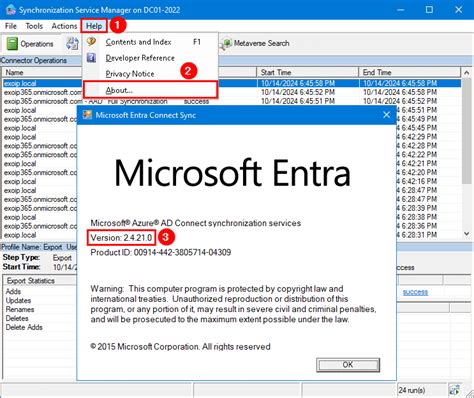

The core of the permanent solution lies in upgrading your Microsoft Entra Connect installation to the latest available version. This upgrade includes crucial patches that resolve the underlying bug in the SQL Server backup logic which causes the inconsistent state in the Model database. By applying this fix, you eliminate the source of the FULL vs. SIMPLE recovery mode conflict and the resulting LSN mismatch that prevents SQLLocalDB from starting.

Upgrade Path and Considerations:¶

• Pre-Upgrade Mitigation: If your ADSync service is currently unable to start due to Model database corruption, you must first apply the steps described in the Mitigation section. The ADSync service needs to be operational for the upgrade process to execute successfully. Once the service is running, you can proceed with the upgrade.
• Download the Latest Build: Always obtain the latest Microsoft Entra Connect build from the official Microsoft documentation. You can find the comprehensive version release history and download links at the Microsoft Entra Connect: Version release history page. Regularly checking this page ensures you are always running the most stable and secure version.
• Upgrade Process: The upgrade process for Microsoft Entra Connect is generally straightforward. It involves downloading the installer and running it on your server. The installer is designed to perform an in-place upgrade, preserving your existing configuration. However, it is always recommended to review the official upgrade documentation before proceeding to understand any specific prerequisites or steps.
• Planned Downtime: Although Microsoft Entra Connect upgrades are designed to minimize downtime, some service interruption might occur. Plan your upgrade during a low-impact period to avoid disruption to your identity synchronization. Consider utilizing a staging server for testing before applying upgrades to your production environment.

Why Upgrades Matter:¶

Staying current with software updates, especially for critical infrastructure like Microsoft Entra Connect, is paramount for several reasons:

• Security: Newer versions often include patches for security vulnerabilities, protecting your identity infrastructure from potential threats.
• Stability and Reliability: Bug fixes, like the one for the Model database corruption, significantly improve the stability and reliability of the service. This reduces unexpected downtime and operational issues.
• New Features: Upgrades often introduce new features and enhancements that can improve performance, add functionality, and simplify management.
• Supportability: Running an outdated version might eventually lead to unsupported configurations, making it difficult to receive assistance from Microsoft if new issues arise.

By consistently applying the latest updates for Microsoft Entra Connect, you ensure that your synchronization service remains robust, secure, and free from known issues like the Model database corruption in SQLLocalDB. This proactive approach is a cornerstone of effective identity management.

Conclusion¶

The corruption of the Model database in SQL LocalDB, leading to ADSync service failures in Microsoft Entra Connect 2.x, can be a significant impediment to seamless identity synchronization. We have thoroughly explored the technical intricacies of this issue, from the root cause in the SQL Server backup logic to the specific symptoms manifested in Event Viewer and SQLLocalDB error logs. Understanding the discrepancy between FULL and SIMPLE recovery modes and the resulting LSN mismatch is key to comprehending why the service fails to start.

Fortunately, a clear path to resolution exists. The immediate mitigation involves a straightforward process of replacing corrupted database files with pristine templates, allowing the ADSync service to resume operations. However, for a lasting solution, upgrading Microsoft Entra Connect to version 2.1.1.0 or later is imperative. This upgrade contains the necessary fixes to prevent the Model database corruption from occurring again, ensuring long-term stability and reliability for your identity synchronization infrastructure.

Proactive monitoring for the outlined symptoms and timely application of updates are crucial practices for maintaining the health of your Microsoft Entra Connect environment. By staying informed and adopting these preventive measures, you can safeguard against unexpected service interruptions and ensure the continuous flow of identity data within your organization.

Have you encountered this specific Model database corruption issue in your Microsoft Entra Connect deployment? What challenges did you face, and how effectively did the mitigation and solution steps work for you? Share your experiences, insights, or any additional tips you may have in the comments below to help others in the community!
