Resolve Azure Container Registry Authentication Errors: A Troubleshooting Guide
Azure Container Registry (ACR) serves as a robust private registry service for managing your container images and artifacts. To ensure secure and controlled access to your repositories, ACR mandates authentication for most operations, including pushing and pulling images. While anonymous pull access is an exception, understanding and resolving authentication issues is crucial for maintaining a smooth CI/CD pipeline and efficient development workflow.
This comprehensive guide is designed to help you diagnose and resolve the most common authentication errors encountered when interacting with your Azure Container Registry. We will delve into initial troubleshooting steps, examine specific error messages, and provide detailed solutions to get your operations running seamlessly again.
Understanding Azure Container Registry Authentication¶
Before diving into specific errors, it’s essential to grasp the various authentication options available for ACR. Each method serves different use cases and environments, from individual developers to automated systems. Choosing the right authentication approach and correctly configuring it is paramount to avoiding access issues.
Common authentication methods include:
* Azure AD Identity (User or Service Principal): This is the recommended method for human users and automated services (like CI/CD pipelines or Azure services). It leverages Azure Active Directory (now Microsoft Entra ID) for secure token-based authentication.
* Admin User: Each ACR instance can have an “admin user” enabled, which provides a username and two passwords. This method is simpler but generally less secure for broad use and is often used for quick testing or scenarios where Azure AD integration is not feasible.
* Repository-Scoped Access Tokens: These tokens offer fine-grained permissions to specific repositories within your registry, ideal for granting temporary or limited access to external systems or individual applications.
Each method has its own set of credentials and lifecycle management, which, if not properly handled, can lead to authentication failures.
Initial Troubleshooting Steps¶
When facing an ACR authentication issue, a systematic approach to troubleshooting can significantly expedite resolution. Begin by identifying the specific authentication mechanism you are attempting to use, as solutions often vary based on your chosen method. Once identified, try to reproduce the error consistently to gather detailed error messages and context.
Checking Azure Container Registry Health¶
A critical first step is to assess the overall health of your Azure Container Registry. Azure provides a built-in command-line tool within the Azure CLI to perform this check. This utility can quickly identify common environmental or registry-specific issues that might be impeding authentication or general operations.
To check the health of your container registry, execute the following command:
az acr check-health --name <acr-name> --ignore-errors --yes
Replace <acr-name> with the actual name of your Azure Container Registry. The --ignore-errors flag allows the command to complete even if some checks fail, providing a comprehensive report. The --yes flag bypasses confirmation prompts.
The output of this command provides a detailed report, including various checks such as Docker daemon status, login server reachability, DNS resolution, and network connectivity. If any problems are detected, the output will present an error code and a description, guiding you towards potential solutions. For a complete reference of error codes and their remedies, consult the Azure documentation.
It is important to note that if you encounter errors specifically related to Helm or Notary within the health check output, these typically do not indicate an issue with your container registry or the device itself. Instead, they usually signify that Helm or Notary is either not installed on your system, or the installed versions are incompatible with your current Azure CLI setup. These errors do not usually impact core push/pull authentication against the registry unless you are specifically using these tools.
Example Health Check Output Interpretation
| Check Component | Status | Description | Remediation |
|---|---|---|---|
| Docker client | OK | Docker client is installed and running. | Ensure Docker is installed and its daemon is active. |
| Docker daemon | OK | Docker daemon is installed and running. | Verify Docker service status. |
| ACR login server | OK | Login server is reachable. | Check network connectivity to acr-name.azurecr.io. |
| ACR health service | OK | ACR health service is reachable. | No action needed. |
| DNS resolution | OK | DNS resolution for login server succeeded. | Investigate local DNS settings or network DNS servers. |
| Connectivity | OK | Network connectivity to all endpoints is established. | Examine firewall rules, proxy settings, or network security groups. |
| Helm client | WARNING | Helm client not found or incompatible. | Install or update Helm client if required for your workflow. |
| Notary client | WARNING | Notary client not found or incompatible. | Install or update Notary client if required for content trust. |
Error 1: “DOCKER_COMMAND_ERROR Please verify if Docker client is installed and running”¶
This error often manifests with details similar to the following:
You may want to use 'az acr login -n <acr-name> --expose-token' to get an access token, which does not require Docker to be installed.
<date and time> An error occurred: DOCKER_COMMAND_ERROR
Please verify if Docker client is installed and running.
This specific error message indicates that the az acr login command, when used in its standard form without the --expose-token parameter, relies on the Docker client and its underlying daemon to be operational. The Azure CLI command essentially acts as a wrapper, invoking the docker login command to perform the actual authentication against ACR using Microsoft Entra access tokens. If the Docker environment is not correctly set up or running, this error will occur.
Solution 1: Ensure Docker is Installed and Running¶
The most direct solution to this error is to confirm that the Docker client and Docker daemon are properly installed and actively running on the machine where you are executing the az acr login command. Docker is a prerequisite for the standard authentication flow.
To install Docker, refer to the official Docker Engine installation guides for your specific operating system. After installation, ensure the Docker daemon service is started. On Linux, you might use sudo systemctl start docker, and on Windows or macOS, the Docker Desktop application typically manages the daemon automatically. Once Docker is confirmed to be running, retry the az acr login command.
Solution 2: Utilize az acr login with the --expose-token Parameter¶
In environments where the Docker daemon is intentionally not running, or where it’s not feasible to install it (e.g., in lightweight CI/CD agents or specific containerized setups), the --expose-token parameter offers an effective alternative. This parameter instructs az acr login to generate and expose an Azure AD access token directly, rather than attempting to log into the Docker client.
The output of az acr login --name <acr-name> --expose-token will provide a username (00000000-0000-0000-0000-000000000000) and the actual access token as the password. You can then pipe this token to a docker login command manually or use it within scripts. This approach is particularly useful in scenarios like the Azure Cloud Shell, where the Docker client is available but the daemon is not.
TOKEN=$(az acr login --name <acr-name> --expose-token --output tsv --query accessToken)
docker login <acr-name>.azurecr.io --username 00000000-0000-0000-0000-000000000000 --password $TOKEN
This method decouples the token acquisition from the Docker daemon requirement, providing flexibility for various operational contexts.
Error 2: “This command requires running the docker daemon, which is not supported in Azure Cloud Shell”¶
An example of this error message is:
This command requires running the docker daemon, which is not supported in Azure Cloud Shell. You may want to use 'az acr login -n <acr-name> --expose-token' to get an access token, which does not require Docker to be installed.
This error is highly specific to the Azure Cloud Shell environment. The Cloud Shell provides a convenient, browser-based command-line experience, and while it includes the Docker client, it does not run the Docker daemon. This limitation prevents commands that explicitly rely on a running Docker daemon, such as the standard az acr login -n <acr-name> command, from executing successfully. The error message itself correctly points to the underlying cause and a viable alternative.
Solution 1: Run az acr login -n <acr-name> in an Alternative Environment¶
If your workflow absolutely requires the Docker daemon for az acr login (e.g., if you need to push/pull images directly after logging in using the standard Docker client behavior), you must execute the command in an environment where the Docker daemon is installed and running. This includes your local development machine, a virtual machine, or any other host where Docker Desktop or Docker Engine is actively managing containers.
For instance, you could switch from the Azure Cloud Shell to a local terminal where Docker Desktop is installed. After successfully running az acr login -n <acr-name> on your local machine, your Docker client will be authenticated, allowing you to perform subsequent docker push or docker pull operations.
Solution 2: Use az acr login with the --expose-token Parameter in Azure Cloud Shell¶
As the error message helpfully suggests, the most straightforward and recommended solution when working within the Azure Cloud Shell is to leverage the az acr login command with the --expose-token parameter. This approach circumvents the Docker daemon requirement entirely.
By using --expose-token, the Azure CLI fetches an authentication token from Azure AD and prints it to the console. You can then capture this token and use it manually with a docker login command, or integrate it into scripts that interact with ACR without needing a running Docker daemon. This method ensures that you can authenticate with ACR even within the constraints of environments like the Azure Cloud Shell, where only the Docker client is present.
Error 3: “Unauthorized: authentication required”¶
This error is a common indicator of credential-related issues and typically appears as:
Error response from daemon: Get "https://<acr-name>.azurecr.io/v2/": unauthorized: {"errors":[{"code":"UNAUTHORIZED","message":"authentication required, visit https://aka.ms/acr/authorization for more information."}]}
The “Unauthorized: authentication required” message signifies that the credentials provided for accessing the Azure Container Registry were either incorrect, invalid, or expired. This error can occur across various authentication methods, including when using an admin user, a service principal, or a token associated with a scope map. It is crucial to verify the validity and currency of the credentials being supplied.
Solution: Verify and Use Correct/Valid Username and Password¶
The core solution involves ensuring that the authentication credentials you are providing are accurate and still active. The specific steps depend on the authentication method you are employing:
-
Admin User Authentication:
If you have enabled the admin user for your ACR, access the Access keys blade within your ACR resource in the Azure portal. Verify that the username and one of the two passwords (Password or Password2) match exactly what you are using in yourdocker loginoraz acr logincommand. It is common for admin user passwords to be regenerated, especially in automated scripts, rendering older credentials invalid. Always re-check these if you suspect an issue.It’s important to remember that regenerating a password for an admin user will immediately invalidate the old password, potentially breaking existing integrations.
-

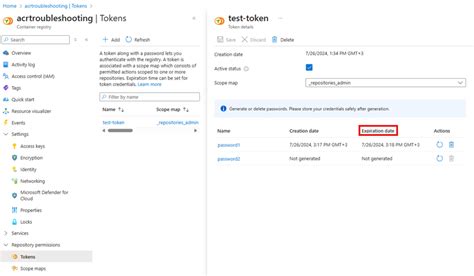

Token with Scope Map Authentication:
When using a token associated with a scope map for more granular access control, the password for the token is generated only once upon creation. After closing the creation screen, the password is no longer displayed for security reasons. If you are unsure of the password, consider regenerating it through the Azure portal or Azure CLI. Regenerating a token password will invalidate the previous one.Additionally, repository-scoped tokens can have an expiration date. To check this, you can use Azure CLI commands like
az acr token showor examine the token’s details in the Azure portal under the Tokens section. An expired token will result in an “Unauthorized” error. If expired, you will need to regenerate the token or create a new one. -
Service Principal Authentication:
Service principals are frequently used for automated scenarios. Ensure that the service principal has the necessary Azure Container Registry roles and permissions assigned. The most common roles areAcrPull(for pulling images) andAcrPush(for pushing and pulling images). Refer to the Azure Container Registry roles and permissions documentation for a complete list and their capabilities.Similar to scope-mapped tokens, the client secret (password) for a service principal is displayed only once upon creation. If you no longer have access to this secret, you will need to create a new one. Navigate to the App registration for your service principal in Microsoft Entra ID, go to Certificates & secrets, and add a new client secret. Remember to store this new secret securely.
Crucially, service principal secrets also have an expiration date. Regularly check the validity of your secrets in the Azure portal under the service principal’s App registration or by using the Azure CLI command
az ad app credential list --id "SP_ID" --query "[].endDateTime" -o tsv. If the secret is expired, you must create a new one to restore authentication.az ad app credential list --id "YOUR_SERVICE_PRINCIPAL_APP_ID" --query "[].endDateTime" -o tsvAn expired secret will lead to authentication failures, necessitating the creation of a new, valid secret. Implementing a rotation strategy for service principal secrets is a security best practice.
Best Practices for Credential Management¶
To prevent these types of “Unauthorized” errors, consider the following best practices:
* Use Managed Identities: For Azure services, use Managed Identities whenever possible. They eliminate the need to manage credentials directly, as Azure automatically handles their lifecycle and rotation.
* Secret Management Solutions: Store credentials (service principal secrets, token passwords) in secure secret management solutions like Azure Key Vault. This centralizes management, enhances security, and facilitates rotation.
* Least Privilege: Always grant only the minimum necessary permissions. For example, a CI/CD pipeline that only pulls images should only have AcrPull permissions, not Contributor.
* Regular Rotation: Implement a schedule for rotating credentials, especially for service principals and admin users, to mitigate the risk of compromise.
Error 4: “Unable to get admin user credentials”¶
This error often appears with a combination of messages indicating both connectivity and permission problems:
Unable to get AAD authorization tokens with message: <date> <time> An error occurred: CONNECTIVITY_REFRESH_TOKEN_ERROR
Access to registry '<acr-name>.azurecr.io' was denied. Response code: 401. Please try running 'az login' again to refresh permissions.
Unable to get admin user credentials with message: The resource with name '<acr-name>' and type 'Microsoft.ContainerRegistry/registries' could not be found in subscription '<subscription-name> (<subscription-id>)'.
The error “Unable to get admin user credentials” (or similar authorization token errors) points to an issue where the identity attempting to authenticate either lacks the necessary permissions to retrieve ACR credentials or cannot even locate the ACR resource itself. The message CONNECTIVITY_REFRESH_TOKEN_ERROR might indicate an underlying network issue preventing communication with Microsoft Entra ID, while “resource… could not be found” strongly suggests a permissions or scope problem. This often occurs when the user or service principal trying to log in does not have sufficient rights to list or read the ACR’s properties, including its admin credentials or details required for token acquisition.
Solution: Ensure the Identity Has Specific Permissions¶
The primary solution is to verify and, if necessary, grant the correct permissions to the identity (user, service principal, or managed identity) being used for authentication. This involves checking the Azure RBAC (Role-Based Access Control) assignments for the ACR resource.
-
Required Permissions: For an identity to successfully authenticate or manage ACR settings, it generally needs at least
Readerpermissions on the ACR resource itself. To specifically retrieve admin user credentials (if enabled), the identity would typically require roles likeOwner,Contributor, or a custom role with specific data actions. For general push/pull operations with Azure AD identities,AcrPullandAcrPushroles are commonly used.Common ACR Built-in Roles:
* AcrPull: Allows pulling images from the registry.
* AcrPush: Allows pushing and pulling images from the registry.
* Contributor: Provides full management access to the ACR, including setting network rules and managing admin users, but not data plane access by default unless specific actions are granted.
* Reader: Allows viewing ACR properties but no modification or data plane access.If the error specifically states “resource… could not be found,” it might mean the identity lacks even
Readerpermission on the ACR, or the ACR name/subscription context is incorrect in the command being executed. -
Verifying and Assigning Permissions:
- Azure Portal: Navigate to your Azure Container Registry, select Access control (IAM), and then click on View access to this resource. You can check existing role assignments for the user or service principal in question. To add a new assignment, click Add > Add role assignment, then select the appropriate role (e.g.,
AcrPull,AcrPush,Contributor) and assign it to your user or service principal. - Azure CLI: Use the
az role assignment listcommand to verify existing assignments andaz role assignment createto add new ones.
# List role assignments for a specific ACR az role assignment list --scope /subscriptions/<subscription-id>/resourceGroups/<resource-group>/providers/Microsoft.ContainerRegistry/registries/<acr-name> --output table # Example: Assign AcrPush role to a service principal az role assignment create --assignee <service-principal-app-id> --role AcrPush --scope /subscriptions/<subscription-id>/resourceGroups/<resource-group>/providers/Microsoft.ContainerRegistry/registries/<acr-name>
Ensure that the subscription ID, resource group name, and ACR name are correct in your commands, as an incorrect scope can also lead to the “resource not found” message. Regularly reviewing and adhering to the principle of least privilege helps in maintaining a secure and functional environment. - Azure Portal: Navigate to your Azure Container Registry, select Access control (IAM), and then click on View access to this resource. You can check existing role assignments for the user or service principal in question. To add a new assignment, click Add > Add role assignment, then select the appropriate role (e.g.,
Error 5: “Client with IP is not allowed access”¶
This error clearly points to a network access restriction and typically appears as follows:
Unable to get AAD authorization tokens with message: <date> <time> An error occurred: CONNECTIVITY_REFRESH_TOKEN_ERROR
Access to registry '<acr-name>.azurecr.io' was denied. Response code: 403. Please try running 'az login' again to refresh permissions.
Error response from daemon: Get "https://<acr-name>.azurecr.io/v2/": denied: {"errors":[{"code":"DENIED","message":"client with IP \u0027<ip-address>\u0027 is not allowed access. Refer https://aka.ms/acr/firewall to grant access."}]}
The error message, particularly the 403 response code and the explicit “client with IP ‘
Solution: Ensure the Device Has Network Connectivity and IP is Whitelisted¶
To resolve this issue, you must ensure that the device attempting to authenticate has proper network connectivity to the ACR and that its public IP address is explicitly allowed through the registry’s firewall.
-

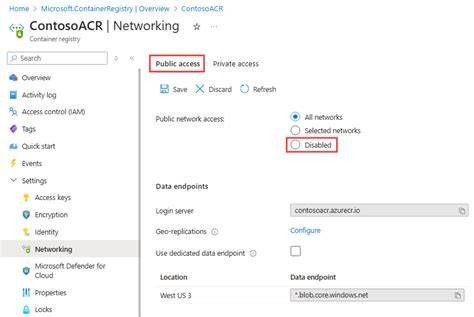

Configure Public IP Network Rules:
Azure Container Registry allows you to configure rules that restrict public network access. You can set the registry to allow access from all networks, selected networks, or to disable public access entirely. If your registry is configured for “Selected networks,” you must add the public IP address (or range) of your client machine to the allowed list.- Identify Client IP: Determine the public IP address of the machine from which you are trying to access ACR. You can do this by searching “What is my IP” in a web browser.
- Azure Portal Configuration:
- Navigate to your Azure Container Registry in the Azure portal.
- Under Settings, select Networking.
- In the Public access tab, ensure Public network access is set to “Selected networks” or “All networks” (if appropriate for your security posture).
- If “Selected networks” is chosen, click + Add current client IP address or manually add the identified IP address/CIDR range in the Firewall section.
- Save your changes.
For more granular control and automated management, you can also configure public IP network rules using the Azure CLI. Refer to the Azure documentation on configuring public IP network rules for detailed instructions.
-

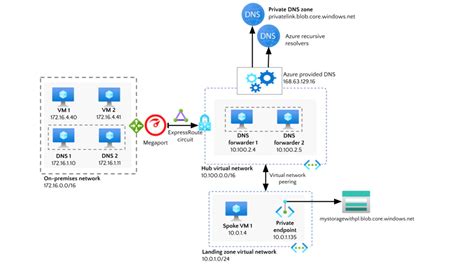

Leverage Azure Private Link:
For enhanced security and scenarios where exposing ACR over public IPs is undesirable, consider using Azure Private Link. Azure Private Link allows you to connect privately to your Azure Container Registry using a private endpoint within your Azure Virtual Network. This means all traffic to your ACR traverses the Azure backbone network, eliminating exposure to the public internet.This solution is ideal for workloads running inside Azure Virtual Networks, such as Azure Kubernetes Service (AKS), Azure Container Apps, or virtual machines, as it provides a secure and private connection without needing to manage firewall IP whitelists for public IPs. Configuring Private Link involves creating a private endpoint for your ACR within a subnet of your virtual network and ensuring proper DNS resolution.
Using Private Link is a recommended security posture for production environments, as it significantly reduces the attack surface and ensures private, secure access to your container images.
Proactive Measures and Advanced Troubleshooting¶
Beyond addressing immediate error messages, adopting proactive measures and understanding advanced troubleshooting techniques can significantly reduce the occurrence and impact of authentication issues.
Using Azure Monitor for ACR Diagnostics¶
Azure Monitor provides comprehensive logging and metrics for Azure Container Registry, which can be invaluable for diagnosing subtle or intermittent authentication problems. Enable diagnostic settings for your ACR to send logs to a Log Analytics Workspace.
Key log categories to monitor include:
* AuditLogs: Provides detailed information about registry operations, including successful and failed authentication attempts, which can help pinpoint when and why an “Unauthorized” error occurred.
* ContainerRegistryRepositoryEvents: Logs events related to repository activities, offering insights into push/pull operations.
By querying these logs in Log Analytics, you can identify patterns, track specific failed attempts, and correlate them with changes in credentials, network rules, or client configurations.
Authentication Flow Diagram¶
Understanding the authentication flow can help in debugging. Here’s a simplified Mermaid diagram of a typical Azure AD-based authentication for ACR:
mermaid
graph LR
A[Client Application] --> B(az acr login);
B --> C{Azure AD for Token};
C --> D[Access Token];
D --> E(docker login);
E --> F{ACR Authentication Service};
F -- Valid Credentials --> G[ACR Repository];
F -- Invalid Credentials --> H[Unauthorized Error];
G --> I[Push/Pull Image];
This diagram illustrates how az acr login acquires an access token from Azure AD, which is then used by the Docker client to authenticate with ACR’s authentication service. Failures can occur at any stage, from token acquisition to ACR validation.
Best Practices for Secure and Reliable Authentication¶
- Managed Identities for Azure Resources: For applications and services deployed within Azure, always prioritize using Managed Identities to authenticate with ACR. They remove the need for developers to manage credentials directly, improving security and simplifying credential rotation.
- Conditional Access Policies: Leverage Microsoft Entra Conditional Access policies to enforce additional security requirements for access to ACR, such as multi-factor authentication, trusted device requirements, or specific location restrictions.
- Vulnerability Scanning: Regularly scan your container images for vulnerabilities before pushing them to ACR. While not directly related to authentication, it’s a crucial part of a secure container strategy.
- Network Security Groups (NSGs): If using Private Link, ensure your Virtual Network’s Network Security Groups (NSGs) allow traffic to the private endpoint for ACR.
- Regular Review of Permissions: Periodically review the roles and permissions assigned to users and service principals accessing your ACR to ensure they adhere to the principle of least privilege. Remove any unnecessary or outdated access rights.
Conclusion¶
Resolving Azure Container Registry authentication errors is a critical aspect of maintaining a robust and secure containerized application environment. By systematically approaching troubleshooting, understanding the various authentication methods, and implementing the recommended solutions for common errors, you can minimize downtime and ensure seamless operation of your container workflows. From verifying Docker installations to configuring network rules and managing credentials, each step plays a vital role in securing your private container registry.
We hope this comprehensive guide has provided you with the insights and tools necessary to tackle ACR authentication challenges effectively.
