RODC Security Alert: SYSVOL Replication Vulnerability in Windows Server

Table of Contents

Read-Only Domain Controllers (RODCs) play a crucial role in enhancing security and improving authentication performance in distributed environments, particularly in branch offices or perimeter networks. However, ensuring their proper functionality, especially concerning the replication of the System Volume (SYSVOL) shared directory, is paramount for the overall health and integrity of an Active Directory forest. This article delves into a specific issue where RODCs fail to replicate inbound SYSVOL, leading to potential disruptions in Group Policy application and script execution.

Understanding this vulnerability is essential for any administrator managing a Windows Server environment. We will explore the symptoms that indicate this problem, uncover the underlying cause related to misconfigured replication connections, and provide a comprehensive, step-by-step resolution. Properly configured replication is the backbone of a stable Active Directory, and addressing such issues proactively helps maintain a robust and secure infrastructure.

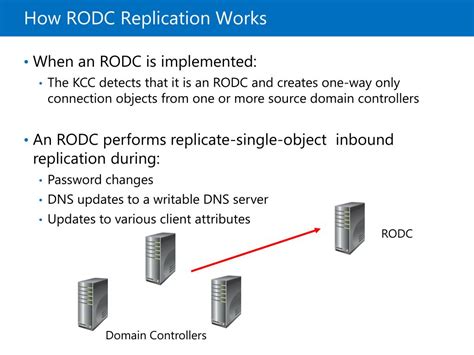

Understanding Read-Only Domain Controllers (RODCs) and SYSVOL¶

Before diving into the specifics of the replication issue, it’s important to understand the components involved. Read-Only Domain Controllers (RODCs) are a special type of domain controller introduced in Windows Server 2008. Unlike traditional writable domain controllers (WDCs), RODCs hold a read-only copy of the Active Directory database. This design significantly enhances security in environments where physical security of the DC might be compromised, as they cannot be used to modify the directory or steal sensitive credentials directly.

SYSVOL (System Volume) is a shared directory on all domain controllers that stores critical elements like Group Policy objects (GPOs), logon scripts, and other data that must be accessible by all domain controllers and clients. This shared folder is essential for the consistent application of policies across the network, user authentication, and various operational scripts. Its integrity and availability are non-negotiable for a functioning Active Directory environment.

Originally, SYSVOL replication was handled by the File Replication Service (FRS). However, with the advent of Windows Server 2008 R2, the Distributed File System Replication (DFSR) service became the preferred and default method for replicating SYSVOL. DFSR offers improved performance, reliability, and advanced features compared to FRS. Most modern Active Directory forests now utilize DFSR for SYSVOL replication, making it critical to monitor its health.

Identifying the Symptoms of SYSVOL Replication Failure¶

When RODCs fail to replicate inbound the SYSVOL shared directory, it can lead to a cascade of problems, most notably outdated Group Policy settings for users and computers authenticated by the affected RODC. Administrators will typically observe several tell-tale signs within their environment. These symptoms provide clear indicators that the RODC’s SYSVOL is not receiving updates from writable domain controllers.

One of the primary indicators is the observation that despite multiple inbound Active Directory connections being listed in Active Directory Sites and Services (Dssite.msc) for an affected RODC, SYSVOL replication still does not occur. This visual discrepancy can be misleading, as the issue lies deeper than just the presence of connection objects. The operational impact could range from new Group Policies not applying to users logging on against that RODC, to login scripts failing to execute.

Further investigation reveals specific entries logged in the event logs, which are crucial for pinpointing the problem.

DFSR Event Log Warnings¶

The Distributed File System Replication (DFSR) service is responsible for replicating the SYSVOL content. When this service encounters a problem with its configuration or replication partners, it logs relevant warnings. A key event observed in the DFSR event log is:

Log Name: DFS Replication
Source: DFSR
Event ID: 6804
Level: Warning
Keywords: Classic
Description:
The DFS Replication service has detected that no connections are configured for replication group Domain System Volume. No data is being replicated for this replication group.

This event clearly states that DFSR believes there are no replication connections for the “Domain System Volume” replication group. This is a critical warning, as it directly indicates that the DFSR service on the RODC is effectively isolated and unable to pull new content for SYSVOL. Despite Active Directory having connections, DFSR, which operates at a different layer, isn’t seeing the necessary configuration.

Directory Service Event Log Errors¶

In parallel with the DFSR warnings, the Directory Service event log will also contain error messages that provide further clues. The Knowledge Consistency Checker (KCC), a component of Active Directory that automatically creates and manages replication topologies, will report its inability to establish a proper replication path for the RODC’s directory service. This specific error often points to missing or incorrectly configured properties on the replication connection objects.

The following entry is commonly observed:

Log Name: Directory Service
Source: Microsoft-Windows-ActiveDirectory_DomainService
Event ID: 2843
Task Category: Knowledge Consistency Checker
Level: Error
Description:
The Knowledge Consistency Checker was unable to locate a replication connection for the read-only local directory service. A replication connection with the following option must exist in the forest for correct FRS system behavior.

Additional Data
Option: 64
User Action
Restore the original replication connection for the local directory service instance on a writable directory service instance.

This event is particularly telling because it explicitly mentions “Option: 64”. This “option” refers to a specific flag or bit setting on the Active Directory connection object itself. The KCC is essentially stating that it expects a certain attribute configuration on the connection object for the RODC, which is currently absent or incorrect. The reference to “FRS system behavior” might seem confusing given DFSR is typically used for SYSVOL, but it points to the underlying requirement for a specific connection type that historically enabled FRS and now enables DFSR replication for SYSVOL on RODCs.

It is also noteworthy that newly promoted RODCs might function correctly, and demoting and then promoting an affected RODC will temporarily resolve the issue. This behavior suggests that the initial promotion process correctly configures these essential connection objects, but they are subsequently altered or deleted.

Root Cause of the SYSVOL Replication Failure¶

The core of this replication issue lies in the improper management or accidental deletion of critical Active Directory objects that govern replication for Read-Only Domain Controllers. Understanding the interaction between Active Directory’s replication topology and the needs of the DFSR service is key to grasping the cause.

The problem typically arises because an administrator has inadvertently deleted the automatically generated “RODC Connection (FRS)” objects associated with the affected RODCs. This action might seem innocuous at first glance, but it removes a vital piece of the replication puzzle for RODCs. Administrators often perform this deletion for one of two primary reasons, both stemming from a misunderstanding of how these connections facilitate SYSVOL replication.

Firstly, a common misconception is that because the connection objects are named “RODC Connection (FRS)”, they are only relevant for the legacy File Replication Service (FRS) and are therefore no longer required in environments where Distributed File System Replication (DFSR) has taken over SYSVOL replication. While it is true that DFSR is the modern replication engine for SYSVOL, these specific connection objects, despite their FRS-related naming convention, are still crucial for RODCs to correctly initiate SYSVOL replication via DFSR. The name is a historical artifact, but their function remains vital for this specific DC type.

Secondly, some administrators might create manual connection objects based on their local operational processes or preferred naming conventions. While creating manual connections is a valid practice for writable DCs, RODCs have a unique requirement. They demand a special flag or option to be set on their connection objects to ensure SYSVOL replication functions correctly, regardless of whether FRS or DFSR is the underlying file replication service. If these manually created connections lack this specific flag, SYSVOL replication will fail, leading to the symptoms described previously.

The critical missing element is the 0x40 flag (NTDSCONN_OPT_RODC_TOPOLOGY) within the options attribute of the connection object. This flag is explicitly designed to signal to Active Directory and the KCC that the connection is intended for an RODC and needs special handling. Without this flag, the KCC is unable to properly locate or utilize the connection for SYSVOL replication on the RODC, leading to the Event ID 2843. Essentially, the connection object, even if present, is not interpreted correctly by the system as a valid SYSVOL replication pathway for a read-only domain controller. This subtle but crucial distinction explains why new RODCs work (as their objects are correctly created initially) and why a re-promotion also temporarily fixes the problem.

Resolving the SYSVOL Replication Vulnerability¶

Restoring SYSVOL replication on affected RODCs involves recreating the necessary Active Directory connection objects with the correct attribute settings. This process must be performed carefully to ensure the integrity of the Active Directory environment. The resolution focuses on adding the special 0x40 flag that the KCC requires for RODC replication.

Step-by-Step Resolution Guide¶

To resolve this issue, follow these detailed steps:

1. Log On to a Writable Domain Controller:

   • Begin by logging on to any writable domain controller within the affected Active Directory forest. Ensure the account used has Enterprise Administrator privileges. This level of permission is necessary to modify Active Directory schema and configuration objects, which include replication connection settings. Working on a writable DC is crucial because RODCs cannot accept direct modifications to Active Directory objects.

2. Launch Active Directory Sites and Services (Dssite.msc):

   • Open the Server Manager, navigate to Tools, and then select Active Directory Sites and Services. This management console is used to manage the physical and logical structure of your Active Directory environment, including sites, subnets, and replication connections between domain controllers.

3. Locate the Affected RODC’s NTDS Settings:

   • In Dssite.msc, expand Sites, then navigate to the specific site where the affected RODC resides.
   • Within the site, expand Servers, then locate and expand the name of the affected RODC.
   • Under the RODC’s server object, select the NTDS Settings object.
   • Note: At this point, you might observe that there are either no connection objects listed under the NTDS Settings object, or only manually created connections that lack the necessary 0x40 flag. The absence or incorrect configuration of these connections is the root of the problem.

4. Create a New Connection Object:

   • Right-click the NTDS Settings object of the affected RODC.
   • From the context menu, select New > Connection.
   • In the “Find Domain Controllers” dialog box, select a suitable writable domain controller from the same Active Directory site or a well-connected site that can act as a replication partner for this RODC.
   • A common practice is to name this new connection object using the default naming convention: RODC Connection (FRS). While the name contains “FRS,” remember that this object’s configuration is what matters for DFSR-based SYSVOL replication on RODCs. Using the default name helps maintain consistency and clarity.

5. Edit the Connection Object’s options Attribute:

   • This is the most critical step. You will need to modify a specific attribute within the newly created connection object.
   • Method A: Using ADSI Edit (Adsiedit.msc)
     • Open ADSI Edit (from Server Manager > Tools > ADSI Edit).
     • Right-click ADSI Edit in the console tree and select Connect to....
     • Ensure the “Connection Point” is set to Default naming context or Configuration, and the “Computer” is set to Default (Domain or server that you logged on to). Click OK.
     • Navigate through the ADSI Edit tree to locate the newly created connection object. It will typically be under Configuration [yourdomain.com] > CN=Configuration,DC=yourdomain,DC=com > CN=Sites > CN=[Your Site Name] > CN=Servers > CN=[RODC Name] > CN=NTDS Settings > CN=[New Connection Name].
     • Right-click the connection object and select Properties.
     • In the properties dialog, navigate to the Attribute Editor tab. (If you don’t see this tab, ensure “Advanced Features” is enabled under “View” in Dssite.msc if you are attempting to edit attributes from there).
     • Locate the options attribute. Its value will likely be <not set> or 0.
     • Double-click the options attribute, enter 0x40 in the Value field, and click Add, then OK. This sets the critical NTDSCONN_OPT_RODC_TOPOLOGY bit.
   • Method B: Using Active Directory Sites and Services Attribute Editor Tab:
     • In Dssite.msc, ensure View > Show Services Node and View > Show Advanced Features are enabled.
     • Navigate to the newly created connection object under the RODC’s NTDS Settings.
     • Right-click the connection object, select Properties.
     • Go to the Attribute Editor tab.
     • Locate the options attribute.
     • Double-click it, then enter 64 (decimal equivalent of 0x40) in the Value field and click OK.

6. Repeat for Additional Connections (If Necessary):

   • If multiple RODCs are affected, or if an RODC requires more than one inbound replication connection (e.g., from different source DCs for redundancy or topology reasons), repeat steps 4 and 5 for each required connection.

7. Force Active Directory Replication and Verify:

   • After making the changes, it’s essential to ensure these modifications propagate throughout the Active Directory environment.
   • You can force Active Directory replication from the writable DC where you made the changes to the affected RODCs. This can be done using repadmin.exe command-line tool.
     • To replicate changes from the current writable DC to the RODC: repadmin /replicate <RODC_Name> <Writable_DC_Name> <DN_of_NTDS_Settings_on_RODC> (e.g., repadmin /replicate RODC1 WDC1 "CN=NTDS Settings,CN=RODC1,CN=Servers,CN=Site1,CN=Sites,CN=Configuration,DC=domain,DC=com").
     • Alternatively, force a full synchronization: repadmin /syncall <Writable_DC_Name> /APEd
   • Alternatively, you can wait for Active Directory convergence to occur naturally, which typically takes between 15 minutes and a few hours, depending on your replication topology and schedule.
   • Verification:
     • Once replication has converged, check the DFSR and Directory Service event logs on the RODC. The Event ID 6804 and 2843 errors should no longer be appearing.
     • Initiate a SYSVOL health check: Use dfsrdiag.exe commands like dfsrdiag replicationstate /member:<RODC_Name> to confirm that SYSVOL is now replicating correctly.
     • Verify Group Policy application by checking a client computer that authenticates against the RODC.
   • This table summarizes the events to monitor:

Event Log	Event ID	Level	Description	Resolution Impact
DFS Replication	6804	Warning	DFSR service detected no connections configured for “Domain System Volume,” hence no data replication.	Should stop appearing.
Directory Service	2843	Error	KCC unable to locate replication connection for RODC; requires “Option: 64”.	Should stop appearing.
DFS Replication	4114	Information	DFSR successfully initialized replicated folder.	Should start appearing.
DFS Replication	4104	Information	DFSR initialized replication on the replicated folder.	Should start appearing.
Directory Service	1116	Information	KCC successfully completed a cycle of building the replication topology.	Indicates KCC success.

Deep Dive: The NTDSCONN_OPT_RODC_TOPOLOGY Flag (0x00000040)¶

The 0x40 value, or 64 in decimal, represents a specific bit within the options attribute of an Active Directory connection object. This bit is formally known as NTDSCONN_OPT_RODC_TOPOLOGY. Its purpose is to provide critical instructions to the Active Directory replication system, specifically for how a connection should be treated in the context of a Read-Only Domain Controller.

When the NTDSCONN_OPT_RODC_TOPOLOGY bit is set (0x40), it signifies that this particular connection object is primarily intended for SYSVOL replication on an RODC. Crucially, it instructs the Active Directory Domain Service (AD DS) to ignore this connection for standard Active Directory replication (DRS replication, as defined in MS-DRDM). Instead, it directs the system to utilize this connection exclusively for FRS replication (and by extension, DFSR replication for SYSVOL on RODCs). This distinction is vital because RODCs have unique replication requirements compared to writable domain controllers.

Writable DCs use standard connection objects for both Active Directory data and SYSVOL data (via DFSR). For RODCs, however, this special flag ensures that the KCC correctly processes the connection for SYSVOL updates without attempting to use it for inbound writable Active Directory replication (which an RODC cannot perform by definition). Without this flag, the KCC might misinterpret the connection object, leading to the reported errors and the failure of SYSVOL replication. Therefore, setting 0x40 ensures that the RODC receives its essential Group Policy and script updates in a secure and intended manner.

Best Practices and Prevention¶

To prevent similar issues from arising in the future, Active Directory administrators should adhere to several best practices:

• Understand Active Directory Objects: Never delete or modify Active Directory objects, especially those related to replication, without a thorough understanding of their function. Research any unfamiliar object or attribute before making changes.
• Administrator Training: Ensure that all administrators managing Active Directory are adequately trained on RODC specific behaviors, SYSVOL replication (DFSR), and the nuances of Active Directory topology management.
• Regular Health Checks: Implement routine monitoring and health checks for Active Directory and DFSR replication. Tools like repadmin /showrepl, dfsrdiag replicationstate, and consistent review of event logs can help identify issues early.
• Documentation: Maintain comprehensive documentation of your Active Directory environment, including any manual changes made to replication topology.
• Change Management: Always follow a strict change management process for any modifications to your Active Directory infrastructure. This includes testing changes in a non-production environment before implementing them in production.
• Backup and Recovery: Ensure regular and validated backups of your domain controllers. In a disaster scenario, a clean restore can be a last resort.

By following these guidelines, organizations can significantly reduce the risk of encountering SYSVOL replication issues on RODCs and maintain a robust, secure, and reliable Active Directory environment.

Conclusion¶

The SYSVOL replication vulnerability on Read-Only Domain Controllers, often stemming from the accidental deletion or misconfiguration of specific Active Directory connection objects, highlights the intricate nature of Active Directory management. The NTDSCONN_OPT_RODC_TOPOLOGY flag (0x40) is a small but critical detail that ensures the correct functioning of SYSVOL replication on RODCs, which in turn safeguards the consistent application of Group Policies and the execution of essential scripts across your network.

By understanding the symptoms, the underlying cause, and diligently applying the detailed resolution steps, administrators can swiftly rectify this issue and restore the integrity of their RODC environment. More importantly, embracing best practices for Active Directory management and fostering a deep understanding of its components will prevent such vulnerabilities from disrupting operations in the future.

Have you encountered similar replication challenges in your Active Directory environment? What strategies or tools have you found most effective in maintaining a healthy and secure domain controller infrastructure? Share your experiences and insights in the comments below!
