Secure Remote Data Access: Configuring SQL Server Permissions Effectively

Table of Contents

Securing data access in SQL Server, especially for remote connections, is paramount for maintaining data integrity and confidentiality. Ad hoc queries, particularly those utilizing the OPENROWSET or OPENDATASOURCE functionalities, present a significant security vulnerability if not managed correctly. These statements allow SQL Server to connect to and access data from remote OLE DB providers, including other SQL Server instances, often without the stringent controls applied to predefined linked servers. Therefore, understanding and implementing robust permission configurations for these features is crucial for any database administrator.

The OPENROWSET and OPENDATASOURCE functions are powerful tools designed for dynamic, single-use connections to external data sources. While they offer flexibility, their unrestricted use can expose your SQL Server instance to unauthorized access or data exfiltration. By default, SQL Server is configured to disallow such ad hoc access, reflecting a security-first approach to data management. However, these settings can be overridden, sometimes inadvertently, leading to potential security gaps. This article provides a comprehensive guide on managing these permissions, ensuring your remote data access remains secure and compliant with best practices.

Understanding OPENROWSET and OPENDATASOURCE Security Risks¶

The OPENROWSET and OPENDATASOURCE functions allow for dynamic connections to OLE DB providers, facilitating direct interaction with external data sources. Unlike linked servers, which require prior setup and offer centralized management of security credentials and provider options, these functions enable on-the-fly connections. This immediate connectivity, while convenient for quick data retrieval, bypasses the established security frameworks that linked servers provide, making them inherently riskier for routine or unmonitored use. An attacker who gains control of a SQL login with sufficient permissions could leverage these functions to access any data reachable by the SQL Server service account, potentially across the network.

When OPENROWSET or OPENDATADSOURCE are used, SQL Server establishes a connection using the credentials available to the SQL Server service or the calling user, depending on the configuration. If the Ad Hoc Distributed Queries advanced configuration option is enabled and the DisallowAdhocAccess registry option for a specific provider is set to 0, these queries can execute without restriction. This combination creates an open pathway to any OLE DB data source, whether local or remote, that the SQL Server can reach. Such broad access significantly increases the attack surface and the potential for data breaches, underscoring the importance of tightly controlling these capabilities.

The Role of Ad Hoc Distributed Queries and DisallowAdHocAccess¶

Two primary settings govern the behavior of OPENROWSET and OPENDATASOURCE for ad hoc access: the server-level advanced configuration option Ad Hoc Distributed Queries and the provider-specific DisallowAdhocAccess property. For ad hoc queries to succeed, both conditions must be met. The Ad Hoc Distributed Queries option is a server-wide setting that, when enabled, signals SQL Server’s permission to execute distributed queries without pre-configured linked server definitions. Its default state is typically disabled, preventing ad hoc distributed queries from running altogether.

Complementing this, the DisallowAdhocAccess property is a more granular, provider-specific setting. Each OLE DB provider registered with SQL Server can have this property configured. When set to 1, it explicitly forbids ad hoc access through that particular provider, regardless of the Ad Hoc Distributed Queries server option. Conversely, setting it to 0 allows ad hoc access if the server-level option is also enabled. Understanding this hierarchy is crucial for effectively managing and securing remote data access within your SQL Server environment.

Disabling Ad Hoc Access Using SQL Server Management Studio¶

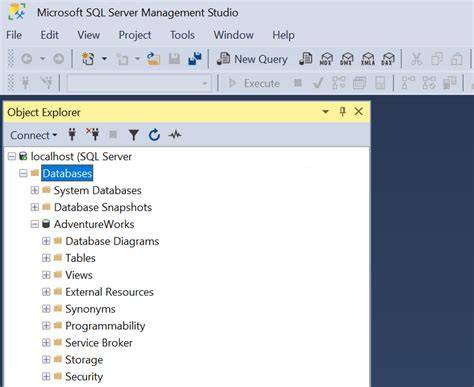

SQL Server Management Studio (SSMS) provides an intuitive graphical interface to manage server and provider options, including disabling ad hoc access. This method is generally preferred for its user-friendliness and reduced risk compared to direct registry modifications. By following these steps, you can quickly enhance the security posture of your SQL Server instance against unauthorized remote data access. It is a fundamental step in ensuring that all external data interactions are channeled through explicitly defined and controlled linked servers.

To disable DisallowAdHocAccess for a specific OLE DB provider using SSMS, navigate through the following procedure:

1. Open SQL Server Management Studio (SSMS): Launch SSMS and connect to your desired SQL Server instance. Ensure you have the necessary administrative privileges to modify server configurations and provider settings.
2. Expand Linked Servers: In the Object Explorer, expand the Server Objects node, then further expand Linked Servers. This section lists all configured linked servers and the underlying OLE DB providers.
3. Access Provider Options: Locate and expand the Providers folder under Linked Servers. This will display a list of all OLE DB providers currently registered with your SQL Server instance. Right-click on the specific OLE DB provider you wish to configure, then select Properties from the context menu.
4. Configure Disallow adhoc access: In the Provider Options dialog box that appears, scroll through the list of properties. Find the Disallow adhoc access checkbox. Tick this checkbox to enable the property, effectively setting its value to 1 and preventing ad hoc queries through this provider. Click OK to apply the changes.

This action immediately updates the provider’s configuration within SQL Server. For this specific change (from 0 to 1), a SQL Server service restart is generally required for the setting to take full effect and enforce the restriction. This SSMS approach centralizes the management of provider security, making it easier to audit and maintain secure data access policies across your SQL Server deployments.

Disabling Ad Hoc Access Using Registry Editor¶

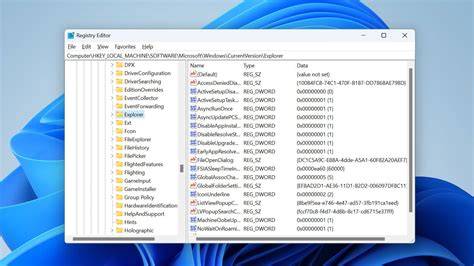

While SSMS offers a convenient way to configure provider options, certain scenarios or specific provider types might necessitate direct modification of the Windows Registry. This method is particularly relevant when a linked server has already been saved, as the DisallowAdHocAccess property might only be modifiable through the registry thereafter. Modifying the registry directly requires caution, as incorrect changes can lead to system instability or service interruptions. Always back up your registry before making significant alterations.

Adding the DisallowAdHocAccess Value¶

If the DisallowAdHocAccess value does not exist for a specific OLE DB provider in the registry, you must add it manually. This typically occurs for providers that haven’t been previously configured via SSMS or explicitly set up with linked servers.

1. Start Registry Editor: Open the Run dialog (Windows Key + R), type regedit, and press Enter.
2. Navigate to the Provider Key: In Registry Editor, browse to the following path:
   HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\MSSQLServer\Providers\<ProviderName>
   Replace <ProviderName> with the actual name of your OLE DB provider. For example, for the Microsoft OLE DB Provider for ODBC Drivers, the path would be:
   HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\MSSQLServer\Providers\MSDASQL
3. Add New DWORD (32-bit) Value: On the Edit menu, select New, and then choose DWORD (32-bit) Value.
   • Value name: DisallowAdHocAccess
   • Data type: REG_DWORD
   • Value data: 1 (Hexadecimal or Decimal)
     Setting the value data to 1 explicitly disables ad hoc access for this provider.
4. Exit Registry Editor: Close the Registry Editor.

Modifying an Existing DisallowAdHocAccess Value¶

If the DisallowAdHocAccess value already exists, you can simply modify its data to control ad hoc access. This is common if the setting was previously enabled or disabled and you need to reverse or change the configuration.

1. Start Registry Editor: As before, open regedit.
2. Locate the Value: Navigate to the provider’s key as described in the previous section. Locate the existing DisallowAdHocAccess DWORD value.
3. Modify Value Data: Double-click DisallowAdHocAccess. In the Edit DWORD Value dialog box, change the Value data to 1 to disable ad hoc access, or 0 to enable it (if the server-level Ad Hoc Distributed Queries option is also enabled). Select OK.
4. Exit Registry Editor: Close the Registry Editor.

For named instances of SQL Server, the registry path for providers is slightly different:
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Microsoft SQL Server\<Instance Name>\Providers\<ProviderName>
Replace <Instance Name> with the actual name of your SQL Server instance (e.g., MSSQL15.SQLEXPRESS).

After modifying the registry, a restart of the SQL Server service is highly recommended, especially when changing the DisallowAdHocAccess from 0 to 1. This ensures that SQL Server reloads the provider settings and enforces the new security policy.

Enabling Ad Hoc Remote Access (With Caution)¶

While the focus of this article is on disabling ad hoc access for security, there might be rare, specific scenarios where enabling it temporarily and under strict control is necessary. However, it’s crucial to approach this with extreme caution, understanding the inherent security risks involved. Enabling ad hoc access for OPENROWSET and OPENDATASOURCE creates a potential back door to your data, which should be immediately closed once the specific, justifiable need has passed. The security model for these functions is significantly less robust than that of linked servers.

To enable ad hoc remote access, two primary conditions must be met:
1. The Ad Hoc Distributed Queries advanced configuration option must be enabled at the server level. This is typically done via sp_configure.
2. The DisallowAdhocAccess registry option for the specific provider must be set to 0.

To enable the server-level option, you would execute:

sp_configure 'show advanced options', 1;
RECONFIGURE;
GO
sp_configure 'Ad Hoc Distributed Queries', 1;
RECONFIGURE;
GO

Following this, you would modify the DisallowAdHocAccess registry value to 0 using the Registry Editor steps outlined above. Remember that changing DisallowAdHocAccess from 1 to 0 (enabling access) does not require a SQL Server service restart, as the system will typically pick up the more permissive setting immediately. Conversely, tightening security by changing from 0 to 1 does necessitate a restart.

Restart Requirements and Default Behavior¶

The restart requirement for DisallowAdHocAccess changes is an important detail for administrators to understand. When you change the value of DisallowAdHocAccess from 1 (disabled) to 0 (enabled), the SQL Server service does not typically require a restart for the change to become effective. This is because SQL Server often dynamically loads more permissive settings without a full service reboot, allowing immediate flexibility for developers or specific operational needs.

However, when you change the value from 0 (enabled) to 1 (disabled), thereby tightening security, a restart of the SQL Server service is usually necessary for the change to take effect. This ensures that all existing connections and cached provider settings are refreshed, and the new, more restrictive policy is fully enforced across the instance. Failing to restart the service in this scenario could leave your system vulnerable, as ad hoc queries might still function until the service is properly recycled. Always plan for a maintenance window if you are implementing this security hardening.

By default, SQL Server is designed with security in mind. Ad hoc access to remote OLE DB data sources via OPENROWSET and OPENDATASOURCE is disabled by default. This means that, out of the box, you do not need to perform any additional configuration to prevent these types of queries. The procedures discussed in this article are primarily relevant if ad hoc access has been explicitly enabled in the past and you now need to disable it, or if you are auditing existing configurations.

If you attempt to execute an ad hoc query (e.g., using OPENROWSET) against an OLE DB provider when DisallowAdHocAccess is set to 1 (its default or explicitly disabled state), SQL Server will return an error message similar to this:

Server: Msg 7415, Level 16, State 1, Line 1
Ad hoc access to OLE DB provider 'Microsoft.Jet.OLEDB.4.0' has been denied. You must access this provider through a linked server.

This error clearly indicates that the intended method of access (ad hoc) is disallowed for the specified provider. It also implicitly guides the user towards the more secure alternative: using a predefined linked server. When DisallowAdHocAccess is 1, SQL Server enforces that all interactions with that specific OLE DB provider must go through a pre-configured linked server, which provides a managed and secure conduit for external data access.

Best Practices and Alternatives: Embracing Linked Servers¶

While OPENROWSET and OPENDATASOURCE offer immediate connectivity, their security model is inferior to that of linked servers. For any regular or production-grade remote data access, linked servers are the unequivocally recommended best practice. Linked servers provide a robust and manageable framework for connecting to diverse OLE DB data sources. They allow administrators to define security contexts, specify authentication methods, and manage provider options in a centralized, auditable manner.

Advantages of Linked Servers:¶

• Centralized Security: Linked servers allow you to define login mappings, specifying how local SQL Server logins authenticate to the remote data source. This can include using the current user’s security context, a specific predefined login, or even self-mapping. This granular control ensures that only authorized users or services can access remote data.
• Performance Optimization: Queries against linked servers can often be optimized by SQL Server’s query optimizer, which can analyze metadata from the remote server to create more efficient execution plans.
• Encapsulation: Linked servers abstract the connection details, making queries cleaner and easier to maintain. Developers simply refer to the linked server name rather than embedding full connection strings in their code.
• Auditing and Management: All configurations for linked servers are stored within SQL Server, making them easier to manage, backup, and audit compared to transient ad hoc connections or direct registry edits.
• Connection Pooling: Linked servers can leverage connection pooling, reducing overhead for frequent connections to the same remote source.

Configuring a Linked Server:¶

Creating a linked server involves defining the remote server, its data source, and the security context for connections. This process is typically performed via SSMS, providing a guided and controlled setup.

-- Example: Creating a linked server
EXEC sp_addlinkedserver
    @server = N'RemoteServerName',
    @srvproduct = N'SQL Server',
    @provider = N'SQLNCLI', -- Or 'SQLNCLI11', 'MSDASQL' etc.
    @datasrc = N'RemoteServerDataSource';
GO

-- Example: Mapping a local login to a remote login
EXEC sp_addlinkedsrvlogin
    @rmtsrvname = N'RemoteServerName',
    @useself = N'FALSE',
    @locallogin = N'LocalUser',
    @rmtuser = N'RemoteUser',
    @rmtpassword = N'RemotePassword';
GO

General Security Best Practices for Remote Data Access:¶

• Principle of Least Privilege: Grant only the minimum necessary permissions to users and service accounts accessing remote data. Avoid using sa or highly privileged accounts for linked server logins.
• Network Security: Implement strong firewall rules to restrict network traffic between your SQL Server instance and remote data sources to only the necessary ports and IP addresses. Use IP whitelisting where possible.
• Encryption: Ensure that all connections to remote data sources, especially over public networks, are encrypted. This protects data in transit from eavesdropping.
• Auditing and Monitoring: Regularly audit access to linked servers and monitor for unusual activity. SQL Server Audit can be configured to track successful and failed login attempts to linked servers and specific query executions.
• Regular Patching: Keep SQL Server and all OLE DB providers updated with the latest security patches to protect against known vulnerabilities.
• Dedicated Service Accounts: Use dedicated, low-privilege service accounts for SQL Server and its components, including SQL Server Agent, to limit the blast radius in case of a compromise.

Visualizing the Security Flow¶

Understanding the decision-making process for ad hoc queries can be simplified with a flow diagram:

mermaid graph TD A[User executes OPENROWSET/OPENDATASOURCE] --> B{Ad Hoc Distributed Queries Enabled?}; B -- Yes --> C{Provider DisallowAdHocAccess = 0?}; B -- No --> D[Access Denied - Msg 7415]; C -- Yes --> E[Ad Hoc Access Granted]; C -- No --> D; E --> F[Query Execution with Potential Risks]; D --> G[User must use Linked Server];

This diagram illustrates how both server-level and provider-level settings must be permissive for ad hoc access to be granted. If either condition is not met, the query is denied, prompting the use of more secure linked server configurations.

Further Learning: YouTube Resource¶

For those interested in a deeper dive into SQL Server security and best practices, external resources can be invaluable. A relevant YouTube video discussing general SQL Server security or linked server configurations can provide additional context and visual demonstrations. While I cannot embed an actual video, searching for “SQL Server security best practices” or “SQL Server linked server configuration” on YouTube will yield numerous helpful guides. These videos often cover topics such as setting up linked servers, managing permissions, and understanding common vulnerabilities, complementing the information provided here.

Conclusion¶

Effective configuration of SQL Server permissions is critical for protecting sensitive data, especially when dealing with remote access. While OPENROWSET and OPENDATASOURCE offer flexibility, their ad hoc nature makes them a significant security risk if not tightly controlled. Disabling ad hoc access through either SQL Server Management Studio or direct registry edits, combined with the server-level Ad Hoc Distributed Queries setting, forms a robust defense against unauthorized remote data access.

The secure-by-default posture of SQL Server, which denies ad hoc queries, emphasizes the importance of using predefined linked servers for all regular remote data interactions. Linked servers provide a managed, auditable, and more secure alternative, adhering to the principle of least privilege and allowing for comprehensive security configuration. By implementing these measures and continuously monitoring your environment, you can significantly enhance the security of your SQL Server instances and protect your valuable data assets.

We encourage you to review your current SQL Server configurations for ad hoc query settings and consider migrating any existing ad hoc data access patterns to linked servers. What are your experiences with securing remote data access in SQL Server? Share your insights and best practices in the comments below!
