Troubleshooting Active Directory Installation: Resolving the "Schema Mismatch" Error

Updated: • 0 • min read
Table of Contents

Troubleshooting Active Directory Schema Mismatch

When deploying Active Directory services, administrators may encounter various challenges. One particularly vexing issue is the “schema mismatch” error that can halt the Active Directory Installation Wizard (Dcpromo.exe). This article details the symptoms, underlying causes, and comprehensive resolutions for this error, applicable primarily to environments including Windows Servers, particularly Windows Server 2012 R2.

Understanding the “Schema Mismatch” Error

The Active Directory schema defines all the object types and attributes that can be stored in the directory. It is a fundamental component, and any inconsistencies can prevent successful domain controller operations, including installation. A “schema mismatch” during a Dcpromo operation indicates that the schema version or definition on the source domain controller does not align with what the target server expects or can process. This discrepancy prevents the new domain controller from replicating the directory partition correctly.

Symptoms of a Schema Mismatch

During the Active Directory Installation Wizard (Dcpromo.exe), if you are attempting to promote a server to a domain controller, you might receive specific error messages indicating a schema mismatch. These messages clearly state the failure to replicate directory partitions due to schema differences between the involved servers. Understanding these messages is the first step in diagnosing the problem.

For systems running Microsoft Windows Server 2003, the error message typically presents as:

Active Directory could not replicate the directory partition DN path for partition from the remote domain controller fully qualified computer name of the source domain controller. The replication operation failed because of a schema mismatch between the servers involved.

If you are working with an older environment, specifically Microsoft Windows 2000, the message will be slightly different but convey the same core issue:

The Directory Service failed to replicate the partition partition name from remote server remote server name. The replication operation failed because of a schema mismatch between the servers involved.

Both messages point to a fundamental issue in the schema definition or replication process, hindering the promotion of the new server to a domain controller.

Root Causes of the Problem

The “schema mismatch” error, despite its name, can stem from several underlying conditions that are not always directly related to the schema partition itself. Identifying the specific cause is crucial for applying the correct resolution. There are generally three primary conditions that lead to this error:

  1. Condition 1: Duplicate Multi-Valued Attributes: The source domain controller’s Active Directory database contains duplicate entries within multi-valued attributes for an object. Active Directory enforces uniqueness for certain attribute values, and duplicates can lead to replication failures.
  2. Condition 2: Database Corruption: One or more attributes or pages within the database of the source domain controller are corrupted. This corruption can prevent proper reading or replication of directory data, leading to integrity checks failing.
  3. Condition 3: Schema Deletion or Inconsistency: The source domain controller has attributes in its database that are no longer defined by the current Active Directory schema. This situation often arises from a schema object being inadvertently deleted, particularly in older Windows 2000 environments prior to Service Pack 3 (SP3) where schema deletion handling was less robust.

Each of these conditions requires a distinct approach to resolution, as detailed in the following sections.

Comprehensive Resolution Strategies

To effectively address the “schema mismatch” error, two primary methods are available. Method 1 targets issues related to duplicate attributes and database corruption (Conditions 1 and 2), while Method 2 focuses on inconsistencies caused by schema deletion (Condition 3).

Method 1: Resolution for Condition 1 and Condition 2

It’s important to note that the “schema mismatch” error message can be somewhat misleading. The actual root cause may not directly involve the schema partition (CN=Schema) or objects residing within it. Instead, the problem often originates from a database constraint violation, such as an object possessing a multi-valued attribute with duplicate entries. Troubleshooting this scenario requires a structured, multi-part procedure.

Part 1: Turn On Diagnostic Logging

To gain deeper insights into the replication process and pinpoint the problematic object or attribute, it is essential to enable verbose diagnostic logging on the source domain controller. This increased logging will capture detailed events related to replication, internal processing, and directory access, which are critical for diagnosis.

To enable diagnostic logging, follow these steps:

  1. Click Start, select Run, type regedit, and then click OK to open the Registry Editor.
  2. Navigate to and select the following registry subkey:
    HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Ntds\Diagnostics
  3. In the right pane, locate the 5 Replication Events registry entry. Right-click it and choose Modify.
  4. In the Value data field, type 5, then click OK. This sets the logging level to maximum for replication events.
  5. Repeat steps 3 and 4 for the following additional registry entries, setting their Value data to 5 as well:
    • 7 Internal Configuration
    • 8 Directory Access
    • 9 Internal Processing
    • 24 DS Schema
  6. With all relevant diagnostic logging levels increased, return to the HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Ntds\Diagnostics subkey in the left pane.
  7. From the File menu, click Export.

  8. In the Save in dialog, browse to the administrator’s Desktop folder on the computer where you are experiencing the “schema mismatch” error. Name the file Ntds_logging.reg and click OK. This exports the diagnostic settings, which can be useful for quickly applying them elsewhere if needed.

    Note: To locate the system drive if the Desktop path is uncertain, open a command prompt (command or cmd), type set, and press ENTER. The SystemDrive= output line indicates the correct drive letter.

Part 2: Force Inbound Replication of Active Directory

After enabling diagnostic logging on the potential source domain controllers, the next step is to initiate an inbound replication attempt on the destination computer. This will generate the detailed log events necessary for troubleshooting. Ensure that the replication attempt specifically targets a source domain controller where diagnostic logging has been enabled.

You can achieve this in one of two ways:

  • Option 1: Universal Logging: Increase HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Ntds\Diagnostics logging on all possible source domain controllers. This ensures that regardless of which DC the destination attempts to replicate from, detailed logs will be generated.

  • Option 2: Targeted Replication: Stop the Net Logon service on all potential source domain controllers except the specific source DC that is referenced in the “schema mismatch” error and where logging was increased. This directs the replication attempt to the logging-enabled source.

    To stop the Net Logon service:
    1. Click Start, point to Programs, then Administrative Tools, and click Services.
    2. Right-click Net Logon in the list and select Stop.
    3. Proceed to create an unattended Active Directory Installation Wizard answer file for the promotion attempt.

Now, run the Active Directory Installation Wizard on the destination computer experiencing the error. The timing of when NTDS diagnostic logging is most effective during promotion differs slightly based on the operating system:

  • Helper Domain Controllers (Windows 2000 or Windows Server 2003): These retain log settings in the HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Ntds\Diagnostics subkey until they are demoted.
  • Windows 2000-based Computers being Promoted: These overwrite the HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Ntds\Diagnostics registry subkey at the start of each promotion attempt. For these, you must double-click and import the Ntds_logging.reg file as soon as inbound replication of the schema partition from the helper domain controller begins.
  • Windows Server 2003-based Computers being Promoted: These do not overwrite pre-existing values in the HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Ntds\Diagnostics subkey. However, existing settings are deleted after each failed promotion attempt.

Part 3: Pre-populate the Registry on Destination Domain Controllers

To ensure that verbose logging is active throughout the critical phases of the Dcpromo process on the destination computer, especially for Windows 2000 servers, you should pre-populate the registry with the diagnostic settings. This step ensures that logging is consistently applied even if Dcpromo attempts to reset it.

Here’s how to pre-populate the registry:

  1. On the source domain controller (the one where you initially enabled logging), follow steps 1 through 5 from “Part 1: Turn on diagnostic logging” to ensure the settings are correctly configured.
  2. Right-click the HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Ntds\Diagnostics registry subkey and select Export.
  3. In the Save in box, navigate to the administrator’s Desktop folder on the computer that is currently being promoted. Save the file as Ntds_logging.reg.
    Note: Refer to the note in Part 1, step 8, for guidance on locating the Desktop folder.
  4. On the destination domain controller, at the appropriate time (as described in Part 2, depending on the Windows version), double-click the Ntds_logging.reg file that you saved. This will import the diagnostic logging settings into the destination server’s registry, ensuring detailed event logs are generated during the promotion attempt.

Part 4: Locate Any Duplicate Multi-Valued Attributes

With diagnostic logging enabled, the next step is to analyze the event logs to identify the exact object or attribute causing the replication failure. This often reveals duplicate multi-valued attributes, which are a common cause for the “schema mismatch” error.

Follow these analytical steps:

  1. Examine the Directory Service event logs on both the source domain controller and the destination domain controller. Look for events that precede the “schema mismatch” error.
  2. On the source domain controller, review the directory service event log and specifically note the last object and attribute that were successfully outbound replicated to the domain controller undergoing promotion. The problematic object will either be this last successfully replicated item or the object within the same partition that has the next highest Update Sequence Number (USN). Pay close attention to the distinguished name (DN) path of the referenced object and the last attribute that was replicated. On the source DC, look for Event ID 1240. On the destination DC, look for Event ID 1203.
  3. Once the problem object’s DN path is identified, use the ldifde command-line tool to export details of that object. Open a command prompt (command or cmd) and execute the following:
    LDIFDE -f MISMATCH.ldf -d <domain name path of object referenced in event log of the source domain controller>
    Replace <domain name path of object referenced in event log of the source domain controller> with the actual DN of the problematic object.
  4. Open the MISMATCH.ldf output file in Notepad or a similar text editor. Carefully examine its contents, specifically searching for attributes that contain duplicate values. The presence of identical values for a multi-valued attribute within a single object can trigger the replication error. For example, you might see something like this (truncated for brevity):
    msExchMonitoringResponses:: <Start of Duplicate #1> W19fQ0xBU1M6c3RyKDE3KV1TTVRQRXZlbnRDb25zdW1lcltOb3RpZnlPbkVycm9yOnN0cigyKV0tMV...
msExchMonitoringResponses:: <Start of Duplicate #2> W19fQ0xBU1M6c3RyKDE3KV1TTVRQRXZlbnRDb25zdW1lcltOb3RpZnlPbkVycm9yOnN0cigyKV0tMV...

    This indicates that the msExchMonitoringResponses attribute has two identical entries.
  5. If duplicate values are found, use either Adsiedit.msc (Active Directory Service Interfaces Editor) or ldifde to remove one of the duplicate entries from the object on the source domain controller. After successfully removing the duplicate, attempt the promotion again by running the Active Directory Installation Wizard.

Part 5: Look for Database Corruption

If duplicate multi-valued attributes are not found, the “schema mismatch” error might be caused by underlying database corruption on the source domain controller. Detecting and repairing this corruption is critical for successful Active Directory operation.

Follow these steps to diagnose and address database corruption:

  1. Examine the source domain controller’s Directory Services event log again. Look for the last Event ID 1240 that was logged, particularly if it appeared just before an Internal Processing Event ID 1173. Note the DN path of the object referenced in this last 1240 event.
  2. Run the Repadmin.exe tool on the console of the source domain controller to view the metadata of the last outbound-replicated object. Open a command prompt and execute a command similar to this example:
    REPADMIN /SHOWMETA CN=Secret,CN=Schema,CN=Configuration,DC=CORP,DC=COM

    Replace CN=Secret,CN=Schema,CN=Configuration,DC=CORP,DC=COM with the actual DN path of the object identified in the event log.
  3. Carefully review the repadmin /showmeta output. Look for any inconsistent or suspicious values, particularly in the “Local USN” and “Originating Time” columns. For instance, you might see entries like:
    CN=Secret,=Schema,CN=Configuration,DC=CORP,DC=COM object Loc. USNOriginating Time: Attribute
21962002-01-29 05:52.47 instanceType
18295873486194836 4446-09-07 21:51.13 defaultObjectCategory
182958734861948362002-01-29 05:52.47 objectClass

    In this example, defaultObjectCategory shows an originating time of “4446-09-07”, which is clearly invalid, suggesting corruption.
  4. If the referenced problem object is not a critical system object (e.g., within the schema or configuration partitions), create an ldifde backup of the object, and then proceed to delete it. Crucially, never delete problem objects that reside within the schema partition of Active Directory as this can cause widespread forest instability.

  5. Run an NTDSUTIL files integrity check against the Active Directory database. This requires starting the source domain controller in Directory Services Restore Mode (DSRM).

    • Changing DSRM Passwords:
      • Windows 2000 uses setpwd to change DSRM passwords.
      • Windows Server 2003 and later use ntdsutil. For Windows Server, refer to KB article 322672 for instructions on resetting the DSRM administrator account password.
    • Starting in DSREPAIR Mode: Restart the source domain controller and press F8 during boot to select “Directory Services Restore Mode.”
      • Note: Clients attempting to access DFS Root or DFS Link information might receive an “access denied” error while the DC is in DSRM. This is expected behavior.
    • Running NTDSUTIL Integrity Check: From the command prompt in DSRM, execute the NTDSUTIL integrity check.
    • Reviewing Output: Carefully examine the NTDSUTIL output for any reported errors.

  6. Addressing Jet Error -1206: If the NTDSUTIL integrity check logs jet error -1206, it indicates a severe database corruption. Under no circumstances should you attempt to repair corrupted Active Directory databases using NTDSUTIL or its ESENTUTL equivalents directly for recovery. This can worsen the problem. Instead, consider the following options:

    • Option A: Alternate Source DC: If other healthy domain controllers exist in the forest that can serve as a source for the new domain controller, take the problem source domain controller offline and retry the Active Directory Installation Wizard using a different, healthy source.
    • Option B: Demote and Re-promote: If other domain controllers exist in the domain and the problematic source DC does not contain unique, critical system state (e.g., FSMO roles that cannot be seized), attempt to gracefully demote the original source domain controller. If a graceful demotion fails, force-demote it, then carefully remove its metadata from the forest using ntdsutil. After end-to-end replication of the removal across all domain controllers in the forest has occurred, you can then run the Active Directory Installation Wizard to add the original domain controller back into the forest.
    • Option C: System State Restore (Last Resort for Single DC): Restore the system state for the domain controller only if all of the following conditions are true:
      • The original source domain controller is the only domain controller in its domain.
      • It contains critical system state (e.g., it holds the forest root domain or a significant number of unique objects).
      • A valid system state backup exists (meaning the backup is less than the tombstonelifetime days old and contains no corrupted objects).
      • Note: A system state restore of a partition that contains only a single replica is effectively an authoritative restore of that partition.
    • Option D: Rebuild with Windows NT 4.0 BDC (Historical Scenario): If the original source domain controller is the only DC in its domain, contains critical system state, but no valid system state backups exist, consider this highly involved and largely historical approach:
      • Add a Microsoft Windows NT 4.0-based backup domain controller (BDC) to the domain. This assumes a mixed-mode environment or specific switches allowing NT 4.0 BDCs to replicate with Windows 2000 DCs in native mode.
      • Isolate the Windows NT 4.0-based BDC on a private network.
      • Promote the Windows NT 4.0-based BDC to a primary domain controller (PDC).
      • Upgrade this newly promoted Windows NT 4.0 PDC to Windows 2000 or Windows Server 2003.
      • Add additional replica domain controllers for fault tolerance and load balancing.
      • Finally, apply any necessary schema changes for Active Directory programs or applications.

Part 6: Turn Off Diagnostic Logging

Once the “schema mismatch” error has been resolved and the Active Directory installation is successful, it is crucial to disable the verbose diagnostic logging to prevent excessive event log growth and potential performance impact.

To turn off diagnostic logging, revisit “Part 1: Turn on diagnostic logging” and follow steps 1 through 5. This time, set the Value data for all the following registry entries back to 0 (zero):

  • 5 Replication Events
  • 7 Internal Configuration
  • 8 Directory Access
  • 9 Internal Processing
  • 24 DS Schema

Method 2: Resolution for Condition 3

Condition 3, where the helper domain controller possesses attributes in its database not covered by the current schema, typically occurs due to a schema deletion. This was a known issue in older Windows 2000 environments, particularly if a schema object was deleted before Service Pack 3 (SP3) was installed, which improved schema management. In modern Active Directory environments, accidental schema deletion is far less common due to enhanced protections, but schema inconsistencies can still arise from improper schema extensions or incomplete updates.

To resolve issues stemming from a deleted or inconsistent schema definition, the approach focuses on restoring or repairing the schema itself. These steps are highly sensitive and must be performed with extreme caution, ideally in a test environment first.

  1. Identify the Schema Master: First, identify the Active Directory domain controller holding the Schema Master Flexible Single Master Operation (FSMO) role. Schema updates can only be initiated from this specific domain controller.

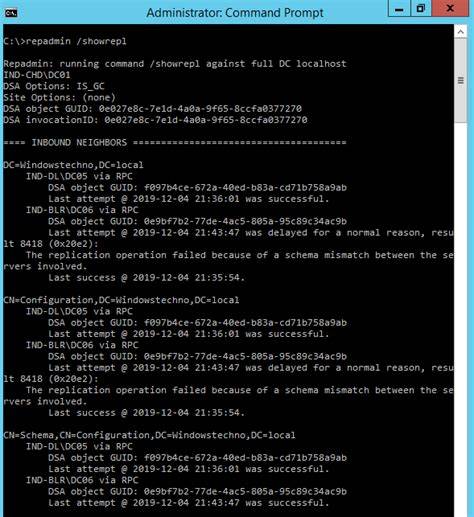

  2. Schema Health Check: Use tools like repadmin /showrepl and dcdiag /test:replications to verify the health of Active Directory replication, focusing on the configuration and schema partitions. Ensure that all schema masters are replicating correctly. Any replication failures must be resolved before proceeding.
  3. Authoritative Restore of Schema (If from Backup): If a valid system state backup of the Schema Master DC exists from a time before the schema inconsistency or deletion occurred, an authoritative restore of the schema partition might be necessary. This involves:
    • Booting the Schema Master DC into Directory Services Restore Mode (DSRM).
    • Using ntdsutil to perform an authoritative restore of the schema naming context.
    • Warning: An authoritative restore forces the restored data to replicate to all other domain controllers, overwriting their schema information. This is a very high-impact operation.
  4. Re-extend Schema (If custom attributes were removed): If specific custom schema attributes or classes were deleted, and a backup isn’t viable or recent enough, it might be necessary to re-extend the schema using the original schema definition files (e.g., from an application that extended the schema) or a custom LDIF file. This process involves:
    • Obtaining the LDIF file containing the missing schema definitions.
    • Using ldifde -i -f <schema_extension_file.ldf> -c CN=Configuration,DC=X CN=Configuration,DC=Domain,DC=Com -v -j . to import the schema definitions.
    • This should be done on the Schema Master and requires careful validation of the LDIF file to ensure it does not introduce new issues.
  5. Schema Cache Refresh: After any schema modification or restoration, it’s good practice to force a refresh of the schema cache on all domain controllers. This can be done by restarting the NTDS service (Active Directory Domain Services) on each domain controller, or by restarting the domain controllers themselves.
  6. Verify Schema Version: After applying any resolution, verify the schema version across all domain controllers using adsiedit.msc to check the objectVersion attribute of CN=Schema,CN=Configuration,DC=Domain,DC=Com or dcdiag /test:schema in more recent Windows Server versions. All domain controllers should report the same, correct schema version.

This method requires a deep understanding of Active Directory schema and database operations. It should only be attempted by experienced administrators after thorough planning and consideration of potential impacts.

Visualizing the Troubleshooting Process

To help visualize the troubleshooting steps for Method 1, consider the following flowchart. This diagram outlines the logical progression through diagnosis and resolution, guiding you from symptom detection to a successful outcome.

```mermaid
graph TD
A[Start Dcpromo and Encounter “Schema Mismatch” Error] → B{Source DC: Windows 2000 or Windows Server 2003?};

B -->|Windows 2003| C[Part 1: Turn on Diagnostic Logging on Source DC];
B -->|Windows 2000| C;

C --> D[Part 2: Force Inbound Replication from Logging-Enabled Source DC];
D --> E[Part 3: Pre-populate Registry on Destination DC (especially W2K)];

E --> F[Examine Event Logs on Source & Destination DCs];
F --> G{Event 1240 (Source) / 1203 (Destination) found?};

G -->|Yes, identify object DN| H[Part 4: Use LDIFDE to export problem object data];
H --> I{Duplicate Multi-Valued Attributes found in LDIFDE output?};

I -->|Yes| J[Use Adsiedit or LDIFDE to Remove Duplicates];
J --> K[Retry Dcpromo];

I -->|No, but suspect corruption| L[Part 5: Examine Logs for Event 1173 & Run REPADMIN /SHOWMETA];
L --> M{Inconsistent USN/Time values in /SHOWMETA?};

M -->|Yes, non-critical object| N[Backup Object (LDIFDE) & Delete Problem Object];
N --> O[Boot Source DC in DSRM];
O --> P[Run NTDSUTIL files integrity check];
P --> Q{Jet Error -1206 encountered?};

Q -->|Yes| R[Select Resolution for Jet Error -1206 (e.g., use alternate DC, demote/re-promote, authoritative restore, etc.)];
R --> S[Retry Dcpromo];

Q -->|No Errors| T[Consider other AD health checks or escalate];
T --> S;

M -->|No, no corruption or critical object| U[Revisit logs, consider Method 2, or escalate];
U --> K;

K --> V{Dcpromo Successful?};
V -->|Yes| W[Part 6: Turn Off Diagnostic Logging];
V -->|No| F; % Loop back to F if not successful

W --> Z[Troubleshooting Complete];

```
