Troubleshooting Azure VM Scale Set Creation: Resolving the PublicIPCountLimitExceeded Error

Table of Contents

Azure Virtual Machine Scale Sets (VMSS) are a powerful Azure compute resource designed for deploying and managing a set of identical, auto-scaling virtual machines. They enable you to build large-scale services for areas such as compute, big data, and containerized workloads, offering high availability and improved application performance through automatic scaling based on demand or a defined schedule. However, during the creation or scaling of these sets, users may encounter various errors, one of which is related to resource quotas, specifically regarding public IP addresses. Understanding and resolving these limitations is crucial for smooth cloud operations.

Public IP addresses are fundamental components for many Azure services, providing internet-facing connectivity for virtual machines, load balancers, application gateways, and, crucially, for individual instances within a Virtual Machine Scale Set when external direct access is required. Each public IP address consumes a resource within your Azure subscription, and Azure implements limits on these resources to ensure fair usage, prevent abuse, and maintain service quality across its vast global infrastructure. These limits are typically generous for most common workloads but can become a bottleneck for large-scale or highly distributed applications.

Symptoms: Encountering the PublicIPCountLimitExceeded Error¶

When attempting to provision a new Azure Virtual Machine Scale Set, or when an existing VM Scale Set attempts to scale out by adding new instances, you might receive a deployment error message indicating a quota issue. This error specifically points to an over-allocation of public IP resources. The exact message usually appears as follows, providing clear indicators of the problem:

Error: Code='PublicIPCountLimitExceededByVMScaleSet' Message='The requested number of publicIPAddresses <number> for VM Scale Set <Resource-ID> will exceed the maximum number of publicIPAddresses allowed <maximum number> for subscription.'

This error message is highly informative. It specifies the error code PublicIPCountLimitExceededByVMScaleSet, explicitly stating that the request for public IP addresses originated from a VM Scale Set operation. It further details the <number> of public IP addresses your deployment is attempting to create or allocate, along with the specific <Resource-ID> of the Virtual Machine Scale Set involved. Most critically, it highlights the subscription’s current <maximum number> of public IP addresses allowed, clarifying that your current request would push your usage beyond this predefined limit.

Receiving this message means that your Azure subscription has reached its maximum allowable count for public IP addresses, and the VM Scale Set cannot proceed with its resource allocation. This prevents the successful deployment or scaling of your services, necessitating immediate action to rectify the situation. It’s a clear signal that your current resource consumption for public IPs has hit a ceiling imposed at the subscription level.

Cause: Azure Subscription Public IP Address Limits¶

The fundamental reason for encountering the PublicIPCountLimitExceededByVMScaleSet error is that your Azure subscription has reached its allocated quota for public IP addresses. Azure subscriptions, by design, come with certain default limits or quotas for various resources, including compute cores, storage accounts, network resources, and, pertinent to this issue, public IP addresses. These limits are in place for several critical reasons: to manage Azure’s vast infrastructure efficiently, prevent resource exhaustion, ensure service reliability for all users, and deter potential misuse or malicious activities.

Public IP addresses, especially IPv4 addresses, are a finite resource. Azure manages these resources carefully, assigning default quotas that are usually sufficient for typical development and small-to-medium production environments. However, large-scale deployments, complex multi-tier applications, or environments with numerous Virtual Machine Scale Sets and individual VMs requiring direct internet access can quickly consume these default allocations. Each public IP address, whether assigned to a VM, a load balancer frontend, or directly to a VMSS instance, counts towards this subscription-level limit.

Understanding Azure Quotas¶

Azure implements different types of quotas:
* Subscription-level quotas: These apply across the entire subscription, such as the total number of public IP addresses or virtual networks.
* Region-level quotas: Some quotas are specific to a geographic region, like the number of VM cores or specific VM families available in a particular region.
* Resource-specific quotas: Certain resource types might have their own granular limits, like the number of NICs per VM or the number of IP configurations per NIC.

For public IP addresses, the limit is primarily a subscription-level constraint, though it can also be influenced by regional availability for certain SKUs. It’s important to remember that these are soft limits in most cases, meaning they can be increased upon request, unlike hard limits which are architectural and cannot be changed. Default public IP limits can vary based on subscription type (e.g., Free, Pay-As-You-Go, Enterprise Agreement) and the region of deployment.

Table: Illustrative Default Public IP Limits (Subscription-Level)

Subscription Type	Default Basic Public IPs	Default Standard Public IPs	Notes
Free Account	10	0	May vary. Standard IPs typically require an upgrade.
Pay-As-You-Go	60	60	Total sum of Basic and Standard IPs is generally limited.
Enterprise Agreement	60-100+	60-100+	Default limits can be higher, often negotiable.
MSDN/Visual Studio	20	0	Focus on development/testing, often lower production-grade limits.

Note: These values are illustrative and actual default limits may vary. Always refer to official Azure documentation for the most current limits for your specific subscription and region.

When a Virtual Machine Scale Set is configured to assign a public IP address to each of its instances, or if it utilizes a load balancer that consumes multiple public IPs, each of these allocations draws from the subscription’s total available quota. Once this quota is exhausted, any further attempts to provision public IPs will fail with the PublicIPCountLimitExceededByVMScaleSet error.

Resolution: Increasing Azure Public IP Limits¶

The primary and most direct method to resolve the PublicIPCountLimitExceededByVMScaleSet error is to request an increase in your Azure subscription’s public IP address quota. This is a standard procedure within Azure for managing resource allocations and is handled through the Azure portal’s support system.

Step-by-Step Guide to Requesting a Quota Increase¶

Follow these detailed steps to submit a support request for a public IP address quota increase:

1. Access the Azure Portal: Log in to the Azure portal using an account with appropriate permissions (e.g., Owner, Contributor, or Support Request Contributor).
2. Navigate to Help + support: In the Azure portal, search for “Help + support” in the global search bar at the top, or locate it in the left-hand navigation pane. Click on it.
3. Create a New Support Request: On the “Help + support” blade, select “New support request.” This will initiate the guided process for creating a support ticket.
4. Basics Tab:
   • Issue type: Select “Service and subscription limits (quotas).” This specifically tells Azure support that you are requesting a quota adjustment, which streamlines the routing of your request.
   • Subscription: Choose the specific Azure subscription that is encountering the PublicIPCountLimitExceededByVMScaleSet error. It’s crucial to select the correct subscription where the VM Scale Set is deployed or intended to be deployed.
   • Quota type: From the dropdown menu, select “Networking.” Public IP addresses fall under the networking services category.
   • Support plan: Select your applicable support plan. Even if you have a basic support plan, quota increase requests are typically processed.
5. Details Tab: This is where you provide the specifics of your request.
   • Problem summary: Provide a concise summary, such as “Request to increase public IP address quota for VM Scale Set deployment.”
   • Problem type: Select “Quota.”
   • Quota details:
     • Region: Specify the Azure region where you need the increased public IP quota. If your VM Scale Set is spread across multiple regions, you might need to request increases for each relevant region.
     • Resource Type: Select “Public IP addresses.”
     • Required New Limit: Enter the desired new total limit for public IP addresses in your subscription for that region. Be realistic but also allow for future growth. If your current limit is 60 and you need 100 for your VMSS, request at least 160 (or higher, considering other resources).
     • Current Usage: (Optional, but helpful) You can often see your current usage on the quotas page, or note it from the error message.
   • Reasoning: This is the most critical part. Provide a clear and compelling business justification for why you need the quota increase. Explain:
     • What is the purpose of the VM Scale Set?
     • Why do its instances require public IP addresses? (e.g., for direct inbound access to specific services, or as part of a highly distributed architecture).
     • What is the expected scale of your deployment? (e.g., “We are deploying a VM Scale Set with 200 instances, each requiring a public IP for external API endpoints”).
     • Mention the PublicIPCountLimitExceededByVMScaleSet error you encountered.
       A strong justification helps the Azure support team understand the necessity of your request and can expedite the approval process.
   • Preferred contact method: Choose how you prefer to be contacted (e.g., email or phone).
6. Review + create Tab: Review all the information you’ve entered to ensure accuracy. Once satisfied, click “Create” to submit your support request.

After submission, Azure support will review your request. This process typically takes a few business days. You will receive updates on the status of your request via the Azure portal and your preferred contact method. Once approved, you will be notified, and the new public IP limit will be applied to your subscription. You can then proceed with creating or scaling your Virtual Machine Scale Set without encountering the previous error.

Troubleshooting Flow for Quota Issues¶

Here’s a simplified representation of the troubleshooting process for quota issues:

mermaid graph TD A[Attempt VM Scale Set Creation/Scaling] --> B{Error: PublicIPCountLimitExceededByVMScaleSet?}; B -- Yes --> C[Identify Affected Subscription and Region]; C --> D[Review Current Public IP Usage]; D --> E{Are there unused Public IPs?}; E -- Yes --> F[Delete Unused Public IPs]; E -- No --> G[Determine Required New Public IP Limit]; G --> H[Prepare Business Justification]; H --> I[Go to Azure Portal: Help + Support]; I --> J[Create New Support Request]; J --> K[Select "Service and subscription limits (quotas)"]; K --> L[Choose "Networking" Quota Type]; L --> M[Specify Region, "Public IP addresses" Resource Type]; M --> N[Enter Required New Limit and Justification]; N --> O[Submit Support Request]; O --> P[Await Azure Support Approval]; P -- Approved --> Q[New Limit Applied]; Q --> R[Retry VM Scale Set Creation/Scaling]; P -- Denied/Insufficient --> S[Re-evaluate Architecture or Justification];

Proactive Strategies and Optimization for Public IP Usage¶

While increasing the quota is a direct solution, it’s also beneficial to adopt proactive strategies and optimize your Azure architecture to manage public IP address consumption more efficiently. This can prevent future quota issues and often leads to more cost-effective and secure deployments.

1. Review and Optimize Existing Public IP Usage¶

Before requesting a quota increase, take stock of your current public IP address allocations. You might have unused public IPs lingering from old deployments, test environments, or misconfigurations.

• Audit Public IPs: Use Azure Resource Graph Explorer or PowerShell/Azure CLI scripts to list all public IP addresses across your subscription and regions.
• Identify Unused IPs: Check the association status of each public IP. If an IP is not associated with any network interface, load balancer frontend, or other Azure resource, it might be a candidate for deletion.
• Delete Unused IPs: Carefully delete any public IPs that are no longer needed. Ensure you understand the impact before deletion, especially if they are associated with existing resources that might have been deallocated.

2. Design for Shared Public IP Access¶

Not every VM instance within a VM Scale Set necessarily needs its own dedicated public IP address. Often, external access can be managed more efficiently.

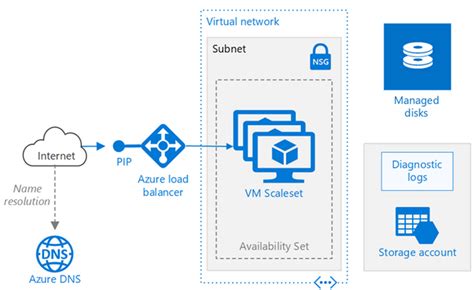

• Azure Load Balancer: Use a single Azure Load Balancer (Standard SKU recommended) in front of your VM Scale Set. The load balancer can have one or a few public IP addresses. Inbound traffic to your VMSS instances can then be routed through the load balancer using NAT rules or load balancing rules, eliminating the need for each VMSS instance to have its own public IP. This is the most common and recommended pattern for VM Scale Sets.
• Azure Application Gateway / Azure Front Door: For web applications, Application Gateway or Azure Front Door can act as entry points, providing a single public IP or a small set of public IPs. These services can then route traffic to your VM Scale Set instances, which can reside in a private virtual network without individual public IPs.
• Azure Bastion/Jump Box: For administrative access to VM Scale Set instances, consider using Azure Bastion. This service allows secure RDP/SSH access over SSL directly from the Azure portal, eliminating the need for public IPs on your individual VMs for management purposes. Alternatively, a dedicated “jump box” VM with a single public IP can be used to securely access other VMs on the private network.
• Azure NAT Gateway: For outbound internet connectivity for VMs that do not have individual public IPs, Azure NAT Gateway is an excellent solution. It allows multiple VMs in a subnet to share a few static public IP addresses for outbound traffic, significantly reducing the number of public IPs required.

3. Leverage Private Networking¶

Design your architecture to use private IP addresses as much as possible, exposing resources to the internet only when absolutely necessary and through controlled entry points.

• Internal Load Balancers: If your VM Scale Set only needs to be accessible from within your virtual network or peered networks, use an Internal Load Balancer instead of an external one. This eliminates the need for any public IP addresses for the load balancer itself.
• Private Link: For secure access to Azure PaaS services (like Azure Storage, Azure SQL Database, Azure Key Vault) from your VM Scale Set, use Azure Private Link. This keeps traffic entirely on the Azure backbone network, avoiding exposure to the public internet and thus reducing reliance on public IPs.

4. Consider Multi-Subscription or Multi-Region Deployments¶

If your application genuinely requires a very large number of public IP addresses, even after optimization, and repeatedly hits subscription limits, it might indicate that your architecture could benefit from:

• Multiple Azure Subscriptions: Distribute your large-scale deployments across several Azure subscriptions. Each subscription would have its own set of quotas, effectively increasing your overall resource capacity. This approach requires careful planning for inter-subscription connectivity and management.
• Multiple Azure Regions: Deploy parts of your application across different Azure regions. While this primarily enhances availability and reduces latency, it also means that regional quotas are separate, potentially offering more public IP capacity if the limits are regional rather than global for your subscription type.

5. Monitoring and Alerting¶

Implement monitoring to track your public IP address usage against your allocated quota.

• Azure Monitor: Use Azure Monitor to create custom dashboards that display your current public IP usage.
• Azure Alerts: Set up alerts to notify you when your public IP usage approaches a certain percentage of your quota (e.g., 80% or 90%). This allows you to proactively request quota increases or optimize usage before hitting an error state during critical deployments or scaling events.
• Azure Advisor: Regularly check Azure Advisor for recommendations related to cost optimization and operational excellence, which might include suggestions for unused resources or architectural improvements that reduce public IP needs.

By combining direct quota increases with smart architectural design and proactive management, you can effectively navigate public IP limitations and ensure your Azure VM Scale Sets operate smoothly and efficiently. Understanding these limits is not just about overcoming an error; it’s about building resilient, scalable, and cost-effective cloud solutions.

---

Have you encountered the PublicIPCountLimitExceededByVMScaleSet error? What strategies did you find most effective in resolving or preventing it? Share your experiences and insights in the comments below!
