Troubleshooting Error 1602: Resolving VMM Console Startup Issues

Table of Contents

The Virtual Machine Manager (VMM) console is an essential interface for managing virtualized environments within System Center. When this console fails to start, it can significantly disrupt operations and management tasks. This article provides a comprehensive guide to troubleshoot and resolve a specific issue where Error ID 1602 prevents the VMM console from launching, often accompanied by the inability to start the VMM service itself. We will delve into the symptoms, pinpoint the root cause, and offer a detailed, step-by-step resolution process to get your VMM console back online.

Understanding Virtual Machine Manager (VMM)¶

System Center Virtual Machine Manager is a core component of Microsoft’s System Center suite, designed to deploy, manage, and optimize virtualized environments across multiple hypervisors, including Hyper-V and VMware. It provides a unified management console, enabling administrators to oversee virtual machines, hosts, storage, and networking resources efficiently. The VMM service, a critical background process, handles communication between the console, the database, and the managed hosts, executing all management commands. Therefore, any disruption to the VMM service or console directly impacts the ability to manage your virtual infrastructure.

Symptoms: Identifying the VMM Console Startup Failure¶

When encountering Error ID 1602, the most immediate and impactful symptom is the inability to launch the VMM console. This error typically presents itself with a clear and concise message, guiding administrators to initial troubleshooting steps, although these might not always resolve the underlying issue. Recognizing the specific details of these symptoms is crucial for an effective diagnosis.

Error Message: Unable to Connect to VMM Management Server¶

Upon attempting to launch the VMM console, users are met with a critical error dialog box stating:

Unable to connect to the VMM Management server server_name. The Virtual Machine Manager service on that server did not respond. Verify that Virtual Machine Manager has been installed on the server and that the Virtual Machine Manager service is running. Then try to connect again. If the problem persists, restart the Virtual Machine Manager service.
ID: 1602

This message clearly indicates a communication breakdown between the console and the VMM Management server. It points to a potential issue with the VMM service not running or not responding to connection requests. Despite the suggestion to restart the service, attempts to do so often lead to further complications, highlighting a deeper problem.

VMM Service Fails to Start¶

A common follow-up to the 1602 error is the observation that the System Center Virtual Machine Manager service is indeed stopped. Administrators will typically navigate to the Windows Services console to manually start the service. However, during this process, another error message frequently appears, preventing the service from initiating:

Windows could not start the System Center Virtual Machine Manager service on Local Computer. The service did not return an error. This could be an internal Windows error or an internal service error. If the problem persists, contact your system administrator.

This message is particularly unhelpful as it lacks specific details, merely indicating a generic failure. It suggests an internal issue within the service itself or its environment, prompting the need for deeper investigation beyond simple service restarts. The absence of a specific error code in this context makes diagnosing the problem more challenging without further information.

Application Log Event ID 1026: The .NET Runtime Exception¶

The most critical diagnostic clue for this specific issue lies within the Application event log on the Virtual Machine Manager server. When the VMM service attempts to start and subsequently fails, an error resembling the following is logged:

Log Name: Application
Source: .NET Runtime
Date: [Date and Time]
Event ID: 1026
Task Category: None
Level: Error
Keywords: Classic
User: N/A
Computer: [Computer Name]
Description:
Application: vmmservice.exe
Framework Version: v4.0.30319
Description: The process was terminated due to an unhandled exception.
Exception Info: System.FormatException
Stack:
at System.DateTime.Parse(System.String, System.IFormatProvider)
at System.Convert.ToDateTime(System.String)
at Microsoft.VirtualManager.DB.ServerGlobalSettings.ReadServerData(System.Guid)
at Microsoft.VirtualManager.DB.ServerGlobalSettings.get_Instance()
at Microsoft.VirtualManager.Engine.VirtualManagerService.StartSQL()
at Microsoft.VirtualManager.Engine.VirtualManagerService.ExecuteRealEngineStartup()
at Microsoft.VirtualManager.Engine.VirtualManagerService.TryStart(System.Object)
at System.Threading.ExecutionContext.RunInternal(System.Threading.ExecutionContext, System.Threading.ContextCallback, System.Object, Boolean)
at System.Threading.ExecutionContext.Run(System.Threading.ExecutionContext, System.Threading.ContextCallback, System.Object, Boolean)
at System.Threading.TimerQueueTimer.CallCallback()
at System.Threading.TimerQueueTimer.Fire()
at System.Threading.TimerQueue.FireNextTimers()

This detailed error log provides the smoking gun. It indicates that the vmmservice.exe (the VMM service executable) terminated due to an Unhandled Exception. Specifically, a System.FormatException occurred during an attempt to parse a string into a DateTime object (System.DateTime.Parse). The call stack clearly shows that this operation happened within Microsoft.VirtualManager.DB.ServerGlobalSettings.ReadServerData, which is part of the VMM service’s initialization process when interacting with its database. This points directly to a data integrity issue within the VMM database related to a date/time format.

Cause: Database Data Type Mismatch¶

The root cause of this complex problem lies within the VMM database, specifically within the tbl_VMM_GlobalSetting table. During the VMM service startup sequence, it attempts to read various global configuration settings from its database. One of these settings is identified by the PropertyName called 'UpgradeTime'.

If the PropertyValue associated with 'UpgradeTime' in the tbl_VMM_GlobalSetting table contains data that is not in a valid date and time format, or if it’s corrupted in a way that prevents it from being parsed correctly, a System.FormatException will occur. The .NET Framework’s DateTime.Parse method, which the VMM service uses to interpret this value, cannot convert the malformed string into a proper DateTime object. This unhandled exception then crashes the entire VMM service during its initialization phase, leading to the console startup failure and the error messages described previously.

This corruption can arise from various scenarios, such as an interrupted VMM upgrade process, manual and incorrect database modifications, or even a software bug that writes an invalid value into this particular setting during specific operations. The key takeaway is that the VMM service expects a date-time string here, and when it finds something else, it cannot proceed, leading to the shutdown.

Resolution: Correcting the Database Entry¶

The solution involves correcting the offending data entry in the VMM database. Since the VMM service is crashing because it cannot parse the UpgradeTime value, the most effective way to resolve this is to clear or nullify this specific property value. This allows the VMM service to bypass the problematic parsing step during startup.

Important Precaution: Before making any direct modifications to your VMM database, it is absolutely critical to perform a full backup of the database. Database operations, if not executed correctly, can lead to data loss or further system instability. A backup ensures that you can revert to a working state if any unforeseen issues arise.

To resolve this problem, perform a full backup of the Virtual Machine Manager database, and then run the following SQL query against the Virtual Machine Manager database:

UPDATE tbl_VMM_GlobalSetting
SET PropertyValue = NULL
WHERE PropertyName = 'UpgradeTime';

This SQL command targets the tbl_VMM_GlobalSetting table. It specifically sets the PropertyValue to NULL (meaning no value) for the row where PropertyName is 'UpgradeTime'. By nullifying this value, the VMM service will no longer attempt to parse a corrupted or invalid date string, allowing it to start successfully.

Once the SQL query is successfully executed, you can then attempt to start the System Center Virtual Machine Manager service. The console should subsequently start and connect without encountering Error ID 1602.

Detailed Step-by-Step Resolution Guide¶

To ensure a smooth and successful resolution, follow these detailed steps carefully. Each step is critical to prevent further issues and restore VMM functionality.

Step 1: Perform a Full Backup of the Virtual Machine Manager Database¶

This is the most crucial step. A full database backup provides a safety net, allowing you to restore your VMM environment to its current state in case of any unexpected issues during the database modification process.

Method A: Backup via VMM Console (If accessible, otherwise use SQL Management Studio)¶

Although the VMM console might not start, if you have a secondary console that can connect or are able to get it running temporarily, you can use its built-in backup functionality.
1. On the Virtual Machine Manager Console, open the Settings workspace.
2. On the Home tab, in the Backup group, select Backup.
3. In the Virtual Machine Manager Backup dialog box, specify a secure location to save the backup file. Ensure this location has sufficient space and is accessible.
4. Select OK to initiate the backup.
5. You can monitor the status of the backup operation in the Jobs workspace within the VMM console.

Method B: Backup via SQL Server Management Studio (Recommended for this scenario)¶

Since the VMM console is likely inaccessible due to the error, backing up the database directly through SQL Server Management Studio (SSMS) is the most reliable method.
1. Open SQL Server Management Studio and connect to the SQL Server instance hosting your VirtualManagerDB.
2. In the Object Explorer, expand Databases.
3. Right-click on VirtualManagerDB (or the name of your VMM database if it’s customized).
4. Navigate to Tasks > Back Up….
5. In the Back Up Database dialog box, ensure “Backup type” is set to “Full”.
6. Under “Destination”, add a new backup destination to a secure location on your server or network.
7. Click OK to start the backup process. Verify that the backup completes successfully.

Step 2: Stop the Virtual Machine Manager Service¶

Before making any changes to the database that the VMM service relies on, it’s essential to stop the service. This prevents any conflicts or data integrity issues that could arise from the service trying to access or modify the database while you are performing changes.
1. Open the Services console (services.msc) on your VMM Management server.
2. Locate the service named System Center Virtual Machine Manager.
3. Right-click on the service and select Stop.
4. Wait for the service status to change to “Stopped” before proceeding.

Step 3: Open Microsoft SQL Server Management Studio and Access the Database¶

This step prepares you to execute the necessary SQL query.
1. Launch Microsoft SQL Server Management Studio (SSMS).
2. Connect to the SQL Server instance where your Virtual Machine Manager database (VirtualManagerDB) resides. This is typically the same server, but it could be a remote SQL Server.
3. In the Object Explorer pane on the left, expand the Databases node.
4. Locate and expand your VMM database, usually named VirtualManagerDB.

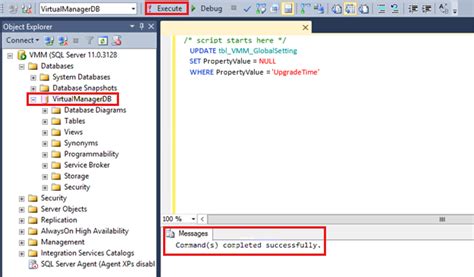

Step 4: Execute the SQL Query¶

Now, you will run the specific query to correct the problematic UpgradeTime entry.
1. On the SSMS toolbar, select New Query. This will open a new query window.
2. Ensure that the context of the query window is set to your VirtualManagerDB (you should see VirtualManagerDB selected in the dropdown menu next to the “Execute” button).
3. Copy and paste the following SQL query into the query window:

```sql
UPDATE tbl_VMM_GlobalSetting
SET PropertyValue = NULL
WHERE PropertyName = 'UpgradeTime';
```

*   The `UPDATE` statement is used to modify existing records in a table.
*   `tbl_VMM_GlobalSetting` is the target table.
*   `SET PropertyValue = NULL` specifies that the `PropertyValue` column should be set to `NULL`.
*   `WHERE PropertyName = 'UpgradeTime'` is the crucial condition that ensures only the row corresponding to the `'UpgradeTime'` property is modified, preventing unintended changes to other settings.

4. Select !Execute (or press F5) to run the query.
5. After execution, verify that the “Messages” tab at the bottom of the query window shows a success message, typically ” (1 row(s) affected)”. This confirms that the query ran successfully and one row was updated.

Step 5: Restart the Virtual Machine Manager Service¶

With the database corrected, you can now attempt to restart the VMM service.
1. Return to the Services console (services.msc).
2. Locate the System Center Virtual Machine Manager service.
3. Right-click on the service and select Start.
4. Monitor the service status. It should change to “Running” without any error messages. If it still fails, re-examine the event logs for new errors.

Step 6: Verify VMM Console Connectivity¶

The final step is to confirm that the resolution has worked by launching the VMM console.
1. Attempt to launch the Virtual Machine Manager Console.
2. The console should now start without displaying Error ID 1602 and connect successfully to your VMM Management server.

If the VMM console launches and connects successfully, your issue is resolved.

Advanced Insight: Why UpgradeTime?¶

The UpgradeTime property in the tbl_VMM_GlobalSetting table likely stores the timestamp of the last successful VMM upgrade or a related system event. This value is critical for the VMM service during its startup routine to determine its operational state and potentially to manage post-upgrade tasks or checks. When this value becomes corrupted or malformed, the .NET Framework’s DateTime.Parse method, which is robust but expects a valid date format, throws a System.FormatException. This exception is unhandled by the VMM service’s startup logic, causing the entire vmmservice.exe process to terminate abruptly.

By setting PropertyValue to NULL, we essentially tell the VMM service to ignore this specific entry during its initial database read. In many software designs, a NULL value for such a property can be interpreted as ‘not set’, ‘unknown’, or ‘no upgrade performed yet’. This allows the service to proceed with its startup, potentially initializing this value with a default (e.g., current time) or simply operating without it until a new upgrade event occurs. This workaround effectively bypasses the critical point of failure without causing broader system instability, assuming the UpgradeTime field is not fundamentally required for the core functioning of VMM post-startup once the service is running.

Preventive Measures and Best Practices¶

To minimize the chances of encountering similar issues in the future, consider implementing the following best practices for your System Center Virtual Machine Manager environment:

1. Regular Database Backups: Automate and regularly verify full backups of your VirtualManagerDB. This is your primary defense against data corruption and an invaluable tool for quick recovery.
2. Controlled Upgrades and Updates: Always follow Microsoft’s recommended procedures for VMM upgrades and updates. Ensure you have proper maintenance windows and pre-upgrade checks in place. Avoid interrupting upgrade processes, as this can lead to inconsistent database states.
3. Monitor VMM Service Health: Implement proactive monitoring for the VMM service. Tools like System Center Operations Manager (SCOM) can alert you to service stoppages or critical event log errors, allowing for early intervention.
4. Avoid Direct Database Modifications: Unless explicitly instructed by Microsoft support or an official knowledge base article, refrain from directly modifying the VMM database tables. Unintended changes can lead to severe operational issues.
5. Maintain SQL Server Health: Ensure the underlying SQL Server instance hosting VirtualManagerDB is healthy, has sufficient resources (CPU, memory, disk I/O), and is regularly maintained (e.g., index rebuilds, statistics updates).
6. Review Event Logs Regularly: Periodically review the Application, System, and VMM-specific event logs on your VMM Management server. Early detection of warnings or errors can prevent minor issues from escalating into critical failures.

Troubleshooting Tips for Persistent Issues¶

If, after following the resolution steps, your VMM console still fails to start or the service does not remain running, consider these additional troubleshooting steps:

• Check VMM Diagnostic Logs: Beyond the standard Windows event logs, VMM generates its own detailed diagnostic logs. These are typically located in C:\ProgramData\Microsoft\Virtual Machine Manager\Logs. Review the VMMService.log for more granular error messages during startup attempts.
• SQL Server Connectivity and Permissions: Verify that the VMM service account has the necessary permissions to connect to and interact with the VirtualManagerDB on the SQL Server. Check for any network connectivity issues between the VMM server and the SQL Server.
• VMM Installation Prerequisites: Ensure all VMM installation prerequisites are met and remain valid. This includes .NET Framework versions, Windows Server roles, and other dependent software.
• System Resources: Confirm that the VMM server has adequate CPU, memory, and disk space. Resource contention can sometimes lead to service instability during startup.
• Third-Party Software Conflicts: Temporarily disable any recently installed security software, antivirus, or other third-party applications that might interfere with the VMM service.
• Consult Microsoft Support: If all troubleshooting steps fail, gather all relevant error messages, event logs, and VMM diagnostic logs, and contact Microsoft Support for further assistance.

mermaid graph TD A[VMM Console Fails to Start] --> B{Error ID 1602 & VMM Service Stopped?} B -- Yes --> C[Check Application Event Log for .NET Runtime Error 1026] C -- Yes --> D[Perform a Full Backup of Virtual Machine Manager Database (Critical)] D --> E[Stop VMM Service via Services.msc] E --> F[Open SQL Server Management Studio (SSMS)] F --> G[Connect to VMM Database] G --> H[Open New Query Window and Set Context to VirtualManagerDB] H --> I[Execute SQL Query: UPDATE tbl_VMM_GlobalSetting SET PropertyValue = NULL WHERE PropertyName = 'UpgradeTime'] I --> J[Verify Query Success: "(1 row(s) affected)"] J --> K[Restart VMM Service via Services.msc] K --> L[Attempt to Start VMM Console] L -- Success --> M[Issue Resolved - Verify Functionality] L -- Failure --> N[Review VMM Diagnostic Logs & SQL Permissions] N --> O[Check for other Event Log Errors] O --> P[Consider contacting Microsoft Support with gathered logs] B -- No / Other Error --> Q[Refer to general VMM Troubleshooting Guides]
This flowchart illustrates the systematic approach to resolving Error 1602.

Conclusion¶

Encountering Error ID 1602 when trying to start the VMM console can be a frustrating experience, bringing virtual machine management to a halt. However, by systematically diagnosing the symptoms, especially the crucial .NET Runtime System.FormatException in the Application event log, and understanding its root cause within the tbl_VMM_GlobalSetting table, a precise resolution can be applied. The key is a careful database modification, preceded by an essential backup, to rectify the corrupted UpgradeTime property. Following the detailed steps outlined in this article will help you restore VMM console functionality efficiently and securely.
