Troubleshooting Highly Available Cluster Creation in Virtual Machine Manager: Error 444

Table of Contents

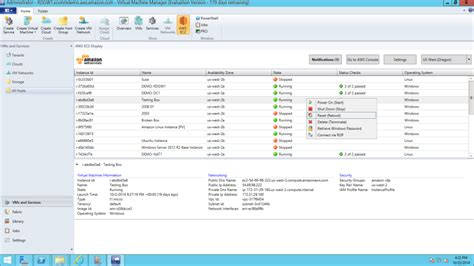

System Center Virtual Machine Manager (VMM) is a critical component within Microsoft’s System Center suite, designed to manage virtualized data centers, encompassing Hyper-V hosts, VMware ESX servers, and Citrix XenServer. It provides a unified management console for provisioning virtual machines, managing host clusters, and optimizing resource utilization across the virtualized infrastructure. For many organizations, ensuring the high availability of VMM itself is paramount, as its unavailability can severely impact the ability to manage and provision virtual resources, leading to potential operational disruptions.

This article delves into a specific issue encountered when attempting to establish a highly available VMM (HAVMM) environment in System Center 2012. Specifically, it addresses the common Error 444 that administrators may face when trying to add a cluster where VMM is intended to function as a highly available resource. Understanding the root cause of this error and implementing the prescribed resolution is crucial for maintaining a robust and resilient virtual infrastructure. The detailed explanation provided herein will guide IT professionals through the architectural nuances and the precise steps required to overcome this particular challenge.

Unpacking the Symptoms: Error 444 and Its Manifestations¶

When an administrator attempts to configure System Center 2012 Virtual Machine Manager as a highly available resource within a cluster, the operation may unexpectedly fail. This failure is typically accompanied by a distinctive error message, which can initially be quite perplexing given the goal of achieving high availability. The job, intended to integrate the VMM instance into a cluster, terminates without successful completion.

The primary symptom encountered is the Error (444), which explicitly states: “%ComputerName% is a VMM management server. A VMM management server cannot be associated with another VMM management server.” This message immediately points to a conflict related to VMM’s self-perception or its interaction with other VMM components. The recommended action provided alongside the error suggests uninstalling VMM from the specified computer, which, while technically addressing the “association” issue, completely contradicts the objective of making VMM highly available.

Delving into the ETL Trace¶

For deeper diagnostic insights, an ETL (Event Tracing for Windows Log) trace, often referred to as a Carmine trace in VMM contexts, further illuminates the internal processing failure. This trace provides a detailed stack of operations leading up to the error, offering a granular view of where the process deviates from its expected path. Within the trace, you’ll observe entries similar to the following, repeatedly logging the same core issue across multiple threads or tasks:

[7068] 1B9C.16A8::08/30-03:28:22.863#19:Task.cs(248): Task failed error AMCannotAssociateVMMServer (444) with exception Microsoft.VirtualManager.Utils.CarmineException: server.contoso.com is a Virtual Machine Manager server. A Virtual Machine Manager server cannot be associated with another Virtual Machine Manager server.
[7068] Uninstall the Virtual Machine Manager server from server.contoso.com using Add or Remove Programs on server.contoso.com and try the operation again.
[7068]    at Microsoft.VirtualManager.Engine.Adhc.BaseAgentAccessor.Associate(Boolean takeOwnership, SecureCredential savedCredential, String& certificate) in d:\\bt\\52\\private\\product\\engine\\ADHC\\Operations\\Agent\\AgentAccessorBase.cs:line 136
... (further stack trace details) ...
[7068] *** Carmine error was: AMCannotAssociateVMMServer (444)
[7068] *** server.contoso.com ** |TaskID=ACEEAB52-CC21-449D-B1A8-730777AB5511

These trace entries unequivocally highlight the AMCannotAssociateVMMServer (444) error. The stack trace indicates that the failure occurs during the Associate method within the BaseAgentAccessor class, which is part of the VMM engine’s host management (Adhc) operations. This particular method is responsible for establishing the connection and management relationship between a VMM server and a managed host. The repeated appearance of this error with different TaskID values suggests multiple attempts or internal retries failing for the same fundamental reason.

The core message, reiterated within both the user-facing error and the diagnostic trace, is that a VMM management server cannot be configured to manage itself or another instance of VMM in the manner being attempted. This architectural constraint prevents a circular dependency where VMM would attempt to install an agent on a server that is already functioning as a VMM management server. Such a design would introduce significant complexity and potential instability into the management fabric.

Understanding the Cause: Architectural Design and Self-Management Paradox¶

The underlying reason for Error 444 is rooted in the fundamental architectural design of System Center 2012 Virtual Machine Manager. Simply put, System Center 2012 Virtual Machine Manager was never intended to manage itself in highly available mode as a cluster host. This design principle prevents VMM from attempting to install its agent on a server that is already acting as a VMM management server. Such a circular relationship would lead to complex and potentially unstable scenarios, effectively creating a self-referential management loop that the architecture is explicitly designed to avoid.

Consider the role of a VMM management server: it is designed to manage other Hyper-V hosts and clusters, deploying agents, and orchestrating virtual machine operations. When you attempt to add a cluster hosting a VMM management server into VMM’s managed fabric, VMM perceives the cluster nodes as hosts that require its management agent. However, if one of these cluster nodes is also the VMM management server attempting the operation, a conflict arises. VMM tries to install its agent on a server that is already the source of the management commands, leading to the AMCannotAssociateVMMServer error. This isn’t a bug; rather, it’s a built-in safeguard against an unsupported and potentially problematic configuration.

VMM Architecture and High Availability Concepts¶

To fully grasp this, it’s essential to differentiate between two key concepts:
1. VMM managing a Hyper-V cluster: This is VMM’s primary function – to control and orchestrate virtual machines running on a cluster of Hyper-V hosts.
2. VMM itself being highly available (HAVMM): This ensures that the VMM management service remains operational even if one of its underlying servers fails.

The error arises when an administrator tries to conflate these two concepts by setting up HAVMM on a Hyper-V cluster and then trying to add that same Hyper-V cluster to the VMM instance running within it. The system detects this as an attempt for VMM to manage its own host directly, which is explicitly disallowed. The VMM agent is designed for managed hosts, not for the VMM server itself.

To better visualize this, consider the following simplified architectural representation of an unsupported configuration versus a supported one:

```mermaid
graph TD
subgraph Unsupported Configuration (Error 444)
VMM_Server_1(VMM Management Server 1) – Attempts to Manage → HyperV_Host_A(Hyper-V Host A)
VMM_Server_1 – Is Part Of → HyperV_Cluster_X(Hyper-V Cluster X)
HyperV_Host_A – Is Part Of → HyperV_Cluster_X
VMM_Server_1 – Attempts to Add → HyperV_Cluster_X
HyperV_Cluster_X – Contains → VMM_Server_1
style HyperV_Cluster_X fill:#fcdede,stroke:#e84e4e,stroke-width:2px
style VMM_Server_1 fill:#fcdede,stroke:#e84e4e,stroke-width:2px
linkStyle 3 stroke:#e84e4e,stroke-width:2px,fill:none
linkStyle 2 stroke:#e84e4e,stroke-width:2px,fill:none
end

subgraph Supported Highly Available VMM Architecture
    HyperV_Cluster_P(Production Hyper-V Cluster)
    VM_VMM_1(Virtual Machine for VMM 1) -- Hosted On --> HyperV_Cluster_P
    VM_VMM_2(Virtual Machine for VMM 2) -- Hosted On --> HyperV_Cluster_P
    HAVMM_Instance(Highly Available VMM Instance) -- Runs On --> VM_VMM_1
    HAVMM_Instance -- Runs On --> VM_VMM_2
    HAVMM_Instance -- Manages --> HyperV_Cluster_P
    subgraph Internal to HAVMM_Instance
        VMM_DB(VMM SQL Database - HA)
        VMM_Service(VMM Service - HA)
    end
    VM_VMM_1 -- Hosts --> VMM_Service
    VM_VMM_2 -- Hosts --> VMM_Service
    VMM_Service -- Connects To --> VMM_DB
    style HAVMM_Instance fill:#e0ffe0,stroke:#4CAF50,stroke-width:2px
    style HyperV_Cluster_P fill:#e0ffe0,stroke:#4CAF50,stroke-width:2px
    linkStyle 6 stroke:#4CAF50,stroke-width:2px,fill:none
end

```

The “Unsupported Configuration” diagram illustrates the scenario leading to Error 444. The VMM server itself is part of the cluster it’s trying to manage or add, creating a direct conflict. The “Supported Highly Available VMM Architecture” shows the correct separation: the HAVMM instance (running on VMs) manages an external Hyper-V cluster. This fundamental understanding is key to implementing the correct resolution.

Resolution: Building an Indirect, Robust HAVMM Environment¶

To correctly implement a highly available System Center 2012 Virtual Machine Manager environment and bypass Error 444, the approach must respect the architectural design principle that VMM should not manage its own underlying host infrastructure directly. The resolution involves creating a layered architecture where the HAVMM instance runs within a Hyper-V cluster, and then this HAVMM instance manages that same Hyper-V cluster from an “outside-in” perspective. This establishes an indirect management relationship, eliminating the circular dependency that causes the error.

Here’s a detailed breakdown of the steps required:

Step 1: Establish a Dedicated Hyper-V Cluster¶

Before deploying HAVMM, you need a robust foundation: a functional Hyper-V cluster. This cluster will host the virtual machines that will eventually run your highly available VMM instance.

1. Hardware Provisioning: Acquire at least two physical servers with appropriate hardware specifications (CPU, RAM, network adapters, local storage) to serve as Hyper-V hosts. Ensure these servers meet the minimum requirements for both Hyper-V and the future VMM virtual machines.
2. Network Configuration: Configure redundant network adapters for each host. Implement dedicated networks for management, live migration, and iSCSI/FCoE storage if applicable. Ensure proper IP addressing, DNS resolution, and firewall rules are in place for cluster communication.
3. Shared Storage: Provision shared storage accessible by all Hyper-V cluster nodes. This is crucial for failover clustering and for storing the VMM virtual machines’ VHD/VHDX files. Options include iSCSI SAN, Fibre Channel SAN, or Scale-Out File Server (SOFS) using Storage Spaces Direct (S2D) (though S2D would be for newer Hyper-V versions, for 2012, traditional SAN/NAS is more common).
4. Windows Server Installation: Install a supported version of Windows Server (e.g., Windows Server 2012 or later for Hyper-V) on each physical host. Ensure all necessary updates are applied.
5. Hyper-V Role Installation: Install the Hyper-V role on each server.
6. Failover Clustering Feature: Install the Failover Clustering feature on all designated Hyper-V hosts.
7. Cluster Validation and Creation: Run the cluster validation wizard to ensure all components are configured correctly and meet Microsoft’s best practices. Address any warnings or errors. Once validated, create the Windows Server Failover Cluster (WSFC), adding all the Hyper-V hosts to it.
8. Configure Cluster Shared Volumes (CSV): If using shared block storage (SAN), configure Cluster Shared Volumes (CSVs) on the shared storage. CSVs allow multiple cluster nodes to simultaneously access the same LUN, which is essential for hosting highly available virtual machines.

Step 2: Deploy Virtual Machines for Highly Available VMM (HAVMM)¶

Once the Hyper-V cluster is operational, you will deploy virtual machines within this cluster that will eventually host the HAVMM instance. These VMs should be configured for high availability from the Hyper-V perspective.

1. Virtual Machine Creation: Create at least two virtual machines on your newly formed Hyper-V cluster. These VMs will act as the nodes for your HAVMM instance.
2. Operating System Installation: Install a supported server operating system (e.g., Windows Server 2012) on each of these VMM virtual machines. Configure them with appropriate network settings and join them to your Active Directory domain.
3. Resource Allocation: Allocate sufficient CPU, memory, and disk resources to these VMM VMs based on the expected load and your environment’s requirements. Over-provisioning slightly is often a good practice to ensure stable performance.
4. Disk Configuration: Ensure the VMM VMs have appropriate virtual disks for the operating system, VMM installation, and any temporary files. Consider using separate virtual disks for performance and management.
5. Enable High Availability for VMM VMs: Within the Hyper-V cluster manager, ensure these virtual machines are configured for high availability. This means if the physical host running one of these VMM VMs fails, the VM will automatically migrate to another healthy host in the cluster.

Step 3: Install Highly Available Virtual Machine Manager (HAVMM)¶

This is the core step where VMM is installed in a highly available configuration across the virtual machines you just created. This typically involves using a SQL Server AlwaysOn Availability Group or a SQL Server Failover Cluster Instance for the VMM database.

1. SQL Server Deployment (Highly Available): Deploy a highly available SQL Server instance. This can be:
   • SQL Server Failover Cluster Instance (FCI): Install SQL Server as a failover cluster on two separate virtual machines (or physical servers if preferred for the database tier) that are part of a separate Windows Server Failover Cluster. This provides instance-level high availability.
   • SQL Server AlwaysOn Availability Groups (AG): Deploy SQL Server on separate virtual machines (or physical servers) and configure an AlwaysOn Availability Group for the VMM database. This provides database-level high availability and disaster recovery capabilities.
     Ensure the SQL Server instance is robust and highly available as the VMM database is critical.
2. VMM Server Role Installation on VMM VMs:
   • On the first VMM virtual machine, begin the System Center 2012 Virtual Machine Manager installation.
   • During the installation, select the option to create a Highly Available VMM management server.
   • Configure the VMM service account, connect to your highly available SQL Server instance (using the SQL listener name for AlwaysOn or the cluster resource name for FCI), and specify the VMM library share (which should be on a highly available file share, e.g., a Scale-Out File Server or a clustered file server).
   • Complete the installation on the first node.
3. Add Additional VMM Nodes: On the second (and subsequent, if applicable) VMM virtual machine, run the VMM setup again. This time, select the option to add a VMM management server to an existing highly available VMM deployment. Point it to the first VMM server and provide the necessary credentials and configuration details. This process will extend the HAVMM cluster to include this new VM, enabling failover for the VMM service.

Upon completion of this step, you will have a fully functional, highly available VMM instance running across your dedicated VMM virtual machines, which are themselves hosted on the Hyper-V cluster.

Step 4: Add the Hyper-V Cluster to the Newly Deployed HAVMM¶

This is the final and crucial step that brings the entire solution together. Now, your newly configured highly available VMM instance will take on its primary role: managing your virtualization infrastructure.

1. Access the HAVMM Console: From any machine that can access your highly available VMM management server (e.g., a workstation with the VMM console installed), open the System Center 2012 Virtual Machine Manager console.
2. Initiate Host Addition: Navigate to the “Fabric” workspace. Right-click on “Servers” or “All Hosts” and select “Add Hyper-V Hosts and Clusters.”
3. Specify Cluster Details: In the wizard, choose the option to “Add an existing Windows Server-based Hyper-V cluster.” Provide the fully qualified domain name (FQDN) of the Hyper-V cluster you created in Step 1.
4. Provide Credentials: Supply appropriate credentials (e.g., a domain account with administrative privileges on the Hyper-V cluster nodes) that VMM will use to discover and manage the cluster.
5. Review and Complete: Review the summary of the cluster to be added and proceed with the operation. VMM will then discover all the Hyper-V hosts within that cluster, install its agents on them, and integrate the entire cluster into its management purview.

Crucially, the HAVMM instance (running on the VMM VMs) is now managing the Hyper-V cluster. The VMM virtual machines themselves are part of this managed Hyper-V cluster, but the VMM instance is not directly managing its own underlying physical hosts in a way that causes the Error 444. The HAVMM instance perceives the Hyper-V cluster as external infrastructure, even though it resides within it. This indirect management setup is the key to resolving the Error 444 and establishing a robust, highly available VMM environment.

Summary of Correct Architecture¶

To reiterate, the successful architecture involves:
* A physical Hyper-V cluster acting as the foundation.
* Virtual Machines running within this Hyper-V cluster.
* A Highly Available VMM instance (HAVMM) installed across these virtual machines.
* The HAVMM instance then manages the entire physical Hyper-V cluster, including the hosts that run the VMM VMs.

This layered approach maintains a clear separation of concerns, where the Hyper-V cluster provides the base for VM high availability, and the HAVMM provides high availability for the VMM service itself, without creating problematic circular dependencies.

Best Practices and Additional Considerations¶

Beyond the core resolution steps, several best practices and considerations are vital for a successful and stable highly available VMM deployment. These ensure optimal performance, security, and manageability of your virtualized infrastructure.

Network Design for HAVMM¶

A well-designed network is fundamental. Consider isolating different types of network traffic:
* Management Network: Dedicated for VMM server and console communication.
* Live Migration Network: High-bandwidth, low-latency network for seamless VM mobility between Hyper-V hosts.
* Storage Network: If using iSCSI or Fibre Channel, this network should be isolated and configured for maximum performance and redundancy.
* VM Networks: Networks for the virtual machines themselves, often segmented for different tenants or applications.
Ensuring redundancy at every layer (NIC teaming, multiple switches) is paramount to prevent single points of failure.

Storage Considerations¶

The performance and reliability of your storage directly impact the entire virtualization environment, including HAVMM.
* Cluster Shared Volumes (CSVs): For the Hyper-V cluster, CSVs are essential for hosting highly available VMs. Ensure these volumes are backed by performant and redundant storage.
* VMM Database Storage: The SQL Server instance hosting the VMM database requires fast and highly available storage. Separate disks for the operating system, database files, and log files are recommended for performance. Ensure the underlying storage for your highly available SQL Server (whether FCI or AlwaysOn) is robust.
* VMM Library Share: The VMM library, which stores templates, ISOs, and other virtual machine resources, should reside on a highly available file share (e.g., a clustered file server or Scale-Out File Server) to ensure continuous access.

Security Best Practices¶

Security must be an integral part of the HAVMM deployment:
* Least Privilege: Configure service accounts for VMM with the minimum necessary permissions. Avoid using highly privileged accounts for VMM services.
* Firewall Rules: Configure firewalls on all VMM servers and Hyper-V hosts to allow only necessary VMM communication ports.
* Active Directory Integration: Ensure VMM has appropriate permissions in Active Directory for operations like creating computer objects or managing DNS records, if required.
* Regular Patching: Keep all operating systems (physical hosts and VMM VMs), Hyper-V, VMM, and SQL Server components updated with the latest security patches.

Backup and Recovery¶

A comprehensive backup and recovery strategy for HAVMM is non-negotiable:
* VMM Database Backup: Regularly back up the VMM SQL database. This is the heart of your VMM configuration. Implement SQL Server backup best practices.
* VMM Virtual Machine Backup: Back up the VMM virtual machines themselves. This allows for quick recovery of the entire VMM instance.
* Configuration Backup: Consider using VMM’s built-in backup features (if available for specific configurations) or manual exports of relevant settings.
* Disaster Recovery: Plan for disaster recovery scenarios, including off-site backups and documented recovery procedures.

Monitoring and Management¶

Proactive monitoring ensures the health and performance of your HAVMM environment:
* VMM Service Monitoring: Monitor the health and availability of the VMM services on both VMM cluster nodes.
* Hyper-V Host Monitoring: Monitor the performance and health of the underlying Hyper-V hosts and the Hyper-V cluster itself.
* SQL Server Monitoring: Monitor the performance and health of the VMM SQL database, including disk I/O, CPU, and memory utilization.
* Alerting: Configure alerts for critical events, service failures, or performance thresholds to enable rapid response to issues.

By adhering to these best practices, organizations can build not just a functional but also a resilient, secure, and easily manageable highly available System Center 2012 Virtual Machine Manager environment, maximizing the uptime and efficiency of their virtualized infrastructure.

Conclusion¶

The Error 444 encountered during highly available cluster creation in System Center 2012 Virtual Machine Manager, stating that “A VMM management server cannot be associated with another VMM management server,” is a direct consequence of VMM’s architectural design. It highlights a deliberate constraint preventing the VMM management server from directly managing the physical hosts upon which its own highly available instance resides. This design choice safeguards against complex, circular dependencies that could lead to instability and management paradoxes within the virtual infrastructure.

The resolution, as detailed, involves an indirect, layered approach:
1. Establishing a robust Hyper-V cluster as the foundational compute and storage layer.
2. Deploying virtual machines within this Hyper-V cluster specifically to host the VMM service.
3. Installing a highly available VMM (HAVMM) instance across these virtual machines, leveraging a highly available SQL backend.
4. Finally, adding the initial Hyper-V cluster to be managed by this newly deployed HAVMM instance.

This structured methodology ensures that the HAVMM instance operates as a manager of external resources, even if those resources happen to host the HAVMM itself. By understanding and respecting this architectural separation, administrators can successfully deploy a resilient and efficient HAVMM environment, ensuring continuous management capabilities for their virtualized data centers.

We hope this detailed guide has provided clarity on Error 444 and equipped you with the knowledge to successfully implement your highly available VMM solution. Have you encountered this error in your deployments? What specific challenges did you face, and how did these steps help you overcome them? Share your experiences and insights in the comments below!
