Troubleshooting HTTP 400 Errors in CLM Portal on IIS: A Practical Guide

Updated: • 0 • min read
Table of Contents

HTTP 400 Bad Request errors can be a significant hurdle for administrators managing applications hosted on Internet Information Services (IIS). This comprehensive guide focuses specifically on resolving HTTP 400 errors encountered within a Certificate Lifecycle Management (CLM) portal environment, where the underlying cause often relates to oversized request headers. Understanding the root cause and implementing the correct resolution is crucial for maintaining the seamless operation of your CLM services.

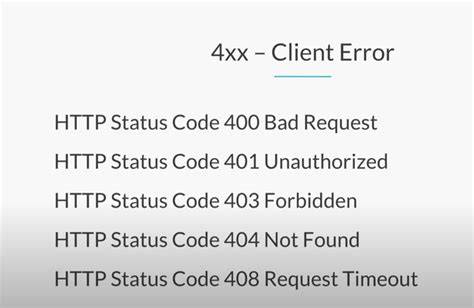

Troubleshooting HTTP 400 Errors

Understanding HTTP 400 Bad Request Errors

An HTTP 400 Bad Request status code indicates that the server cannot or will not process the request due to something that is perceived to be a client error. This could stem from malformed request syntax, invalid request message framing, or deceptive request routing. While a 400 error can originate from various issues, this specific scenario points to a problem with the length of the request header.

In the context of a CLM portal, encountering a 400 error typically signifies that the web request being sent to the IIS server contains information that exceeds the server’s configured limits. This prevents the server from properly parsing or authenticating the request, thereby blocking essential operations within the portal. Identifying this particular sub-type of 400 error is the first step towards an effective resolution. This detailed guide aims to arm you with the knowledge and steps to tackle this specific challenge.

Symptoms of Request Header Too Long

When users attempt to perform various operations within the CLM portal, they may encounter distinct symptoms depending on their browser’s error message settings. These symptoms consistently point towards an issue with the size of the HTTP request header. Recognizing these indicators is vital for diagnosing the problem correctly and initiating the appropriate troubleshooting steps.

If friendly HTTP error messages are enabled in Internet Explorer or other modern browsers, users will typically see a generic “HTTP 400” error page. This message provides limited specific detail, often stating “Bad Request” without further explanation, making initial diagnosis challenging. This generic error can mask the true underlying problem of an oversized header, requiring further investigation to uncover the root cause.

However, if friendly HTTP error messages are disabled in Internet Explorer, a more descriptive error message is returned to the user: “Bad Request (Request header too long)”. This explicit message directly pinpoints the problem, indicating that the client’s request header has exceeded the server’s acceptable length limit. This detailed error is a critical clue for troubleshooting and confirms the specific nature of the 400 error, providing a clear path forward for resolution.

Delving into the Cause: Kerberos and Token Bloat

The primary cause of the “Request header too long” error in a CLM portal, especially in Active Directory-integrated environments, is often tied to Kerberos authentication. Specifically, the HTTP request sent to the IIS server contains an Authorization header that is excessively large. This oversized header typically houses a Kerberos authentication ticket which has grown beyond the server’s configured limits. Understanding how this ticket becomes so large is key to comprehending the problem.

Kerberos authentication tickets, often referred to as PAC (Privilege Attribute Certificate) or “tokens,” contain a user’s security identifiers (SIDs) for all groups they are a member of within Active Directory. When a user belongs to a significant number of Active Directory groups – a common scenario in large enterprise environments – the size of their Kerberos ticket can increase substantially. This phenomenon, known as “token bloat,” directly impacts the size of the HTTP request header, leading to the observed 400 error. The larger the number of group memberships, the larger the token.

The HTTP.sys component, a kernel-mode driver within Windows that handles HTTP requests for IIS, is designed with built-in security mechanisms. For security purposes, HTTP.sys enforces configured size limits on incoming HTTP requests and their headers. When a request, particularly its Kerberos ticket within the Authorization header, exceeds these predefined limits, HTTP.sys rejects the request immediately. This rejection is a critical security measure to prevent potential denial-of-service (DoS) attacks or buffer overflow vulnerabilities that could arise from processing overly large or malformed requests.

The Role of HTTP.sys in IIS

HTTP.sys acts as the first point of contact for HTTP requests in Windows Server, before they even reach the IIS worker processes. Its kernel-mode operation ensures high performance and robust security, operating efficiently at a low level in the operating system. It parses incoming requests, performs initial validation, and applies various policies, including header size limits, to ensure only legitimate and well-formed requests proceed to the application layer.

These limits are critical for maintaining system stability and security, as processing excessively large headers can consume significant memory and CPU resources, potentially leading to performance degradation or system instability. By rejecting oversized requests early, HTTP.sys protects the server from resource exhaustion and potential vulnerabilities. Therefore, managing these limits carefully is a balancing act between functionality and security.

Resolution: Adjusting HTTP.sys Registry Keys

The resolution involves adjusting the HTTP.sys registry keys, specifically MaxFieldLength and MaxRequestBytes, on the IIS server. These keys control the maximum allowable size for an individual HTTP header field and the total HTTP request, respectively. Modifying these values will allow the IIS server to accept larger request headers, thus accommodating oversized Kerberos tickets that were previously causing errors.

It is paramount to understand that changing these registry keys carries inherent risks. Increasing their values compels HTTP.sys to allocate more memory for processing requests, which can heighten the server’s vulnerability to malicious attacks, including denial-of-service attempts. Therefore, these values should not be set arbitrarily high. Instead, they must be meticulously calculated and configured to the smallest possible values that resolve the specific problem, allowing for a reasonable buffer to prevent recurrence without introducing undue risk.

Step-by-Step Guide to Modifying Registry Keys

Before making any registry modifications, it is highly recommended to back up your system’s registry. This allows for a quick rollback in case of unforeseen issues or misconfigurations. You can usually export the HTTP\Parameters key, or even the entire HKEY_LOCAL_MACHINE\System branch, before proceeding.

  1. Open Registry Editor:
    • Press Windows Key + R to open the Run dialog.
    • Type regedit and press Enter.
    • Confirm the User Account Control prompt if it appears, granting administrator permissions.
  2. Navigate to the HTTP.sys Key:
    • In the Registry Editor, navigate to the following path:
      HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\HTTP\Parameters
    • This is where the HTTP.sys configuration parameters are stored.
  3. Create or Modify Keys:
    • In the Parameters key, look for MaxFieldLength and MaxRequestBytes.
    • If they don’t exist, create new DWORD (32-bit) Value entries for each.
    • Right-click on an empty space in the right pane, select New > DWORD (32-bit) Value.
    • Name one MaxFieldLength and the other MaxRequestBytes exactly as specified.
  4. Set Values:
    • Double-click MaxFieldLength.
    • Select Decimal as the base.
    • Enter a suitable value (e.g., 65534).
    • Double-click MaxRequestBytes.
    • Select Decimal as the base.
    • Enter a suitable value (e.g., 16777216).
    • Note: The example values provided are common starting points, but the optimal values should be determined through calculation, as detailed in the next section. These values represent bytes and need careful consideration.
  5. Restart the Server:
    • For these changes to take effect, you must restart the IIS server or the entire machine. A simple iisreset from an elevated command prompt might suffice for some IIS changes, but a full server reboot is often recommended for kernel-mode driver settings like these to ensure the HTTP.sys component reloads its configuration.

Understanding the Registry Keys

  • MaxFieldLength: This registry key specifies the maximum allowable length of any individual HTTP request header field. This includes the Authorization header that carries the Kerberos ticket. Its default value is 16,384 bytes (16 KB). If a single header field exceeds this value, HTTP.sys will reject the request, leading to the 400 error.
  • MaxRequestBytes: This key defines the maximum allowable size of the entire HTTP request line and headers. Its default value is 16,384 bytes (16 KB) on Windows Server 2008 R2 and earlier, and 262,144 bytes (256 KB) on Windows Server 2012 and later. If the total size of the request line and all headers exceeds this value, HTTP.sys will reject the request. It is imperative that MaxRequestBytes must be greater than or equal to MaxFieldLength to avoid conflicts and ensure proper request processing.


Video: A general guide to HTTP 400 errors and basic troubleshooting. While not CLM-specific, it covers foundational concepts and helps reinforce understanding.


Determining Optimal HTTP Request Size

Setting the MaxFieldLength and MaxRequestBytes values optimally is crucial for security and performance. Arbitrarily high values can create vulnerabilities, while values too low will not resolve the issue. To determine the actual HTTP request size and, consequently, the appropriate registry values, a combination of network monitoring and log analysis is essential. This systematic approach ensures that you implement the minimum necessary changes.

1. Network Monitor Trace (e.g., Wireshark)

A network monitor trace is invaluable for capturing and analyzing the actual HTTP traffic. Tools like Wireshark allow you to inspect the contents of network packets, including HTTP request headers, providing granular detail on the exact size of each component.

Steps to use Wireshark for analysis:

  1. Install Wireshark: Download and install Wireshark on a client machine experiencing the issue, or on the IIS server itself (though client-side is often easier for capture and avoids adding software to the server).
  2. Start Capture: Launch Wireshark and select the appropriate network interface connected to your network. Initiate a new capture session to begin recording network traffic.
  3. Reproduce the Issue: Attempt to perform an operation in the CLM portal that consistently triggers the HTTP 400 error. This ensures that the problematic request is captured.
  4. Stop Capture: Once the error occurs, stop the Wireshark capture to limit the amount of data to analyze.
  5. Filter Traffic: Apply a display filter to narrow down the packets. For HTTP traffic, http is a good starting point. You might further refine it to http.request.method == "POST" || http.request.method == "GET" and look for requests targeting your IIS server’s IP address or hostname.
  6. Inspect the Request:
    • Locate the specific HTTP request that resulted in the 400 error. It might be immediately followed by a server response indicating the 400 status.
    • Expand the Hypertext Transfer Protocol section in the packet details pane.
    • Look for the Authorization header. Expand it to see the Kerberos ticket details.
    • Note the size of this header field. Wireshark often displays the byte length of individual fields, which is your MaxFieldLength candidate.
    • Also, inspect the total length of the entire HTTP request (often visible in the “Frame” or “Internet Protocol” section of the packet details). This gives you the MaxRequestBytes candidate.

By examining the Kerberos ticket within the Authorization header, you can accurately gauge its size. Add a reasonable buffer (e.g., 10-20% or a fixed amount like 1024-2048 bytes) to this observed size to account for future group memberships or other minor header changes. This buffered value will be your starting point for MaxFieldLength. The MaxRequestBytes should be set to at least this value, plus the size of other typical request elements, or the default 262144 bytes if it’s larger and safe.

2. HTTP.sys Error Log Analysis

The HTTP.sys error log provides critical insights into why requests are being rejected at the kernel level. It’s often the first place to look when troubleshooting HTTP.sys related issues, as it records rejections before they even reach IIS application logs.

Location: %windir%\system32\logfiles\HTTPERR\httperrX.log (where X is a numerical sequence, e.g., httperr1.log).

Interpreting Log Entries:
Each entry in the httperrX.log file provides details about rejected HTTP requests. Look for entries with a sc-status of 400 and a s-reason of RequestLength. These specific fields confirm that the issue is indeed related to the size limits configured within HTTP.sys.

Example Entry from httperrX.log:

date time c-ip c-port s-ip s-port cs-version cs-method cs-uri sc-status s-siteid s-reason s-queuename
2007-04-12 07:37:51 10.201.25.27 1682 10.248.10.65 80 HTTP/1.1 GET /clm 400 - RequestLength

In this example:
* sc-status: 400 confirms a Bad Request error.
* s-reason: RequestLength explicitly states that the request was rejected due to its length.
This log entry confirms that the problem is indeed related to the MaxFieldLength or MaxRequestBytes limits. While the log doesn’t directly tell you the exact size of the offending header, it validates the symptom and guides your troubleshooting towards adjusting these specific registry keys.

As a general guideline, Microsoft has historically suggested values that can accommodate larger Kerberos tickets. However, these should be a starting point, not an arbitrary maximum. Always aim for the minimum effective value.

  • MaxFieldLength: A common recommendation is 65534 (64 KB - 2 bytes). This is often sufficient for most token bloat scenarios, as a Kerberos ticket rarely exceeds this size unless a user is a member of thousands of groups. This value provides substantial headroom over the default.
  • MaxRequestBytes: A common recommendation is 16777216 (16 MB). This is a generous value and ensures that the entire request, including the URL and all headers, has enough space. Remember, this value must be greater than or equal to MaxFieldLength. For modern Windows Servers (2012 R2 and later), the default 256KB (262144) for MaxRequestBytes might be sufficient if MaxFieldLength is the only limit being hit.

Example Calculation Scenario:

  1. From a Wireshark capture, you observe that the Authorization header (containing the Kerberos ticket) is 32000 bytes (31.25 KB).
  2. Add a 20% buffer to this observed size: 32000 * 1.20 = 38400 bytes.
  3. Set MaxFieldLength to 38400 (Decimal). This value directly addresses the oversized individual header field.
  4. For MaxRequestBytes, if the default 262144 (256 KB) is already greater than 38400, you might choose to leave it at the default. If not, you must set MaxRequestBytes to at least 38400. A higher value like 65536 or even 262144 can be considered to ensure it accommodates the total request size from other elements, but always opt for the smallest practical value to minimize potential security risks.

Crucial Note on Security: While increasing these values resolves the immediate issue, it’s essential to consider the long-term impact. Excessively large Kerberos tickets indicate a potential issue with Active Directory group management. Reviewing and streamlining group memberships, especially for service accounts or users heavily involved in CLM operations, can be a more robust and secure long-term solution. This proactive approach helps mitigate token bloat at its source.

Best Practices and Long-Term Considerations

After implementing the registry changes, it’s vital to adopt best practices to prevent similar issues and maintain a secure environment. These measures extend beyond the immediate fix to foster a more resilient and efficient system.

  1. Monitor System Performance: Keep a close eye on your IIS server’s memory and CPU usage following the changes. While small increases in MaxFieldLength and MaxRequestBytes typically don’t cause significant overhead, excessively large values can impact resource consumption. Implement performance monitoring tools to detect any anomalies.
  2. Regularly Review AD Group Memberships: Proactively manage Active Directory groups to minimize unnecessary memberships. Nested groups can help reduce the direct membership count for individual users, thereby keeping Kerberos ticket sizes in check. This strategy addresses the root cause of token bloat, rather than just mitigating its symptoms, leading to a more sustainable solution.
  3. Security Audits: Conduct regular security audits of your IIS configuration and Active Directory. Ensure that only necessary permissions are granted and that the MaxFieldLength/MaxRequestBytes values are justified. Reviewing these configurations periodically helps maintain a strong security posture.
  4. Documentation: Document the changes made, including the old and new registry values, the date of modification, and the justification for the change. This documentation is invaluable for future troubleshooting, auditing, and maintaining consistent configurations across your environment.
  5. Test in a Staging Environment: Whenever possible, test such critical registry changes in a non-production staging environment first. This helps validate the solution, identify any unintended side effects, and assess performance impacts before deploying to your live production systems, minimizing risks.

By understanding the interplay between Kerberos authentication, Active Directory group memberships, HTTP.sys, and IIS, administrators can effectively troubleshoot and resolve HTTP 400 “Request header too long” errors in their CLM portal. Implementing these solutions carefully, with a focus on security and efficiency, ensures the smooth and secure operation of critical certificate management services. Proactive management and thorough understanding are your best tools in maintaining a robust infrastructure.

We hope this detailed guide helps you resolve HTTP 400 errors related to oversized request headers in your CLM portal environment. Have you encountered similar issues in other IIS-hosted applications? Do you have any additional tips or experiences to share regarding Kerberos token bloat or HTTP.sys configuration? Please share your thoughts and questions in the comments below!
