Troubleshooting Intune: Fixing Android Application Wrapping Errors for Seamless Deployment

Table of Contents

Deploying Line of Business (LOB) applications within an enterprise environment often involves leveraging Mobile Application Management (MAM) solutions like Microsoft Intune. These solutions enhance data security and compliance by enforcing policies on corporate data accessed through mobile apps. A critical component for non-MAM-aware Android applications is the Microsoft Intune App Wrapping Tool, which integrates these security policies without requiring changes to the app’s source code. However, users occasionally encounter significant hurdles during this wrapping process, leading to deployment failures and hindering organizational productivity. This article aims to provide a comprehensive guide to understanding and resolving common Android application wrapping errors when using the Intune tool.

Understanding Intune App Wrapping for Android¶

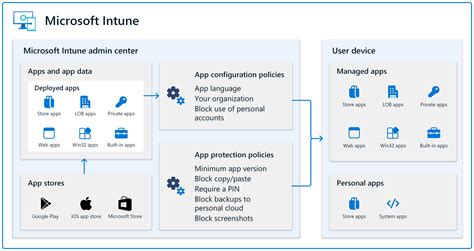

Microsoft Intune’s App Wrapping Tool for Android is an invaluable utility that allows IT administrators to apply Intune app protection policies to internal LOB apps without requiring developers to integrate the Intune App SDK. This process essentially “wraps” the existing application package (APK) with a management layer that enforces corporate data security policies, such as requiring a PIN, encrypting corporate data, preventing copy/paste to unmanaged apps, and restricting web content to managed browsers. This capability is vital for organizations that need to secure their proprietary applications quickly and efficiently, ensuring that sensitive data remains protected even on personal devices. The wrapping process is typically straightforward, but challenges can arise, particularly with complex or large applications.

Symptoms of Application Wrapping Failure¶

When attempting to wrap a Line of Business (LOB) application using the Microsoft Intune App Wrapping Tool for Android, the most common symptom of an issue is the tool crashing or failing to complete the wrapping process. This failure is usually accompanied by a detailed error message in the console output. This error message provides crucial insights into the underlying problem, often indicating that the application could not be wrapped successfully. The output typically contains diagnostic information, including paths to log files and a Java stack trace, pointing to specific issues encountered during the bytecode manipulation phase.

A characteristic error message observed in such scenarios closely resembles the following:

DBG [APKTool] Finish encoding directory into APK file:<path of .apk>
WRN Verbose logs can be found at: <path of .apk logfile>.
ERR The application could not be wrapped.
org.jf.util.ExceptionWithContext: Exception occurred while writing code_item for method <method name>
org.jf.dexlib2.writer.DexWriter.writeDebugAndCodeItems(DexWriter.java:825)
org.jf.dexlib2.writer.DexWriter.writeTo(DexWriter.java:268)
org.jf.dexlib2.writer.DexWriter.writeTo(DexWriter.java:246)
brut.androlib.src.SmaliBuilder.build(SmaliBuilder.java:61)
brut.androlib.src.SmaliBuilder.build(SmaliBuilder.java:36)
brut.androlib.Androlib.buildSourcesSmali(Androlib.java:417)
brut.androlib.Androlib.buildSources(Androlib.java:348)
brut.androlib.Androlib.build(Androlib.java:300)
com.microsoft.intune.mam.apppackager.utils.APKToolWrapper.encodeAPK(APKToolWrapper.java:172)
com.microsoft.intune.mam.apppackager.AppPackager.packageApp(AppPackager.java:111)
com.microsoft.intune.mam.apppackager.PackagerMain.mainInternal(PackagerMain.java:213)
com.microsoft.intune.mam.apppackager.PackagerMain.main(PackagerMain.java:57)
org.jf.util.ExceptionWithContext: Error while writing instruction at code offset 0x13
org.jf.dexlib2.writer.DexWriter.writeCodeItem(DexWriter.java:1098)
org.jf.dexlib2.writer.DexWriter.writeDebugAndCodeItems(DexWriter.java:821)
org.jf.dexlib2.writer.DexWriter.writeTo(DexWriter.java:268)
org.jf.dexlib2.writer.DexWriter.writeTo(DexWriter.java:246)
brut.androlib.src.SmaliBuilder.build(SmaliBuilder.java:61)
brut.androlib.src.SmaliBuilder.build(SmaliBuilder.java:36)
brut.androlib.Androlib.buildSourcesSmali(Androlib.java:417)
brut.androlib.Androlib.buildSources(Androlib.java:348)
brut.androlib.Androlib.build(Androlib.java:300)
com.microsoft.intune.mam.apppackager.utils.APKToolWrapper.encodeAPK(APKToolWrapper.java:172)
com.microsoft.intune.mam.apppackager.AppPackager.packageApp(AppPackager.java:111)
com.microsoft.intune.mam.apppackager.PackagerMain.mainInternal(PackagerMain.java:213)
com.microsoft.intune.mam.apppackager.PackagerMain.main(PackagerMain.java:57)
org.jf.util.ExceptionWithContext: Unsigned short value out of range: <65536 or a value that's greater than 65536>
org.jf.dexlib2.writer.DexDataWriter.writeUshort(DexDataWriter.java:116)
org.jf.dexlib2.writer.InstructionWriter.write(InstructionWriter.java:348)
org.jf.dexlib2.writer.DexWriter.writeCodeItem(DexWriter.java:1058)

This verbose output, while daunting, points to a specific issue within the DEX file processing. The key phrase to note is “Unsigned short value out of range: <65536 or a value that’s greater than 65536>”. This error directly indicates a fundamental limitation being hit during the modification of the application’s bytecode, preventing the Intune wrapper from successfully injecting its own code and resources. Understanding this symptom is the first step toward effective troubleshooting.

Unraveling the Cause: The DEX 64K Method Limit¶

The core of the problem lies in a historical limitation within Android’s Dalvik Executable (DEX) file format, commonly known as the “64K method reference limit.” Every Android application’s compiled code is contained within one or more DEX files. Each DEX file has a limited number of method references it can hold, specifically up to 65,536 (2^16) method references. This limit was imposed by the 16-bit reference count used in the Dalvik bytecode specification. While modern Android runtimes (ART) and build tools have evolved, this underlying structure can still pose challenges, especially for large, complex applications.

When a Line of Business (LOB) application is developed, particularly if it incorporates numerous third-party libraries, complex functionalities, or targets older Android versions, it can easily approach or even exceed this 64K method limit. The Microsoft Intune App Wrapping Tool functions by injecting its own code and methods into the existing application’s DEX files. This injected code provides the necessary hooks for Intune’s Mobile Application Management (MAM) policies to operate. However, if the LOB app is already critically close to the 64K method reference ceiling, the additional methods introduced by the Intune wrapper will cause the DEX file to exceed its capacity, leading to the “Unsigned short value out of range” error and subsequently, the wrapping process failure. Essentially, there isn’t enough “room” left in the app’s primary code structure for the Intune management layer to be added.

Comprehensive Solutions for Wrapping Errors¶

Addressing the 64K method limit error requires a multi-pronged approach, focusing on reducing the overall method count of the application and enabling Android’s built-in solutions for handling large applications. Follow these steps meticulously to resolve the wrapping failures.

Step 1: Update the Intune App Wrapping Tool¶

The initial and often simplest solution is to ensure you are using the most current version of the Microsoft Intune App Wrapping Tool for Android. Microsoft frequently updates its tools, incorporating bug fixes, performance improvements, and compatibility enhancements that can resolve issues with newer Android versions or complex application structures. Always check the official Microsoft Intune documentation or the GitHub repository for the latest release.

While this might seem like a basic step, using an outdated tool could introduce unforeseen compatibility issues or lack support for specific bytecode structures found in modern Android apps. Updating the tool ensures you benefit from the latest optimizations designed to handle a wider range of application complexities and potentially mitigate subtle wrapping issues. After updating, reattempt the wrapping process to see if the problem has been resolved.

Step 2: Enable Multidex for Your Android App¶

If updating the tool doesn’t resolve the issue, the next critical step is to enable multidex for your Android application. Multidex is a crucial feature introduced by Google to circumvent the 64K method limit. It allows Android applications to be built and packaged with multiple DEX files, effectively distributing the compiled code across several files instead of confining it to a single classes.dex file. This prevents the primary DEX file from exceeding the 64K method limit and provides ample space for the Intune wrapper to inject its code.

To enable multidex, you typically need to modify your app’s build.gradle file. This involves setting multiDexEnabled to true within the defaultConfig block and adding the multidex support library as a dependency.

Here’s a conceptual example of how to configure your build.gradle file:

android {
    defaultConfig {
        // ... other configurations
        minSdkVersion 21 // Multidex is natively supported on API Level 21+
        targetSdkVersion 34
        multiDexEnabled true
    }
    buildTypes {
        release {
            // ...
        }
    }
}

dependencies {
    // ... other dependencies
    implementation 'androidx.multidex:multidex:2.0.1' // Or the latest version
}

For applications targeting Android 5.0 (API level 21) and higher, multidex is enabled by default by the Android build tools. However, for apps targeting API level 20 or lower, you might need to use the androidx.multidex library and manually configure your Application class to extend MultiDexApplication or call MultiDex.install(this) in its attachBaseContext method. This ensures that the application runtime can correctly load all the DEX files.

After making these changes, rebuild your application’s APK before attempting to wrap it with the Intune tool. Enabling multidex is often the most direct and effective solution for overcoming the 64K method limit.

Step 3: Optimize Multidex Configuration (If Problems Persist)¶

Even with multidex enabled, problems can sometimes persist if the multidex configuration is not optimally managed. A common pitfall is inadvertently including too many classes in the primary DEX file. The Android build system attempts to determine which classes are essential for startup and includes them in classes.dex (the primary DEX file). If this file still grows too large, it can lead to issues, as the Intune wrapper might still struggle to fit its code into the already packed primary DEX.

Consider the following points for optimizing your multidex setup:

• Review multiDexKeepFile and multiDexKeepProguard: These options allow you to explicitly define classes that must be included in the primary DEX file. While useful for ensuring critical startup classes are present, over-specifying classes can bloat the primary DEX. Carefully examine these configurations and reduce the number of explicitly listed classes if they are not absolutely necessary for the application’s initial launch. The goal is to keep the primary DEX as lean as possible.
• Analyze Build Output: Inspect the build output logs for warnings or information related to multidex. The Android build tools often provide insights into the method count of your DEX files.
• Refactor Code: If possible, consider refactoring parts of your application to reduce direct dependencies between classes that end up in the primary DEX. This is often a more involved development task but can yield significant improvements for very large applications.

The key here is to minimize the footprint of the primary DEX file, giving the Intune App Wrapping Tool sufficient room to integrate its necessary components without exceeding the internal limits.

Here’s a conceptual flow of how multidex helps:

mermaid graph TD A[Original App APK] --> B{Contains single classes.dex}; B -- If > 64K methods --> C[Wrapping Fails]; A --> D{Multidex Enabled}; D -- Splits Code --> E[classes.dex (Primary)]; D -- Splits Code --> F[classes2.dex]; D -- Splits Code --> G[classes3.dex]; E -- Optimized for Startup --> H[Intune Wrapper Injects Code]; H -- Sufficient Space --> I[Successful Wrapping]; style C fill:#f9f,stroke:#333,stroke-width:2px style I fill:#bfb,stroke:#333,stroke-width:2px

Step 4: Enable Code Shrinking with ProGuard or R8¶

Enabling code shrinking, optimization, and obfuscation is another highly effective method to reduce the overall method count and size of your Android application. Tools like ProGuard (or its successor, R8, which is now the default in Android Gradle Plugin 3.4.0 and higher) analyze your bytecode, detect and remove unused classes, fields, methods, and attributes from your app and its library dependencies. This process is known as tree shaking. Additionally, they can optimize the bytecode for better performance and obfuscate the code by renaming classes and members to shorter, non-human-readable names.

Enabling code shrinking directly contributes to reducing the total number of methods in your APK, creating more headroom for the Intune wrapper.

To enable R8/ProGuard, you typically modify your build.gradle file:

android {
    buildTypes {
        release {
            minifyEnabled true // Enables code shrinking, optimization, and obfuscation
            proguardFiles getDefaultProguardFile('proguard-android-optimize.txt'), 'proguard-rules.pro'
        }
    }
}

• minifyEnabled true: This flag enables code shrinking.
• proguardFiles: Specifies the ProGuard rule files. getDefaultProguardFile('proguard-android-optimize.txt') includes a standard set of rules recommended by Google. 'proguard-rules.pro' is where you add your custom rules for specific libraries or reflection usage.

Important Note on ProGuard Rules: When using third-party libraries, it’s crucial to understand that they might rely on reflection, JNI, or other mechanisms that ProGuard/R8 could mistakenly remove or obfuscate, leading to runtime crashes. Many libraries provide their own ProGuard rules that you should include in your proguard-rules.pro file. Always thoroughly test your application after enabling code shrinking to ensure all functionalities remain intact. You might need to add keep rules to prevent certain classes or methods from being removed or renamed.

By enabling code shrinking, you significantly reduce the method count, which can be the final piece of the puzzle to allow the Intune App Wrapping Tool to successfully integrate its security layer. This optimization is also a best practice for production apps, contributing to smaller APK sizes and potentially faster app performance.

Best Practices for Seamless Intune Integration¶

Beyond specific troubleshooting steps, adopting certain best practices in Android app development can proactively prevent Intune wrapping issues related to the 64K method limit.

• Mindful Library Inclusion: Be selective about the third-party libraries you include in your project. Each library adds to your app’s method count and overall size. Evaluate if every dependency is truly necessary or if a lighter alternative exists.
• Modularization: For very large applications, consider breaking them down into feature modules. This can help manage method counts per module and potentially allows for more controlled delivery via Android App Bundles, although the wrapping process typically works with a final APK.
• Regular Updates: Keep your Android Gradle Plugin (AGP), SDK tools, and dependencies updated. Newer versions often come with better optimizations and support for handling larger applications.
• Thorough Testing: Always test the wrapped application extensively before widespread deployment. Verify all core functionalities and ensure that Intune policies are correctly enforced without introducing unexpected behavior. This includes testing on various Android versions and device models relevant to your enterprise.

Following these practices can simplify the app wrapping process, ensuring smoother deployments and more reliable Mobile Application Management within your organization.

Conclusion¶

Encountering errors during the Microsoft Intune App Wrapping Tool for Android process can be frustrating, but understanding the underlying cause – primarily the 64K DEX method limit – is key to a successful resolution. By systematically applying the solutions outlined in this guide, from updating the wrapping tool and enabling multidex to optimizing your multidex configuration and leveraging code shrinking with ProGuard/R8, you can overcome these challenges. These steps not only facilitate the seamless deployment of your Line of Business (LOB) applications with Intune’s robust security policies but also contribute to healthier, more optimized Android applications overall.
