Troubleshooting Istio Service Mesh: A Practical Guide to MeshConfig on Azure

Table of Contents

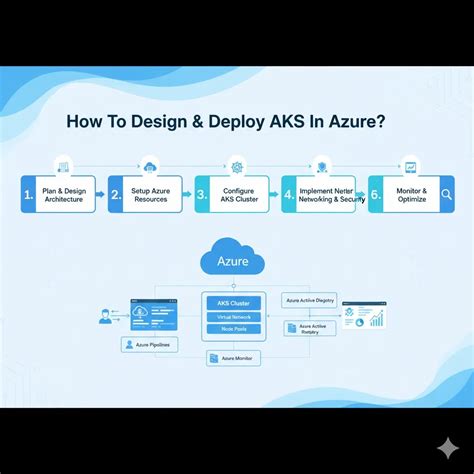

The Istio service mesh add-on for Microsoft Azure Kubernetes Service (AKS) empowers users to manage complex microservice architectures with ease. A core component for configuring mesh-wide settings within this add-on is MeshConfig. This guide provides a comprehensive overview of how MeshConfig operates and, more importantly, offers a practical troubleshooting checklist to address common issues encountered when configuring your Istio service mesh on AKS. Understanding these configurations is crucial for maintaining a healthy and performant service mesh environment.

Proper configuration of the Istio service mesh add-on is vital for leveraging its full capabilities, such as traffic management, security, and observability. When configuration issues arise, they can lead to unexpected behavior, performance degradation, or even service outages within your Kubernetes cluster. This article focuses specifically on the challenges and solutions related to MeshConfig, ensuring your Istio deployment on Azure AKS runs smoothly.

Shared ConfigMap Configuration¶

The Istio add-on utilizes a MeshConfig to enable granular, mesh-wide settings. This configuration is achieved by creating a local Kubernetes ConfigMap within the aks-istio-system namespace. This local ConfigMap is then strategically merged with the default Istio ConfigMap by the Istio control plane, forming the effective mesh configuration. It is important to note that in cases of conflicting settings, the default configurations provided by the add-on typically take precedence. This mechanism is known as a shared ConfigMap configuration, offering a flexible yet controlled way to customize your service mesh.

To implement your custom mesh configurations, you must create a ConfigMap with a specific naming convention: istio-shared-configmap-<asm-revision> in the aks-istio-system namespace. For example, if your Istio add-on is running revision asm-1-18, the ConfigMap should be named istio-shared-configmap-asm-1-18. Within this ConfigMap, your desired mesh configuration settings are defined under the mesh field within the data section. This structured approach ensures that your configurations are properly applied and recognized by the Istio control plane.

The following YAML snippet illustrates the structure for defining your MeshConfig:

apiVersion: v1
kind: ConfigMap
metadata:
  name: istio-shared-configmap-asm-1-18
  namespace: aks-istio-system
data:
  mesh: |-
    accessLogFile: /dev/stdout
    defaultConfig:
      holdApplicationUntilProxyStarts: true

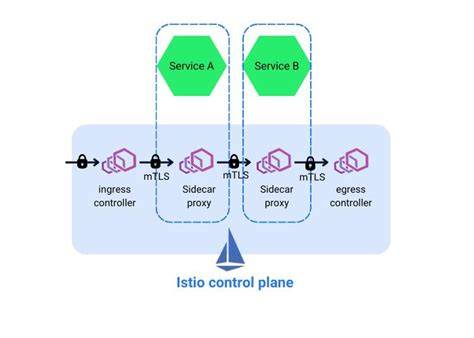

In this example, the defaultConfig field contains mesh-wide settings that are applied to all Envoy sidecars injected into your application pods. These settings can significantly influence the behavior and performance of your microservices, from logging destinations to sidecar startup synchronization. Understanding each field within defaultConfig is paramount for effective mesh management. The holdApplicationUntilProxyStarts: true setting, for instance, is a critical safeguard against race conditions, ensuring application pods do not start processing traffic before their Envoy sidecars are fully initialized.

ConfigMap Merging Process¶

To visualize how your shared ConfigMap interacts with the default Istio configuration, consider the following flow:

mermaid graph TD A[Default Istio MeshConfig] --> B{Shared ConfigMap `aks-istio-system`}; B -- Conflict Resolution (Default Precedence) --> C[Effective Istio MeshConfig]; C --> D[Istio Control Plane (Istiod)]; D --> E[Envoy Sidecars Configuration];

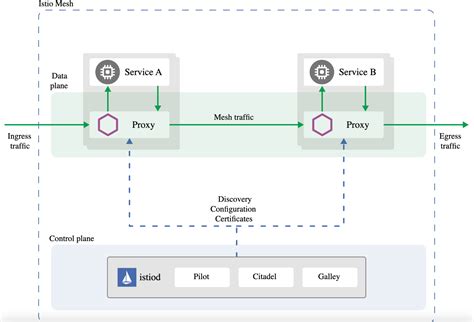

This diagram illustrates that the default Istio configuration acts as a baseline, and your specific overrides or additions in the shared ConfigMap are merged. When conflicts arise, the default values provided by the add-on typically take precedence, safeguarding the stability of the core service mesh functionalities. The resulting effective configuration is then propagated by Istiod to all relevant Envoy sidecars throughout your cluster, dictating their operational parameters.

Canary Upgrades¶

Canary upgrades are a common strategy for rolling out new versions of the Istio control plane with minimal risk. Before initiating a canary upgrade for your Istio add-on, it is imperative to prepare for the new control plane revision. This involves following the recommended mesh configuration and upgrade guidance provided by Azure AKS. A crucial step is creating a second shared ConfigMap specifically tailored for the new control plane revision in the aks-istio-system namespace.

Failure to create this new ConfigMap before commencing the upgrade can lead to significant issues. Any features or custom settings configured by your previous shared ConfigMap will not be accessible to the new control plane, rendering your customizations ineffective or causing unexpected behavior. To rectify this problem, you must manually create the missing ConfigMap for the corresponding new revision and meticulously copy over all relevant fields from your previous shared ConfigMap. This ensures a seamless transition of your custom mesh configurations during the upgrade process, preserving desired operational parameters.

Allowed, Supported, and Disallowed Values¶

The Istio add-on meticulously categorizes MeshConfig fields into three distinct support tiers: allowed and supported, allowed but unsupported, and disallowed. Understanding these classifications is critical when customizing your service mesh, as not all fields present in the upstream Istio documentation are permissible or fully supported by the AKS add-on. This tiered approach helps ensure the stability and security of the managed Istio environment on Azure.

For a comprehensive list of allowed and supported MeshConfig fields, along with an overview of these different support tiers, it is essential to consult the official Azure documentation for configuring the Istio-based service mesh add-on. Any MeshConfig fields mentioned in the broader upstream Istio documentation that do not appear in the specific allowlist for the AKS add-on are considered disallowed. Attempting to use disallowed fields will result in the rejection of your MeshConfig updates, preventing the application of your desired settings and potentially causing configuration failures. Adhering strictly to the allowlist prevents unexpected errors and maintains the integrity of your AKS-managed Istio instance.

| Field Name | Category | Support Tier | Description This article discusses how to troubleshoot issues that occur when you configure the Istio service mesh add-on for Microsoft Azure Kubernetes Service (AKS). The concepts explored here cover common pitfalls and best practices, aiming to empower administrators and developers in managing their Istio deployments effectively. By understanding the underlying mechanisms of MeshConfig and potential failure points, users can proactively prevent issues and quickly resolve existing ones. This proactive approach ensures better performance, enhanced security, and greater reliability across the entire service mesh.

Troubleshooting Checklist¶

Step 1: Make sure that you’re editing the correct ConfigMap¶

It is a common error to mistakenly modify the default Istio ConfigMap instead of your designated shared ConfigMap. Always verify that you are configuring the shared ConfigMap, which follows the naming convention istio-shared-configmap-<asm-revision> (e.g., istio-shared-configmap-asm-1-17). Never directly edit the default Istio ConfigMap, such as istio-asm-1-17, as these changes may be overwritten or cause instability in the managed add-on. Furthermore, ensure that your shared ConfigMap’s name correctly reflects the current Istio add-on revision installed in your AKS cluster. Misnaming can lead to your configurations not being applied.

Step 2: Remove tab indents from the MeshConfig definition within the shared ConfigMap¶

YAML files are highly sensitive to whitespace, and improper indentation can lead to parsing errors. Within the mesh field of your shared ConfigMap’s data section, it is crucial to use spaces for indentation instead of tab characters. YAML parsers often interpret tabs differently, which can cause fields to be unrecognized or misconfigured. Carefully review your MeshConfig definition and replace any tab characters with the appropriate number of spaces to ensure correct parsing and application of your settings. This seemingly minor detail is a frequent source of configuration failures that can be easily overlooked.

Step 3: Make sure that MeshConfig fields are valid¶

The Istio add-on on AKS enforces a strict allowlist for MeshConfig fields to maintain stability and compatibility. If you attempt to use fields that are not recognized by the add-on or are not included in the MeshConfig allowlist, your updates to the MeshConfig will be rejected. This rejection prevents potentially problematic configurations from being applied to your managed service mesh. Always cross-reference your desired MeshConfig fields with the official documentation’s allowlist to confirm their validity and ensure correct spelling. Typos or references to unsupported features are common culprits for configuration failures.

Step 4: Avoid CoreDNS overload¶

CoreDNS is a critical component for service discovery within Kubernetes, and its overload can significantly impact network communication within your mesh. Issues related to CoreDNS overload might necessitate adjustments to certain Istio DNS settings. One effective parameter is the dnsRefreshRate field within the Istio MeshConfig definition, which controls how frequently Envoy proxies refresh their DNS resolutions. Increasing this refresh rate can sometimes alleviate pressure on CoreDNS by reducing the frequency of queries, preventing service discovery bottlenecks. Careful tuning of this parameter can optimize DNS performance within your Istio-enabled cluster.

Step 5: Fix memory consumption issues¶

High memory consumption in Envoy sidecars can lead to performance bottlenecks and even pod restarts, impacting application stability. If you observe excessive memory usage, it is essential to re-evaluate your Envoy settings for statistics data collection. When customizing Istio metrics through the MeshConfig, be mindful that certain metrics can inherently have high cardinality, meaning they generate a vast number of unique data points. This high cardinality directly translates to a larger memory footprint for Envoy, as it needs to store and process more statistics.

To mitigate high memory consumption for both Istiod and Envoy, we strongly recommend leveraging the discoverySelectors field in your MeshConfig definition. This feature allows you to specify which namespaces or resources Istiod should monitor, effectively limiting the scope of service discovery. By narrowing the discovery scope, discoverySelectors reduces the amount of configuration data Istiod must process and propagate, thereby decreasing memory usage for both the control plane and the Envoy sidecars. Optimizing these settings is crucial for maintaining a healthy and resource-efficient Istio deployment.

Consider the implications of enabling verbose logging or extensive metric collection without considering their impact on resource usage. While detailed observability is valuable, it must be balanced with the operational overhead it introduces. Implementing discoverySelectors not only optimizes memory but also reduces CPU load on Istiod, leading to a more responsive control plane. This proactive approach to resource management is a cornerstone of effective service mesh operations, preventing common performance pitfalls.

Step 6: Free CPU cores¶

Misconfiguration of the concurrency field in the MeshConfig definition can lead to Envoy proxies consuming all available CPU cores, starving other processes. If this field is set to zero, Envoy defaults to using every CPU core it can access, which is rarely the desired behavior in a shared environment. In such scenarios, the most straightforward solution is to remove the concurrency field entirely from your MeshConfig definition.

When the concurrency field is not explicitly configured, the number of CPU cores used by Envoy is instead determined by the CPU requests and limits defined for the Envoy proxy container in your pod specifications. This allows for more granular and predictable resource allocation, aligning Envoy’s CPU usage with your cluster’s resource management policies. By relying on Kubernetes’ native resource management, you can prevent Envoy from monopolizing CPU resources, ensuring fair scheduling and overall cluster health. Proper CPU allocation is vital for preventing resource contention and maintaining optimal performance across your microservices.

Step 7: Fix pod and sidecar race conditions¶

A common issue in Istio deployments is a race condition where the application pod starts and attempts to establish network connections before the Envoy sidecar proxy is fully ready. This can cause the application to become unresponsive, experience network errors, or even restart repeatedly, leading to service disruption. The application expects the network to be proxied by Envoy, but if Envoy isn’t ready, direct connections might fail or bypass critical mesh policies.

To effectively prevent these race conditions, you can configure the holdApplicationUntilProxyStarts MeshConfig field under defaultConfig to true. When this setting is enabled, the Istio injector modifies your pod’s entrypoint to ensure that the application container will pause its startup sequence until the Envoy sidecar has fully initialized and is ready to proxy traffic. This synchronization guarantees that the application always interacts with a fully operational Envoy proxy from its inception, eliminating startup-related network issues and ensuring consistent policy enforcement. Implementing this setting is a fundamental best practice for reliable microservice deployment within an Istio mesh.

Visual Guide to MeshConfig (Conceptual Video)¶

Given the complex nature of Istio, a visual guide can be incredibly helpful for understanding the application and troubleshooting of MeshConfig. While there isn’t a specific video linked in the original article, imagine a scenario where a conceptual video would clearly illustrate these points.

Here’s a placeholder for what such a video might conceptually cover:

[Conceptual Video Placeholder]

A video titled “Mastering Istio MeshConfig on Azure AKS” could visually demonstrate:
* The step-by-step process of creating and deploying the istio-shared-configmap-<asm-revision>.
* A live demonstration of a MeshConfig update and its immediate effect on Envoy sidecars.
* Visual examples of incorrect YAML indentation (tabs vs. spaces) and the error messages they generate.
* Simulations of CoreDNS overload and how dnsRefreshRate impacts query patterns.
* Performance monitoring dashboards showing memory and CPU usage before and after applying discoverySelectors and concurrency adjustments.
* A side-by-side comparison of pod startup behavior with and without holdApplicationUntilProxyStarts: true, highlighting the prevention of race conditions.

(Note: This is a conceptual placeholder as no specific video was provided in the input.)

Conclusion¶

Effectively troubleshooting Istio Service Mesh issues related to MeshConfig on Azure AKS is paramount for maintaining a robust and efficient microservice environment. By understanding the shared ConfigMap configuration, adhering to supported field values, and diligently following the troubleshooting checklist provided, administrators can preemptively address common pitfalls. From correcting YAML indentation to optimizing resource consumption and preventing race conditions, each step contributes to a more stable and performant service mesh. A proactive approach to MeshConfig management ensures that your Istio deployment on AKS fully supports your application’s operational requirements, enabling seamless traffic management, enhanced security, and reliable observability across your services.

We hope this guide provides valuable insights into managing and troubleshooting your Istio MeshConfig on Azure. What challenges have you encountered with MeshConfig, and what solutions have you found most effective? Share your experiences and tips in the comments below to help foster a stronger community understanding of Istio on AKS!
