Troubleshooting Local Drive Redirection Issues on Windows Server

Table of Contents

Remote Desktop Protocol (RDP) is a cornerstone technology for remote administration and virtual desktop infrastructure, enabling users to access applications and data on a remote server as if they were physically present. One of its most vital features is local drive redirection, which allows users to seamlessly access files and folders from their local machine within the RDP session. This capability significantly enhances productivity by facilitating easy transfer of documents, scripts, and other data between client and server environments. However, when local drive redirection fails to operate as expected, it can severely impede workflow and present significant challenges for users and administrators alike.

This article aims to provide a comprehensive solution and detailed troubleshooting steps for an issue where local drive redirection is not functioning within an RDP session, specifically targeting Windows Server 2003 and Windows Server 2003 R2 environments. While Windows Server 2003 is an older operating system, understanding these core principles remains crucial for supporting legacy systems or for diagnosing similar issues in more modern environments where fundamental RDP mechanisms still apply. This guide will walk through the typical symptoms, delve into the root causes, and provide a definitive resolution, ensuring your remote sessions are as functional as they need to be.

Understanding Local Drive Redirection¶

Local drive redirection is a powerful feature that allows resources, particularly disk drives, from the client computer to be accessible within the remote desktop session on the server. When correctly configured, a user connecting via RDP will see their local drives (e.g., C:, D:) appearing as mapped network drives or redirected drives within ‘My Computer’ or ‘This PC’ on the remote server. This functionality is essential for tasks such as saving files directly from a server application to a local machine, transferring data for development or testing, or simply accessing client-side documents without needing to upload them first.

The RDP client and server communicate to negotiate which local resources should be redirected. This process involves several components working in harmony, including client-side settings, server-side configurations, and underlying network provider architecture. A misconfiguration or an absent component in this chain can disrupt the redirection process, leading to the frustrating scenario where local drives simply do not appear, despite other RDP functionalities working correctly.

Common Symptoms of Drive Redirection Failure¶

When local drive redirection is not working in an RDP session to a Windows Server 2003 or Windows Server 2003 R2 Terminal Server, users and administrators typically observe a specific set of symptoms. Recognizing these signs early can help in quickly narrowing down the potential causes and initiating effective troubleshooting.

Firstly, the most direct and noticeable symptom is the absence of local drives within the RDP Session’s ‘My Computer’ or ‘Windows Explorer’ view. Users will not see their familiar local C: or D: drives listed among the server’s local storage or network drives. This immediately signals that the redirection mechanism is not fully operational for disk resources. This can be particularly frustrating when users expect to save or retrieve files directly from their local machine.

Secondly, and quite curiously, other devices and resources may be properly redirected. This means that printers, smart card readers, or even COM ports from the client machine might appear and function correctly within the remote session. This distinction is vital because it indicates that the fundamental RDP connection is established and many redirection capabilities are working, implying a more specific issue related to drive redirection rather than a general RDP connectivity problem. If no resources were redirecting, the troubleshooting approach would be broader.

Finally, a particularly challenging aspect of this specific issue is that there are often no explicit events in the Event Viewer pertaining to the failure to redirect drives. Unlike many system failures that log specific error codes or warnings, this particular problem might leave administrators without a clear diagnostic trail in the server’s system, application, or security logs. This absence of error messages necessitates a more methodical approach to checking configurations, as the system isn’t explicitly reporting a fault. This lack of logging forces administrators to proactively inspect settings rather than reactively responding to error messages.

Initial Troubleshooting Steps: A Comprehensive Checklist¶

Before diving into advanced registry edits, it’s crucial to systematically verify all relevant settings on both the server and client machines. Many redirection issues stem from simple misconfigurations that can be resolved by reviewing these basic settings. These checks ensure that no obvious obstacles are preventing drive redirection from functioning correctly.

Server-Side Configuration via Terminal Services Configuration¶

The Terminal Services Configuration tool on the server is where global RDP settings are managed. Incorrect settings here can override client-side requests for drive redirection.

1. Access Terminal Services Configuration:

   • On the Windows Server 2003 machine, go to Start > Administrative Tools > Terminal Services Configuration.
   • Expand Connections and right-click on RDP-Tcp, then select Properties. This opens the RDP-Tcp Properties dialog box, which contains multiple tabs for various RDP settings.

2. Verify Client Settings Tab - Drive Mapping:

   • Navigate to the Client Settings tab.
   • Under the “Disable the Following” section, ensure that the Drive Mapping option is unchecked. If this option is checked, it explicitly prevents drive redirection from occurring, regardless of client-side requests. This is a common pitfall and should be the first server-side setting to verify. An enabled “Drive Mapping” option here acts as a global disable for all RDP sessions connecting to this specific listener.

3. Verify Client Settings Tab - Connect Client Drives at Logon:

   • Still on the Client Settings tab, locate the “Connections” section.
   • Ensure that the option “Connect Client Drives at logon” is selected. This setting explicitly instructs the Terminal Services server to attempt connecting client drives when a user logs in. If this option is not enabled, the server will simply ignore client requests for drive redirection. This checkbox is critical for initiating the redirection process from the server’s perspective.

Client-Side Configuration via Remote Desktop Connection¶

The client machine’s Remote Desktop Connection (MSTSC) settings also play a crucial role. Users must explicitly enable drive redirection from their end.

1. Open Remote Desktop Connection:

   • On the client machine (the machine from which you are initiating the RDP session), go to Start > Run, type mstsc, and press Enter. Alternatively, search for “Remote Desktop Connection” in the Start Menu.
   • Click on Options to expand the connection settings.

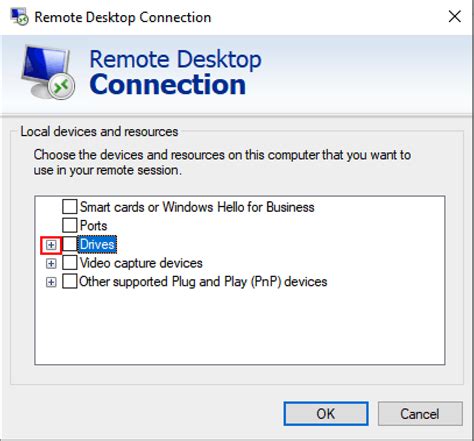

2. Configure Local Resources:

   • Navigate to the Local Resources tab.
   • Under the “Local devices and resources” section, ensure that the “Disk Drives” checkbox is selected. This setting explicitly tells the RDP client to attempt redirecting local disk drives to the remote session. If this is unchecked, the client will not send the necessary signals to the server to initiate drive redirection. Without this selection, even a perfectly configured server will not receive the request to redirect drives.

Group Policy Verification¶

Group Policy can enforce settings that override local configurations, making it a critical area to investigate. Policies can be applied at the domain, OU, or local machine level, and an enforced policy preventing drive redirection will take precedence over any server or client settings.

1. Access Group Policy Management (Server or Domain Controller):

   • On the server, or preferably a Domain Controller if the server is part of a domain, open the Group Policy Management Console (GPMC).
   • Navigate to the specific Group Policy Object (GPO) linked to the Terminal Server or an organizational unit (OU) containing the Terminal Server. If you’re checking local Group Policy, use gpedit.msc.

2. Locate Relevant Policy:

   • Within the GPO editor, navigate to:
     Computer Configuration\Administrative Templates\Windows Components\Terminal Services\Client/Server data redirection
   • Find the policy setting: “Don’t allow drive redirection”.

3. Verify Policy State:

   • This policy should NOT be enabled. If “Don’t allow drive redirection” is set to “Enabled,” it will globally prevent drive redirection for all users connecting to machines where this policy applies. It effectively overrides all other settings that attempt to enable drive redirection. Ensure it is either “Not Configured” or “Disabled” to allow drive redirection. If it’s “Enabled” but grayed out, it means it’s being enforced by a higher-level GPO, which will require further investigation into your domain’s policy structure.

To confirm the effective policies applied to your server, you can run gpresult /h c:\temp\gpresult.html from an elevated command prompt on the server and review the generated HTML report. This report will clearly show all applied policies and their resultant settings, which is invaluable for troubleshooting GPO-related issues.

Deep Dive into the Cause: Missing Network Providers Value¶

After meticulously checking all standard configuration settings on both the server and client, if local drive redirection still fails, the problem often lies deeper within the Windows operating system’s architecture. A common and often overlooked cause on Windows Server 2003 for this specific issue is a missing or incorrect entry in the Network Providers registry key.

What are Network Providers?¶

Network Providers are fundamental components in Windows that allow the operating system to interact with various network services and resources. They are essentially drivers or modules that extend the network capabilities of the system, enabling it to communicate with different types of network protocols, file shares, and remote resources. When you access a network share, map a drive, or connect to a remote resource like an RDP redirected drive, the system relies on these registered network providers to handle the underlying communication and resource management.

The ProviderOrder registry key, located under HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\NetworkProvider\Order, dictates the order in which these network providers are invoked when the system attempts to access a network resource. This order is crucial because different providers might offer similar functionalities, and the system needs to know which one to prioritize.

How it Affects RDP Drive Redirection¶

For RDP drive redirection to function correctly, the Terminal Services client (RDPNP) needs to be registered and listed among the active network providers. RDPNP (Remote Desktop Protocol Network Provider) is the specific component responsible for handling the communication required to redirect local client resources, including disk drives, into the remote session. If the ProviderOrder key is missing the RDPNP entry, or if it’s corrupted, the operating system will not be able to correctly initialize the RDP network provider when an RDP session attempts to redirect drives.

This oversight can prevent the RDP server from effectively communicating with the client’s drive redirection service, leading to the symptom of local drives not appearing in the remote session, even when all other RDP settings appear correct. This registry key essentially tells the server that RDP drive redirection is a valid network resource to be handled, and without it, the server simply won’t know how to process the request. Common causes for such an entry to be missing or corrupted include:

• Third-party software installations: Some security software, network monitoring tools, or system optimization utilities might inadvertently alter the ProviderOrder key during installation or uninstallation.
• Manual registry edits: Incorrect manual modifications to the registry can inadvertently delete or corrupt essential entries.
• System corruption: Rare instances of operating system file corruption or registry database issues can lead to such discrepancies.

Understanding this underlying mechanism is key to resolving persistent drive redirection problems that aren’t resolved by standard configuration checks.

Resolution: Correcting the Network Providers Registry Entry¶

The resolution for this specific issue involves ensuring that the Network Providers entry in the Windows Registry contains the necessary default values, particularly the RDPNP provider. Before making any changes to the registry, it is imperative to back up your system’s registry or at least the specific key you intend to modify. Incorrect registry edits can lead to system instability or render the operating system unbootable.

Step-by-Step Registry Modification¶

1. Open Registry Editor:

   • On the Windows Server 2003 machine, go to Start > Run, type regedit, and press Enter. This will open the Registry Editor.

2. Navigate to the NetworkProvider\Order Key:

   • In the Registry Editor, navigate through the following path:
     HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\NetworkProvider\Order

3. Locate the ProviderOrder Value:

   • In the right-hand pane, locate the ProviderOrder string value. This value lists the registered network providers in the order they are used.

4. Modify the ProviderOrder Value:

   • Double-click on the ProviderOrder value to open the “Edit String” dialog box.

   • Ensure that the “Value data” field contains at least the following default entries, separated by commas, exactly as shown:
     RDPNP,LanmanWorkstation,web client

   • Explanation of Default Entries:

     • RDPNP: This stands for Remote Desktop Protocol Network Provider. It is absolutely essential for RDP drive redirection. Its presence ensures that the Terminal Services client can correctly handle and redirect client-side drives.
     • LanmanWorkstation: This is the Network Provider for Microsoft Windows Network (SMB/CIFS). It is responsible for handling connections to standard Windows file shares and network resources.
     • web client: This provider enables access to WebDAV (Web Distributed Authoring and Versioning) resources, allowing the system to interact with web-based folders.

   • If any of these entries are missing, particularly RDPNP, add them to the “Value data” field. If other legitimate network providers (e.g., from third-party software) are also present, you may include them, but ensure the default ones are there and RDPNP is ideally listed early in the order. A typical complete string might look like RDPNP,LanmanWorkstation,web client,Vmware Shared Folders if VMware tools are installed, but the critical point is the inclusion of RDPNP,LanmanWorkstation,web client.

5. Confirm and Close:

   • Click OK to save the changes to the ProviderOrder value.
   • Close the Registry Editor.

No Reboot Required¶

One of the significant advantages of this particular resolution is that no system reboot is required after making these registry changes. The operating system typically re-reads this provider order information dynamically. After applying the change, simply disconnect any active RDP sessions and then reconnect. Upon re-establishing the RDP connection, the local drives from the client machine should now appear correctly within the remote session. This saves valuable administrative time and avoids service interruptions.

By systematically applying these checks and understanding the underlying cause, administrators can effectively diagnose and resolve local drive redirection issues on Windows Server 2003, restoring full functionality to their remote desktop environments.

Best Practices and Further Considerations¶

While the primary focus of this article is on resolving the specific issue of local drive redirection failure on Windows Server 2003, it’s beneficial to adopt certain best practices and understand additional considerations for maintaining a robust and reliable remote desktop environment. These measures can help prevent future issues and improve overall system performance and security.

Regular System Maintenance and Updates¶

Although Windows Server 2003 is a legacy operating system no longer supported by Microsoft with security updates, for environments where it must still be used, regular internal maintenance is critical. This includes:

• Registry Hygiene: While direct manipulation should be done cautiously, regularly backing up the registry and using reliable system utilities (if available for legacy systems) to scan for inconsistencies can be beneficial.
• Disk Cleanup and Defragmentation: Ensuring the server’s disks are healthy and optimized can prevent unforeseen performance bottlenecks that might indirectly affect services.
• Reviewing Event Logs: Despite this specific issue not logging errors, routinely checking system, application, and security event logs can provide early warnings of other underlying problems that might impact RDP functionality.

Security Implications of Drive Redirection¶

While incredibly useful, drive redirection can also pose security risks if not managed properly.

• Data Leakage: Users could inadvertently or maliciously copy sensitive server data to an insecure local client machine.
• Malware Transfer: If a client machine is infected, malware could potentially use drive redirection to spread to the server.
• Access Control: Ensure that redirected drives respect the user’s permissions on the server. Implement strong NTFS permissions on server resources.

For highly secure environments, administrators might choose to disable drive redirection entirely via Group Policy and rely on alternative, more controlled methods for file transfer, such as secure file transfer protocols (SFTP) or dedicated secure file sharing applications.

Understanding RDP on Modern Windows Servers¶

While this article targets Windows Server 2003, the fundamental principles of RDP and resource redirection persist in newer versions like Windows Server 2012, 2016, 2019, and 2022. The user interfaces for configuration (e.g., Server Manager, Group Policy Management Console) have evolved, but the underlying mechanisms often share common roots. If you encounter similar issues on newer servers, the troubleshooting methodology—checking client settings, server session host settings, and Group Policies—remains largely the same, though the specific paths and naming conventions might differ. The ProviderOrder registry key, for instance, is still relevant, though less prone to corruption in modern systems due to improved installation routines.

Monitoring and Alerting¶

Implementing monitoring solutions that track RDP session health and resource availability can help proactively identify issues before they impact a large number of users. While Windows Server 2003’s native monitoring capabilities are limited, third-party tools or custom scripts could be deployed to check key registry values or service statuses.

Utilizing Alternative File Transfer Methods¶

In scenarios where drive redirection remains problematic or is intentionally disabled for security reasons, consider alternative methods for file transfer:

• Shared Network Drives: Configure dedicated network shares that users can access from both their local machines and within their RDP sessions.
• Cloud Storage: Utilize cloud storage services (e.g., OneDrive, SharePoint, Google Drive) which can be accessed from both the client and server.
• PowerShell or Command Line Tools: For advanced users, scripting file transfers using robocopy or xcopy over network paths can be an efficient method.

By combining the specific resolution steps with these broader best practices, administrators can ensure a resilient and efficient remote access environment, even when dealing with legacy systems like Windows Server 2003.

Conclusion¶

Local drive redirection is an indispensable feature for anyone leveraging Remote Desktop Protocol, offering convenience and efficiency that significantly enhance the remote user experience. When this functionality falters, it can lead to considerable frustration and productivity losses. This guide has systematically walked through the common symptoms, detailed the critical configuration checks on both server and client sides, and pinpointed a crucial registry setting that often lies at the heart of persistent drive redirection issues on Windows Server 2003.

By meticulously verifying server-side Terminal Services configurations, confirming client-side RDP settings, and thoroughly reviewing Group Policies, you can eliminate many common causes. Furthermore, understanding the role of Network Providers and ensuring the RDPNP entry is correctly present in the registry’s ProviderOrder key offers a powerful solution for problems that elude standard troubleshooting. Remember, a careful approach to registry modifications, including backups, is always advised. The good news is that for this particular fix, a system reboot is often unnecessary, allowing for a swift return to full functionality.

We encourage you to share your experiences, insights, or any additional troubleshooting tips you might have encountered while resolving similar issues. Your contributions can help foster a richer knowledge base for the entire community. What other RDP challenges have you faced, and how did you overcome them? Feel free to leave your comments and questions below.
