Troubleshooting RDP Issues with Classic Cloud Services: A Practical Guide

Table of Contents

Remote Desktop Protocol (RDP) is an indispensable tool for managing Azure Classic Cloud Services, providing a graphical interface for remote administration. However, encountering issues with RDP connectivity can significantly disrupt operations and troubleshooting efforts. This guide aims to provide a thorough understanding of common RDP problems within the Azure Classic environment and offers practical, step-by-step solutions to restore connectivity. By following these instructions, Azure users can effectively diagnose and resolve persistent RDP challenges.

Understanding RDP Connectivity Challenges¶

Azure Classic Cloud Services rely on RDP for direct interaction with virtual machines (VMs) hosted within roles. When RDP functionality falters, it can be a symptom of various underlying configuration or network-related problems. Addressing these issues promptly is crucial for maintaining the health and accessibility of your cloud infrastructure. This section delves into the typical manifestations of RDP failures and their root causes.

Common Symptoms of RDP Failure¶

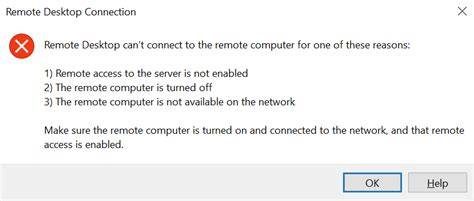

Users often encounter distinct symptoms when RDP access to their classic cloud services is compromised. Recognizing these indicators is the first step toward effective troubleshooting. One of the most direct signs is the inability to establish an RDP session, often met with a generic connection error message.

Another frequent symptom involves issues with the RDP file itself. Users might find themselves unable to download the necessary RDP configuration file from the Azure portal. This often manifests as an error message such as: “Failed to download the file. Error details: error 400 Bad Request.” This specific error points to a problem occurring even before the connection attempt, indicating a potential issue with the service’s configuration rather than the network path.

Identifying the Root Causes¶

Several factors can contribute to RDP connectivity failures within Azure Classic Cloud Services. These causes typically fall into two main categories: configuration-related issues within Azure or network-related impediments that block the RDP traffic. Understanding these distinctions is vital for targeting the correct resolution strategy.

1. Configuration-Related Issues:
* Expired RDP User Account or Encryption Certificate: RDP connections are secured using user credentials and encryption certificates. If either the configured RDP user account has expired or the certificate used for encrypting the RDP session data is no longer valid, the connection will fail. Azure automatically manages these aspects, but manual intervention might be required if they become desynchronized or corrupted.
* Disabled RDP Extension: The Remote Desktop extension is a crucial component installed on your cloud service roles that enables RDP connectivity. If this extension becomes disabled, corrupted, or incorrectly configured, RDP access will be blocked. This can happen due to various reasons, including deployment issues or accidental modifications.

2. Network-Related Issues:
* TCP Port 3389 Blocked: RDP primarily uses TCP port 3389 for communication. If this port is blocked anywhere along the network path—be it on the client’s local network, an intermediate firewall, or within Azure’s network security configurations—RDP connections cannot be established. This is a very common cause of connectivity problems.
* Internal Firewall Rules: Cloud service roles can have internal firewall rules configured via startup tasks or direct configurations. These rules might inadvertently block RDP traffic, even if external Azure network settings permit it.
* Network Access Control Lists (ACLs): Azure Classic Cloud Services utilize ACLs to control inbound and outbound traffic. Incorrectly configured ACLs can restrict access to RDP ports, preventing successful connections.
* Network Security Groups (NSGs): If your classic cloud service is integrated with an NSG (a more advanced networking feature that can be applied to classic resources in some scenarios), it might have rules that explicitly deny traffic on required RDP ports. Importantly, the RemoteForwarder and RemoteAccess agents, which facilitate RDP, require port 20000 to be open in addition to 3389.

Step-by-Step Resolution Guide¶

When faced with RDP issues, a systematic approach is essential. While basic troubleshooting steps like resetting an RDP user account or renewing an encryption certificate might be attempted, they often prove insufficient. The following steps outline a more robust resolution process, focusing on re-establishing a secure RDP configuration using a fresh certificate.

Manual Resolution Steps¶

If simple resets do not resolve your RDP problems, consider the following sequence of actions to reconfigure your RDP settings. These steps are designed to establish a new, valid security context for your RDP connections.

1. Create a Self-Signed Certificate: The first crucial step is to generate a new self-signed certificate in .pfx format. A self-signed certificate is an identity certificate that is signed by the same entity whose identity it certifies. While not issued by a trusted Certificate Authority (CA), it’s suitable for establishing a secure RDP session within a controlled environment like Azure, providing the necessary encryption. This certificate will be used to encrypt the RDP traffic, ensuring the confidentiality of your session.
2. Upload the Self-Signed Certificate to the Cloud Service: Once created, this .pfx certificate must be uploaded to the certificate store of your classic cloud service via the Azure portal. This action makes the certificate available to your cloud service roles, allowing them to use it for RDP encryption. The portal provides an interface to manage certificates associated with your service deployments.
3. Delete Existing RDP Extensions: To ensure a clean slate and remove any potentially corrupted or expired RDP configurations, it is highly recommended to delete all existing RDP extensions associated with your cloud service roles. This action removes the previous RDP setup, paving the way for a fresh installation. This step is critical because simply overwriting an existing, problematic configuration might not resolve underlying issues.
4. Re-enable Remote Desktop Using the New Certificate: Finally, re-enable Remote Desktop for your roles, explicitly configuring it to use the self-signed certificate you created and uploaded in the previous steps. This process involves specifying the certificate’s thumbprint and setting up a new RDP user account with a defined expiration date. This ensures that RDP is re-provisioned with valid credentials and a secure encryption method.

Automated Resolution with PowerShell¶

For efficiency and consistency, especially when managing multiple cloud services or troubleshooting repeatedly, the manual steps described above can be automated using a PowerShell script. This script streamlines the entire process, from certificate generation to RDP extension deployment.

Prerequisite: Before running the script, ensure you have the Azure PowerShell Service Management module installed on your system. This module provides the necessary cmdlets to interact with Azure Classic resources.

Understanding the PowerShell Script¶

The provided PowerShell script automates the creation, upload, and configuration of the RDP extension. Let’s break down its key components and their functions.

$SubscriptionId = "your-subscription-id" # Subscription Id
$CloudServiceName = "mycloudservice" # Cloud Service name
$CertPassword = "CertPassword" # Password for the self-signed certificate
$CertExportFilePath = "C:\my-cert-file.pfx" # Local file path where self-signed certificate will be exported
$RdpUserName = "RemoteUserName" # RDP user name
$RdpUserPassw0rd = "RdpPassword" # RDP user password
$Slot = "Production" # Cloud Service slot
$RdpAccountExpiry = $(Get-Date).AddDays(365) # RDP user account expiration DateTime

# Creating self-signed certificate

Write-Host (Get-Date).ToString()" : Creating self-signed certificate." -ForegroundColor Magenta
$cert = New-SelfSignedCertificate -DnsName ($CloudServiceName + ".cloudapp.net") -CertStoreLocation "cert:\LocalMachine\My" -KeyLength 2048 -KeySpec "KeyExchange"
$SecureCertPassword = ConvertTo-SecureString -String $CertPassword -Force -AsPlainText
Export-PfxCertificate -Cert $cert -FilePath $CertExportFilePath -Password $SecureCertPassword
Write-Host (Get-Date).ToString()" : Self-signed certificate created successfully at" $CertExportFilePath -ForegroundColor Magenta

# Login to your Azure account

Write-Host (Get-Date).ToString()" : Logging into your Azure account." -ForegroundColor Magenta
Add-AzureAccount
Select-AzureSubscription -SubscriptionId $SubscriptionId
Write-Host (Get-Date).ToString()" : Logged in successfully." -ForegroundColor Magenta

# Uploading self-signed certificate to the cloud service certificate store

Write-Host (Get-Date).ToString()" : Uploading self-signed certificate to the cloud service certificate store." -ForegroundColor Magenta
Add-AzureCertificate -serviceName $CloudServiceName -certToDeploy $CertExportFilePath -password $CertPassword
Write-Host (Get-Date).ToString()" : Self-signed certificate uploaded successfully." -ForegroundColor Magenta

# Delete all the existing RDP extensions for a given cloud service slot

Write-Host (Get-Date).ToString()" : Deleting all the existing RDP extensions for" $Slot "slot." -ForegroundColor Magenta
Remove-AzureServiceRemoteDesktopExtension -ServiceName $CloudServiceName -UninstallConfiguration -Slot $Slot
Write-Host (Get-Date).ToString()" : Successfully deleted all the existing RDP extensions for" $Slot "slot." -ForegroundColor Magenta

# Enabling remote desktop extension on specified role(s) or all roles on a cloud service slot

Write-Host (Get-Date).ToString()" : Enabling remote desktop extension on all the roles." -ForegroundColor Magenta
$SecureRdpPassword = ConvertTo-SecureString -String $RdpUserPassw0rd -Force -AsPlainText
$Credential = New-Object System.Management.Automation.PSCredential $RdpUserName,$SecureRdpPassword
Set-AzureServiceRemoteDesktopExtension -ServiceName $CloudServiceName -Credential $Credential -CertificateThumbprint $cert.Thumbprint -Expiration $RdpAccountExpiry -Slot $Slot
Write-Host (Get-Date).ToString()" : Remote desktop extension applied successfully." -ForegroundColor Magenta

Explanation of Script Sections:

• Variable Declaration: The initial block defines all necessary parameters, including your Azure subscription ID, the cloud service name, certificate details (password, file path), RDP user credentials, and the deployment slot. Remember to replace placeholder values with your specific information. It’s crucial to handle CertPassword and RdpUserPassw0rd securely; for production environments, avoid hardcoding passwords directly in scripts.
• Creating Self-Signed Certificate:
  • New-SelfSignedCertificate: This cmdlet generates a new self-signed X.509 certificate. The -DnsName parameter is set to ($CloudServiceName + ".cloudapp.net") to align with the cloud service’s domain. -CertStoreLocation "cert:\LocalMachine\My" places it in the local machine’s personal certificate store, and KeyLength 2048 specifies the key size for strong encryption.
  • Export-PfxCertificate: This command exports the newly created certificate, along with its private key, into a .pfx file. This format is required for uploading to Azure and ensures the certificate’s portability and security.
• Azure Account Login:
  • Add-AzureAccount: Prompts you to log in to your Azure account.
  • Select-AzureSubscription: Selects the specific Azure subscription you wish to target, identified by $SubscriptionId. This ensures operations are performed on the correct subscription.
• Uploading Certificate to Cloud Service:
  • Add-AzureCertificate: This command uploads the .pfx certificate file to the specified Azure cloud service’s certificate store. The CertPassword is used to decrypt the .pfx file during upload.
• Deleting Existing RDP Extensions:
  • Remove-AzureServiceRemoteDesktopExtension: This critical step uninstalls any currently deployed RDP extensions for the specified cloud service and slot. The -UninstallConfiguration switch ensures a complete removal, preventing conflicts with the new configuration.
• Enabling Remote Desktop Extension:
  • ConvertTo-SecureString and New-Object System.Management.Automation.PSCredential: These lines securely create a PowerShell credential object using the RDP username and password. Using SecureString enhances security by preventing the password from being stored as plain text in memory.
  • Set-AzureServiceRemoteDesktopExtension: This is the final and most important command. It provisions the Remote Desktop extension on all roles within the specified cloud service slot. It takes the RDP user credentials, the thumbprint of the newly uploaded certificate (from $cert.Thumbprint), and an expiration date for the RDP user account.

Running this script in an elevated PowerShell session will automate the entire process, providing detailed output messages along the way. After successful execution, you should attempt to RDP to your cloud service again.

Advanced Network Troubleshooting¶

If you still cannot establish an RDP connection even after successfully running the PowerShell script and reconfiguring the RDP extension, the issue is almost certainly related to network connectivity. This means that while your cloud service roles are correctly configured to accept RDP, something in the network path is blocking the traffic. This section will guide you through diagnosing and resolving these network-centric problems.

Common Network Obstacles¶

Several network-related issues can impede RDP connections. It’s crucial to investigate each potential blockage point systematically.

• Corporate Network Restrictions: Many corporate networks implement strict firewall rules that block outbound RDP traffic (port 3389) for security reasons. Your local machine’s firewall or network perimeter appliances might be the culprit.
• Azure Access Control Lists (ACLs): For classic cloud services, ACLs are the primary mechanism for controlling inbound traffic to specific endpoints. If an ACL rule is incorrectly configured or missing, it could prevent RDP traffic from reaching your VM.
• Firewall Rules Configured by Startup Tasks: Within your cloud service definition, you can specify startup tasks that run when a role instance starts. These tasks can include scripts that configure the Windows Firewall on the VM, potentially blocking RDP ports.
• Network Security Groups (NSGs): If your classic cloud service is associated with an NSG, these groups provide a more granular level of network traffic control. NSGs operate at the subnet or VM level and have rules that explicitly allow or deny traffic based on source, destination, port, and protocol. Crucially, RDP functionality often relies on two specific ports:
  • Port 3389 (TCP): The standard RDP port for user sessions.
  • Port 20000 (TCP): This port is often required by the RemoteForwarder and RemoteAccess agents, which facilitate RDP connectivity within Azure cloud services. If an NSG blocks this port, RDP may fail even if port 3389 is open.

Diagnosing Network Connectivity¶

To pinpoint where the network blockage is occurring, you can use several network diagnostic tools. These tools help determine if traffic can reach the target RDP ports on your cloud service.

• PsPing: A versatile command-line tool from Sysinternals that can test network connectivity and latency, including TCP port availability. You can use it to check if your client machine can reach ports 3389 and 20000 on your cloud service’s public IP or hostname.
  • Example: psping yourcloudservicename.cloudapp.net:3389
• PortQry: A command-line utility from Microsoft that reports the status of TCP/IP ports. It can tell you if a port is listening, not listening, or filtered (blocked by a firewall).
  • Example: portqry -n yourcloudservicename.cloudapp.net -e 3389
• Telnet: A basic network utility that can establish a raw TCP connection to a specified host and port. If telnet successfully connects (the screen goes blank or shows a cursor), it indicates that the port is open and reachable.
  • Example: telnet yourcloudservicename.cloudapp.net 3389

If these tools indicate that traffic is not reaching the specified ports, it confirms a network blockage.

Visualizing Network Flow with a Diagram¶

Understanding the network path can be simplified with a visual representation. Consider a typical RDP connection flow with potential blocking points:

```mermaid
graph LR
A[Client Machine] – RDP Request (TCP:3389, 20000) → B(Client Network Firewall/Proxy)
B – Allowed → C(Internet)
C – Allowed → D(Azure Public IP/Load Balancer)
D – Azure ACLs/NSG Rules → E(Cloud Service Role Instance)
E – Internal VM Firewall → F(RDP Service)
F – Authentication/Encryption → G[Successful RDP Session]

subgraph Problematic Points
    B -. Blocked RDP .-> X[Connection Failure]
    D -. Blocked by ACL/NSG .-> X
    E -. Blocked by Internal Firewall .-> X
end

```

This diagram illustrates how a blockage at any point (Client Firewall, Azure ACLs/NSG, Internal VM Firewall) can lead to a connection failure.

Testing from Different Networks¶

A simple yet effective diagnostic step is to attempt RDP from an entirely different network. For example, try connecting from your home network, a mobile hotspot, or another corporate network if available. If RDP works from an alternative network, it strongly suggests that the issue lies within your original client network’s firewall or proxy settings. This helps isolate whether the problem is client-side or within Azure.

Checking Azure Network Configurations¶

For classic cloud services, you’ll need to verify the following in the Azure portal:

• Endpoints: Ensure that an RDP endpoint is configured for your cloud service roles, exposing port 3389 publicly and mapping it to the internal port 3389.
• Access Control Lists (ACLs): Review any ACLs associated with your cloud service endpoints to ensure they explicitly permit inbound traffic on port 3389 (and potentially 20000) from your source IP address range.
• Network Security Groups (NSGs): If an NSG is attached to the virtual network containing your cloud service (even classic cloud services can sometimes reside in a virtual network), check its inbound security rules. Ensure there are rules allowing TCP traffic on ports 3389 and 20000 from the necessary source IPs (e.g., your public IP or Any for broad testing).

Example NSG Rule for RDP¶

Priority	Name	Port	Protocol	Source	Destination	Action
100	Allow_RDP_3389	3389	TCP	Your_IP_Address	Any	Allow
110	Allow_RDP_20000	20000	TCP	Any	Any	Allow

Note: Replace Your_IP_Address with your specific public IP for enhanced security. Using Any as a source is less secure and should only be used for temporary troubleshooting or in controlled environments.

Conclusion and Next Steps¶

Troubleshooting RDP issues with Azure Classic Cloud Services requires a methodical approach, starting with configuration verification and moving to in-depth network diagnostics. By systematically addressing potential issues with expired certificates, disabled extensions, and various network blockages, you can effectively restore RDP access. The provided PowerShell script offers an efficient way to re-establish a healthy RDP configuration, while network tools like PsPing and Telnet are invaluable for identifying connectivity impediments. Remember to always prioritize security by restricting RDP access to only necessary IP addresses and using strong, unique passwords.

We hope this comprehensive guide has equipped you with the knowledge and tools to resolve your RDP challenges. Have you encountered similar RDP issues? Do you have any additional tips or preferred diagnostic methods that have proven effective? Share your experiences and insights in the comments below! Your contributions can help the community further enhance their troubleshooting capabilities.
