Troubleshooting SQL Server Connectivity: A Practical Guide Using PortQryUI

Table of Contents

Resolving connectivity issues to Microsoft SQL Server is a critical task for database administrators, developers, and IT professionals. Intermittent or persistent connection problems can severely impact application functionality, data access, and overall business operations. These challenges often arise from a multitude of factors, including network configurations, firewall restrictions, incorrect server settings, or client-side misconfigurations.

Efficiently diagnosing these issues requires robust tools that can pinpoint the exact cause. The PortQryUI tool emerges as an invaluable utility in this context, offering a user-friendly interface to an otherwise command-line driven diagnostic process. This guide provides a comprehensive overview of using PortQryUI to effectively troubleshoot common SQL Server connectivity hurdles, ensuring your applications maintain seamless access to their databases.

Understanding PortQry and PortQryUI¶

PortQry is a powerful command-line utility designed to diagnose TCP/IP connectivity issues by reporting the status of target TCP and User Datagram Protocol (UDP) ports. It functions by sending specifically crafted packets to the target port and analyzing the responses, indicating whether a port is LISTENING, NOT LISTENING, or FILTERED. While the command-line version offers flexibility, its graphical user interface counterpart, PortQryUI, simplifies the process significantly for those who prefer a visual approach.

PortQryUI streamlines the process of querying ports, making it accessible even for users less familiar with command-line syntax. It provides a visual representation of the query process and results, which can be particularly helpful during time-sensitive troubleshooting scenarios. Understanding the underlying TCP/IP protocols and how firewalls interact with them is crucial for interpreting PortQryUI’s output accurately and resolving complex network connectivity problems.

TCP/IP Connectivity Fundamentals¶

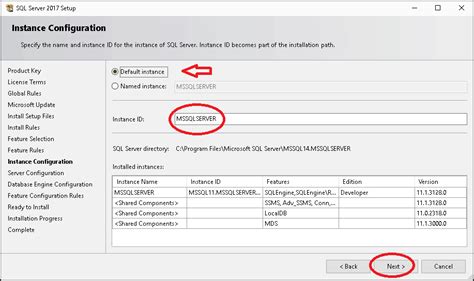

At its core, TCP/IP connectivity relies on ports to direct network traffic to specific services running on a server. TCP (Transmission Control Protocol) provides reliable, ordered, and error-checked delivery of a stream of bytes between applications. UDP (User Datagram Protocol), in contrast, offers a simpler, connectionless communication model without guaranteed delivery. SQL Server primarily uses TCP for client connections, typically on port 1433 for default instances. Named instances, however, often rely on the SQL Server Browser service (UDP port 1434) to dynamically resolve their assigned TCP port.

Firewalls, both at the network level and on the host machine (like Windows Firewall), play a significant role in governing port access. They act as a barrier, inspecting incoming and outgoing traffic and blocking anything that doesn’t meet predefined rules. When PortQryUI reports a port as “FILTERED,” it often indicates that a firewall is preventing communication, rather than the service itself being unavailable.

Key Benefits of the PortQryUI Tool¶

The PortQryUI tool is specifically designed to simplify the complex task of diagnosing network connectivity for services like SQL Server. It aggregates several crucial diagnostic capabilities into an intuitive graphical interface. This makes it an essential utility in any IT professional’s toolkit for network and database administration.

Key benefits include:
* Streamlined Troubleshooting: Simplifies the process of identifying whether a server port is open, closed, or blocked by a firewall. This quick check can save considerable time in isolating connectivity root causes.
* Visual Port Status: Presents the status of TCP and UDP ports on a local or remote computer in an easy-to-understand format. The visual feedback makes interpretation faster and less prone to errors compared to parsing raw command-line output.
* SQL Server Specific Diagnosis: Offers a predefined service query option specifically for SQL Server, allowing for quick checks on standard SQL Server ports (1433 TCP, 1434 UDP). This feature is tailored to address common SQL Server connectivity issues directly.
* Accessibility: Eliminates the need to memorize complex command-line parameters, making advanced network diagnostics accessible to a broader range of users. This democratizes troubleshooting, empowering more team members to perform initial diagnostics.

You can download the PortQryUI tool directly from the Microsoft Download Center to begin leveraging its capabilities in your environment. It’s a lightweight application that provides significant diagnostic power without requiring extensive installation or configuration.

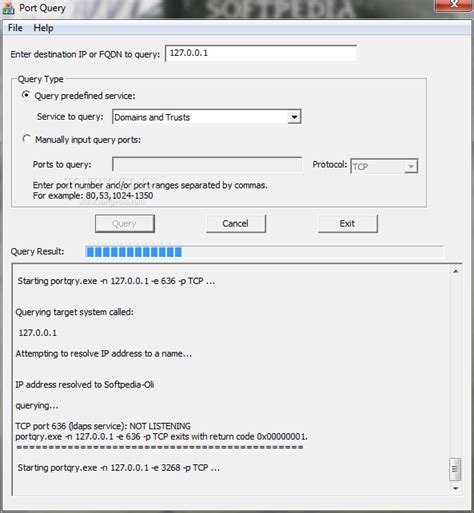

Step-by-Step Guide: Working with PortQryUI¶

Utilizing PortQryUI for troubleshooting SQL Server connectivity involves a straightforward process. By following these steps, you can quickly determine the status of essential SQL Server ports and gather critical information for further diagnosis. Running PortQryUI from the client machine experiencing connectivity issues provides the most accurate assessment of the network path.

1. Start PortQryUI on Your Client Computer: Launch the PortQryUI application from the computer that is experiencing problems connecting to your SQL Server instance. This ensures that the query originates from the same network path and context as your application. Ensure you have the necessary permissions to run the tool effectively.

2. Specify the Destination IP or FQDN: In the “Enter destination IP or FQDN to query” box, input either the IP address or the Fully Qualified Domain Name (FQDN) of the SQL Server machine. Using the FQDN is often recommended as it also tests DNS resolution, which can sometimes be a hidden cause of connectivity issues. Verify that the entered information accurately identifies your target server.

3. Select Query Predefined Service: Choose the “Query predefined service” option. From the dropdown list, select “SQL Service.” This selection automatically configures PortQryUI to query the standard TCP port 1433 for default instances and UDP port 1434 for the SQL Server Browser service, which is crucial for named instances. This simplifies the process by pre-selecting the most common ports associated with SQL Server. Other predefined services include Domains and Trusts, DNS Queries, NetBIOS communication, IPSEC, WEB Service, Exchange Server, and Netmeeting.

4. Execute the Query and Interpret the Output: After specifying the destination and selecting “SQL Service,” click the “Query” button. PortQryUI will then attempt to establish communication with the specified server and ports. The results will be displayed in the output window, indicating whether the ports are LISTENING, NOT LISTENING, or FILTERED. A clear understanding of these statuses is essential for effective troubleshooting, as each implies a different underlying cause.

Decoding PortQryUI Output: Troubleshooting SQL Server Connection Issues¶

The output from PortQryUI is pivotal in understanding the nature of your SQL Server connectivity problems. It provides direct clues regarding port accessibility and service status. The three primary output states—LISTENING, NOT LISTENING, and FILTERED—each point to distinct diagnostic paths.

Understanding these states in the context of SQL Server default and named instances is key to efficient problem resolution.

Scenario 1: Default Instance - TCP port 1433 (ms-sql-s service): NOT LISTENING¶

When PortQryUI reports that TCP port 1433 is NOT LISTENING, it means that no process on the target SQL Server machine is actively listening for connections on that port. This usually indicates a problem with the SQL Server service itself or its network configuration. This status directly suggests that the SQL Server instance is not ready to accept connections through its default port, preventing any client from establishing a link.

Possible Causes:

• SQL Server Hasn’t Started: The most common reason is that the SQL Server service itself is not running on the server. If the service isn’t active, it cannot bind to and listen on port 1433.
• TCP/IP Not Enabled: The TCP/IP protocol might be disabled for the SQL Server instance in the SQL Server Network Configuration. SQL Server needs TCP/IP enabled to communicate over the network.
• SQL Server Listening on Non-Default Port: The default instance might be configured to listen on a port other than 1433. This can happen due to custom configurations or instances configured to use dynamic ports (though less common for default instances).
• Firewall Blocking Port: A firewall, either on the SQL Server host machine or a network firewall between the client and server, could be blocking the port. While “NOT LISTENING” primarily points to the server, a very aggressive firewall could potentially mask the true state if PortQry’s initial probes are completely dropped.

Suggested Workarounds:

• Verify SQL Server Service Status: First, confirm that the SQL Server service (e.g., MSSQLSERVER) is running on the SQL Server host. You can check this via services.msc or SQL Server Configuration Manager. Restart the service if it’s stopped.
• Enable TCP/IP Protocol: Open SQL Server Configuration Manager, navigate to SQL Server Network Configuration -> Protocols for <Instance Name>, and ensure that TCP/IP is enabled. If it was disabled, enable it and restart the SQL Server service.
• Check SQL Server Error Log for Port Number: Examine the SQL Server error log (usually found in C:\Program Files\Microsoft SQL Server\MSSQLXX.MSSQLSERVER\MSSQL\Log) for messages indicating which port SQL Server is listening on. Look for lines containing “Server is listening on” or “TDSSNIClient initialization completed with status 1.” If a different port is specified, use that port in your connection strings (e.g., servername,portnumber).
• Configure Firewalls: Work with your network or Windows administrator to ensure TCP port 1433 (or the configured SQL Server port) is not blocked. For Windows Firewall, you’ll need to create an inbound rule allowing connections to this specific port. Consult official documentation for configuring Windows Firewall to allow SQL Server access. You can also use netstat -ano on the SQL Server to see if any process is listening on port 1433.

Scenario 2: Default Instance - TCP port 1433 (ms-sql-s service): LISTENING¶

If PortQryUI shows TCP port 1433 as LISTENING, it indicates that SQL Server is running and actively accepting connections on its default port. This is a positive sign, confirming that the server-side network configuration and service status are generally correct. The problem then likely resides closer to the client or within the application layer.

Possible Cause:

• This output suggests that the client library can establish a basic TCP connection to the SQL Server-based computer. However, other issues at the application level, client-side configuration, or authentication could be preventing a successful login or query execution. It means the network path to the SQL Server service is open and the service is responsive.

Suggested Workarounds:

• Verify Connection String Accuracy: Double-check the connection string used by your application. Ensure the server name (or IP address) is specified correctly. If you’re explicitly including a port number, verify that it’s set to the correct value (1433 for default instances, or the custom port if configured).
• Check for Client-Side Aliases: Old or incorrect aliases defined on client computers can redirect connection attempts to the wrong server or port. Check for the presence of an alias to your SQL Server instance in SQL Server Configuration Manager (under SQL Native Client <Version> Configuration -> Aliases) or using the SQL Server Client Network Utility (Cliconfg.exe) on your client system. Remove or correct any erroneous aliases.
• Review Authentication Method: Confirm that the authentication method specified in the connection string (Windows Authentication or SQL Server Authentication) is correct and matches the server’s configuration. Ensure the connecting user has appropriate permissions within SQL Server.
• Inspect Application Logs: Look at your application’s error logs for more specific messages regarding the connection failure. These logs might provide details about login failures, timeouts, or other protocol-level issues beyond simple port connectivity.

Scenario 3: Named Instance - UDP port 1434 (ms-sql-m service): FILTERED¶

For named instances of SQL Server, clients typically query the SQL Server Browser service on UDP port 1434 to discover the dynamic TCP port assigned to the instance. When PortQryUI reports UDP port 1434 as FILTERED, it almost always indicates that a firewall is preventing communication with the SQL Server Browser service. This blockage prevents clients from discovering the correct TCP port for the named instance.

Possible Causes:

• SQL Server Named Instance Hasn’t Started: While less direct, if the named instance itself is not running, the SQL Server Browser might not be able to fully register its details. However, FILTERED is more indicative of a firewall.
• SQL Server Browser Hasn’t Started: The SQL Server Browser service, which listens on UDP 1434 and provides instance resolution for named instances, might not be running on the host system. Without this service, clients cannot find the instance’s port.
• UDP Port 1434 Blocked by Firewall: This is the most common cause. A firewall (network or host-based) is actively blocking inbound UDP traffic on port 1434. This prevents the PortQryUI tool, and by extension, client applications, from reaching the SQL Server Browser.
• The Service is Started: This phrase from the original article is slightly confusing in this context. It’s usually implied that the service (SQL Browser) is started, but the port is blocked.

Suggested Workarounds:

• Start SQL Server Named Instance: Ensure the specific SQL Server named instance service (e.g., MSSQL$INSTANCENAME) is running in services.msc or SQL Server Configuration Manager.
• Start SQL Server Browser Service: Verify that the SQL Server Browser service is running. This service is crucial for named instance discovery. If it’s stopped, start it and set its startup type to Automatic.
• Configure Firewalls for UDP Port 1434: Collaborate with your network or Windows administrator to ensure UDP port 1434 is not blocked. For Windows Firewall, create an inbound rule to allow UDP traffic on port 1434. Be aware that opening UDP 1434 can have security implications, as it can be used for enumeration attacks; restrict access if possible. Consult documentation on configuring Windows Firewall for SQL Server.
• Configure Named Instance for Static Port: If opening UDP 1434 is not feasible or desirable due to security policies, configure your SQL Server named instance to listen on a static TCP port instead of a dynamic one. Then, clients must connect using the servername,portnumber format (e.g., MYSERVER,1435) in their connection strings, bypassing the need for the SQL Server Browser. This requires configuration within SQL Server Configuration Manager under SQL Server Network Configuration -> Protocols for <Instance Name> -> TCP/IP -> IP Addresses tab.

Scenario 4: Named Instance - UDP port 1434 is LISTENING¶

When PortQryUI reports that UDP port 1434 is LISTENING, it indicates that the SQL Server Browser service is running and accessible on the network. This means clients should theoretically be able to resolve the named instance’s TCP port. If connectivity issues persist, the problem is likely occurring after the instance discovery phase, similar to issues with a default instance reporting LISTENING.

Possible Causes:

• This output suggests that the client library can successfully communicate with the SQL Server Browser. However, the problem could lie in the instance name specified in the connection string, client-side configuration, or an application layer issue after the initial connection attempt. It means the instance name resolution mechanism is functional.

Suggested Workarounds:

• Verify Server Name and Instance Name in Connection String: Ensure that the connection string accurately specifies both the server name (or IP) and the exact instance name (e.g., MYSERVER\SQL2014). Even minor typos can lead to connection failures. If you configured a static port, use servername,portnumber.
• Check for Client-Side Aliases: Similar to the default instance scenario, incorrect client-side aliases can misdirect connection attempts. Check for and correct any aliases defined in SQL Server Configuration Manager (SQL Native Client <Version> Configuration -> Aliases) or the SQL Server Client Network Utility (Cliconfg.exe) on the client system. These aliases override standard instance resolution.
• Review Instance Name Resolution (Advanced): Although UDP 1434 is listening, ensure the client’s network environment can correctly resolve the SQL Server FQDN and the instance name. Sometimes, issues arise if the SQL Server Browser returns an IP address that the client cannot route to, or if there’s a problem with named pipes for older connections.
• Examine SQL Server Error Logs and Network Trace: Even if the browser is listening, the named instance might have internal issues. Check the named instance’s SQL Server error log for startup errors or listen failures. Consider using network tracing tools (like Wireshark or Network Monitor) to analyze the actual communication flow after UDP 1434 resolution.

Visual Interpretations of PortQryUI Output¶

PortQryUI provides clear visual cues to quickly understand the connection status. These screenshots illustrate the typical output for successful and unsuccessful connections to both default and named SQL Server instances.

Successful Default Instance Connection:
When a default SQL Server instance is running correctly and port 1433 is open and listening, PortQryUI will display “Listening” as part of its output. This indicates direct and unimpeded access to the SQL Server service on its standard TCP port.

Unsuccessful Default Instance Connection:
If a default instance is not running or port 1433 is blocked, the output will show “Not Listening” or “Filtered.” This typically points to a service status issue or a firewall obstruction, preventing the client from reaching the SQL Server process.

Successful Named Instance Connection:
For a named instance, a successful connection implies that the SQL Server Browser service on UDP port 1434 is reachable and listening. The output will confirm this “Listening” status, indicating that the client can request the dynamic port information.

Unsuccessful Named Instance Connection:
If the SQL Server Browser service is not running or UDP port 1434 is blocked by a firewall, PortQryUI will typically show “Filtered” for the named instance. This means the client cannot even initiate the instance discovery process.

Beyond PortQryUI: Additional Troubleshooting Steps¶

While PortQryUI is an excellent first line of defense, complex SQL Server connectivity issues may require further investigation using complementary tools and methodologies. Expanding your troubleshooting approach can help pinpoint elusive problems related to network configuration, service integrity, or client-side settings.

Here are some additional steps to consider:

Service Status Verification¶

Always perform a comprehensive check of all relevant SQL Server services on the host machine. This includes not only the main SQL Server service (MSSQLSERVER for default, MSSQL$<InstanceName> for named) and the SQL Server Browser, but also the SQL Server Agent service if scheduled jobs are involved. Ensuring all necessary services are running is a foundational step for stable database operations.

SQL Server Configuration Manager¶

This utility is your central hub for managing SQL Server services and network protocols. Beyond enabling TCP/IP, you can verify if a named instance is configured to use dynamic ports or a specific static port. If a static port is used, ensure it is correctly specified in the client connection string and that the SQL Server Browser is not interfering if it’s also running. Check the “IP Addresses” tab under TCP/IP properties for all configured IP addresses and their respective port settings.

Network Diagnostics¶

Standard network tools can complement PortQryUI’s findings.
* ping: Checks basic IP-level connectivity and latency to the SQL Server host.
* tracert: Maps the network path to the SQL Server, revealing any hops where packets might be dropped or delayed. This helps identify network firewalls or routing issues.
* telnet: While less informative than PortQry, telnet <IPAddress> <Port> can provide a quick check to see if a TCP port is open (it will show a blank screen if successful, an error if not). It’s a useful fallback for simple port checks.

SQL Server Error Log Analysis¶

The SQL Server error log provides a wealth of information about the database engine’s startup, operational issues, and network listener status. Look for messages related to:
* Port Listening: Confirmation that SQL Server is listening on expected ports.
* Authentication Errors: Failed login attempts and reasons.
* Network Protocol Initialization: Errors in starting TCP/IP or Named Pipes.

Client Network Configuration¶

On the client machine, beyond just aliases, ensure that the preferred network protocols are correctly ordered in SQL Server Configuration Manager (SQL Native Client <Version> Configuration -> Client Protocols). For instance, if Named Pipes is listed before TCP/IP and not available, it could cause delays or connection failures.

DNS Resolution¶

If connecting via FQDN, verify that the FQDN correctly resolves to the SQL Server’s IP address. Use nslookup or dig (on Linux/macOS) to confirm DNS resolution. Incorrect or stale DNS entries can lead to connection attempts being directed to the wrong server.

Authentication¶

Even if network connectivity is perfect, authentication failures will prevent a successful SQL Server connection. Ensure the SQL Server login mode (Windows Authentication, SQL Server Authentication, or mixed mode) is configured as expected and that the user attempting to connect has valid credentials and permissions within the database.

Troubleshooting Flowchart using PortQryUI¶

Here’s a simplified flowchart illustrating a typical troubleshooting process using PortQryUI:

mermaid graph TD A[Start Troubleshooting SQL Connectivity] --> B{Run PortQryUI on Client}; B --> C{Enter SQL Server FQDN/IP}; C --> D{Select 'SQL Service'}; D --> E{Query Results}; E -- Port LISTENING --> F{Default Instance: TCP 1433 LISTENING / Named Instance: UDP 1434 LISTENING}; F --> G[Focus on Client Config: Connection String, Aliases, Authentication]; E -- Port NOT LISTENING --> H{Default Instance: TCP 1433 NOT LISTENING}; H --> I[Verify SQL Server Service Status, TCP/IP Protocol, Custom Port in Error Log]; E -- Port FILTERED --> J{Any Port FILTERED / Named Instance: UDP 1434 FILTERED}; J --> K[Check Firewall Rules (Windows Firewall, Network Firewall), SQL Server Browser Service (for Named Instances)]; K --> L{Consider Static Port for Named Instances if UDP 1434 cannot be opened}; G & I & L --> M[Connection Successful / Further Application Layer Debugging];

Relevant YouTube Video¶

For a visual demonstration of how to troubleshoot connectivity to SQL Server, including the use of PortQry, you might find this video helpful:

Conclusion¶

The PortQryUI tool is an indispensable asset for diagnosing and resolving SQL Server connectivity issues. Its user-friendly interface and clear output states make it an efficient first step in any troubleshooting endeavor, quickly pointing to whether a problem lies with the SQL Server service, its network configuration, or an intervening firewall. By systematically interpreting its results and combining them with broader network and SQL Server configuration checks, professionals can significantly reduce the time spent resolving complex connection failures.

We hope this comprehensive guide empowers you to confidently tackle SQL Server connectivity challenges using PortQryUI and a holistic troubleshooting approach. Have you encountered particularly tricky SQL Server connectivity issues that PortQryUI helped you solve? Share your experiences and tips in the comments below!
