Unlocking Azure Cloud Service (Extended Support) Details: A PowerShell Deep Dive

Table of Contents

Azure Cloud Services (Extended Support) represents the next generation of Azure Cloud Services, offering enhanced capabilities and a more robust infrastructure compared to its classic predecessor. As organizations increasingly adopt this platform for hosting their scalable web applications and services, understanding how to programmatically retrieve its configuration becomes paramount. This comprehensive guide will walk you through leveraging PowerShell commands and REST API requests to extract critical configuration details, ensuring you have the insights needed for management, auditing, and troubleshooting.

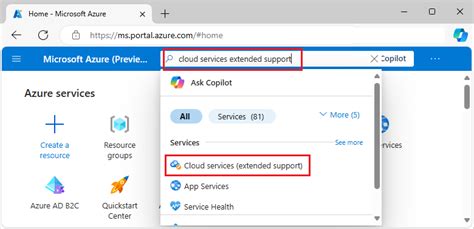

Understanding Azure Cloud Services (Extended Support)¶

Azure Cloud Services (Extended Support), often referred to as CSES, provides a managed platform-as-a-service (PaaS) for deploying highly available and scalable applications. It integrates with Azure Resource Manager, offering a modern deployment model that aligns with other Azure resources. This integration allows for consistent management, deployment, and monitoring experiences across your Azure ecosystem.

Retrieving the configuration of your CSES deployments is a fundamental aspect of operational excellence. It enables detailed auditing, helps in diagnosing deployment issues, facilitates migration planning, and supports automated compliance checks. Whether you’re a developer, an operations engineer, or a cloud architect, mastering these retrieval techniques is essential for effective cloud governance.

Prerequisites for Configuration Retrieval¶

Before diving into the specific commands and API requests, it’s crucial to ensure your environment is properly set up. Both PowerShell commands and REST API requests, when executed from a local machine or Azure Cloud Shell, rely on the Azure Az PowerShell module. This module provides a comprehensive set of cmdlets for interacting with Azure resources.

Installing the Azure Az PowerShell Module¶

The Azure Az PowerShell module is an aggregate module that includes all Az modules for Azure resource management. Its installation is straightforward and typically involves a single command. If you haven’t already installed it, follow these steps to prepare your environment.

1. Open PowerShell as Administrator: Launch PowerShell with administrative privileges to ensure proper installation permissions.

2. Install the Az Module: Execute the following command to install the module from the PowerShell Gallery. It’s recommended to install it for all users by adding the -Scope AllUsers parameter.

   Install-Module -Name Az -Scope AllUsers -Repository PSGallery -Force


   This command fetches the latest version of the Az module and all its dependencies, making it available for use. The -Force parameter ensures that existing modules are updated if necessary.
   3. Verify Installation: After installation, you can verify that the module is correctly installed by listing the installed Az modules.

   Get-Module -Name Az* -ListAvailable


   This command should display a list of all installed Az modules, confirming their presence on your system.
   4. Update the Az Module: To ensure you always have the latest features and bug fixes, regularly update the Az module.

   Update-Module -Name Az -Force


   Keeping your PowerShell modules up to date is a best practice for security and functionality.

Connecting to Your Azure Account¶

Once the Az PowerShell module is installed, the next step is to authenticate your PowerShell session with your Azure account. This process grants your session the necessary permissions to interact with your Azure subscriptions and resources.

Use the Connect-AzAccount cmdlet to initiate the login process.

Connect-AzAccount

Upon executing this command, a web browser window will typically open, prompting you to log in with your Azure credentials. After successful authentication, your PowerShell session will be connected to your default Azure subscription. If you manage multiple subscriptions, you might need to select a specific one using Set-AzContext -SubscriptionId "YourSubscriptionId".

Retrieving Cloud Service (Extended Support) Configuration with PowerShell¶

The most direct way to get the configuration of an Azure Cloud Service (Extended Support) using PowerShell is by utilizing the Get-AzCloudService cmdlet. This cmdlet retrieves comprehensive details about your CSES resource, including its configuration.

Step-by-Step Guide for Get-AzCloudService¶

Follow these detailed steps to retrieve and process your CSES configuration:

1. Log In to Azure: Ensure your PowerShell session is authenticated with your Azure account using Connect-AzAccount. This is a prerequisite for any Azure-related cmdlet execution.

2. Retrieve CSES Resource Data: Use Get-AzCloudService to fetch the entire CSES resource object. You’ll need to specify the ResourceGroupName and CloudServiceName to target the correct resource.

   $cses = Get-AzCloudService -ResourceGroupName "your-resource-group-name" -CloudServiceName "your-cloud-service-name"


   The $cses variable will now hold a PowerShell object containing all properties of your specified Cloud Service. This includes its status, network configuration, roles, and crucially, its configuration content.
   3. Extract and Convert Configuration to XML: The configuration itself is typically stored as a string within one of the CSES object’s properties. To make it easily parsable, convert this string into an XML object.

   [xml]$xmlConfig = $cses.Configuration


   By casting the .Configuration property to [xml], PowerShell treats the string as a true XML document, allowing for hierarchical navigation and data extraction using dot notation.

Example and Deeper Look at $cses Object¶

The $cses object returned by Get-AzCloudService contains a wealth of information. Before converting the configuration, you can inspect other properties for general resource information.

Connect-AzAccount

# Replace with your actual resource group and cloud service names
$resourceGroupName = "MyCloudServiceRG"
$cloudServiceName = "MyWebAppCloudService"

# Retrieve the Cloud Service object
$cses = Get-AzCloudService -ResourceGroupName $resourceGroupName -CloudServiceName $cloudServiceName

# Display some general properties of the CSES object
Write-Host "Cloud Service Name: $($cses.Name)"
Write-Host "Location: $($cses.Location)"
Write-Host "Provisioning State: $($cses.ProvisioningState)"
Write-Host "OS Profile: $($cses.OSProfile.Family) - $($cses.OSProfile.Version)"

# Extract and convert the configuration
[xml]$xmlConfig = $cses.Configuration

Write-Host "Configuration successfully retrieved and converted to XML."

This expanded example provides a clearer view of the data available and sets the stage for detailed configuration analysis.

Table: Key Parameters for Get-AzCloudService¶

Parameter	Description	Required
ResourceGroupName	The name of the resource group that contains the Cloud Service.	Yes
CloudServiceName	The name of the Cloud Service (extended support) resource.	Yes
SubscriptionId	The ID of the subscription where the Cloud Service resides. (Can be implied by context)	No

Retrieving Cloud Service (Extended Support) Configuration with REST API via PowerShell¶

While Get-AzCloudService is convenient, there are scenarios where interacting directly with the Azure REST API might be preferred. This could be for accessing the absolute latest features not yet in cmdlets, integrating with non-PowerShell tools, or simply having finer-grained control over the HTTP request. PowerShell’s Invoke-AzRestMethod cmdlet provides an excellent bridge to make these REST API calls.

Understanding the Azure REST API for CSES¶

The Azure REST API for Compute provides endpoints to manage Cloud Services. Specifically, the Cloud Services - Get operation allows you to retrieve the properties of a Cloud Service. This operation returns a JSON payload containing all the resource’s details.

The API path follows a standard Azure Resource Manager (ARM) pattern:
/subscriptions/{subscription-id}/resourceGroups/{resource-group-name}/providers/Microsoft.Compute/cloudServices/{CSES-resource-name}?api-version={api-version}

The api-version parameter is crucial as it dictates the version of the API schema you are interacting with. For CSES, recent versions like 2021-03-01 or newer are typically used.

Step-by-Step Guide for Invoke-AzRestMethod¶

To send a REST API request via PowerShell and process the response:

1. Log In to Azure: As with Get-AzCloudService, ensure your PowerShell session is authenticated using Connect-AzAccount.

2. Construct and Send the REST API Request: Use Invoke-AzRestMethod with the appropriate path. You’ll need your subscription ID, resource group name, and CSES resource name. The response will be in JSON format.

   # Replace placeholders with your actual values
   $subscriptionId = (Get-AzContext).Subscription.Id
   $resourceGroupName = "your-resource-group-name"
   $cloudServiceName = "your-cloud-service-name"
   $apiVersion = "2021-03-01" # Use an appropriate API version

   $apiPath = "/subscriptions/$subscriptionId/resourceGroups/$resourceGroupName/providers/Microsoft.Compute/cloudServices/$cloudServiceName?api-version=$apiVersion"

   $csesapiResponse = Invoke-AzRestMethod -Path $apiPath -Method Get

   # Convert the JSON content from the response
   $csesapi = $csesapiResponse.Content | ConvertFrom-Json


   The Invoke-AzRestMethod cmdlet sends an HTTP GET request to the specified API path. The .Content property of the response object holds the raw JSON string, which is then piped to ConvertFrom-Json to transform it into a PowerShell object, $csesapi.
   3. Extract and Convert Configuration to XML: The Cloud Service configuration within the REST API response is nested under the properties object. Extract this property and convert it to XML.

   [xml]$xmlConfig = $csesapi.properties.configuration


   This step is analogous to the PowerShell cmdlet method, ensuring you get a parsable XML object.

Example and Deeper Look at $csesapi Object¶

Let’s look at a complete example that showcases how to use Invoke-AzRestMethod and explores the resulting $csesapi object.

Connect-AzAccount

# Define your resource identifiers
$subscriptionId = (Get-AzContext).Subscription.Id # Automatically get current subscription ID
$resourceGroupName = "MyCloudServiceRG"
$cloudServiceName = "MyWebAppCloudService"
$apiVersion = "2021-03-01" # Recommended API version for CSES

# Construct the REST API path
$apiPath = "/subscriptions/$subscriptionId/resourceGroups/$resourceGroupName/providers/Microsoft.Compute/cloudServices/$cloudServiceName?api-version=$apiVersion"

# Send the REST API request
Write-Host "Sending REST API request to: $apiPath"
$restResponse = Invoke-AzRestMethod -Path $apiPath -Method Get

# Check if the request was successful
if ($restResponse.StatusCode -eq 200) {
    Write-Host "REST API call successful. Status Code: $($restResponse.StatusCode)"
    # Convert the JSON content to a PowerShell object
    $csesapi = $restResponse.Content | ConvertFrom-Json

    # Display some general properties from the REST API response
    Write-Host "Cloud Service Name (from API): $($csesapi.name)"
    Write-Host "Resource ID (from API): $($csesapi.id)"
    Write-Host "Location (from API): $($csesapi.location)"
    Write-Host "OS Profile (from API): $($csesapi.properties.osProfile.family) - $($csesapi.properties.osProfile.version)"

    # Extract and convert the configuration to XML
    [xml]$xmlConfig = $csesapi.properties.configuration
    Write-Host "Configuration successfully retrieved via REST API and converted to XML."
} else {
    Write-Host "REST API call failed. Status Code: $($restResponse.StatusCode)"
    Write-Host "Error Details: $($restResponse.Content)"
}

This script provides robust error handling for the REST API call and demonstrates how to navigate the JSON response structure.

Mermaid Diagram: REST API Request Flow¶

mermaid graph TD A[Start PowerShell Session] --> B(Connect-AzAccount); B --> C(Define API Path Parameters: SubscriptionId, ResourceGroupName, CloudServiceName, ApiVersion); C --> D(Construct Full API Path String); D --> E{Invoke-AzRestMethod -Path $apiPath -Method Get}; E -- HTTP Response --> F(Check Response Status Code); F -- Success (200) --> G(Extract .Content from Response); F -- Failure (!200) --> H(Handle Error / Display Error Content); G --> I(ConvertFrom-Json); I --> J(PowerShell Object: $csesapi); J --> K(Extract Configuration String: $csesapi.properties.configuration); K --> L(Cast to XML: [xml]$xmlConfig); L --> M[Analyze XML Configuration];

The diagram visually represents the flow of operations when using Invoke-AzRestMethod to retrieve the Cloud Service configuration.

Deep Dive into Configuration Data: XML Analysis¶

Regardless of whether you used Get-AzCloudService or Invoke-AzRestMethod, the result is an XML document representing your Cloud Service’s configuration. This XML file is the heart of your deployment, containing details about roles, network settings, certificates, and more.

Sample Cloud Service Configuration XML¶

Let’s revisit the structure of a typical Cloud Service (Extended Support) configuration XML:

<?xml version="1.0" encoding="utf-16"?>
<ServiceConfiguration xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" serviceName="CSESOneWebRoleAI" osFamily="6" osVersion="*" schemaVersion="2015-04.2.6" xmlns="http://schemas.microsoft.com/ServiceHosting/2008/10/ServiceConfiguration">
  <Role name="WebRole1">
    <ConfigurationSettings>
      <Setting name="APPINSIGHTS_INSTRUMENTATIONKEY" value="af542f03-xxxx-xxxx-xxxx-ac17701a8152" />
    </ConfigurationSettings>
    <Instances count="1" />
    <Certificates>
      <Certificate name="cert1" thumbprint="500Dxxxxxxxxxxxx9D5754" thumbprintAlgorithm="sha1" />
    </Certificates>
  </Role>
  <NetworkConfiguration>
    <VirtualNetworkSite name="jerrycses-vnet" />
    <AddressAssignments>
      <InstanceAddress roleName="WebRole1">
        <Subnets>
          <Subnet name="webrole1" />
        </Subnets>
      </InstanceAddress>
    </AddressAssignments>
  </NetworkConfiguration>
</ServiceConfiguration>

This XML schema defines the various components and settings of your Cloud Service. Understanding its hierarchical structure is key to extracting specific pieces of information.

Navigating XML with PowerShell Dot Notation¶

PowerShell makes navigating XML documents incredibly intuitive through its dot notation. Each element in the XML can be accessed as a property of its parent. Attributes of an element are also accessible via dot notation.

For example, to access osFamily or osVersion which are attributes of the ServiceConfiguration root element:

# Assuming $xmlConfig holds the XML document
$osFamily = $xmlConfig.ServiceConfiguration.osFamily
$osVersion = $xmlConfig.ServiceConfiguration.osVersion

Write-Host "OS Family: $osFamily"
Write-Host "OS Version: $osVersion"

To access nested elements, you simply follow the path:

# Accessing the VirtualNetworkSite name
$vnetName = $xmlConfig.ServiceConfiguration.NetworkConfiguration.VirtualNetworkSite.name

Write-Host "Virtual Network Site Name: $vnetName"

Extracting Specific Configuration Details¶

Let’s expand on examples to retrieve more complex or nested data:

1. Role Details: To get the name of a role or the number of instances:

   $roleName = $xmlConfig.ServiceConfiguration.Role.name
   $instanceCount = $xmlConfig.ServiceConfiguration.Role.Instances.count

   Write-Host "Role Name: $roleName"
   Write-Host "Instance Count for Role '$roleName': $instanceCount"


   Note: If there are multiple roles, $xmlConfig.ServiceConfiguration.Role will return an array of role objects. You would then iterate through them, e.g., $xmlConfig.ServiceConfiguration.Role | ForEach-Object { ... }.
   2. Configuration Settings: To get application settings defined within a role:

   $appInsightKeySetting = $xmlConfig.ServiceConfiguration.Role.ConfigurationSettings.Setting | Where-Object {$_.name -eq "APPINSIGHTS_INSTRUMENTATIONKEY"}
   $appInsightKeyValue = $appInsightKeySetting.value

   Write-Host "App Insights Instrumentation Key: $appInsightKeyValue"


2. Certificate Information: To retrieve details about deployed certificates:

   $certificateName = $xmlConfig.ServiceConfiguration.Role.Certificates.Certificate.name
   $thumbprint = $xmlConfig.ServiceConfiguration.Role.Certificates.Certificate.thumbprint
   $thumbprintAlgorithm = $xmlConfig.ServiceConfiguration.Role.Certificates.Certificate.thumbprintAlgorithm

   Write-Host "Certificate Name: $certificateName"
   Write-Host "Certificate Thumbprint: $thumbprint"
   Write-Host "Thumbprint Algorithm: $thumbprintAlgorithm"


3. Subnet Information: To find the subnet associated with a specific role instance address:

   $subnetName = $xmlConfig.ServiceConfiguration.NetworkConfiguration.AddressAssignments.InstanceAddress.Subnets.Subnet.name

   Write-Host "Subnet Name for Instance Address: $subnetName"


Table: Common XML Paths and Data Retrieval Examples¶

Data Point	XML Path (Example)	PowerShell Expression (Example)
OS Family	/ServiceConfiguration/@osFamily	$xmlConfig.ServiceConfiguration.osFamily
OS Version	/ServiceConfiguration/@osVersion	$xmlConfig.ServiceConfiguration.osVersion
Service Name	/ServiceConfiguration/@serviceName	$xmlConfig.ServiceConfiguration.serviceName
Role Name	/ServiceConfiguration/Role/@name	$xmlConfig.ServiceConfiguration.Role.name
Instance Count	/ServiceConfiguration/Role/Instances/@count	$xmlConfig.ServiceConfiguration.Role.Instances.count
App Setting Value	/ServiceConfiguration/Role/ConfigurationSettings/Setting[@name='X']/@value	$xmlConfig.ServiceConfiguration.Role.ConfigurationSettings.Setting | Where-Object {$_.name -eq 'X'} | Select-Object -ExpandProperty value
Certificate Thumbprint	/ServiceConfiguration/Role/Certificates/Certificate/@thumbprint	$xmlConfig.ServiceConfiguration.Role.Certificates.Certificate.thumbprint
Virtual Network Site Name	/ServiceConfiguration/NetworkConfiguration/VirtualNetworkSite/@name	$xmlConfig.ServiceConfiguration.NetworkConfiguration.VirtualNetworkSite.name
Subnet Name	/ServiceConfiguration/NetworkConfiguration/AddressAssignments/InstanceAddress/Subnets/Subnet/@name	$xmlConfig.ServiceConfiguration.NetworkConfiguration.AddressAssignments.InstanceAddress.Subnets.Subnet.name

This table provides a quick reference for commonly sought-after configuration items and their corresponding PowerShell access paths.

Advanced Scenarios and Best Practices¶

Retrieving configuration is often just the first step. For robust cloud operations, consider these advanced scenarios and best practices.

Automating Configuration Retrieval for Auditing¶

Regularly retrieving and logging your Cloud Service configurations is crucial for auditing and compliance. You can schedule PowerShell scripts to run periodically using Azure Automation Accounts or local Task Scheduler. This allows you to track changes over time and ensure that configurations align with your organizational policies. Storing these configurations in a version control system like Git, perhaps in JSON or XML format, can provide a historical log of all modifications.

Comparing Configurations¶

When troubleshooting issues or planning updates, comparing current configurations with previous versions or baseline configurations is invaluable. You can retrieve two XML configurations and then use PowerShell’s XML comparison capabilities or simple string comparison after converting them to a common format. Tools like Compare-Object can also be adapted for this purpose by comparing properties after parsing the XML.

Security Considerations¶

When scripting configuration retrieval, always adhere to the principle of least privilege. The Azure identity used by Connect-AzAccount or Invoke-AzRestMethod should only have “Reader” permissions on the Cloud Service resource. Avoid using highly privileged accounts for routine automation tasks. Furthermore, protect any scripts or credentials used in automation workflows, especially if sensitive information (like API keys in configuration settings) is involved. Azure Key Vault is an ideal solution for securely storing and accessing such secrets.

Error Handling in Scripts¶

Production-grade scripts should always include robust error handling. Wrap your PowerShell commands in try-catch blocks to gracefully handle potential failures, such as network issues, authentication problems, or resources not found.

try {
    Connect-AzAccount -ErrorAction Stop
    $cses = Get-AzCloudService -ResourceGroupName "NonExistentRG" -CloudServiceName "MyService" -ErrorAction Stop
    [xml]$xmlConfig = $cses.Configuration
    Write-Host "Configuration retrieved."
}
catch {
    Write-Error "An error occurred: $($_.Exception.Message)"
}

Using -ErrorAction Stop for cmdlets ensures that non-terminating errors are converted into terminating errors, allowing the catch block to execute.

Beyond Configuration: Deeper Insights¶

While this article focuses on the configuration XML, remember that the $cses object (from Get-AzCloudService) and $csesapi object (from Invoke-AzRestMethod) contain many other properties about your Cloud Service. Explore these objects using Get-Member to discover additional details like instance statuses, IP addresses, and monitoring settings, which can be invaluable for comprehensive management.

$cses | Get-Member
$csesapi | Get-Member

These commands will list all properties and methods available on the respective objects, opening up possibilities for deeper programmatic interaction with your Azure Cloud Services.

Visual Guide: Managing Azure Cloud Services (Extended Support)¶

For those who prefer a visual learning approach or want to see the management in action, consider exploring this general resource about Azure Cloud Services. While not directly specific to PowerShell configuration retrieval, it provides foundational context.

Video: Introduction to Azure Cloud Services (Extended Support)

(Note: This video is a general example and may not cover the exact PowerShell commands discussed, but it offers a broader perspective on the service.)

Conclusion¶

Retrieving and interpreting Azure Cloud Service (Extended Support) configurations is a vital skill for anyone managing cloud deployments on Azure. Whether you opt for the directness of Get-AzCloudService or the flexibility of Invoke-AzRestMethod for REST API interaction, PowerShell provides powerful tools to accomplish this. By understanding the structure of the returned XML and applying effective parsing techniques, you gain complete visibility into your deployments.

This knowledge empowers you to build robust automation, implement rigorous auditing, and ensure your Cloud Services operate efficiently and securely. Embrace these techniques to take full control of your Azure Cloud Service (Extended Support) environments.

What challenges have you faced when trying to retrieve or interpret your Cloud Service configurations? Share your experiences and tips in the comments below!
