Windows Graphics Performance Plummets: Experience Index Reports Shockingly Low Score

Updated: • 0 • min read
Table of Contents

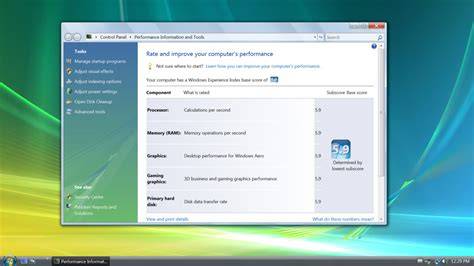

Windows Experience Index Low Score

The Windows Experience Index (WEI), a feature prominently introduced in Windows Vista and carried over into Windows 7, served as a valuable tool for both end-users and system builders. It aimed to provide a quick, understandable metric of a computer’s hardware and software performance capabilities. By generating a base score and subscores for key components like processor, memory, graphics, and hard disk, WEI offered a snapshot of a system’s overall prowess and identified potential bottlenecks. However, during the crucial phase of imaging and deployment for Windows 7, some system builders and OEMs encountered a perplexing issue: the WEI scores, particularly for graphics, would report a shockingly low “1.0.” This article delves into the intricacies of this problem, its root cause, and provides a comprehensive solution for ensuring accurate performance assessments.

The Confounding Symptoms: A “1.0” Score Post-Deployment

System builders and original equipment manufacturers (OEMs) often follow a rigorous process when preparing systems for mass deployment. This typically involves building a pristine Windows 7 image, integrating all necessary drivers and supplemental software components, and then running specialized tools to optimize the image before sealing it for distribution. One such optimization step involves the WinSAT prepop command, designed to pre-populate the Windows Experience Index scores, thereby saving time during the end-user’s initial setup.

The workflow typically unfolds as follows: an image is meticulously constructed, WinSAT prepop is executed to benchmark the system’s performance, and then the sysprep tool is utilized to generalize and seal the image for deployment. Upon the first boot by an end-user, after navigating through the Out-of-Box Experience (OOBE), a critical anomaly would sometimes emerge. Instead of reflecting the true capabilities of the hardware, the Windows Experience Index score would display a perplexing “1.0.” More specifically, the graphics subscore, a key indicator of desktop and gaming performance, would also register as “1.0,” suggesting a severe underperformance that was clearly inconsistent with the installed hardware.

Further investigation into the system’s diagnostics would reveal compelling evidence of this assessment failure. By navigating to the C:\Windows\Performance\WinSAT\DataStore folder and examining the DWM.Assessment (Prepop).WinSAT.xml file, system administrators would often find a telling entry within the XML structure. This entry, nested under the <GraphicsScore> tag, would explicitly state: LimitApplied Friendly="Limiting DWM Score to 1.0 - no DWM performance score". This crucial log message confirms that the WinSAT assessment for the Desktop Window Manager (DWM) graphics performance had failed, leading the system to default to the lowest possible score. Such an outcome not only misrepresents the system’s actual performance but can also lead to user dissatisfaction and unnecessary troubleshooting efforts.

Understanding the Windows Experience Index Components

To fully appreciate the impact of a “1.0” graphics score, it’s essential to understand the individual components of the Windows Experience Index. Each component was designed to measure a specific aspect of system performance, contributing to an overall base score which was determined by the lowest individual subscore. This design meant that a single underperforming component could drag down the entire system’s perceived performance rating.

The WEI comprised five primary subscores:

  • Processor: Measures the speed and capability of the CPU, reflecting how quickly the system can execute instructions and handle multiple tasks.
  • Memory (RAM): Assesses the system’s RAM, indicating its capacity for multitasking and running memory-intensive applications efficiently.
  • Graphics (Desktop performance for Windows Aero): Evaluates the graphics card’s ability to handle the Windows Aero interface, including transparency effects and smooth window animations. This score is particularly relevant for the DWM.
  • Gaming Graphics (3D business and gaming performance): Benchmarks the graphics card’s prowess in handling 3D applications, complex visual effects, and modern games, crucial for gaming enthusiasts and professional users.
  • Primary hard disk: Measures the data transfer rate of the primary storage drive, reflecting how quickly the system can read and write files.

The graphics subscores were especially critical in Windows 7 due to the heavy reliance on the Desktop Window Manager (DWM) for rendering the Aero Glass interface. A low DWM score would imply that the system was struggling to render the default desktop experience, which was often a significant user concern. A “1.0” score in any of these categories, especially graphics, could wrongly suggest a critically underpowered machine, regardless of the actual hardware specifications.

The Technical Underpinnings: Why WinSAT Failed

The root cause of this perplexing “1.0” score lies in a specific interaction between system components introduced with Windows 7. Windows 7 marked a significant evolution in system diagnostics, notably with the integration of the Diagnostics Performance kernel component, often referred to as PerfTrack. PerfTrack was designed to provide in-depth insights into system performance, aiding in troubleshooting and optimization by continuously monitoring various kernel events and processes. Its introduction aimed to make Windows more robust and responsive by offering developers and administrators more granular performance data.

Central to the WinSAT assessment process, and indeed many other system monitoring activities, is the Circular Kernel Context Logger (CKCL). The CKCL is a vital kernel-level logging mechanism that captures a continuous stream of system events and performance data. WinSAT relies heavily on CKCL to collect the necessary metrics required to accurately benchmark a system’s processor, memory, and especially graphics performance. By analyzing the data recorded by CKCL, WinSAT can derive the complex calculations needed to generate the Windows Experience Index scores.

The conflict arises from inherent timing factors within the operating system. Occasionally, due to specific sequences of operations or system loads, PerfTrack might inadvertently stop the Circular Kernel Context Logger (CKCL) precisely when WinSAT is in the midst of utilizing it for a performance assessment. This interruption is not intentional but rather a side effect of concurrent diagnostic activities. When CKCL is stopped mid-assessment, WinSAT loses its primary source of real-time performance data. Without the continuous flow of metrics from CKCL, WinSAT is unable to complete its calculations accurately. In such scenarios, instead of providing a partially calculated or erroneous score, WinSAT defaults to the lowest possible score of “1.0” for the affected component, signaling that the assessment was incomplete or inconclusive. This mechanism acts as a safeguard, preventing the system from reporting potentially misleading performance figures when a full assessment cannot be performed.

Visualizing the Conflict

To better understand this interaction, consider the following simplified sequence of events that can lead to the issue:

mermaid graph TD A[System Builder runs WinSAT prepop] --> B(WinSAT initiates performance assessment); B --> C(WinSAT requests data from CKCL); C --> D{CKCL starts logging kernel events}; subgraph Concurrent Processes E[PerfTrack monitors system diagnostics]; D -- "Timing Conflict Occurs" --> F(PerfTrack stops CKCL); end F --> G{CKCL stops unexpectedly}; G --> H(WinSAT's data stream is interrupted); H --> I(WinSAT cannot complete assessment); I --> J[WinSAT reports Graphics Score: 1.0];

This diagram illustrates how a timing conflict during concurrent diagnostic processes can disrupt WinSAT’s ability to complete its performance assessment, resulting in the misleading “1.0” graphics score. The unexpected halt of CKCL is the critical point where the data collection process fails, leading to the default low score.

Impact of Incorrect WEI Scores

Beyond the technical explanation, the practical implications of consistently incorrect Windows Experience Index scores can be significant, particularly for system builders, OEMs, and even end-users. For system builders and OEMs, the WEI was often a pre-validation metric, a quick check to ensure that the deployed systems met a certain performance baseline. A “1.0” score, if not properly understood, could lead to unwarranted concerns about hardware quality or software compatibility issues, potentially causing delays in product shipment or triggering unnecessary diagnostic procedures.

Furthermore, these incorrect scores could erode customer confidence. Imagine a customer purchasing a new Windows 7 PC with powerful graphics hardware, only to see a “1.0” graphics score in their system properties. This immediate visual cue suggests a severely underperforming machine, even if the actual gaming and desktop experience is perfectly smooth. This can lead to increased support calls, warranty claims, and general dissatisfaction, all stemming from a diagnostic anomaly rather than an actual hardware flaw. Therefore, resolving this issue was not just a technical fix but also a matter of maintaining product quality perception and customer trust.

The Resolution: Restoring Accurate Performance Metrics

Fortunately, resolving the issue of the erroneous “1.0” Windows Experience Index score can be approached with both a simple, immediate fix for individual instances and a more robust workaround for system builders performing mass deployments. Understanding both methods is key to effectively managing this particular Windows 7 quirk.

Immediate Fix: Rerunning the Assessment

For an individual end-user who encounters this issue, or for a system builder performing a quick check on a single machine, the most straightforward solution is to simply rerun the Windows Assessment (WinSAT). This typically involves navigating through the Control Panel to the “Performance Information and Tools” section and initiating a re-evaluation of the system’s performance. The reason this often works is that the timing conflict between PerfTrack and CKCL is intermittent. A subsequent run of WinSAT is likely to proceed without the same conflict, allowing CKCL to operate uninterrupted and enabling WinSAT to gather all necessary data to calculate the graphics score correctly.

To manually rerun the assessment:

  1. Click the Start button, then click Control Panel.
  2. Navigate to System and Security, then click Performance Information and Tools.
  3. Click Re-run the assessment on the bottom right of the window.

The system will then perform a new assessment, and in most cases, the graphics score, along with other components, will be accurately calculated and displayed. This simple step can quickly alleviate concerns about perceived underperformance.

Advanced Workaround for System Builders and OEMs

For system builders and OEMs who frequently encounter this issue during the image creation and deployment process, a more programmatic and integrated workaround is necessary. This method involves temporarily disabling the diagnostic tracing feature, which directly addresses the intermittent conflict between PerfTrack and CKCL. The process requires modifying the system registry within the Windows image before and after running WinSAT prepop and sysprep.

Here are the detailed steps for this workaround:

Step 1: Disable Diagnostic Tracing in WinPE

The first step is to prepare your Windows 7 image by temporarily disabling the diagnostic tracing that can interfere with WinSAT. This must be done from a WinPE (Windows Preinstallation Environment) session, allowing you to modify the offline Windows system hive. You’ll add specific commands to a batch file and execute it.

reg load HKLM\TempHiv %WinDRV%\Windows\system32\config\system
reg add HKLM\TempHiv\ControlSet001\Control\Diagnostics\Performance /v DisableDiagnosticTracing /t REG_DWORD /d 1 /f
reg unload HKLM\TempHiv
  • reg load HKLM\TempHiv %WinDRV%\Windows\system32\config\system: This command loads the system registry hive from the offline Windows installation (located at %WinDRV%\Windows\system32\config\system) into a temporary location in the current WinPE registry, named TempHiv. This allows you to modify the registry of the target Windows image without it being active.
  • reg add HKLM\TempHiv\ControlSet001\Control\Diagnostics\Performance /v DisableDiagnosticTracing /t REG_DWORD /d 1 /f: This command adds or modifies a registry entry within the loaded TempHiv.
    • /v DisableDiagnosticTracing: Specifies the value name to be modified.
    • /t REG_DWORD: Sets the data type as a DWORD.
    • /d 1: Sets the value data to 1, which effectively disables diagnostic tracing.
    • /f: Forces the operation without prompting for confirmation.
  • reg unload HKLM\TempHiv: After the modification, this command unloads the temporary hive, saving the changes back to the offline Windows image.

Step 2: Reboot and Run WinSAT prepop

After disabling diagnostic tracing, reboot the system into the Windows 7 image (if not already booted into it, for instance, if you were in audit mode), then proceed to run the WINSAT prepop command. With diagnostic tracing temporarily disabled, the likelihood of PerfTrack interfering with CKCL during the WinSAT assessment is significantly reduced, allowing for accurate score generation.

Step 3: Run Sysprep

Once the WinSAT prepop command has successfully completed and generated the correct scores, run the sysprep tool. Sysprep (System Preparation Tool) is crucial for generalizing a Windows installation, preparing it for deployment to multiple computers by removing system-specific information. This step seals the image, preserving the pre-calculated WEI scores for the end-user.

Step 4: Re-enable Diagnostic Tracing in WinPE

After sysprep has sealed the image, you must re-enable diagnostic tracing. This is vital to ensure that all system diagnostic functionalities are restored for the deployed systems. Again, this must be done from a WinPE environment against the offline image.

reg load HKLM\TempHiv %WinDRV%\Windows\system32\config\system
reg add HKLM\TempHiv\ControlSet001\\Control\\Diagnostics\\Performance /v DisableDiagnosticTracing /t REG_DWORD /d 0 /f
reg unload HKLM\TempHiv
  • The commands are largely similar to Step 1, but the key difference is the value data /d 0, which sets DisableDiagnosticTracing back to 0, effectively re-enabling diagnostic tracing.

This comprehensive workaround ensures that the Windows Experience Index scores are accurately captured during the image preparation phase, while also guaranteeing that critical system diagnostic features remain fully functional in the deployed environment.

Workflow Overview for OEMs/System Builders

To visualize the entire process, consider the following workflow diagram for integrating this fix into an imaging pipeline:

mermaid graph TD A[Start Image Creation] --> B(Install Windows 7 & Components); B --> C(Enter Audit Mode / WinPE); C --> D{Run Batch: Disable Diagnostic Tracing}; D --> E(Reboot into Image); E --> F{Run WINSAT prepop}; F --> G(Verify WEI Scores); G --> H{Run Sysprep to Generalize & Seal}; H --> I(Reboot into WinPE); I --> J{Run Batch: Re-enable Diagnostic Tracing}; J --> K[Image Ready for Deployment];

This sequence ensures that the WEI scores are accurately generated under controlled conditions, and the system’s diagnostic capabilities are fully restored before the image is finalized for distribution.

The Legacy of the Windows Experience Index

While the Windows Experience Index was a popular and frequently referenced feature in Windows Vista and Windows 7, its journey eventually concluded with the release of Windows 8.1, where it was officially removed from the graphical user interface. This decision reflected a shift in Microsoft’s approach to performance metrics and system diagnostics. The WEI, despite its user-friendly appeal, had limitations in providing highly granular or real-time performance data that more advanced users and administrators often required.

The rise of dedicated benchmarking software and more sophisticated built-in diagnostic tools meant that the simplified, aggregated score of the WEI became less critical. However, its historical significance remains. For many years, it served as a straightforward benchmark, helping users understand their system’s capabilities relative to others and guiding upgrade decisions. Its removal paved the way for more nuanced performance monitoring tools that offered deeper insights into system behavior, but for its time, the WEI provided an accessible snapshot of performance that millions of users came to appreciate. This particular issue highlights the complexity of system interactions that can arise even from seemingly simple benchmarking tools and the innovative solutions required to ensure accurate results in a mass deployment scenario.

Best Practices for System Deployment

Beyond addressing specific issues like the WEI score discrepancy, system builders and OEMs should always adhere to general best practices for Windows image deployment. These practices ensure stability, performance, and a consistent user experience across all deployed systems.

  1. Driver Management: Always integrate the latest stable and WHQL-certified drivers for all hardware components. Outdated or incorrect drivers are a common source of performance issues and instability.
  2. Software Integration: Carefully select and integrate only necessary software. Bloatware can significantly degrade performance and increase image size.
  3. Thorough Testing: Conduct extensive testing of the master image on various hardware configurations that represent the target deployment environment. This includes performance benchmarks, stability tests, and compatibility checks.
  4. Security Updates: Ensure the image is up-to-date with the latest security patches and updates before deployment.
  5. Automation: Utilize deployment tools such as Microsoft Deployment Toolkit (MDT) or System Center Configuration Manager (SCCM) to automate the imaging process, reducing human error and ensuring consistency.
  6. Post-Deployment Validation: Implement a validation step post-deployment to confirm that all system components, including performance indices, are functioning as expected.

By following these best practices, along with targeted solutions for known issues like the WEI graphics score problem, system builders can deliver high-quality, reliable, and performant Windows systems to their customers.

Conclusion

The occasional reporting of a “1.0” graphics subscore in the Windows Experience Index during Windows 7 image deployment was a specific technical challenge that could lead to misperceptions about system performance. Caused by an intermittent timing conflict between the Diagnostics Performance kernel component (PerfTrack) and the Circular Kernel Context Logger (CKCL), it prevented WinSAT from accurately assessing graphics performance. While a simple re-run of the assessment often sufficed for individual cases, system builders and OEMs required a more robust solution. The workaround involving the temporary disabling and re-enabling of diagnostic tracing within the registry during the image preparation phase proved to be an effective strategy. This not only ensured that systems would display their true performance capabilities but also maintained the integrity of system diagnostics. Understanding such intricate system interactions and their practical resolutions is paramount for professionals engaged in large-scale Windows deployments, ensuring accurate system reporting and ultimately, user satisfaction.

We hope this detailed explanation and resolution have provided clarity on this specific Windows 7 deployment issue. Have you encountered similar challenges with system performance metrics during image deployment? Share your experiences and any alternative solutions you’ve discovered in the comments section below! Your insights are invaluable to the community.
