Windows Server Upgrade Crashing? Fix Error 0x000000C4 Now

Table of Contents

Upgrading a server operating system is a critical task that often requires meticulous planning and execution. However, administrators occasionally encounter unexpected errors that can halt the process, leading to frustration and downtime. One such persistent issue encountered during Windows Server upgrades, particularly in virtualized environments, is the 0x000000C4 error code. This article delves into the specifics of this error, exploring its root causes and providing a definitive solution to ensure a successful upgrade of your Windows Server computer.

This particular error typically manifests when attempting to transition from an older Windows Server version, such as Windows Server 2008 R2, to Windows Server 2012. The underlying problem is deeply connected to how virtual hardware features are presented to the guest operating system within a VMware ESXi environment. Understanding the interplay between modern OS requirements and hypervisor configurations is key to resolving this challenge efficiently.

Understanding the Symptoms: The Upgrade Halts Unexpectedly¶

When initiating an in-place upgrade from Windows Server 2008 R2 to Windows Server 2012 on a VMware ESXi virtual machine, the setup process may abruptly fail. This failure often occurs during the initial phases of the upgrade, preventing the installation from completing successfully. Instead of progressing, the system will display a critical error message.

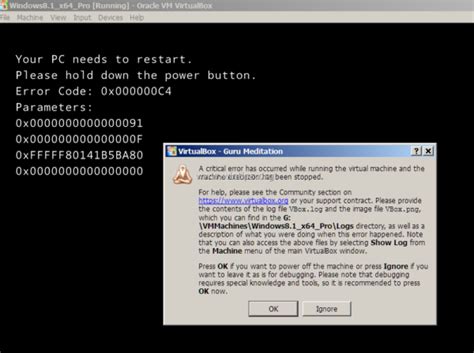

The exact error message presented to the user is typically concise and directs immediate action. It states: “Your PC needs to restart. Please hold down the power button. Error Code: 0x000000C4.” This message clearly indicates a severe system instability that prevents further operation, forcing an immediate shutdown or restart. Recognizing this specific error code is the first step in diagnosing and rectifying the underlying problem in your virtualized server environment.

Deciphering the Cause: PAE/NX/SSE2 Requirements and CPU Identification Masking¶

The core of the 0x000000C4 error lies in the fundamental processor requirements of Windows Server 2012 (and Windows 8). These modern operating systems mandate that the underlying processor supports specific features: Physical Address Extension (PAE), No-Execute (NX) bit or Execute Disable (XD) bit, and Streaming SIMD Extensions 2 (SSE2). These features are crucial for memory management, security, and performance.

Physical Address Extension (PAE) enables 32-bit processors to access more than 4 gigabytes (GB) of physical memory, enhancing memory management capabilities. The No-Execute (NX) bit (or eXecute Disable (XD) bit for Intel processors) is a security feature that marks certain areas of memory as non-executable. This helps prevent buffer overflow attacks and malicious code from running in privileged memory spaces. Finally, Streaming SIMD Extensions 2 (SSE2) is an instruction set that significantly improves multimedia and general processing performance. Windows Server 2012’s setup process strictly checks for the presence and enablement of these capabilities.

In a virtualized environment running on VMware ESXi, a feature known as CPU Identification Masking plays a critical, yet sometimes problematic, role. This hypervisor-level capability allows administrators to control which CPU features are exposed or hidden from guest virtual machines. While useful for scenarios like ensuring vMotion compatibility between hosts with different CPU generations, masking can inadvertently hide essential processor flags from the guest OS. Specifically, it can obscure the NX/XD flag, even when the physical host CPU fully supports it.

The consequences of this masking are direct and impactful. When the ESXi hypervisor hides the NX/XD flag, the Windows Server 2012 setup routine perceives these critical security and performance features as absent from the virtual CPU. This misinterpretation triggers the 0x000000C4 error, as the operating system’s installation prerequisites are not met. This issue is particularly prevalent when the upgrade or installation process involves Windows Preinstallation Environment (WinPE) versions 4.0 or 5.0, which are highly sensitive to these specific CPU feature detections.

mermaid graph TD A[Physical CPU] --> B{Supports PAE/NX/SSE2}; B -- Yes --> C[VMware ESXi Hypervisor]; C --> D{CPU Identification Masking Enabled?}; D -- Yes, Masking NX/XD --> E[Virtual Machine (Guest OS)]; D -- No, Exposing NX/XD --> F[Virtual Machine (Guest OS)]; E -- Windows Server 2012 Setup --> G[Error 0x000000C4: Setup Fails]; F -- Windows Server 2012 Setup --> H[Setup Proceeds Successfully];
Figure 1: Conceptual diagram illustrating how CPUID Masking on VMware ESXi can lead to the 0x000000C4 error during Windows Server 2012 setup.

The Resolution: Exposing the NX/XD Flag to the Guest¶

Resolving the 0x000000C4 error involves directly addressing the CPU Identification Masking settings within your VMware ESXi environment. The solution requires configuring the virtual machine to explicitly expose the NX/XD flag to its guest operating system. This adjustment ensures that the Windows Server 2012 setup correctly detects the required processor features, allowing the installation to proceed without interruption.

To implement this fix, you will need to access the virtual machine settings through your vSphere Client or vCenter Server interface. Navigate to the specific virtual machine that is experiencing the upgrade failure. Within the virtual machine’s settings, locate the CPU configuration options, often found under the “CPU” or “CPUID Mask” section. Here, you will find an option to manage CPU feature exposure.

The specific setting you are looking for is typically labeled as “Expose the NX/XD flag to guest” or similar. You need to ensure that this option is enabled. Once enabled, this setting overrides the hypervisor’s default masking behavior for the NX/XD bit, making it visible to the guest OS. This action effectively satisfies Windows Server 2012’s prerequisite for these processor capabilities. After making this change, remember to save the virtual machine settings and then attempt the Windows Server upgrade again. A restart of the virtual machine may be required for the new CPU settings to take full effect before retrying the upgrade process.

[Video: Configuring Virtual Machine CPU Settings in VMware vSphere Client]
(Please note: As a text-based AI, I cannot generate live video. The following is a placeholder for a relevant YouTube video link if one were available and appropriate from the original article. For this scenario, you would typically embed a tutorial on how to access and modify VM CPU settings in vSphere.)

More Information and Best Practices¶

It’s noteworthy that this specific issue is not commonly observed when creating a new Windows Server 2012 virtual machine from scratch. This is because when you select Windows Server 2012 as the guest operating system type during the VM creation wizard in vSphere, the hypervisor often defaults to enabling the “Expose the NX/XD flag to guest” setting automatically. This intelligent default ensures that newly provisioned VMs for modern operating systems meet their crucial hardware requirements from the outset.

However, the problem becomes evident in upgrade scenarios where an existing Windows Server 2008 R2 VM, which might not have had this flag exposed, is attempting to upgrade. Additionally, this 0x000000C4 error can also surface in large-scale deployments of operating systems using tools like System Center 2012 Configuration Manager (SCCM). Automated deployment processes frequently leverage WinPE images for installation, and if the target VMs are not correctly configured with the NX/XD flag exposed, these deployments will similarly fail. Ensuring your VM templates and deployment tasks account for this setting is paramount for smooth, automated upgrades.

Deep Dive: Why PAE/NX/SSE2 are Critical¶

Modern operating systems like Windows Server 2012 rely heavily on advanced processor features to deliver optimal performance, enhanced security, and robust memory management. PAE is crucial for servers requiring access to large amounts of RAM, moving beyond the 4GB limit traditionally associated with 32-bit architecture. While Windows Server 2012 is a 64-bit OS, the underlying PAE mechanism is foundational for how memory is addressed.

The NX/XD bit, as a hardware-enforced security feature, is indispensable for protecting against a wide array of exploits. By preventing code execution in data-only memory regions, it significantly raises the bar for malicious software to compromise the system. Without this protection, the operating system is more vulnerable to buffer overflow attacks, which are a common vector for injecting and executing harmful code. Its absence would compromise the fundamental security posture of the server.

SSE2 provides critical performance enhancements for various computing tasks, including multimedia processing, scientific calculations, and database operations. These instruction sets allow processors to perform the same operation on multiple data items simultaneously, leading to substantial speedups. For a server operating system handling diverse workloads, the availability of SSE2 directly translates into more efficient processing and improved responsiveness. Therefore, the strict requirement for these features by Windows Server 2012 is a measure to ensure the stability, security, and performance of the installed OS.

Pre-Upgrade Checklist for Virtualized Environments¶

To prevent issues like Error 0x000000C4 and other common upgrade pitfalls, a comprehensive pre-upgrade checklist for virtual machines is highly recommended:

• Create Snapshots and Backups: Before initiating any major OS upgrade, always create a snapshot of your VM and perform a full backup. This provides a crucial rollback point in case the upgrade fails or introduces unforeseen issues.
• Update VMware Tools: Ensure that VMware Tools are up-to-date and compatible with your ESXi version. Updated tools often provide better driver support and optimized performance for the guest OS.
• Verify Virtual Hardware Compatibility: Check that your VM’s virtual hardware version is compatible with Windows Server 2012. Upgrading the virtual hardware version might be necessary, but this should be done before the OS upgrade.
• Allocate Sufficient Resources: Confirm that the VM has adequate CPU cores, memory, and disk space allocated for Windows Server 2012. Insufficient resources can lead to performance problems or even upgrade failures.
• Review VMware HCL (Hardware Compatibility List) and Product Interoperability Matrix: These resources from VMware provide essential information regarding compatibility between ESXi versions, virtual hardware, and supported guest operating systems.
• Check Disk Space: Ensure there is ample free disk space on the system drive for the upgrade process, which often requires significant temporary storage.
• Disable Unnecessary Services/Applications: Temporarily disabling non-essential services or applications can reduce conflicts during the upgrade.
• Run Pre-Upgrade Analysis Tools: Windows Server sometimes offers pre-upgrade advisors that can identify potential compatibility issues before you commit to the upgrade.
• Document Everything: Keep a detailed record of all changes made, including configurations, error messages, and successful resolutions.

Adhering to a thorough pre-upgrade checklist significantly mitigates risks and increases the likelihood of a smooth transition to the new server operating system.

Conclusion¶

The 0x000000C4 error during a Windows Server 2012 upgrade in a VMware ESXi environment is a specific challenge with a clear technical resolution. By understanding the critical processor requirements of modern operating systems—namely PAE, NX/XD, and SSE2—and how VMware’s CPU Identification Masking can inadvertently obscure these features, administrators can effectively troubleshoot and resolve this issue. Ensuring the “Expose the NX/XD flag to guest” setting is enabled in your virtual machine’s CPU configuration is the definitive solution.

Beyond this specific error, maintaining robust virtualization best practices, including regular updates, thorough pre-upgrade checks, and diligent documentation, is paramount for the stability and security of your virtual infrastructure. Proactive management and a clear understanding of underlying technologies empower IT professionals to navigate complex upgrade scenarios with confidence.

Have you encountered the 0x000000C4 error during your Windows Server upgrades? Share your experiences and any additional tips you may have in the comments below! Your insights can help other professionals facing similar challenges.
